Segway Ninebot Minipro N3M320 Balancing Transporter

Thanks for choosing the miniPRO!

Thanks for choosing the Ninebot by Segway miniPRO (hereinafter referred to as miniPRO)! Your miniPRO is a revolutionary electric balancing vehicle featuring a mobile device application. Enjoy your ride!

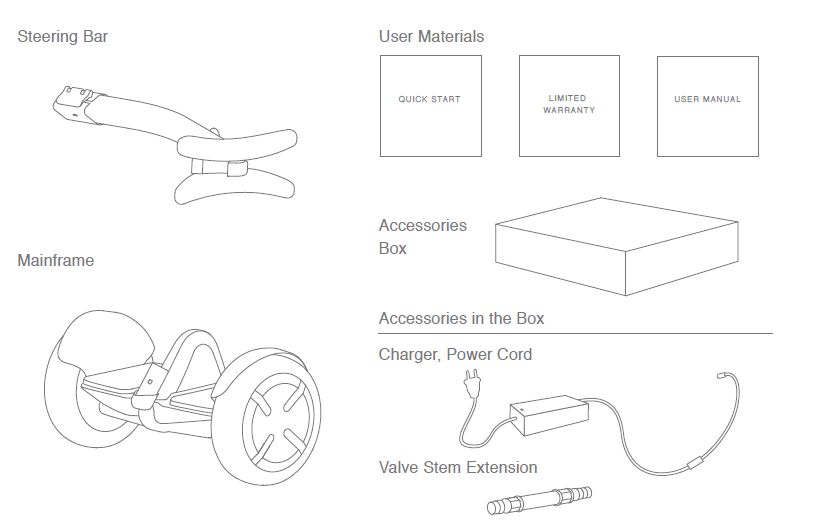

Packing List

When unpacking your miniPRO, please verify that the above items are included in the package. If you are missing any components, please contact your dealer/distributor or email [email protected]. After verifying that all components are present and in good condition, you can assemble your new miniPRO.

Please retain the box and packaging materials in case you need to ship your miniPRO in the future. Remember to power off your miniPRO and unplug the charge cable before assembling, mounting accessories, or cleaning the mainframe.

Riding Safety

• The miniPRO is a recreational product, which is different from motor vehicles driven on the road. Before mastering riding skills, you need to practice. Neither Ninebot Inc. nor Segway Inc. is responsible for any injuries or damage caused by a rider’s inexperience or failure to follow the instructions in this document.
• Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the miniPRO, you risk injury or death from loss of control, collisions, and falls. When entering public spaces, always comply with the local laws and regulations. As with other vehicles, faster speeds require longer braking distances. Sudden braking on smooth surfaces could lead to wheel slip, loss of balance, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.
• Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing.
• In places without laws and regulations governing self-balancing electric vehicles, comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
• Do not allow anyone to ride the miniPRO on his/her own unless they have carefully read this manual, watched the safety video, and followed the New Rider Tutorial on the Ninebot by Segway App. The safety of new riders is your responsibility. Spot new riders until they are comfortable with the basic operation of the miniPRO. Make sure each new rider wears a helmet and other protective gear.
• Before each ride, check for loose fasteners, damaged components, and low tire pressure. If the miniPRO makes abnormal sounds or signals an alarm, immediately stop riding. Diagnose your miniPRO via the Ninebot by Segway App and call your dealer/distributor for service.
• Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with a chin strap in place and provides protection for the back of your head.
• Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.
• Be alert! Scan both far ahead and in front of your miniPRO — your eyes are your best tool for safely avoiding obstacles and low-traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
• To reduce the risk of injury, you must read and follow all “CAUTION” and “WARNING” notices in this document. Do not ride at an unsafe speed. Under no circumstances should you ride on roads with motor vehicles. Always follow these safety instructions:
• The following people should not ride the miniPRO:
• Anyone under 16 years old or above 60 years old. Riders between 16-18 years old should ride under adult supervision.
• Anyone under the influence of alcohol or drugs.
• Anyone who suffers from a disease that puts them at risk if they engage in strenuous physical activity.
• Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
• Anyone whose height or weight is outside the stated limits (see Specifications).
• Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
• To ride safely, you must be able to clearly see what is in front of you, and you must be clearly visible to others.
• Do not ride in the snow, in the rain, or on roads that are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.
• Do not accelerate or decelerate suddenly. Do not accelerate when the miniPRO tilts back or sounds an alarm.
• Do not attempt to override the speed limiter.
• Do not insert the power cord if the charge port is wet.
• Use a surge protector when charging to help protect your miniPRO from damage due to power surges and voltage spikes. Only use the Ninebot by Segway supplied charger. Do not use a charger from any other product.
• Use only Ninebot by Segway-approved parts and accessories. Do not modify your miniPRO. Modifications to your miniPRO could interfere with the operation of the miniPRO and could result in serious injury and/or damage, and could void the Limited Warranty.
• Do not sit on the steering bar. Doing so could result in serious injury and/or damage to your miniPRO.

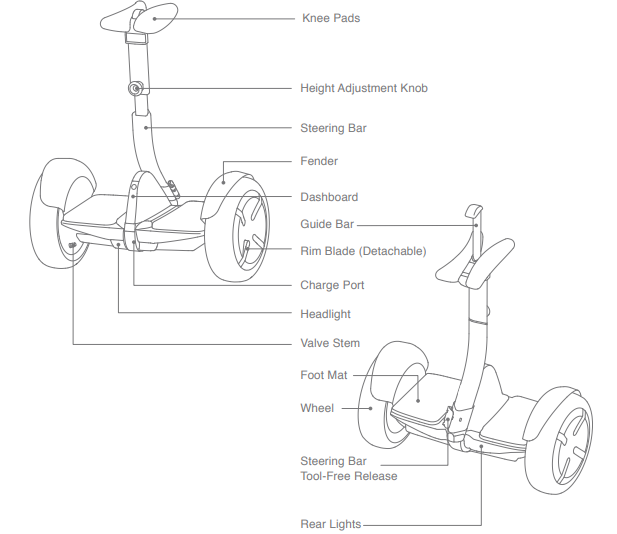

Diagram

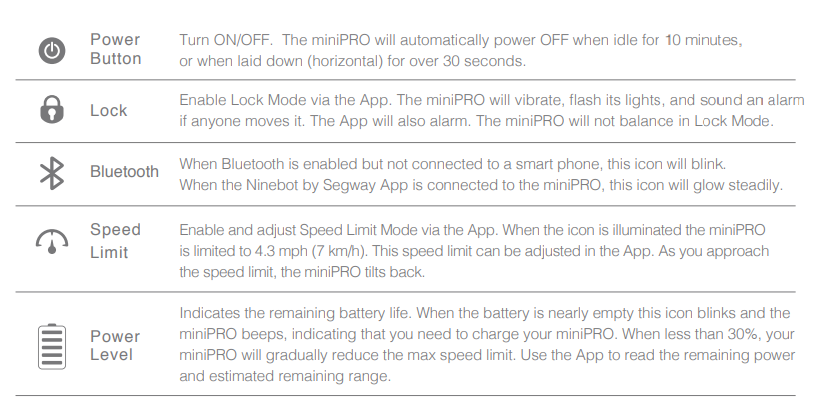

Dashboard Icons

Assembling Your miniPRO

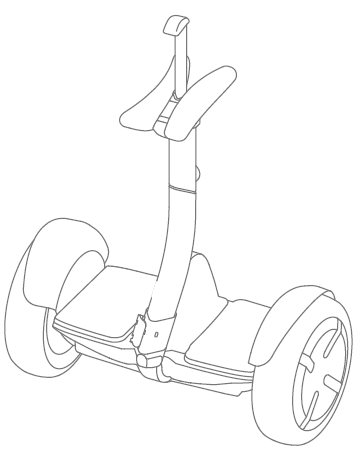

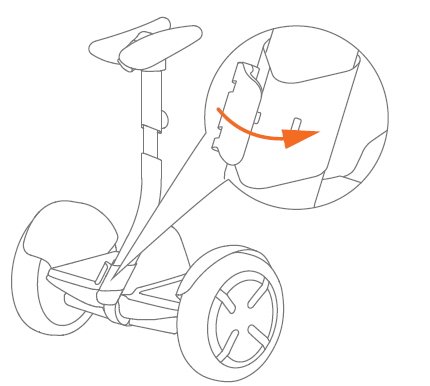

Install the steering bar

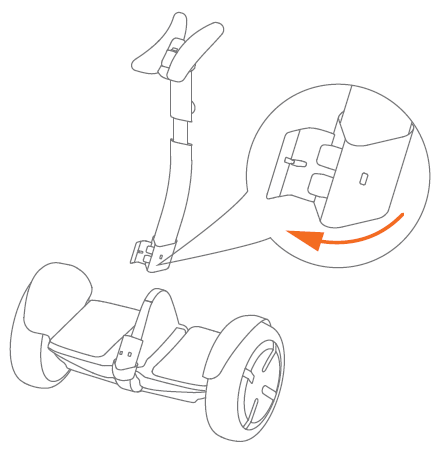

• Open the tool-free release as shown.

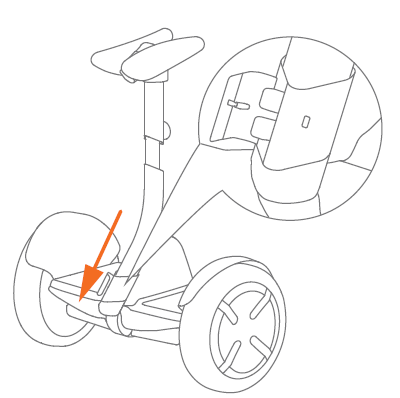

• Insert the steering bar into the mainframe steering socket.
• Close the tool-free release to secure.

Check the Power ON/OFF status after assembly. For your safety, your miniPRO is not activated at this time and will beep occasionally after Power ON. Until activated, the miniPRO maintains a very low riding speed and steering sensitivity, and should not be ridden.

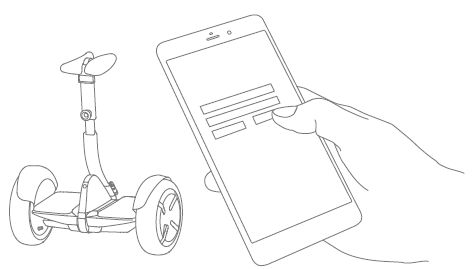

Install the Ninebot by Segway App on your mobile device (with Bluetooth 4.0 or above), connect to the miniPRO with Bluetooth, and follow the App instructions to activate your miniPRO and follow the training procedures.

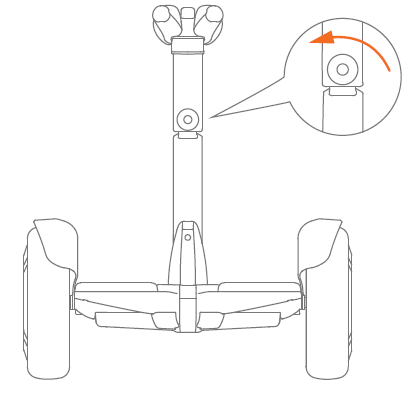

Adjust the knee pad height

• Rotate the height adjustment knob counter-clockwise.
• Lift the knee pads to the desired height. Rotate the height adjustment knob clockwise to tighten.
• Lift the guide bar to help steer the miniPRO without a rider when powered on. Do not use to lift or carry the miniPRO.

First Ride

Scan to download the App （iOS 8.0 or above, Android 4.3 or above）

When your miniPRO intermittently sounds an alarm, stop riding and check the App for details.

• Install the App and register/log in.

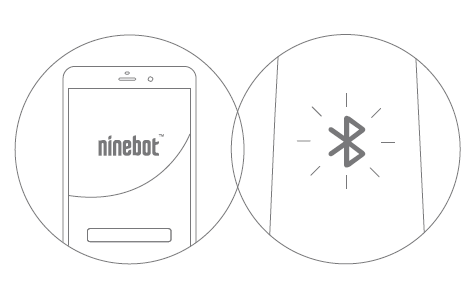

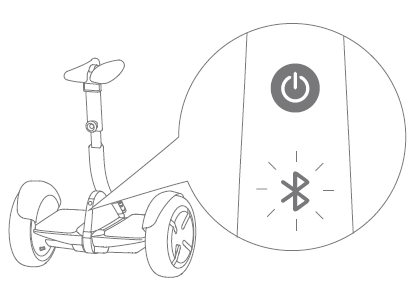

• Power ON the miniPRO. The Bluetooth icon blinking indicates the miniPRO is waiting for a connection.
• Click “Search device” to connect to your miniPRO. The miniPRO will beep when the connection is successful. The Bluetooth icon will stop blinking and remain illuminated. Follow the App instructions to learn how to ride safely. Have fun!

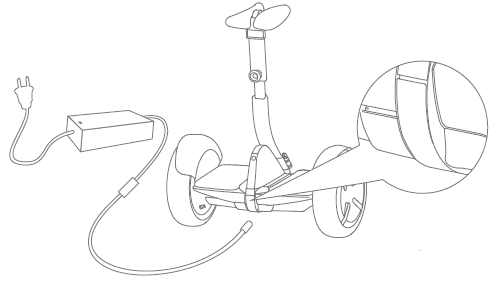

Charging

• Charge port

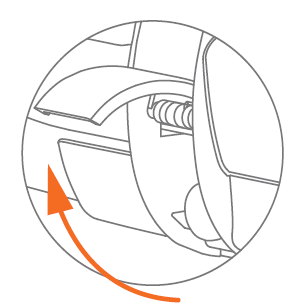

• Lift up the cover.
• Open the rubber cap.
• Insert the plug into the socket.

Your miniPRO is fully charged when the LED on the charger changes from red (charging) to green (trickle charge).

Learning to Ride

After activation, the App will lead you through the New Rider Tutorial. Please follow the instructions in the App and in this manual.

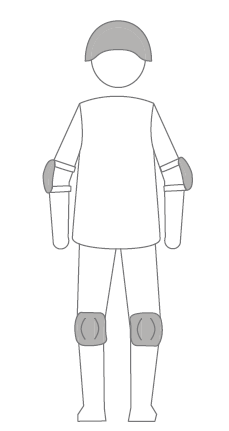

Wear an approved helmet and other protective gear to minimize any possible injury.

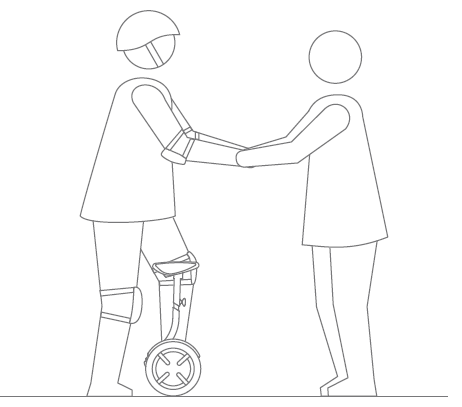

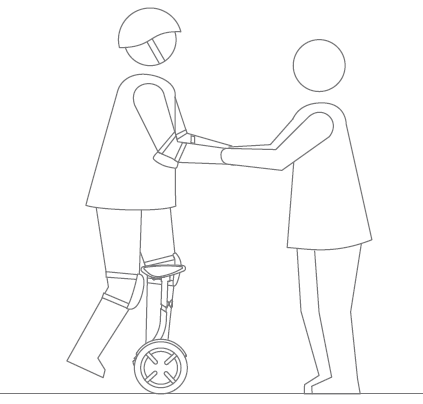

• Go to a large open area and ask a friend to assist you with your first ride.
• Place one foot on the foot mat, with your other foot still on the ground, holding your weight. Do not press the steering bar with your leg.
• Slowly transfer your weight onto the miniPRO. The unit will beep, indicating it is now in balance mode. Slowly step on with your other foot.
• Stand with your weight evenly distributed on both feet and relax, looking straight ahead.

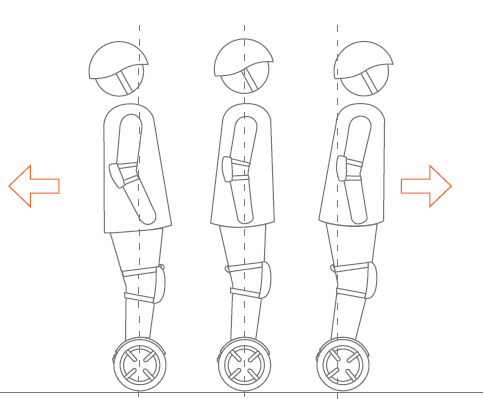

• Gently lean your body forward and backward to control your movement.

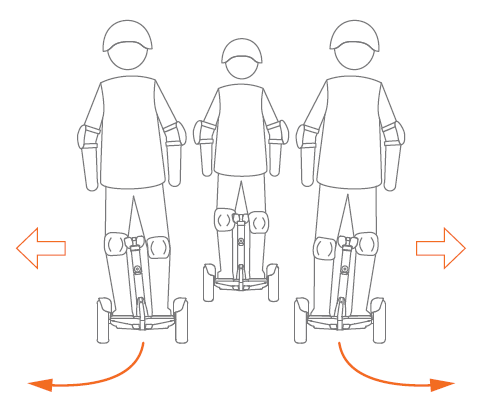

• To turn, gently lean left or right against the steering bar.

Remote Control (R/C) Mode

You can use the Ninebot by Segway App to drive your miniPRO in R/C Mode.

1. Open the Ninebot by Segway App and connect to your miniPRO.
2. Click on the R/C icon.
3. Drag the virtual joystick (the dot inside the circle) to drive your miniPRO.

WARNING

Do not use R/C mode in crowded areas or where there is a potential risk of endangering people or property if operated in an unsafe manner. Do not stand on the miniPRO when it is in R/C mode. Doing so risks serious personal injury or damage to the miniPRO.

NOTE

In R/C mode, the default maximum speed is 4.3 mph (7.0 km/h), but you can change the max speed in the Ninebot by Segway App. The miniPRO’s Bluetooth range is 30-50 feet (10-15 meters). If your Android or iOS device goes outside Bluetooth range, the miniPRO will stop moving in R/C mode.

Lifting and Power Assist Mode

Lifting

For your safety, motor power is cut off when the miniPRO is lifted off the ground in Balance Mode. If miniPRO is put back down, it will begin balancing again. Do not lift the miniPRO by the fenders or mainframe; you risk pinching or injuring your fingers/hands. Please lift via the steering bar as shown above.

Power Assist Mode

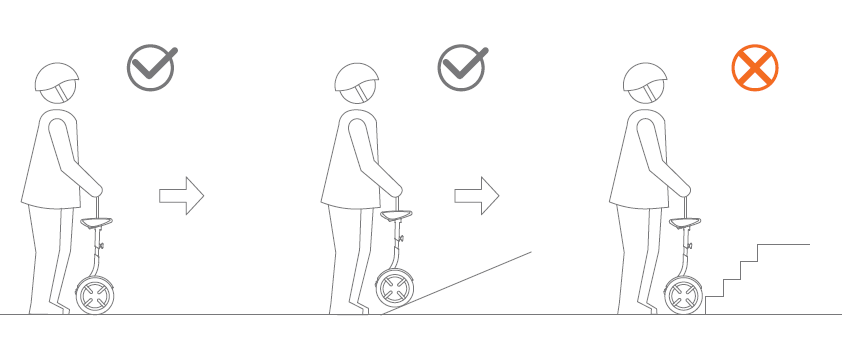

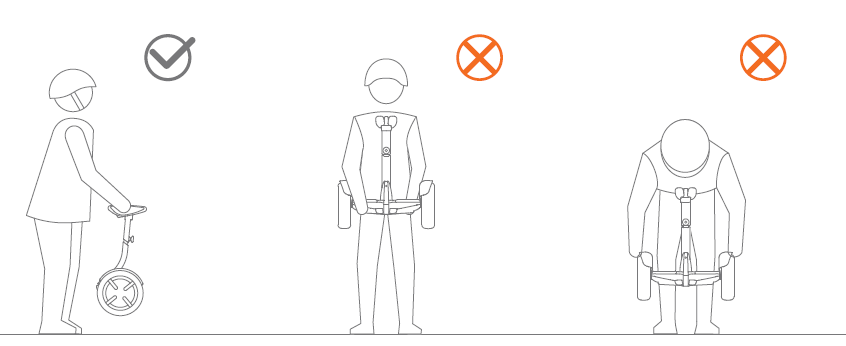

Pull up the guide bar to enter Power Assist Mode (powered on, with no rider). Steer the miniPRO across smooth surfaces using the guide bar. Do not guide it up stairs, across potholes, over large cracked/uneven surfaces, or over other obstacles; guide your miniPRO around the obstacle or carry it over the obstacle as shown in the previous section.

Maintenance

Cleaning and Storing Your miniPRO

Use a soft, wet cloth to wipe the mainframe clean. Hard-to-remove dirt can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth. Scratches on plastic parts can be polished with extra-fine grit abrasive paper.

NOTE
Do not wash your miniPRO with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your miniPRO. Do not wash your miniPRO with a power washer or high-pressure hose.

WARNING

Make sure the miniPRO is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise, you may expose yourself to electric shock or damage the electronic components.

Store your miniPRO in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life.

Tire Pressure

Inflate tires to 45–50 psi. Inflate both tires equally.

Battery Pack Maintenance

Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not discard or destroy the battery. For more battery information, refer to the sticker on the battery itself, located on the bottom of the miniPRO. Refer to your local laws and regulations regarding battery recycling and/or disposal.

A well-maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F [22°C]), the battery range and performance are at their best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when the temperature rises. More details are available in the App.

NOTE

Typically, a fully charged battery should retain charge for 120-180 days in Standby Mode. A low-power battery should retain charge for 30-60 days in Standby Mode. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-discharge or under-discharge will not be covered by the Limited Warranty.

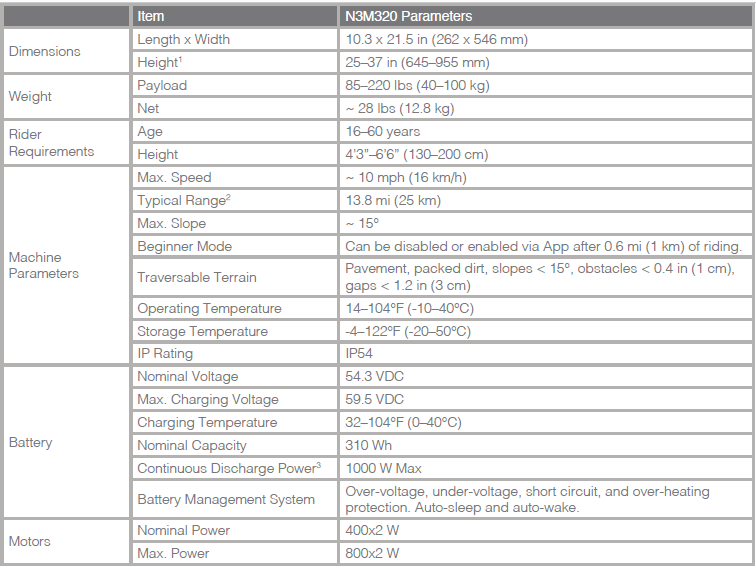

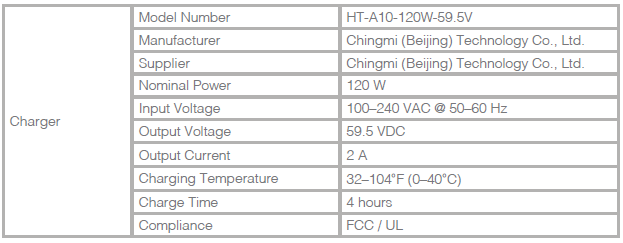

Specifications

1. Mainframe height: distance from the ground to the highest part of the mainframe.
2. Typical Range: tested while riding under full power, 154 lbs (70 kg) load, 77°F (25°C), 9.3 mph (15 km/h) average speed on pavement.
3. Continuous Discharge Power: tested while under full power at 77°F (25°C). The value changes with temperature and remaining battery capacity. For example, the continuous discharge power drops to \~80% of the maximum value at 10% remaining battery capacity, and the continuous discharge power drops to \~70% of the maximum value at 32°F (0°C).

NOTE: The tilde symbol (\~) indicates that the following number is an approximation.

Trademark and Legal Statement

Ninebot™ and the shape icon are trademarks of Ninebot Inc.; Segway® is the registered trademark of Segway Inc.. Ninebot by Segway™ is a trademark of Segway Inc.; iPhone and iOS, that of Apple Inc.; Android, that of Google Inc. The respective owners reserve the rights to their trademarks referred to in this manual.

Ninebot is the owner or licensee of various patents relating to Ninebot personal transportation robots, with other patents pending. This manual is prepared by Ninebot, which reserves all its copyrights. No institute or individual shall copy or disseminate this manual in whole or in part, or make use of the aforesaid patents, without the consent of Ninebot in writing.

The miniPRO is covered by U.S. and foreign patents. For patent information, go to http://www.segway.com. Ninebot (Tianjin) Technology Co., Ltd manufactures and sells the miniPRO under a license from DEKA Products Limited Partnership.

We have attempted to include descriptions and instructions for all the functions of the miniPRO at the time of printing. However, your miniPRO may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the Ninebot by Segway App.

Please note that there are multiple Ninebot by Segway models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the miniPRO product and documentation without prior notice. All rights reserved. Copyright Segway 2016.

Contact

Contact us if you experience issues relating to riding, maintenance, and safety, or errors/faults with your miniPRO.

Segway Inc.
14 Technology Drive, Bedford, NH 03110
Tel: 1-603-222-6000
Fax: 1-603-222-6001
Toll Free: 1-866-473-4929
E-mail Sales: [email protected]
E-mail Service: [email protected]
Website: www.segway.com

Have your miniPRO’s serial number on hand when contacting Segway. You can find your serial number at the top of the steering bar between the knee pads or in the App under More Settings –> Basic Information.
