Segway Ninebot Minipro N3M320 Balancing Transporter User Manual

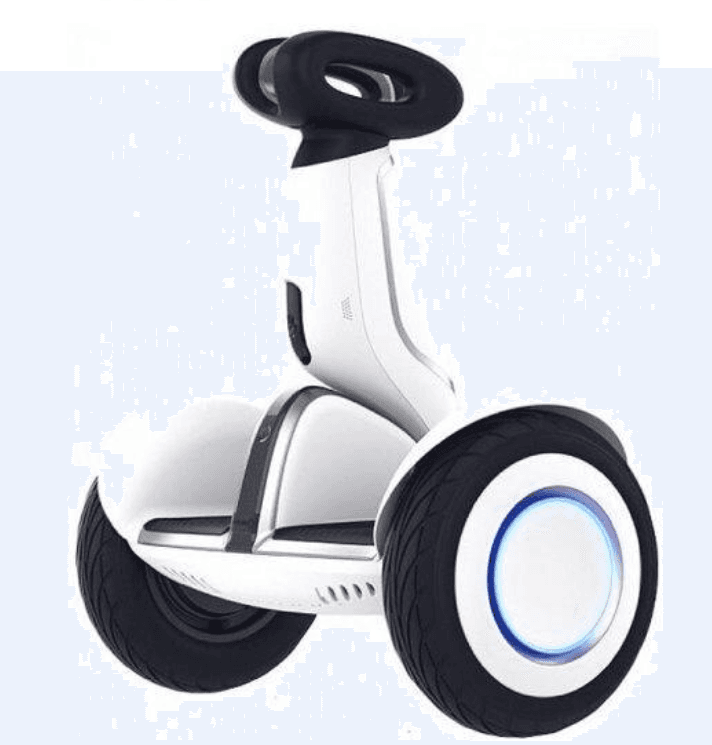

Segway Ninebot Minipro N3M320 Balancing Transporter

Thanks for choosing Mini!
Thanks for choosing Ninebot™ Personal Transportation Robot(Ninebot™ Mini, here in after referred to as Mini)! Your Mini is a new form of electrical balancing vehicle with smartphone App features.
Enjoy your free riding now!

Hint: Please step on/off from the Back! Or you will risk a crash/fall due to the wrong steering direction!

Packing List

When taking out the mainframe, please check whether the articles included in the package are as above, and contact your distributor or email to service@ninebot.com in case of any missing components.You can assemble your new Mini by the following steps after confirming that all the parts are found in the box and in good condition. Remember to switch off the power of Mini and unplug the charging cable before handling and mounting of any accessory or cleaning of the mainframe.

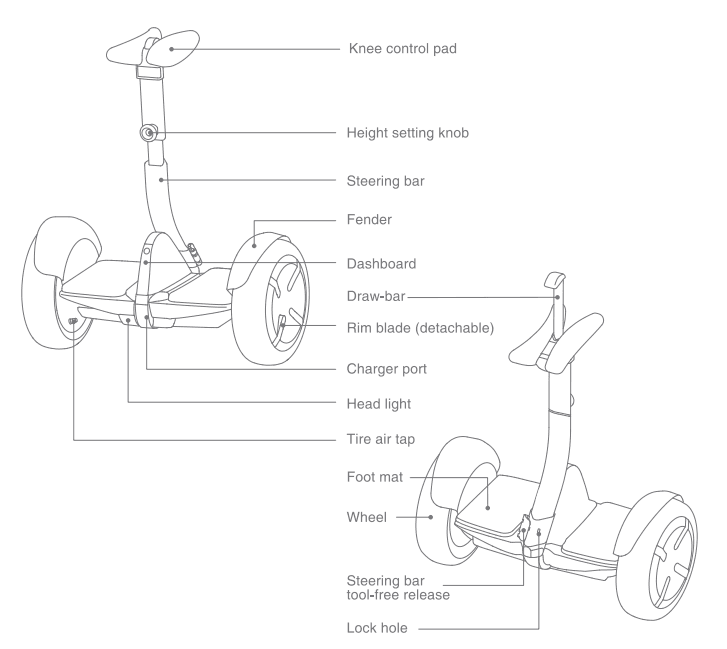

Ninebot Mini Diagram

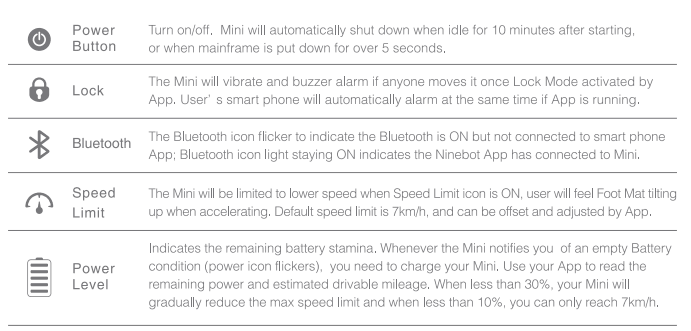

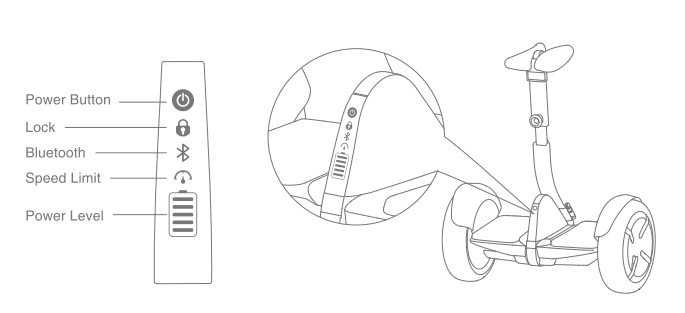

Icons on the Dashboard

Assemble Your Mini

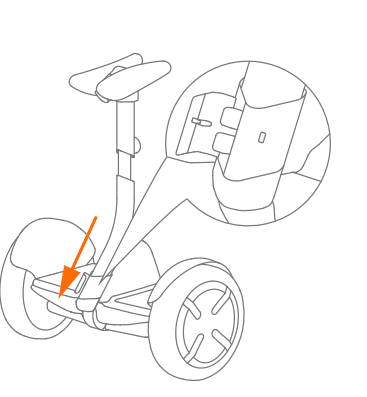

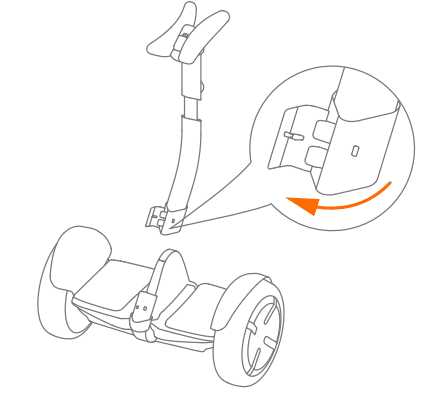

Install the steering bar

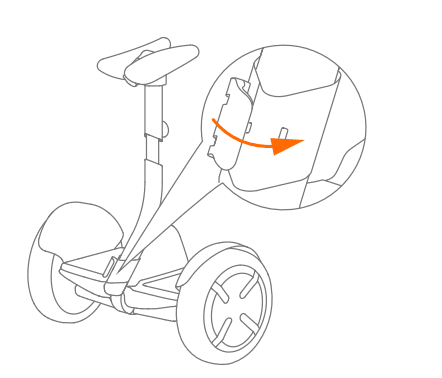

1. Open the tool-free release of the steering bar
2. Insert the steering bar to the mainframe steering socket
3. Fasten quick release

Check the Power ON/OFF status after assembly. For your safety, your Mini is not activated at this moment and it will be beeping after Power-ON with a very low riding speed and steering sensitivity, the non-activated Mini is not rideable. You need to install the Ninebot App on your smartphone (BLE4.0 or above), connect the Mini with Bluetooth, and follow the App instructions to activate your Mini.

Height adjustment of the knee pads

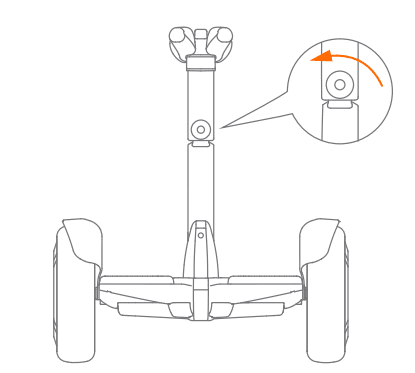

• Rotate height setting knob anticlockwise

• Lift Knee pads to a suitable height Tighten up the height setting knob clockwise

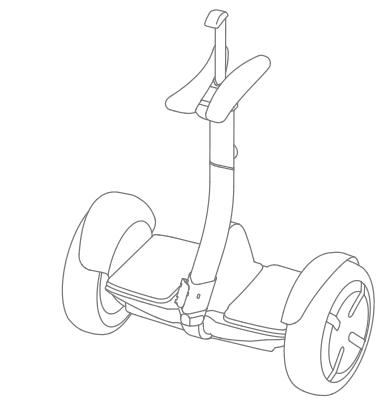

• The drawbar can be lifted to help you push the Mini when powered on

First Ride

There is a safety risk for a new rider when learning to ride the Mini. it is strongly recommended that you follow the Safety Instructions before your first ride You will need to Use your Smartphone(Android or iOS )to install the Ninebot App to watch the Safety Instructions and follow the New User Tutorials before your first ride. Scan the QR code to install the Ninebot App.

1. Install the App and register/log in

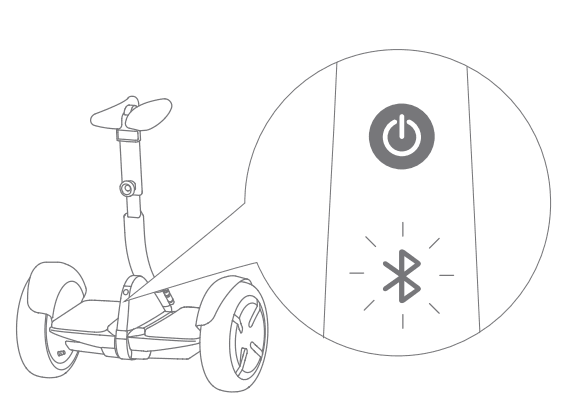

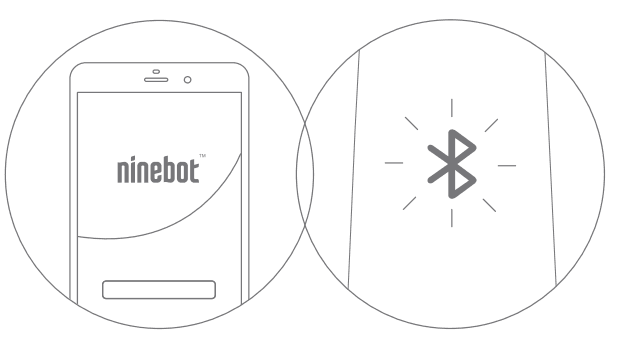

2. Power-on, Bluetooth icon flickering indicates the Mini waiting for connection
3. Click the “Search device” button to connect your Mini, you will hear a “beep” If succeed, the Bluetooth icon on the dashboard will be ON Please strictly follow the App instructions to learn how to ride safely & have fun

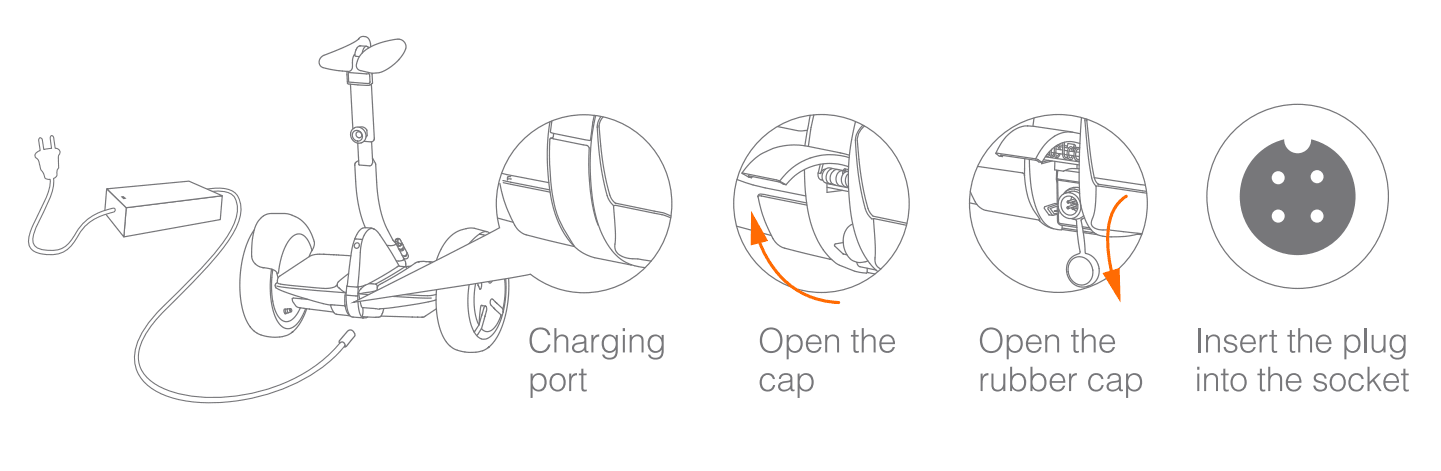

Charging

Learn to Ride

After the activation, the App will lead you to a “New Rider Tutorial”, please exercise by following the instructions or the learning figures below. For your safety, the Mini will limit the max speed to
7km/h before you pass the “New Rider Tutorial”. The max speed will be limited to 10km/h during the 1st kilometer after you pass the New Rider Tutorial, and you can disable the speed limit mode via the App after 1 km mileage. It is requested to wear a helmet and wrist guards (shown above) during the tutorial for your safety.

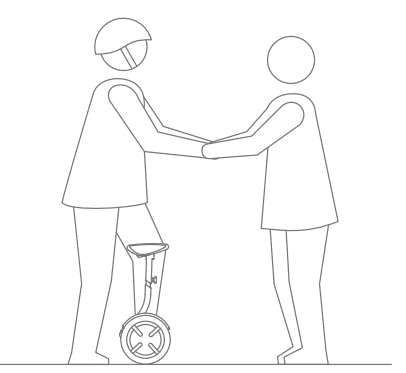

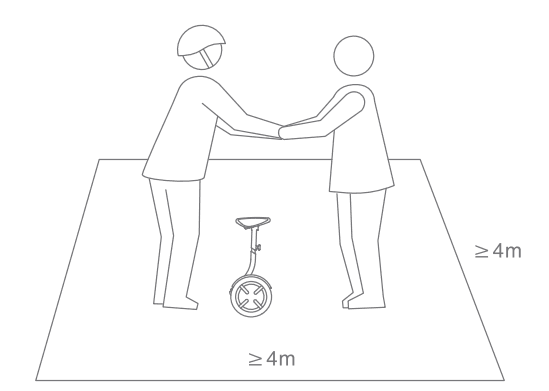

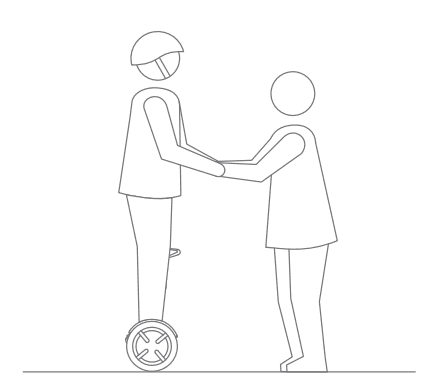

1. Please step on with other’s assistance on an open area for your first ride. Please note you need to step on from the back
2. Step on the foot mat with one foot standing firm, avoid touching the knee control pad with your shank or knees and cause steering
3.
4. Slowly transfer your weight to your foot on the mat, and step up onto the other mat
5. Step on foot mat with both feet and relax, looking straight ahead, avoid severe waggling

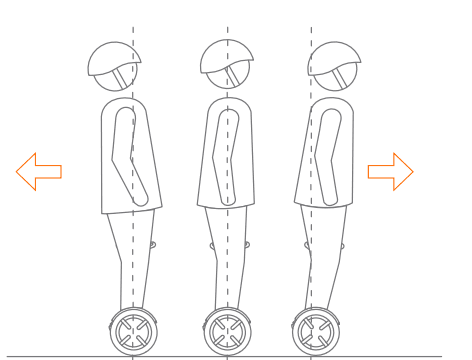

6. Step on foot mat with both feet and slowly lean your body forward or backward to control your moving
7. Slowly lean against the steering bar / knee pads left and right to make a turn

Warning

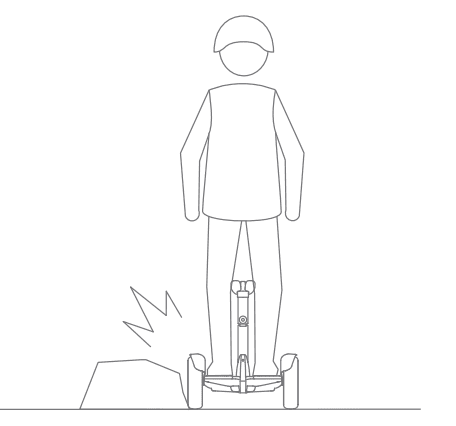

• Avoid obstacles contacting the tire rim to cause Mini out of control

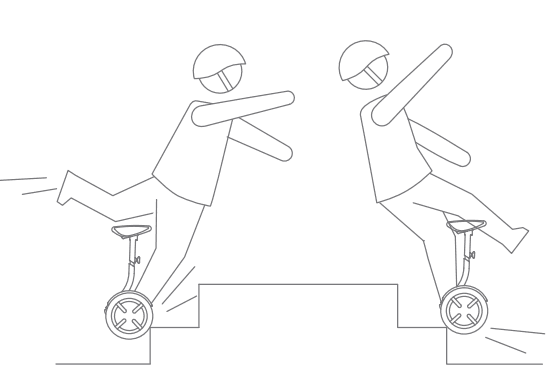

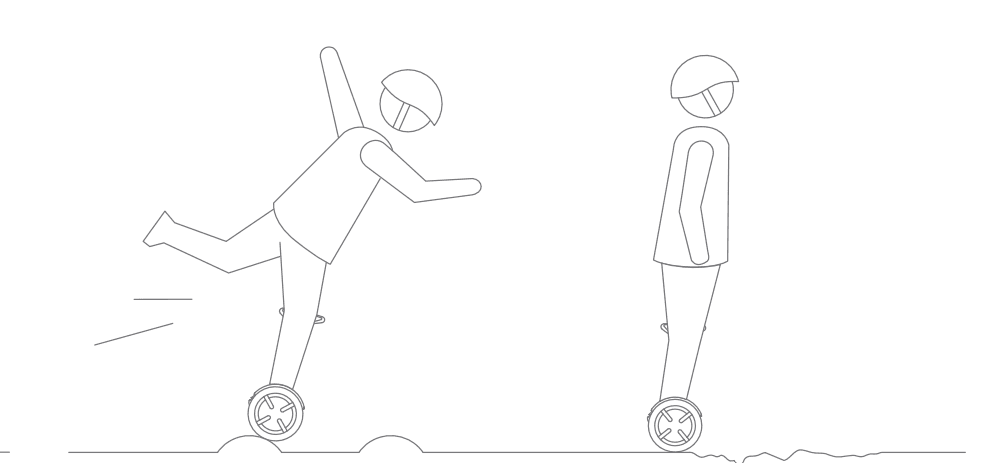

• Please keep a moderate speed (3 – 10km/h, not Zero/higher speed) with your knees bending when
  encountering Deceleration zone/ threshold,etc,otherwise may cause lost of balance

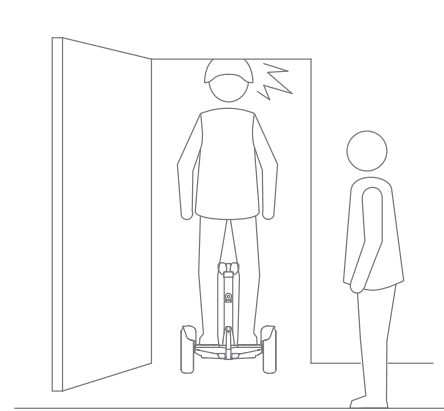

• Watch out for space above your head/door frame.

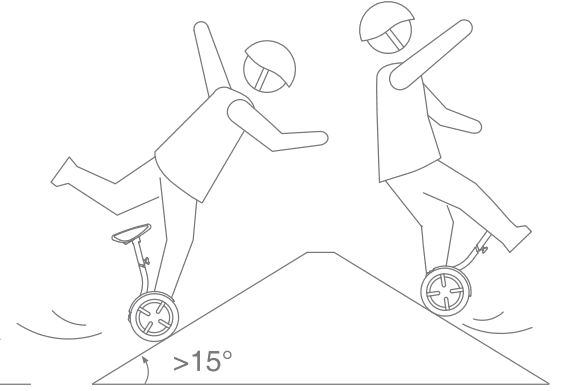

• Avoid climbing slope >15°, or your Mini may lose traction & balance
• Avoid abrupt accelerating or decelerating

Forbidden Behaviour

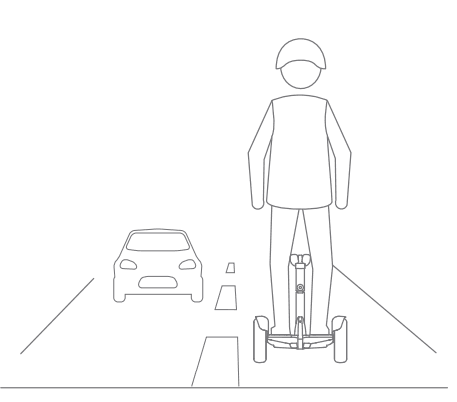

• Riding into motorway

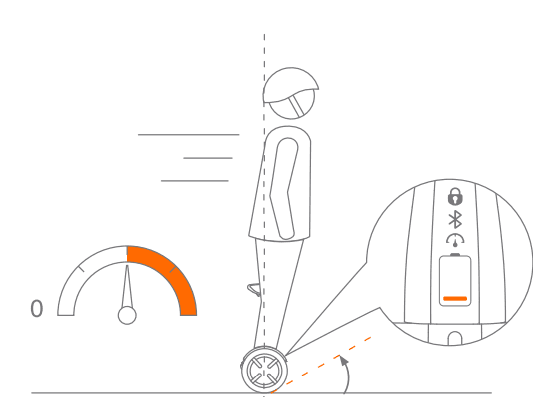

• Riding or accelerating when the Mini is alarming or when foot mat tilting up

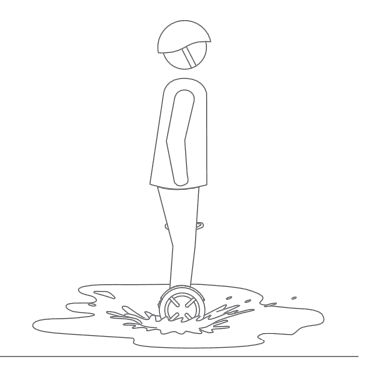

• Riding in >2cm puddle

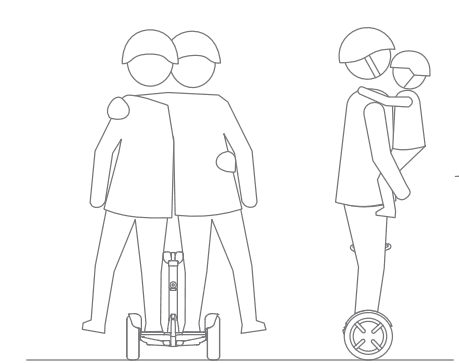

• Riding with 1 + persons on it, especially earring a baby
• Riding to ascend or descend stairs/ escalators
• Rapid acceleration Pendulum movement

Riding Safety

• Mini is an entertainment device, not a transportation vehicle. However, once you ride into a public area, your Mini exposes you to the risk of injury as the other transportation device does. You are supposed to protect yourself and others by following this Manual to the max. extent.
• Please understand that you can reduce the risk by following all the instructions and warnings in this Manual, but you cannot eliminate all the risks. Please remember that, whenever you ride the Mini, you risk injury from loss of control, collisions, and falls, when entering public areas like other transportation means even if you fully obey the safe riding instructions. Like all other vehicles, faster speed needs a longer brake stopping distance. Rapid braking on a smooth surface may lead to wheelslip, losing balance or even falling down. You must be very cautious and always keep a reasonable safe distance from other people or transportation tools while riding. Be alert and slow down when entering an unfamiliar area.
• Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing.
• Please strictly comply with safety requirements for riders of this manual in countries and areas without laws and regulations for self-balancing electric vehicles like China. Ninebot Inc. will not be responsible for any property loss, casualties, accidents, or  legal disputes caused by violation of the safety instructions
• Do not allow anyone to ride the Mini on his/her own unless they have carefully read this Manual and passed all the New User Tutorials. Ask your friends to wear protective articles and assist your friends in beginning the first ride.
• Please check if any looseness, damage, tire pressure-lacking, or any abnormal conditions before every ride. If continuous abnormal sounds or alarms of the vehicle occur during riding, please immediately stop riding. Diagnose your Mini withthe  Ninebot App and call your reseller for professional instructions or maintenance service.

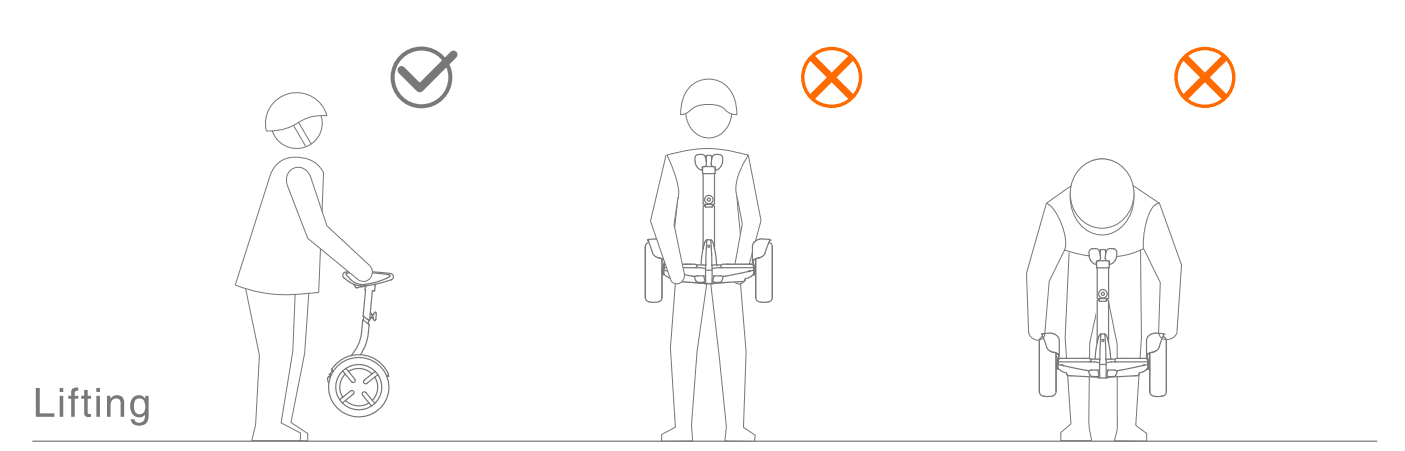

Lifting and Assistance Mode

If your Mini is powered on and in auto balance mode during carrying, power output will be cut off automatically when tires are hung in the air for your safety; balance mode will be recovered automatically when placing the Mini to the ground. Do not lift the Mini by the fender or the main frame, or your finger may be clipped or damaged in the fender. Please do as shown above.

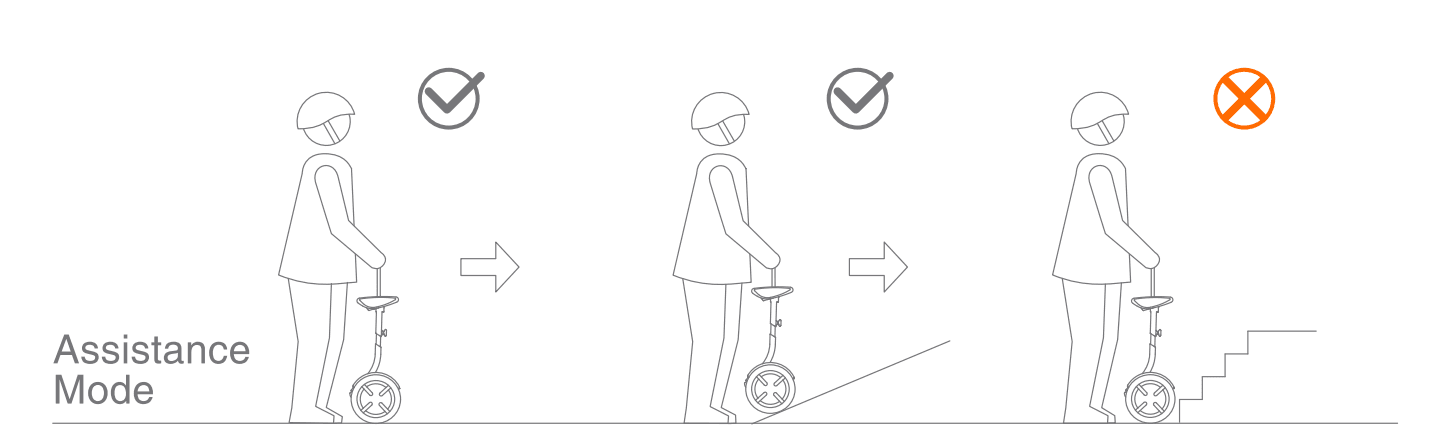

Pull out the draw-bar to enter into the Assistance Mode (automatically when power-on }, pushing your Mini flatly may help you move easily under Non-riding mode; please lift the Mini when encountering the stairs, do not push it. Please do as shown on above.

Daily Maintenance

Cleaning and Storing Your Mini

You can use a soft cloth (one used for wiping your glasses) dipped with a small amount of water to wipe the mainframe of Ninebot to remove dirt. The dirt that is hard to wipe out on the plastic surface can be scrubbed with a toothbrush after coating it with toothpaste and then cleaned it with a wet cloth. Scratches on plastic parts of the vehicle can be polished by abrasive paper or other abrasive substances.

Hint: Do not wash Ninebot with alcohol, gas, diesel, acetone, or other corrosive and volatile chemical solvent. These substances may damage the appearance and internal structure. Do not wash the Mini with a power washer or high-pressure hose. Make sure that the Mini is powered off, the charging cable is plugged out and the rubber cap on the charging port is tightly sealed, otherwise, you may expose yourself to electric shock or cause the device to fail. Store your Mini in a dry and cool place. Do not store it in an outdoor environment for a long time. Exposure to sunshine or a cold outdoor environment will accelerate the aging of the appearance and the battery life.

Maintenance of Battery Pack

Do not place the battery in a high-temperature or low-temperature environment that is over 50 or below -20. Do not throw the battery pack into the fire. Other items for attention in the maintenance of the battery refer to the nameplate of the battery pack which is below the vehicle. A well-maintained battery pack may be in sound performance even after 20 thousand kilometers of riding. Charge the battery every time you stop riding and avoid exhausting all the power in daily use. In addition, when used at normal temperatures, the battery pack can play high distance mileage and performance; when in an environment below O, the endurance and performance of the battery would decline. Typically, when the temperature is -20, distance mileage maybe half of the normal temperature of 25. Distance mileage of the battery will recover when the temperature rises. You may check the details in the App.

Hint: Typically, the fully charged battery, if mounted on the Ninebot Mini, will be exhausted within 120 to 180 days under the stand-by mode; And a low-power battery, if mounted on the Ninebot Mini, will be exhausted within 30 to 60 days under the stand-by mode. Remember to charge the battery after each ride. Over-draining power may cause unrecoverable damage to the battery. Intelligent chips inside the battery shall record the charge-discharge condition of the battery, damage caused by over-discharge will not be covered under the Limited Warranty. (Non-specialized persons are forbidden to disassemble battery packs!)

Specifications

• [1] Mainframe height: refers to the distance from the ground to the highest end of the mainframe.
• [2] Typical mileage refers to: test under riding in lull power, 70kg (154Ib) load, 25″C (77°F) environmental temperature, 15km/h (9.3 mph) average speed on pavement.

Trademark and Legal Statement

Ninebot and the shape icon are the registered trademarks of Ninebot (Beijing) Technology Co., Ltd. (Ninebot Inc.); and iPhone, i0S, of Apple Inc. Android, that of Google Inc. The owners shall reserve all the rights of their trademarks referred to in this manual, and Ninebot Inc. shall reserve all the rights of Ninebot™ and the shape icon. Ninebot Inc. is the owner of various patents relating to the Ninebot personal transportation robot, and some other patents are pending. This manual is prepared by Ninebot Inc. which shall reserve all its copyrights. No institute or individual shall copy or disseminate this manual as a whole or in part, or make use of the aforesaid patents without the consent of Ninebot Inc. in writing.

We have tried as much as possible to Cover the description and instruction for all the functions of Ninebot at the time of printing, but there may still be discrepancies with the Ninebot that you have bought because of improvements and changes in the design of functions. Please visit www.ninebot.com and enter the “support & service” channel to download and check the latest electronic User Manual materials or use your smart devices to scan the QR code on page 5 to install the Ninebot App to get the latest user materials.
Please note that there are various Ninebot models with different functions, and some of the functions mentioned herein may not be achieved by your Ninebot. Ninebot Inc. shall reserve the right to explain any deviation of the actual products from those described in the manual in terms of color and appearance.

After-sales Service

You can contact us in the following ways if you want to consult the issues relating to riding, maintenance, and safety, or report the faults of your Mini; we are at your service. There are QR codes for the Ninebot WeChat account and Facebook account below, you can install them by scanning them with your smart devices. We will provide valuable gifts and a variety of colorful activities from time to time for Ninebot App users who follow closely on Ninebot’s up-to-date news and activities. You can also share with the other users in the Ninebot App Community. Stay tuned for a wonderful experience!

• Head Office: F1, Building A-1, Northern Territory of Zhongguancun Science Park, Xixiaokou Road No.66, Haidian District, Beijing, China
• Tel: +86-010-84828002
• Fax: +86-010-84828002-800
• Toll-Free (China only): 400-607-0001 (consultation, purchase, and after-sales service)
• E-mail: sales@ninebot.com (Consultation) Service@ninebot.com (After-sales service)
