Sharper Image X-Treme Jet X-2 RC Drone User Manual

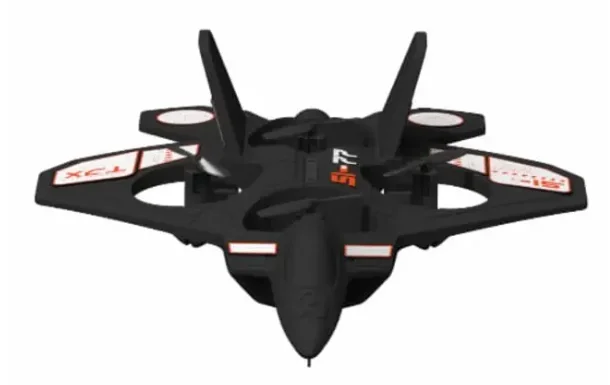

Sharper Image X-Treme Jet X-2 RC Drone

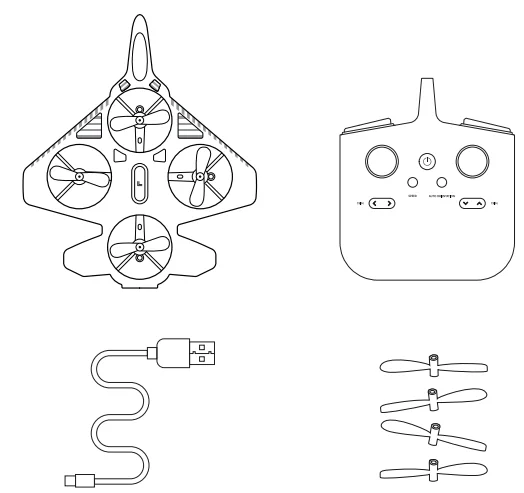

• X-Treme Jet X-2
• Remote Control
• USB-C Charging Cable
• 4 Replacement Propellers

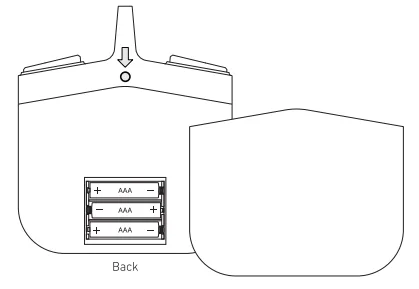

Battery Installation

1. The remote control requires 3 AA 1.5V batteries (not included).
2. Use a tool to press the button and release the battery cover. Slide the battery cover down to remove it.
3. Insert the batteries in the same orientation as shown
4. Slide the battery cover back up and secure it in place.

POWER

1. To power on the remote control, press the power button once. The power LED will light up gradually.
2.  To power on the drone. Slide the power switch (located on the bottom of the drone) to the on position.

PAIRING

1. After powering on both the remote control and the drone. Move the left joystick up and down quickly to
   Start pairing mode.
2. The drone and remote control cannot be paired successfully within 1 minute, power off and power on both to exit sleep mode, and then restart the pairing process.

Note: The remote control and drone use a 2.4GHz wireless connection. If either the remote control or the drone disconnects, the other will automatically enter pairing mode.

STABILIZATION

1. If the drone has stability issues after an impact, reset the gyroscope by simultaneously pointing the left joystick to the bottom left and the right joystick to the bottom right, as shown. The lights on the drone will flash to indicate recalibration was successful and the drone is ready for flight.
2. If resetting the gyroscope does not resolve the issue, power off and power on the drone and remote.
   Control and pair both again.

Note: The recalibration process in step 1 can be used to clear previous trim settings before flights

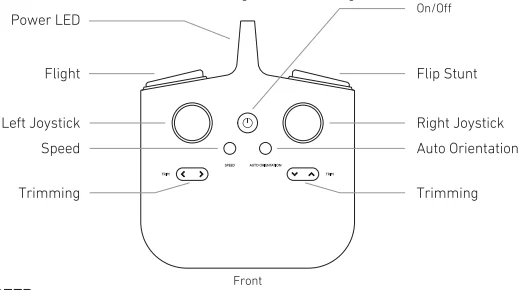

CONTROLS

• Place the drone on a level and solid surface to ensure a steady takeoff.
• There are 2 methods for takeoff. To auto take off, push the flight button to automatically begin flight. The drone will rise between 4.9 and 6.5 feet (1.5 and 2 m and remain suspended. To manually begin flight, press the left joystick up, and the drone will take off. Release the joystick to have the drone hover in place.
• To land the drone. Either push the flight button and the drone will land automatically, or use the left joystick to manually land the drone. Be sure to land the drone on a level, solid surface. In the event the propellers will not stop spinning, you can perform an emergency stop by pressing and holding the flight button.
• The left joystick is used to control the height and rotation of the drone. Push up to fly up and push down to fly down. Pus~ left to spin the drone counterclockwise and push right to spin the drone clockwise.
• Use the right joystick to control the drone on the X axis. Push the stick up to move forward. Down to move backwards, left to move to the left, and right to move to the right.

SPEED

• To switch between low and high speed modes, press the speed button. The remote control will beep twice when entering high speed mode and once when back in low speed mode. The drone defaults to low speed when powered on.

AUTO ORIENTATION

• Press the auto orientation button to activate auto orientation mode. Press it again to deactivate this mod.e
• The drone will always move in the direction you press the right joystick in relation to the remote control, no matter which direction the drone is currently facing.
• Pressing the right joystick up will make the drone fly away from the remote control, and pressing the right joystick down will make the drone fly towards the remote control.
• When auto orientation is active. The remote control will beep every 6 seconds.

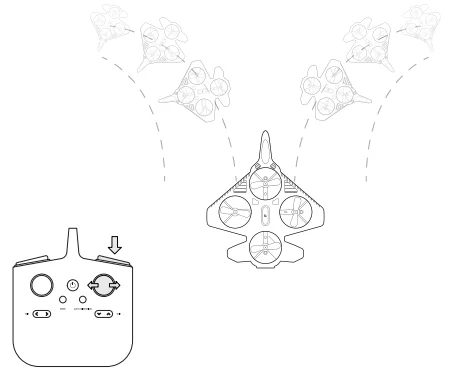

FLIP STUNT
Press the flip button and then press the right joystick to the left or right.

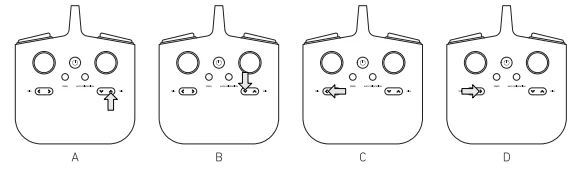

ADJUST TRIM

• If the drone drifts backward without pilot input, press the forward trim button (Figure Al.
• If the drone drifts forward without pilot input, press the backward trim button (figure Bl.
• If the drone drifts right without pilot input, press the left trim button (figure Cl.
• If the drone drifts left without pilot input, press the right trim button (figure Dl.

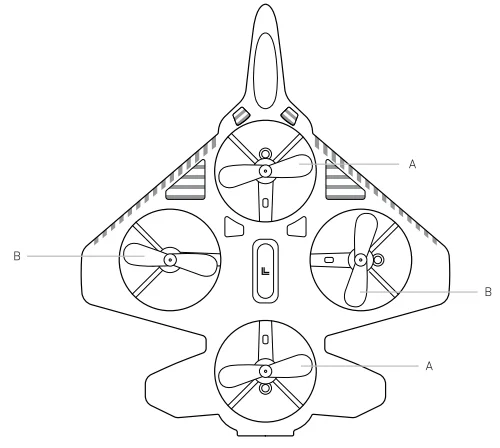

PROPELLER REPLACEMENT

Propellers must be replaced by an adult.

1. Pull directly up on each damaged propeller until it releases from the drone.
2. Verify the correct propeller letter against the above diagram. The underside of the propellers is labeled.
3. Install the replacement propeller by aligning and pressing it securely into place. RECHARGEABLE

Charging the Battery

1. The drone features ;, built-in rechargeable battery. Charge fully before first use.
2. Plug the USB-C charging cable (inc.Jded) into the drone charging port.
3. Plug the other end of the charging cable into a power adapter.
4. The red LEDs on the top of the drone will light up while charging and will turn off when fully charged. The drone will fully charge in  approximately 70 minutes and will fly for approximately 5 minutes on a full charge
5. When the battery runs low, both the white and red LEDs on the drone will flash rapidly. The remote control will play a short beep sound every 2 seconds. The sound will stop after the drone is powered off or recharged.

SAFETY WARNINGS

• Adult supervision required.
• Do not touch spinning propellers,
• Use this item only for its intended purpose.
• Do not pilot the drone towards people, animals, or fragile objects. May cause injury or property damage.
• Do not expose to extreme temperatures or moisture.
• Thoroughly inspect products before every use. If the product appears worn, frayed/splintered, cracked, or broken in any manner, discontinue use and discard immediately.
• For indoor use only.
• Use caution and pay attention to your surroundings while operating this item.
• Always turn it off when not in use.
