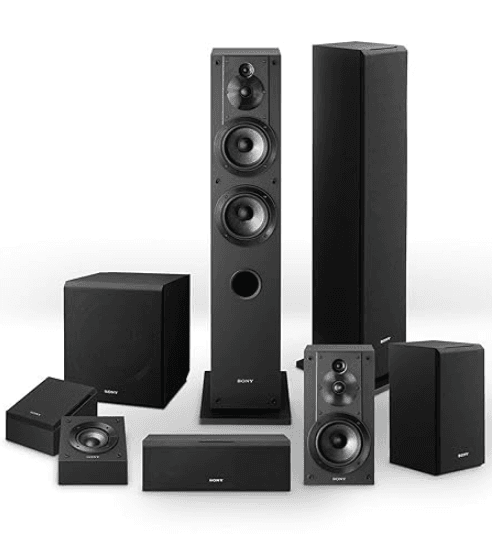

Sony SSCSE Dolby Atmos Enabled Speakers
WARNING
For customers in Europe Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling this product, please contact your local Civic Office, your household waste disposal service, or the shop where you purchased the product.

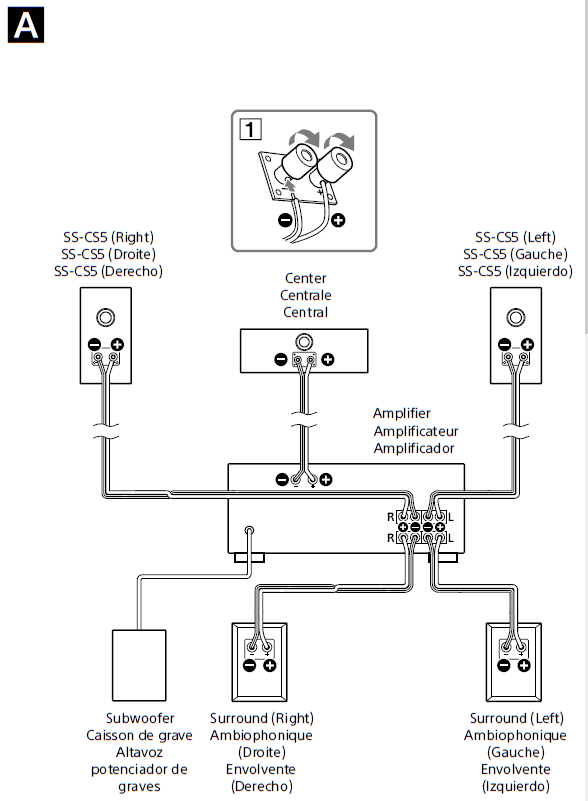

Connecting the speakers to an amplifier
Connect the speakers to the speaker output terminals of an amplifier using the speaker cords (not supplied). Make sure power to all components (including the subwoofer) is turned off before starting the hook-up. When connecting, tighten the speaker terminals by turning them in the direction of the arrows in the illustration
-1.
Notes
- Make sure the plus (+) and the minus (–) terminals on the speakers are matched to the corresponding plus (+) and minus (–) terminals on the amplifier.
- Be sure to tighten the screws of the speaker terminals securely as loose screws may become a source of noise.
- Make sure all connections are firm. Contact between bare speaker wires at the speaker terminals may cause a short circuit.
- For details on the speaker connection of the amplifier, refer to the operating instructions supplied with your amplifier.
Tip
Black striped wires are minus (–) in polarity and should be connected to the minus (–) speaker terminals.

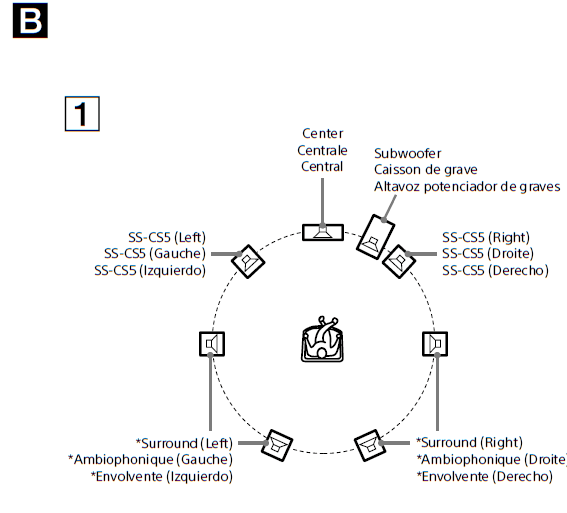

Positioning the speakers
Install the speakers as shown in the illustration
-1.
- The system can be used as either a front or a surround speaker.
Tip
Attach the foot pads (supplied) to the bottom corners of the speakers (see fig. -2.), and make sure the speakers are installed completely level.
Troubleshooting
Should you encounter a problem with your speaker, check the following list and take the indicated measures. If the problem persists, consult your nearest Sony dealer.
There is no sound from the speaker
- Make sure the connections have been correctly made.
- Make sure the volume on the amplifier has been turned up properly.
- Make sure the program source selector on the amplifier is set to the proper source.
- Make sure the headphones are not connected.
There is a hum or noise in the speaker output
- Make sure the connections have been correctly made.
- Make sure none of the audio components are positioned too close to the TV set.
The sound suddenly stopped
- Make sure the connections have been correctly made. Contact between bare speaker wires at the speaker terminals may cause a short circuit.
Specifications
- Speaker system:
- 3-way 3-driver speaker system, Bass reflex
- Speaker units:
- Woofer: 130 mm, cone type (1)
- Tweeter: 25 mm, soft dome type (1)
- Super tweeter: 19 mm, soft
- dome type (1)
- Rated impedance: 6 Ω
- Maximum input power: 100 W
- Sensitivity level: 87 dB (2.83V, 1 m)
- Frequency range: 53 Hz – 50,000 Hz
- Dimensions (width/height/depth): Approx. 178 × 335 × 220 mm, including front grille
- Mass Approx.: 4.5 kg, including front grille
- Supplied accessory: Foot pads (8)
Design and specifications are subject to change without notice.
For more manuals by Sony, visit ManualsLibraryy
Sony SSCSE Dolby Atmos Enabled Speakers-FAQs
How do Dolby Atmos enabled speakers work?
Dolby Atmos enabled speakers fire sound upward instead of directly at you. The angle of the upward-firing element is designed to reflect sound off the ceiling, creating an immersive surround sound experience.
How can I listen to Dolby Atmos on my speakers?
To enable Dolby Atmos, go to Settings > Apps > Music and select Dolby Atmos. Choose Automatic for it to activate when compatible devices are connected or Always On for continuous Dolby Atmos playback.
How can I tell if Dolby Atmos is working?
When Dolby Atmos is playing, most soundbars and receivers will show an indicator, such as an on-device display, LED light, or notification through a mobile control app, confirming that you’re listening to Dolby Atmos content.
What is the best setup for Dolby Atmos?
For optimal Dolby Atmos performance, place your speakers slightly above ear level when seated, and avoid placing them too high on the wall to maintain effective sound reflection.
Is Dolby Atmos just stereo?
No, Dolby Atmos is much more than stereo. It uses a renderer to deliver immersive, object-based audio that can be played on various speaker setups, including stereo, 5.1, or 7.1 configurations.
What is Dolby Atmos in Sony products?
Dolby Atmos in Sony devices offers a surround sound experience by expanding audio with overhead channels, creating a more immersive, 3D soundstage.
How do I test Dolby Atmos on my Sony TV?
To check if Dolby Atmos is active, press the DISPLAY button on your remote. If you see “ATMOS” displayed, it indicates that Dolby Atmos content is being played.
What is the difference between Dolby Audio and Dolby Atmos?
Dolby Audio enhances sound for an immersive experience, while Dolby Atmos takes it further by adding a three-dimensional audio effect that includes sounds coming from above, creating a truly immersive surround experience.
