Starfrit Pump N Slice Chopper and Slicer
INSTRUCTIONS FOR USE
ASSEMBLY
WASH THE APPLIANCE BEFORE THE FIRST USE. PLEASE REFER TO THE CLEANING SECTION IN THIS BOOKLET.

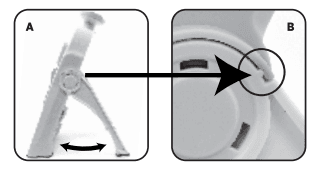

- Unfold the slicer’s feet (Photo A). Always make sure that both sides are completely open (Photo. B).Install the slicer on a clean and level surface for added stability.

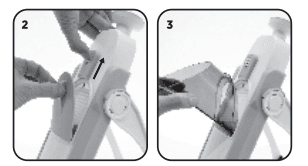

- Remove the storage lid by pulling up the locking button.
- Install the feeder by placing its bottom edge (straight and serrated side) first and then locking it into place by snapping in the top part.
- Unlock the spring pump by pressing down on the handle while exerting a slight rotation (see illustration on the handle). The pump will deploy and the blades will move upwards. Place the container under the appliance and insert the pusher inside the feeder. The Pump ‘n’ Slice is now ready to use.
- Place the container under the appliance and insert the pusher inside the feeder. The Pump ‘n’ Slice is now ready to use.

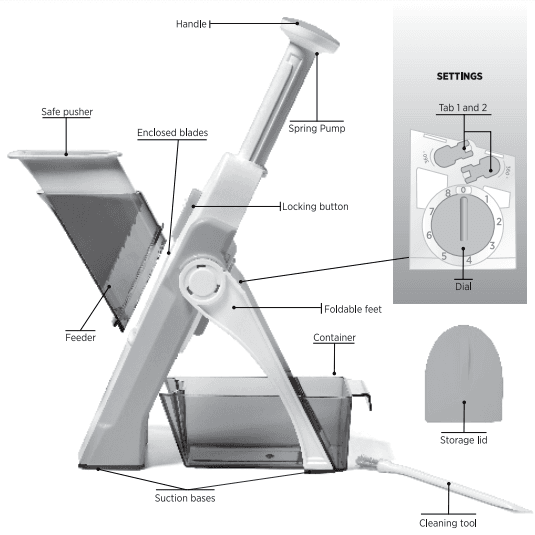

THE CONTROL SETTINGS ARE LOCATED ON THE BACK OF THE SLICER.
- DIAL: Select thickness of the slices, ranging from 0.5 mm to 8 mm, by turning the dial clockwise.
- SETTING TAB: To activate the Julienne blades, lift the tab 90* from its base Rotate the tab a full turn and snap it back on its base.
- ONE TAB ACTIVATED: One row of Julienne blades is activated. Perfect for thicker cuts.
- TWO TABS ACTIVATED: Two rows of Julienne blades are activated. Perfect for thinner cuts.
IMPORTANT
To make sure the blades are activated, just look over the controls settings located on the back of the slicer.
For more information on the proper way to use the Pump ‘n’ Slice, please refer to the Settings and Cuts Chart on the following page or visit our website at www.starfrit.com

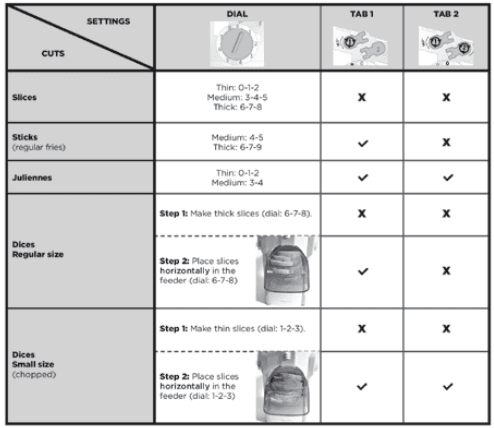

SETTINGS AND CUTS CHART
:Open
:Close
:Open
:CloseUSAGE
- Set the controls (dial and tabs) to the desired thickness and out (see the Settings and Cuts Chart).
- Insert food inside the feeder and press down with the pusher.
- Press firmly on the spring pump while maintaining pressure on the food pusher. Repost until you get the desired quantity.
RECOMMENDATION
For longer foods such as cucumbers, hold the end of the food and slice until the same length of the feeder. Once the food can entirely fits inside the feeder, you can finish the operation with the pusher. Always use the pusher when slicing food that
CLEANING
- Wash the appliance before the first use.
- It is important to always use the cleaning tool to remove food residue and parts stuck in the blades to avoid any contact with the blades.
- Remove the storage lid and feeder to expose the blades.
- All parts of the slicer are dishwasher safe. It is recommended to unlock the spring pump and to fold the feet and place in the top rack of the dishwasher.
WARNING SHARP BLADES
Be careful when using and washing this item to avoid injury.
For more manuals by Starfrit, visit the ManualsLibraryy
Star frit Pump N Slice Chopper and Slicer -FAQs
How do I use the Starfrit Pump N Slice Chopper?
Place the chopper on a flat surface at a 45° angle and move it back and forth until you achieve your desired texture and cut. This technique increases the blade’s speed and ensures even chopping.
Is the Starfrit slicer dishwasher safe?
Yes, the Starfrit slicer is dishwasher safe, but only on the top rack. Be sure to wash it carefully before using it for the first time.
Can Starfrit cookware be used in the oven?
Yes, “The Rock” by Starfrit non-stick cookware is oven-safe up to the broil setting. Always use oven mitts, as the handles will get hot
How do I clean the Starfrit deli slicer?
To clean, carefully remove the blade by turning the locking screw counterclockwise and wash the blade by hand in warm, soapy water. Other parts are dishwasher safe, but they should be disassembled first.
How do I turn on the Starfrit balance scale?
To activate the scale, step on it gently. Stand still until your weight reading stabilizes. Be sure to remove the battery isolation sheet before the first use.
How should I season a Starfrit pan?
Before the first use, wash the pan with hot soapy water, dry it, and add a teaspoon of cooking oil to enhance its non-stick properties.
How do I maintain my slicer?
After each use, wipe down the blade and plate. Clean the slicer and sharpen the blade every four hours of use. Use only the manufacturer’s lubricant on moving parts and avoid using a dishwasher or power sprayer for cleaning.
How do I adjust the slice thickness on a meat slicer?
Refer to the slicer’s manual to adjust the slice thickness using the knob. Practice with a few sample slices to find your preferred thickness.
How do I change the battery in my Starfrit food scale?
Open the battery case on the back of the scale, carefully remove the old battery, and insert a new one. Avoid disposing of batteries in a fire.
Is the Starfrit slicer safe to store in a utensil drawer?
Yes, the Starfrit slicer is compact and can be easily stored in a utensil drawer. Just ensure it is clean and dry before storing.
