SteelSeries Apex 3 RGB Gaming Keyboard User Manual

SteelSeries Apex 3 RGB Gaming Keyboard

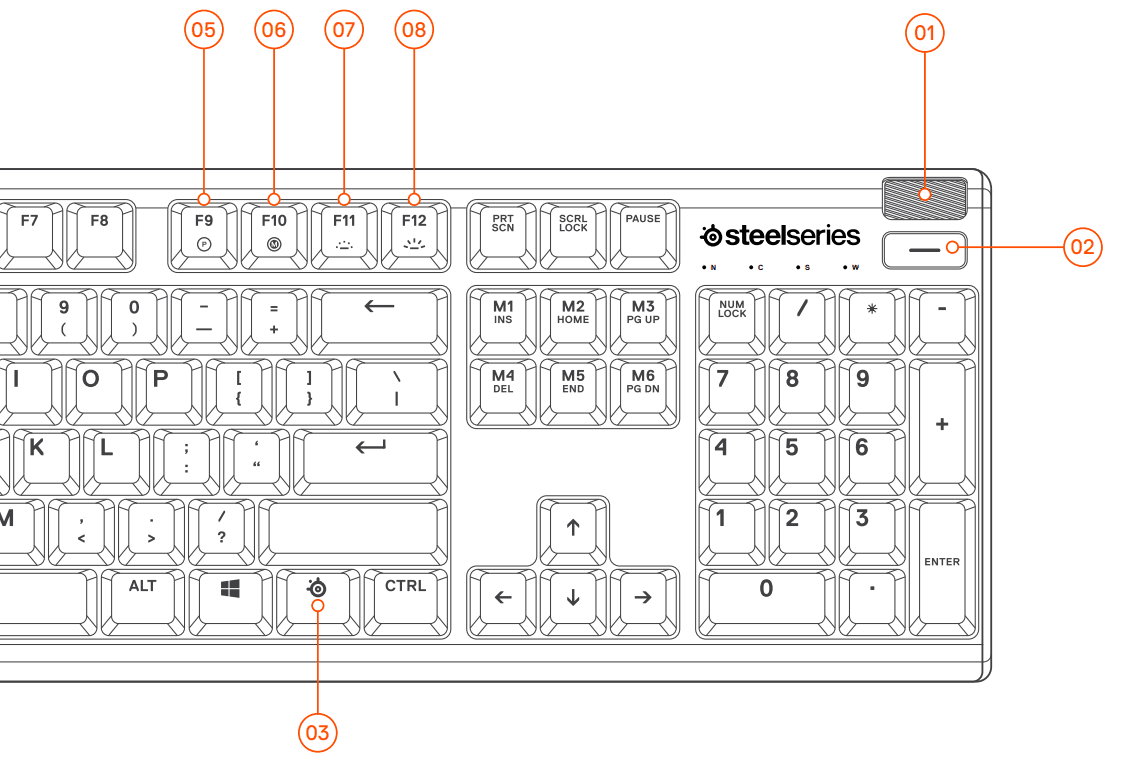

PRODUCT OVERVIEW

1. Multimedia Volume Roller
2. Multimedia Button
3. SteelSeries Function Key
4. USB Keyboard Plug
5. Profile Switching Key
6. On-the-fly Macro Recording Key
7. Illumination Brightness Down Key
8. Illumination Brightness Up Key

PACKAGE CONTENTS

• Apex 3 Keyboard
• Magnetic Wrist Rest

ENGINE REQUIREMENTS

• Windows 7 – Windows 10
• Mac OSX 10.8 – 10.12
• 120 MB of free hard drive space for installation

SETUP

CONNECTION

Connect the USB Keyboard Plug 04 to your computer’s USB 3.0 port

FUNCTIONS

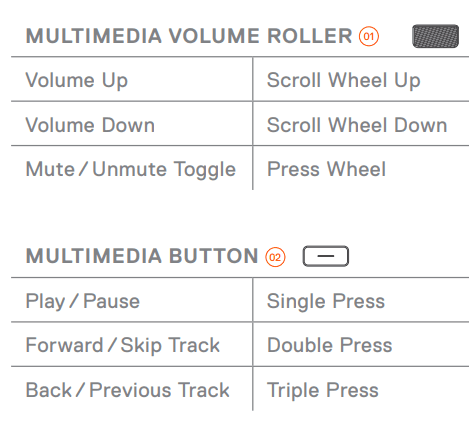

MULTIMEDIA CONTROLS

PROFILE SWITCHING

Press the SteelSeries Function Key 03 + Profile Switching Key 05 repeatedly to cycle through the profiles.

ON-THE-FLY MACRO RECORDING

1. Press and hold the SteelSeries Function Key 03 + Macro Recording Key 06 for 3 seconds to start recording
2. Type your desired key combinations
3. Press the SteelSeries Function Key 03 + Macro Recording Key 06 to end Macro Recording to cancel the recording process, press the Multimedia Button 02

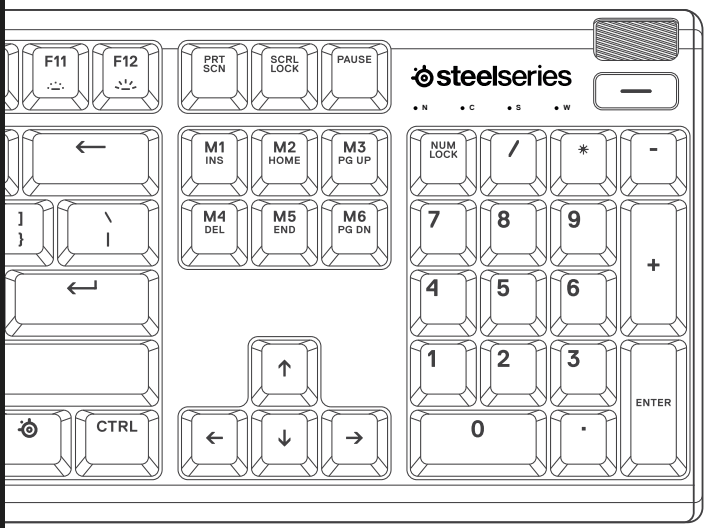

ILLUMINATION BRIGHTNESS CONTROL

• Press the SteelSeries Function Key 03 + Illumination Brightness
• Down Key 07 to reduce Illumination Brightness
• Press the SteelSeries Function Key 03 + Illumination Brightness
• Up Key 08 to increase Illumination Brightness.
