SteelSeries Arctis 3 Bluetooth Wired Gaming Headset
WELCOME TO ARCTIS
Your new headset is the result of more than 15 years of gaming expertise and our unyielding pursuit of perfection. We poured our hearts into making your new Arctis, giving it the best gaming mic available, 7.1 surround sound, and comfort and style unlike anything you’ve experienced before.
PACKAGE CONTENTS
- Headset
- Main cable (1.2 m)
- Dual 3.5 mm extension (1.8 m)
- Micro USB charging cable
- Product information guide
SYSTEM REQUIREMENTS // COMPATIBILITY
- PC / Mac
- PS4 / Switch / Xbox One
- Mobile

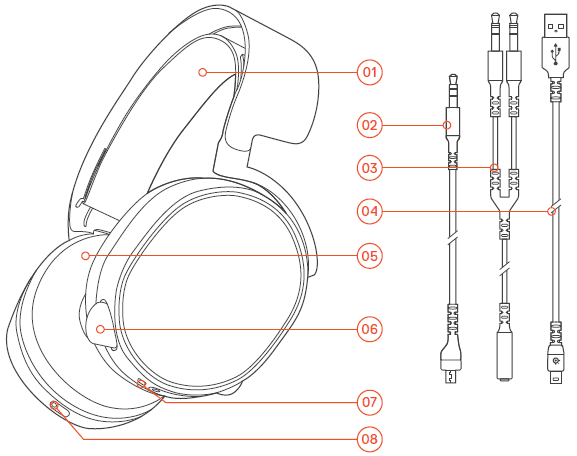

PRODUCT OVERVIEW
- Ski goggle headband
- Main headset cable
- Dual 3.5 mm ‘Y’ extension cable
- Micro USB charging cable
- Breathable moisture-wicking ear cushions
- Retractable microphone
- USB charging port
- Power button
- Microphone mute button
- Volume control
- Main cable jack
- Headphone share jack
Find accessories and replacement parts at steelseries.com
SETUP
Find help at support.steelseries.com

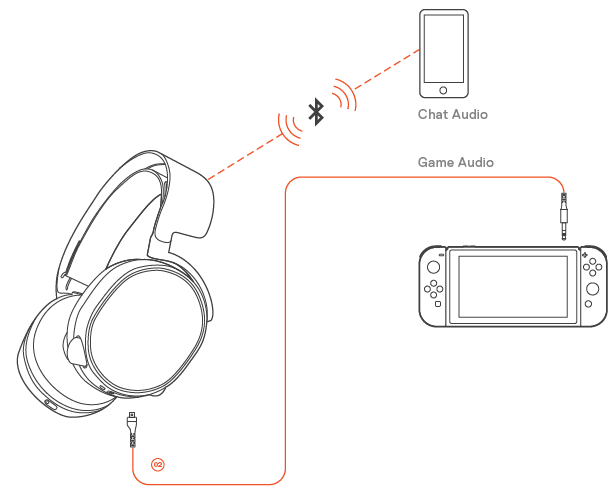

NINTENDO SWITCH
Nintendo Switch Chat
- Connect the main cable 02 from the headset to the Switch.
- Pair the headset to your mobile device.
- Download the Switch chat app on your mobile device.
- Game and chat audio will be mixed together in the headset.

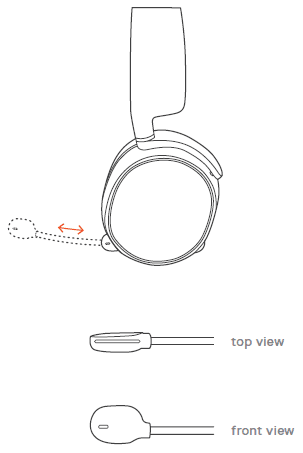

MICROPHONE
Retractable microphone
Positioning
Position the microphone close to the corner of your mouth with the flat surface facing you.
BLUETOOTH
PAIRING
With the headset off, press and hold the power button 08 for 6 seconds (power LED will blink rapidly).
On your mobile device, scan for Bluetooth headsets and select Arctis 3 Bluetooth.
CONTROL
ANSWER/END VOICE CALL
Single · Press the power button
PLAY/PAUSE MUSIC
Single · Press the power button
SKIP TRACK
Double · · press the power button
CHARGING
The power button 08 color indicates your battery level:
- Green 100 – 50 %
- Yellow 49 – 20 %
- Red 19 – 10 %
- Red (fast blink) 9 – 1 %
To charge the headset, connect the micro USB charging cable 04 from the headset to a PC or any USB power source.

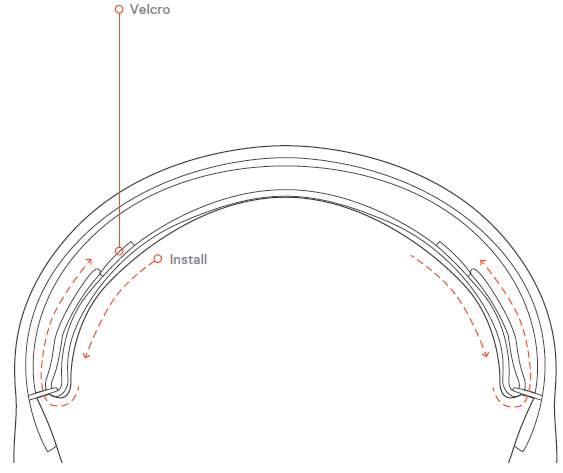

SKI GOGGLE HEADBAND
Velcro
Tighten or loosen the Velcro straps on the sides of the headband to achieve the desired fit.
Install
Direction of headband installation.
Accessory headbands are available at steelseries.com
REGULATORY
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5 GHz products are restricted to indoor usage only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance e 20cm between the radiator & your body.
Note: The country code selection is for non-US models only and is not available to all US models. Per FCC regulation, all WiFi products marketed in the US must be fixed to US operation channels only .
Industry Canada Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
Safety Guideline for Lithium Battery
Please keep follow all listed important war nings and cautions below while using this battery pack to avoid any damage or hazard.
This battery must not be disposed of with your other household waste or treated in compliance with the local regulations, or contact your local city office, your household waste disposal service, or the shop where you purchased the product.
“CAUTION!” Risk of explosion if the battery pack is not replaced with the same type as specified by the manufacturer.
- The battery polarity (+) and (-) shall not be connected and charged in reverse. Risk of explosion if the battery polarity (+) and (-) is reversed.
- Please keep this battery pack away fr om fire and high heat sources due to explosion might happen. Do not place your battery pack close to any heater or hot location.
- This battery pack shall not be hit or impacted. This battery pack shall not be dealt with by any sharp or keen objects either.
- This battery pack shall not be exposed to moisture, dripping, or splashing.
- If any electrolyte flows out of this battery pack when touching the user’s eyes and skin, please seek medical advice immediately.
learn more at steelseries.com
