SteelSeries Arctis Nova 5 Wireless Gaming Headset
PRODUCT OVERVIEW

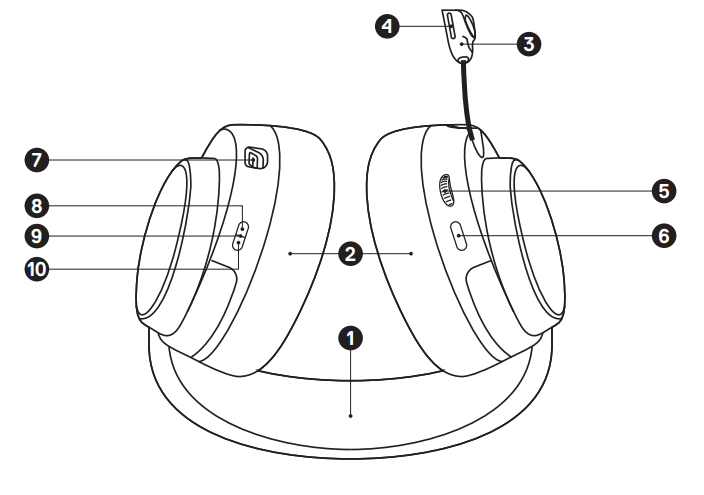

HEADSET
- Elastic Headband*
- Airweave Ear Cushions*
- Retractable ClearCast Microphone
- Microphone Mute LED
- Volume Wheel
- Microphone Mute Button
- USB-C Charging Jack
- Power Button
- Power Indicator LED
- QuickSwitch Button

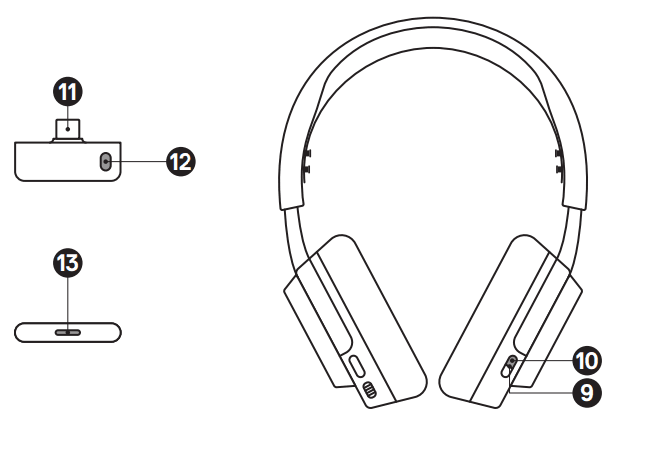

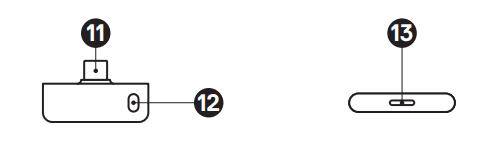

DONGLE
- 11 USB-C Wireless Dongle*
- 12 Pairing Button
- 13 Status LED

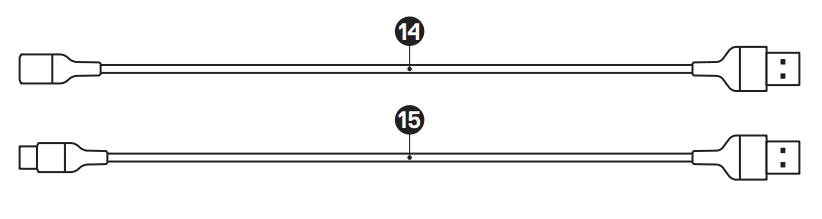

ACCESSORIES*
- 14 USB-C to USB-A Adapter Cable*
- 15 Charging Cable*
QUICK START GUIDE

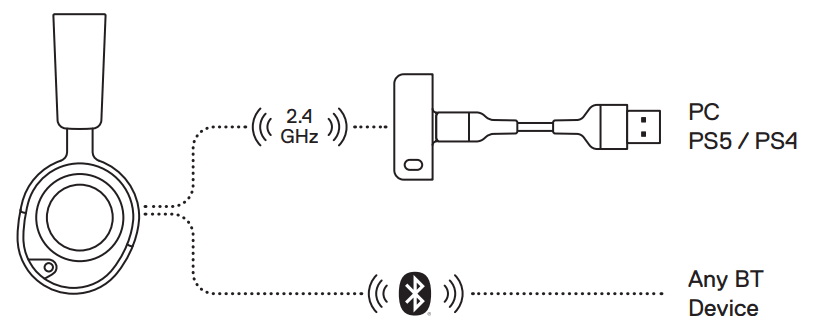

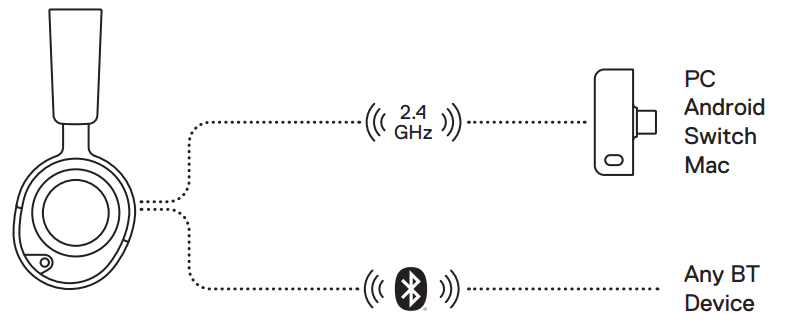

Arctis Nova 5 Wireless can easily switch between a dongle and Bluetooth connection for seamless usability. Need to take a call while you’re gaming? Want to switch from your phone to your PC? Get started here.

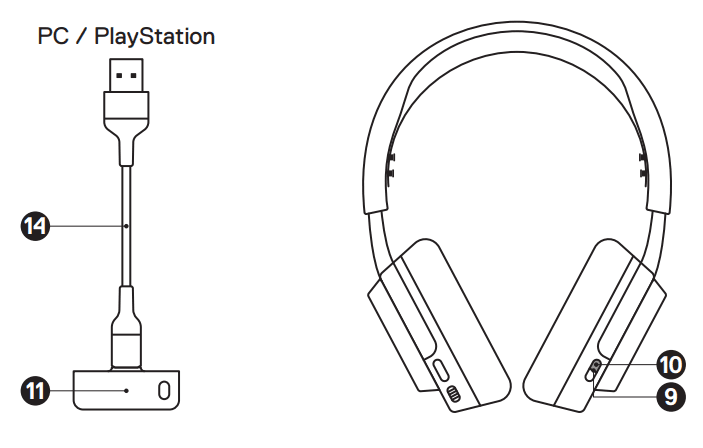

2.4 MODE
- Connect the USB-C Wireless Dongle (11) into the USB-C to USB-A Adapter Cable (14)
- Plug the USB-C to USB-A Adapter Cable (14) into your computer or PlayStation directly
- Once the headset is turned on, you will hear the connected sound effect, and the Power Indicator LED (9) on the headset will blink slowly
BLUETOOTH MODE
- To switch to BT mode, press the QuickSwitch Button (10) on the headset, and you will enter pairing mode
- Go to your main device’s Bluetooth settings and pair with the “Nova 5” device. Once successfully paired, the blue Power Indicator LED (9) will go from fast blinking to blinking slowly
- Now that you’re set up you can switch between 2.4 GHz mode and Bluetooth mode seamlessly with the press of the QuickSwitch Button (10)
SETUP
CONNECTION TO USB-A
CONNECTION TO USB-C
PLAYSTATION 5 AUDIO SETTINGS
- PS5 SETTING > AUDIO OUTPUT
- Output to Headphones: All Audio
- PS5 SETTING > AUDIO OUTPUT > VOLUME
- Headphones: Set to Max
POWER
POWER ON/OFF
Press and hold the Power Button (8) for 1 second to power the headset on/off.
When the Headset is powered on and connected, the Dongle’s Status LED (13) increases brightness.
CHARGING
To charge the headset, connect the Charging Cable (15) from the Headset’s USB-C Charging Jack (7) to any USB power source.
The color of the power LED indicates the battery level.
- Green: 100–50 %
- Yellow: 49–15 %
- Orange: 14–5 %
- Red: 4–1 %
DONGLE PAIRING
Note: The headset and dongle come paired.
If you need to re-pair:
- Connect the USB-C Wireless Dongle (11) to your gaming device
- Press and hold the Dongle’s Pairing Button (12) for 4s until the Dongle’s Status LED (13) blinks rapidly
- Headset On – Press and hold the QuickSwitch Button (10) for 2 seconds until you hear “Dongle Pairing Mode” and the Headset’s
Power Indicator LED (9) blinks rapidly
Headset Off – Press and hold the power button for 2 seconds until the
Headset’s Power Indicator LED (9) blinks rapidly - When pairing is successful, you will hear “Dongle Connected”, and the Dongle’s Status LED (13) will turn solid
BLUETOOTH
Bluetooth can be used independently from 2.4 GHz Wireless by pressing the QuickSwitch Button (10) and hearing “Bluetooth Mode”.
PAIRING
Headset on – Press & hold the QuickSwitch Button (10) for 2 seconds until you enter pairing mode and the Headset’s Power Indicator LED (9) blinks rapidly blue. To switch between dongle and BT pairing mode, press the QuickSwitch Button (10).
Headset off – Press and hold the Power Button (8) for 2s until the Headset’s Power Indicator LED (9) blinks rapidly. If the headset is in dongle pairing mode, press the QuickSwitch Button (10) to switch to Bluetooth pairing mode.
MULTIMEDIA CONTROLS
Play / Pause Music
Single · Press the Power Button (8)
Skip Track
Double · · press the Power Button (8)
Previous Track
Triple · · · press the Power Button (8)
Answer / End Voice Call
Single · press the QuickSwitch Button (10)
(If the call is answered in 2.4 GHz mode, you will return back to 2.4 GHz mode after the Bluetooth call is over.)
Ignore Call
Double · · press the QuickSwitch Button (10)
Increase Call Volume
Single · Press the Power Button (8)
Decrease Call Volume
Double · · press the Power Button (8)
QUICKSWITCH BUTTON CONTROLS
MODE SWITCH
Switch between dongle & bluetooth mode by pressing the QuickSwitch Button (10).
PAIRING MODE
Hold the QuickSwitch Button (10) for 2 seconds.
MICROPHONE

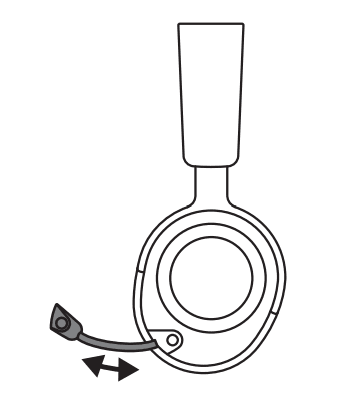

RETRACTABLE MICROPHONE
Out of the box, the Retractable ClearCast Microphone (3) is retracted. To use the microphone, slide it away from the headset until it reaches full extension.

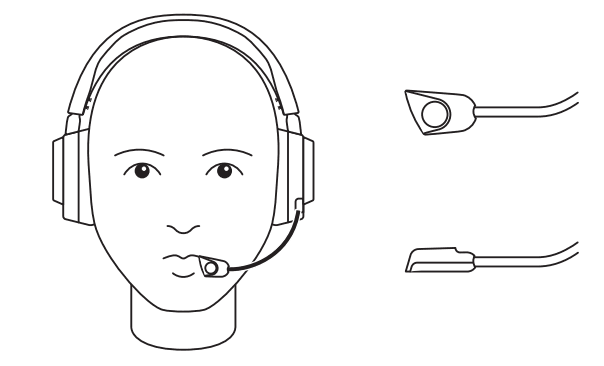

POSITIONING
Position the Retractable ClearCast Microphone (3) close to the corner of your mouth with the front surface facing you.
Note: The microphone should not be used when retracted.

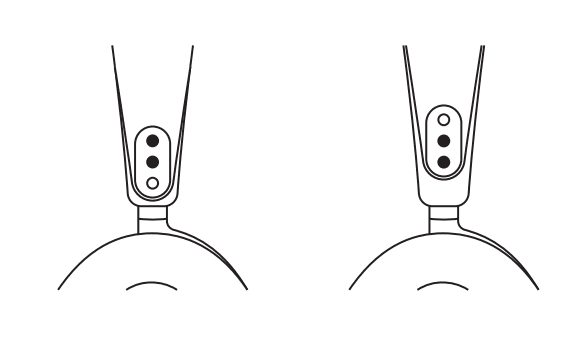

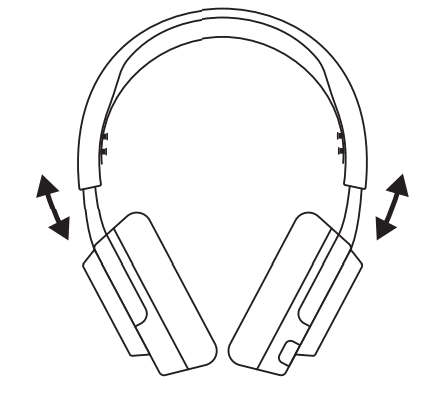

PERFECT FIT
There are two ways to adjust the fit of your headset.
Slide the Earcups up or down to change the overall height.
Change the position of the Elastic Headband (1) on one or both sides to achieve the desired tension and flex.
REGULATORY
Europe – EU Declaration of Conformity
Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/ EU) which are issued by the Commission of the European Community.
The full text of the EU declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/ 360001256111-Other-Stuff
SteelSeries ApS. Hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.
Frequency bands and Powers (Headset and Transceiver)
- Frequency band(s) in which the radio equipment operates: 2.400 – 2.4835 GHz
- Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
- EIRP: GFSK: 9.81 dBm (Headset/ SRD)
- EIRP: GFSK: 12.72 dBm (Headset/ BT)
- EIRP: л/4-DQPSK: 10.22 dBm (Headset/ BT)
- EIRP: GFSK: 10.16 dBm (Transceiver/ SRD)
- Firmware Version: V23
UK Declaration of Conformity
Hereby, SteelSeries ApS. declares that the following equipment complies with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017, and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy.
The full text of the UK declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff
WEEE
This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.
Federal Communication Commission Interference Statement
Supplier’s Declaration of Conformity: 47 CFR § 2.1077 Compliance Information.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, under Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
Suppose this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. In that case, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement
The device has been evaluated to meet general RF exposure requirement; the device can be used in portable exposure condition without restriction. The portable device is designed to meet the requirements for exposure to radio waves established by the FCC. These requirements set a SAR limit of 0.11 w/kg (FHSS_Headset), 0.09 w/kg (DTS_Headset) and 0.25 w/kg (Dongle) averaged over one gram of tissue. The highest SAR value reported under this standard during product certification is for use when properly worn on the body.
FCC ID: ZHK-HS42 (Wireless Headset)
FCC ID: ZHK-HS42TX (Transceiver)
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference, and
- this device must accept any interference, including interference that may cause undesired operation of the device.
