SUHU ‎G27P 110V Car Jump Starter Instruction Manual

SUHU ‎G27P 110V Car Jump Starter

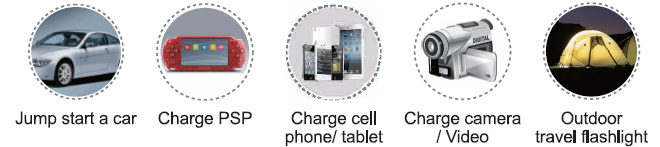

Apart from jump starting a car, this product can also supply power for a mobile phone, PSP, MP3/MP4, camera and other consumer electronics, and with different lighting modes.

How to start a vehicle when the battery is flat?

When starting the car, please first make sure that the electric quantity of the product is above 50%. Connect the EC5 end of the smart cable clamp to the product. Then clamp the red clamp of the smart cable clamp to the positive “+” pole of the car battery and the black clamp to the negative “-” pole of the car battery.

Plug the smart cable clamp into the jump starter.

Connect the smart cable clamp to the car battery (Red is positive and Black is negative).

Start the car by turning on the ignition.

After the car has been started, remove the plug from the jump starter and remove the clamps from the car battery.

How to charge a mobile phone or digital products?

First step:

Plug the USB port of the charging cable into the product USB interface.

Second step:

Inset the other side into the input port of the mobile phone.

Third step:

When connected OK, press power then you can use it to charge now.

How can led emergency light be turned on?

Long press power for 2 seconds in any mode to turn off the LED lamp function.

How to charge the jump starter?

Insert the charging line Type-C into the product input port.

Inset the other side into the 220V(110V) power, the electric quantity indication light will be flicking, which shows it is under charging.

How to use the smart cable clamp:

• Connect the plug fully seated into the host, and the battery voltage of the jump starter will be displayed.
• Connect the clamps to the vehicle battery. Red clamp to positive polarity(+), black clamp to negative clamp(-).
• Operate according to the state of the cable indicator. Standby Indicator: When the clamp is in the standby state, the LED display scrolls.
• This smart cable is designed with advanced protection of LED Display and Buzzer.

LOW VOLTAGE

Low Voltage Protection is started. When the input voltage is 14.0V±0.5V, the LED display shows “LV” and the buzzer beeps once every 1 second. At the same time, the current voltage of jump starter is displayed.

HIGH VOLTAGE

High Voltage Protection is started. When the input voltage is 17.5V±0.5V, the LED display flashes
“888” and the buzzer beeps all the time.

REVERSE CHARGE

Reverse Charging Protection is started. The LED display shows “RC” and ” – – – ” symbol is flashing. The buzzer beeps once every 1 second. It can return to standby after the fault is removed.

REVERSE POLARITY OR SHORT CIRCUIT

The character “R&SC” appears on the screen. The ” – – – ” symbol flashes and the warning tone plays once per second. Standby mode will resume immediately once the error is corrected.

HIGH TEMPERATURE

The characters “HT” appear on the screen. The ” – – – ” symbol flashes and the warning tone plays once per second. Normal operation will resume once the device temperature lowers.

EXCESS CONNECTION TIME:

When connection time is too long for the clamps. the ” – – – ” symbol will flash on the screen, try step 1 &2 of jump start again.

• Please do not expose the cable to humidity, heat, or fire.

Parameter

Product structure diagram

1. Power Button
2. Power indicator light
3. Smart clamp connection port
4. Output 2
5. Output 1
6. LED flashlight /SOS/ warning light
7. Power Input/ Output
8. DC Output Port

Product Accessories

Cautions when using the product

1. Never short-circuit the jump starter by connecting the Red and Black clamps.
2. Do not disassemble the jump starter.
3. When children use this product, please operate under the guidance of parents.
4. Store in a dry place, do not expose to damp conditions or near corrosive materials.
5. If the jump starter expands, leakage or a peculiar smell is found, stop use immediately.
6. Please use this jump starter at normal temperature and be far away from being too wet, too hot, and fire.
7. Do not start the vehicle continuously, between starting twice you should allow an interval of at least 1 minute.
8. Do not start the car when the electric quantity of the product is less than 50%, otherwise it will cause damage to the product.
9. Before first use, charge for 3 hours or more.
10. Please keep charging the jump starter at least once every three months.
11. After starting the car, please wait at least 30 minutes before charging the product.
12. In case of reverse polarity connection by mistake, the product comes with related protection measurements to avoid life-injury & property loss.
13. This product can be used to start the engine with 12V battery, not to start the engine with 24V battery.

Exemption of warranty

1. The company undertakes no responsibility for any problems caused by incorrect operation.
2. After the unauthorized disassembly, the company does not undertake any responsibility.
3. The problem caused by the wrong charger does not match the product, company does not undertake any responsibility.
4. Beyond the shelf life of products, the company does not undertake any responsibility.
