Sunbeam Oskar Professional LC7600C Food Processor User Instructions

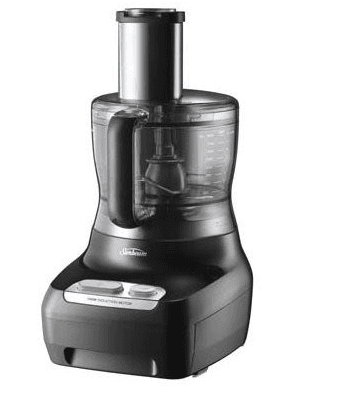

Sunbeam Oskar Professional LC7600C Food Processor

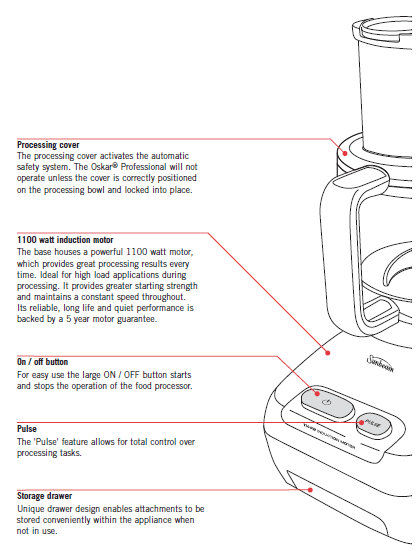

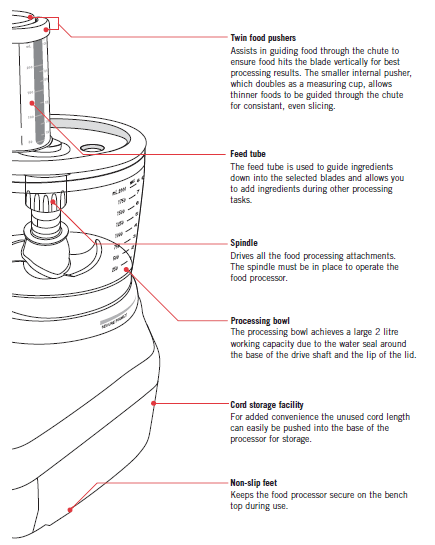

Features of your Sunbeam  Oskar® Professional

Attachments for your Sunbeam Oskar® Professional

1. Universal ‘s’ blade
   Stainless steel smooth-edged processing blade is designed for cutting, kneading, whisking, and emulsifying.

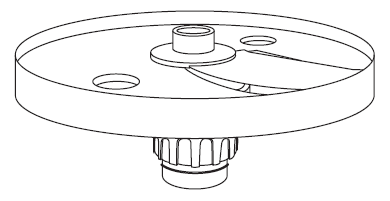

2. Variable slicing blade
   The variable stainless steel slicing blade allows foods to be sliced to a variety of thicknesses, from 0mm – 7mm.

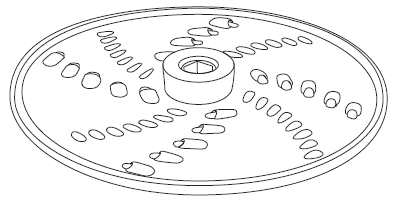

3. Reversible shredding disc – fine and coarse
   Ideal control, the reversible stainless steel shredding blades allow for the choice of fine or coarse results.

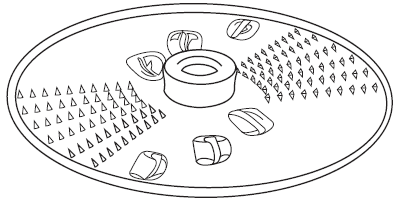

4. Reversible grating and shaving disc
   Unique to processing is the shaving blade. It does lovely thin flakes, great for parmesan and sweet potato crisps. The other side will achieve finely grated results, ideal for hard cheeses and chocolate.
5. Spatula
   The spatula is ideal for assisting with all food processing tasks.

Using your Sunbeam Oskar® Professional

Before using your Oskar®™PProrofefesssioionnaal l

• Wash the processing bowl, cover, and all attachments in warm water using a mild detergent. Dry each part thoroughly before use.
• Before you assemble the food processor, ensure that the power cord is unplugged.

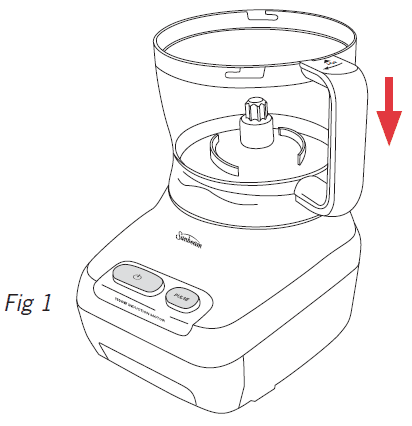

1. Place the motor base facing you on a dry, level surface.
2. Place the processing bowl onto the motor base, the bowl will only sit correctly on the base when the handle is positioned to the right, see Figure 1.

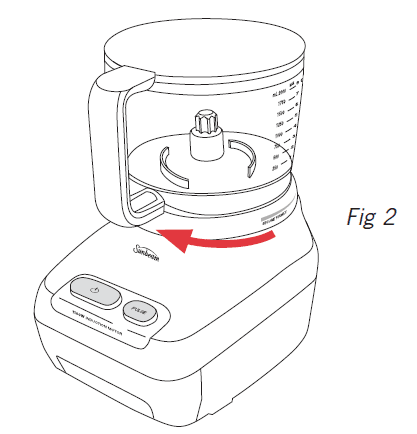

3. Rotate the handle clockwise to lock, as indicated by the graphics on the left side of the motorbase, see Figure 2.

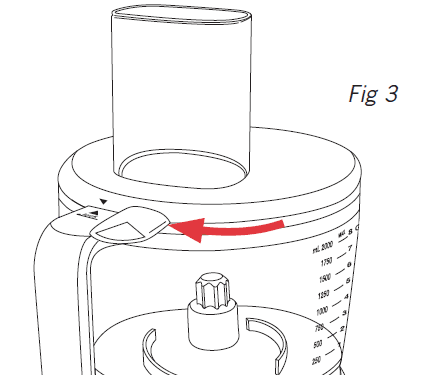

4. Position the lid onto the processing bowl. You will notice a solid grey arrow to the left of the holding lip on the lid, when placing the lid onto the bowl this arrow needs to align with the solid grey arrow on the handle of the bowl. To lock, turn the lid clockwise, as indicated by the graphics, on the top of the handle, see Figure 3.

Using your Sunbeam Oskar® Professional continued

Important: If the processing bowl and cover are not correctly assembled, the Oskar™ Professional will not function.

Using your Oskar™ Professional

1. Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.
2. Using the On/Off button on the control panel, press once to start processing. The Pulse function remains on as long as the pulse button is pressed down. Further ingredients can also be added while processing by pouring through the feed tube once the food pusher has been removed.
3. After you have completed processing, press the On/Off button to stop processing.

Fitting/using the tools on your Oskar™ Professional

Placing the spindle

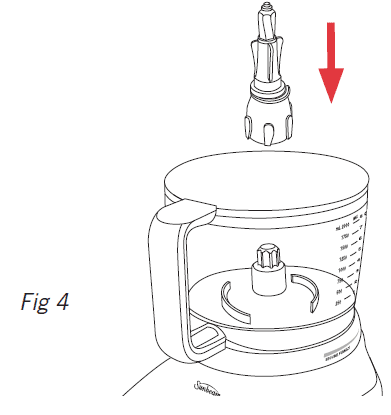

1. Fit the spindle onto the drive shaft, see Figure 4.

Universal ‘s’ blade

1. Fit the processing bowl and spindle as detailed previously in Figures 1, 2 & 4.
2. Remove the universal ‘s’ blade from the storage drawer.

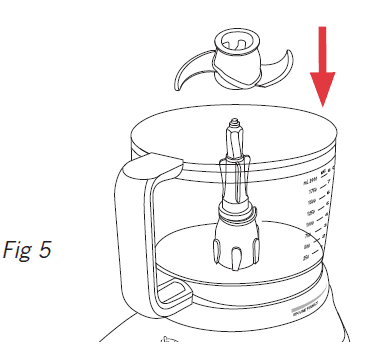

3. Fit the universal ‘s’ blade over the spindle and press firmly into place, see Figure 5.
4. Place food into the processing bowl.
5. Fit the processing cover to the processing bowl, see Figure 3 and place the food pusher in the feed tube.
6. Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.
7. Start processing using the On/Off or Pulse buttons.
8. When processing is complete, remove the spindle and blade from the processing bowl before removing the processed food.

Reversible grating, shaving, and shredding blades

1. Fit the processing bowl and spindle as detailed previously, in figures 1, 2, and 4.
2. Select the ‘Reversible’ disc of your choice Shredding (fine or coarse), Grating, or Shaving.

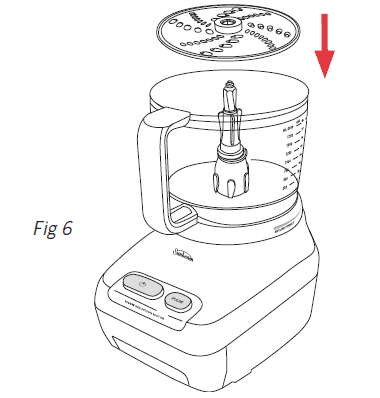

3. Fit the disc over the spindle and press it firmly into place, see Figure 6.
4. Fit the processing cover to the processing bowl as previously shown in Figure 3 and place the food pusher in the feed tube.
5. Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.
6. Start processing using the On/Off button.
7. When processing is complete, remove the disc and spindle from the processing bowl before removing the processed food.

Variable slicing blades

1. Fit the processing bowl and spindle as detailed previously in Figures 1, 2, and 4.

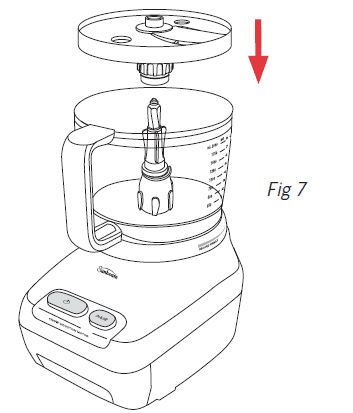

2. Fit the slicing disc over the spindle and press it firmly into place, see Figure 7
3. Fit the processing cover to the processing bowl as previously shown in Figure 3 and place the food pusher in the feed tube.
4. Plug the power cord into a 230-240V AC power outlet and turn the power ‘ON’.
5. Start processing using the On/Off button.
6. When processing is complete, remove the disc and spindle from the processing bowl before removing the processed food.

Storing your Sunbeam Oskar® Professional

The Sunbeam Oskar™® PProrofefesssioionnaallwwaass is designed so that all attachments can be stored within the unit itself, see Figure 8.

Storage drawer

The universal ‘s’ blade, ‘Reversible Shredding’ disc, ‘Reversible Grating and Shaving’ disc, and ‘Spatula’ are all stored in the storage drawer.

1. Slide out the storage drawer at the base of the food processor.

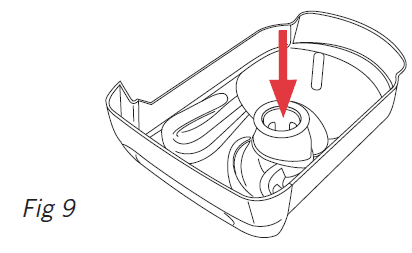

2. Place the universal ‘s’ blade in the storage drawer as indicated in Figure 9.

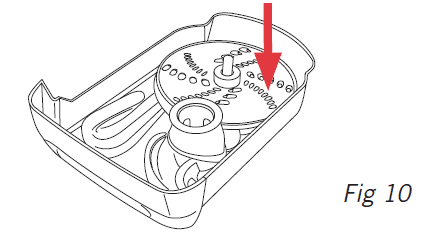

3. Place one of the ‘Reversible discs’ in the storage drawer as indicated in Figure 10.

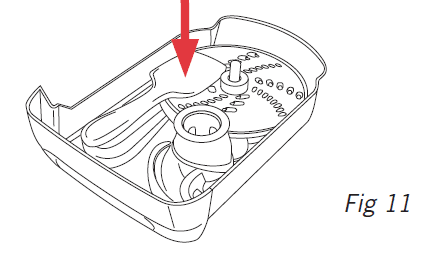

4. Lie a spatula on top of the ‘Reversible Disc’ in the storage drawer as indicated in Figure 11.

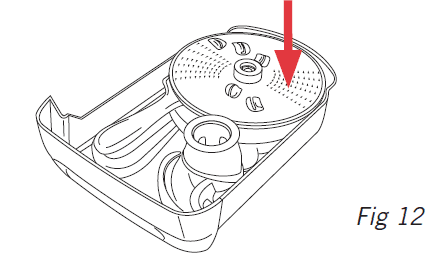

5. Place the remaining ‘Reversible disc’ in the storage drawer as indicated in Figure 12.

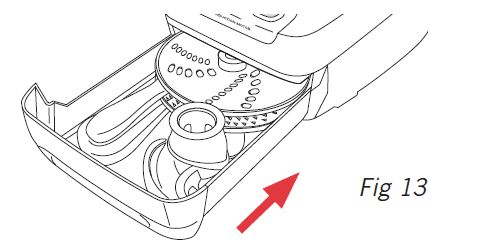

6. Close the storage drawer, see Figure 13.

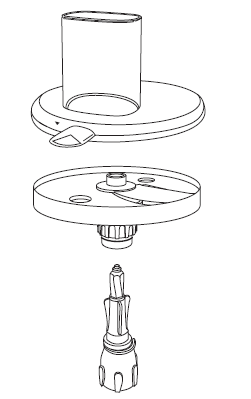

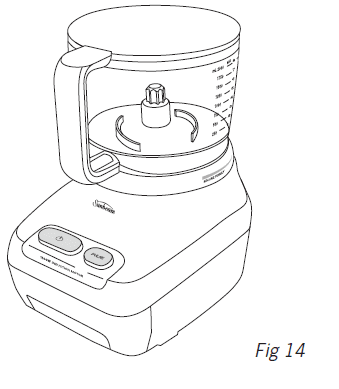

For processing bowl storage, see Figure 14.

1. Place the processing bowl onto the base of the food processor.
2. Fit the spindle over the drive shaft.
3. Place the ‘Variable Slicing’ blade over the spindle and then fit the processing cover to the processing bowl.

Cord storage

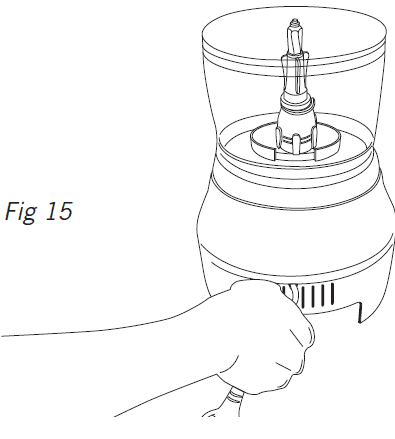

The power cord can be stored by pushing it into the back of the motor base, see Figure 15.

Handy hints for processing

Chopping

For the best, most consistent results, you should try to process pieces of food that are approximately equal in size. When you break, cut, or tear food into uniform pieces before you begin processing, the finished results will be more uniform. More consistent processing results are achieved if the container is not overloaded.

Mincing

Pre-cut meat into cubes approximately 2cm square.

Vegetables

When processing vegetables such as onions, peel and quarter or cut large vegetables into eighths.

Mixing

The quantities that can be processed within the processing bowl will vary with the density of the mixture.

Adding Ingredients

When various recipes require dry ingredients such as flour, add them directly into the processing bowl before processing. There is no need to sift ingredients when using your food processor. Liquid ingredients may be added while the processor is operating by pouring through the feed tube in the processor cover.

Note: When processing sauces or semi-liquid ingredients, stop the food processor and scrape down the container sides with the spatula provided.

Using the Feed Tube

The most important factor for successful slicing and shredding is how the food is packed into the feed tube.

When slicing, shredding, and grating Cut all ingredients to a size that fits comfortably into the feed tube. Pack the feed tube and, while holding the food steady and upright with the food pusher, press down evenly until all ingredients are sliced or shredded. The more firmly you push, the thicker the slices or shreds. Do not use excessive force or you may damage the food processor. Note: Never use fingers to push food down the feed tube. Always use the food pusher.

For best results when slicing

The feed tube should always be packed firmly to allow each piece of food to support the others. There will always be a small portion of food left unprocessed between the food pusher and the blade.

Preparing longer slices

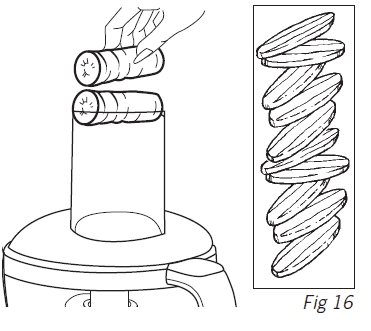

Pack food items horizontally in the feed tube, see Figure 16.

Preparing shorter slices

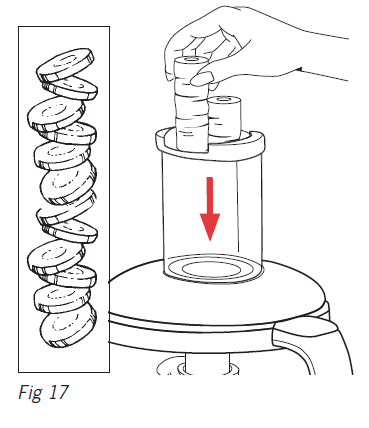

Pack the food items vertically in the feed tube, see Figure 17.For best results when shredding and grating Remember that softer foods such as cheese (cheddar, mozzarella, or swiss) should be well chilled before processing. Harder foods such as parmesan or Romano cheese should be at room temperature before processing. Note: When grating parmesan cheese do not apply a lot of pressure to the food pusher.

Twin Food Pusher

Use the twin food pushers to help guide food through the chute for even, consistent processing. Use the smaller food pusher for smaller, thinner foods for best results.

Disassembly

When processing is completed, remove the cover from the processing bowl first and then remove the processing bowl with the processing blade still in place. Remove the processing bowl first unlock the processing cover by rotating it in a clockwise direction until the cover is unlocked.

Recipes

Guacamole

• 2 ripe avocados, peeled, seeds removed
• 1 clove garlic, chopped
• 1 tablespoon lemon juice
• dash Tabasco sauce
• 1 jalapeno chili, sliced (optional)
• ¼ cup fresh coriander leaves
• 1 small red onion, quartered
• 1 tomato, quartered

1. Using the processing bowl fitted with the Universal ‘s’ blade, process the avocados, garlic, juice, Tabasco, chili, and coriander leaves for 10 seconds. Add onion and tomato and process until just-chopped.
2. Transfer the mixture to a bowl and refrigerate for 1 hour before serving. Serve with corn chips.

Hummus

• 420g can chickpeas, rinsed and drained
• ¼ cup tahini paste
• ¼ cup lemon juice
• ¼ cup water
• ¼ cup olive oil
• 1 clove garlic, crushed
• ½ teaspoon ground cumin
• ½ teaspoon salt

1. Using the processing bowl fitted with the Universal ‘s’ blade, process all ingredients until smooth.
2. Transfer mixture into a bowl and refrigerate for 1-2 hours before serving.

Serving suggestions: Serve hummus with toasted pita crisps; simply cut pita bread into triangles, brush with olive oil, and season with a little salt and cumin seeds. Bake in oven at 200 °C for about 5 minutes or until crisp.

Baba Ghanoush

• 2 large eggplants
• 3 cloves garlic, chopped
• 2 tablespoons tahini
• ¼ cup lemon juice
• ¼ teaspoon sweet paprika
• sea salt and freshly ground black pepper

1. Pierce eggplants all over with a fork. Cook eggplants under a griller until the skin blackens and the flesh is soft. Allow eggplants to cool for 20 minutes before removing the skin. Then drain for 10 minutes.
2. Using the processing bowl fitted with the Universal ‘s’ blade, process all ingredients until smooth.
3. Transfer mixture into a bowl and refrigerate for 1-2 hours before serving.

Herbed Mushroom

• Pate 300g mushrooms
• 1 onion, quartered
• 50g butter or margarine
• 200g cream cheese, cubed
• 1 tablespoon freshly chopped chives
• salt and freshly ground black pepper to taste

1. Using the processing bowl fitted with the variable slicing blade, feed the mushrooms into the feed tube a few at a time, and using the food pusher to slice the mushrooms, remove them.
2. Using the processing bowl fitted with the Universal ‘s’ blade, process onions until just-chopped.
3. Heat butter in a frying pan over a medium heat. Cook onion and mushrooms until soft, and cool.
4. Using the processing bowl fitted with the universal ‘s’ blade, place the mushroom mixture into the processing bowl with the remaining ingredients and process until smooth.
5. Pour into a serving bowl and refrigerate for at least 2 hours before serving. Serve with Melba toasts.

Whole Egg Mayonnaise

• 2 eggs
• 2 tablespoons lemon juice
• 1 tablespoon Dijon mustard
• pinch sea salt
• 2 cups vegetable or light olive oil

1. Using the processing bowl fitted with the universal ‘s’ blade, place eggs, juice, mustard and salt in the processing bowl and process for 5 seconds or until combined.
2. With the motor still running remove the food pusher and start to pour in the oil in a slow, thin stream until the mixture is creamy and all the oil has been added.
3. Store in the refrigerator in an airtight container for 2 weeks.

Variations

• Add crushed garlic to mayonnaise to make garlic mayonnaise.
• Add finely chopped gherkins, capers, and parsley to mayonnaise to make a tartare sauce.

Roast Pumpkin Soup Serves 4

• 1.5kg pumpkin
• 2 tablespoons olive oil
• Sea salt & freshly ground black pepper
• 20g butter
• 1 onion, chopped
• 1 litre chicken stock
• ¹/³ cup cream or sour cream to serve (optional)

1. Preheat oven to 200°C.
2. Remove skin and seeds from the pumpkin and cut them into even-sized chunks.
3. Place pumpkin in an oven dish and drizzle with half the oil. Season with a little salt and pepper. Bake in the oven for about 40 minutes or until tender.
4. In a large saucepan heat the remaining oil and butter. Add onion and cook until tender. Add the pumpkin and stock and bring to the boil. Reduce heat, and simmer, uncovered, for 10 minutes. Cool
5. Using the processing bowl fitted with the Universal ‘s’ blade, process soup in batches until smooth.
6. Return pureed soup to saucepan.
7. Reheat until the soup is hot. Serve with cream and extra ground pepper if desired.
