The Rise Garden 2 Assembly Manual

The Rise Garden 2 Assembly

Important Notices

1. Prune plants’ stems and leaves so they do not grow into the light modules.
2. The top and side of the garden will get warm. Do not place items that generate heat (appliances, candles, etc.), items that are sensitive to heat, or insulating material on top of or next to the garden.
3. Place the power supply next to or underneath the Garden cabinet, right-side-up, with unrestricted airflow. Avoid placing the power supply on heat-sensitive surfaces such as vinyl floors, rugs, or carpets.
4. If an electronic part gets wet, immediately unplug the garden and ensure the part is thoroughly dry before continuing use. If water damage is significant, please discontinue use and reach out to Rise Gardens Support at [email protected] to report the incident.
5. Unplug from power before cleaning/ maintenance/assembly/disassembly.
6. Unplug from power before connecting/ disconnecting cables and electronic components.
7. Do not touch any of the electronics with wet hands.
8. Cap all exposed electronic connectors when not in use.
9. Supervise children around the garden.

• All electrical connectors must be fully connected before the garden is plugged into power.
• For indoor use only.
• Use only with Rise accessories and replacement components.
• If electronics are damaged, unplug and do not use them. Reach out to Rise Gardens Support at [email protected] to report the incident.
• Keep the power cord away from other sources of heat. Keep the power cord away from walkways where it might become a trip hazard.
• Do not use a garden around aerosol sprays or concentrated oxygen.
• Do not open electronic enclosures. Electronic modules may be detached from the metal cabinet, tray, and top shelf for replacement.
• To avoid damaging electrical cords, do not pinch or bend them sharply.

Start Assembling

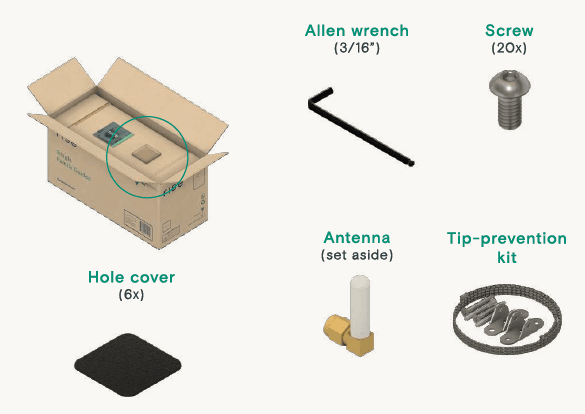

1. Unpack the Base Garden Hardware Kit

Something missing? Contact us at support.risegardens.com

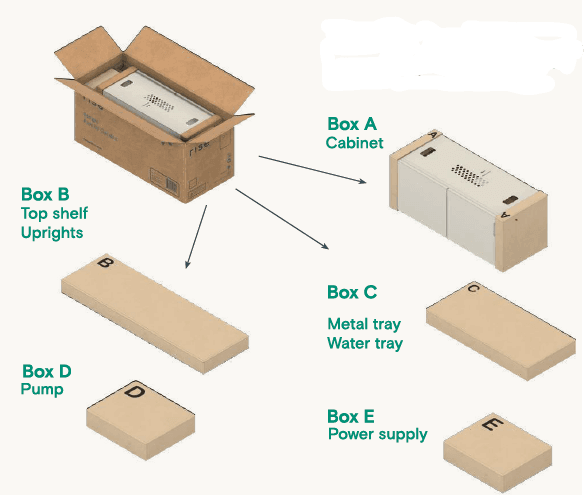

2. Unpack the base Garden

The Base Garden package contains 5 boxes labeled A-E. If you are building a double- or triple-level garden, set any Extension packages aside for now.

Something missing? Contact us at support.risegardens.com

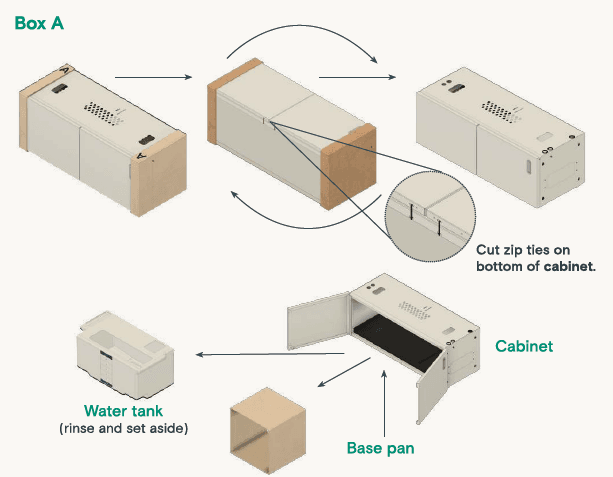

3. Unpack Box A

Something missing? Contact us at support.risegardens.com

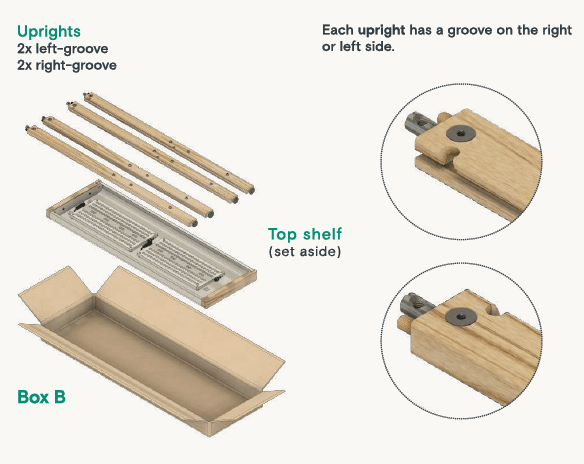

4. Unpack Box B

Each upright has a groove on the right or left side.

Something missing? Contact us at support.risegardens.com

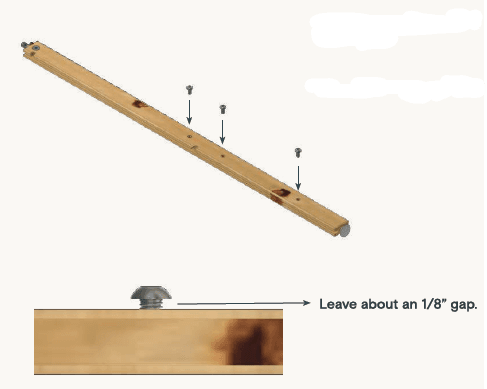

5. Install Screws in Uprights

Install a screw in each (3) brass insert on upright.
Repeat for all 4 uprights.

Something missing? Contact us at support.risegardens.com

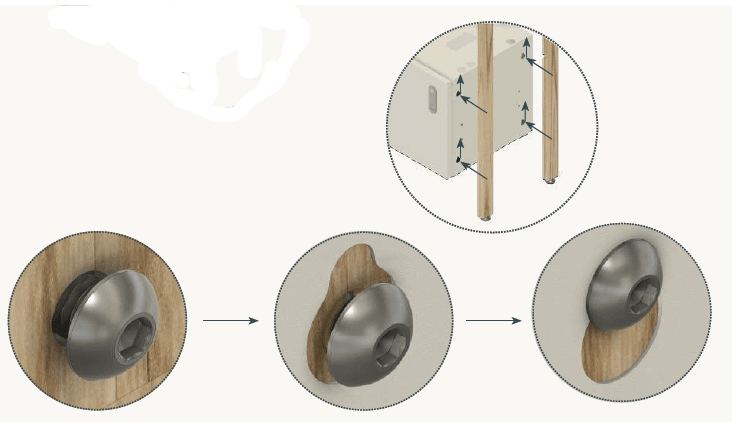

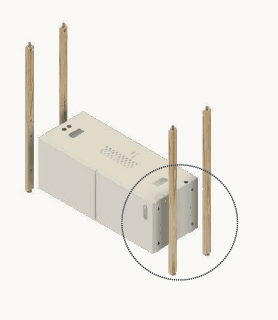

6. Assemble Cabinet to Uprights

• One at a time, hold upright and lift cabinet so the lowest two screws engage with keyholes.
• Grooves on uprights should face inwards. These will be used to hide electrical cables.
• Do not tighten screws until Step 8. Tightening screws nearly may cause metal tray to scratch uprights.

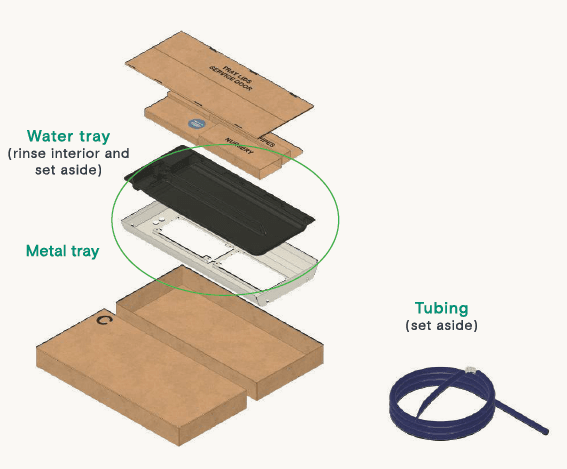

7. Unpack Box C

Something missing? Contact us at support.risegardens.com

8. Install Metal Tray

1. Lower metal tray onto remaining (4) screws on uprights.
   Circular holes of the metal tray align with holes on the cabinet.
   If metal tray is a tight fit, loosen screws attaching cabinet to prevent scratching uprights.
2. Once all (12) screws on metal tray and cabinet are fully engaged with the keyholes, tighten.

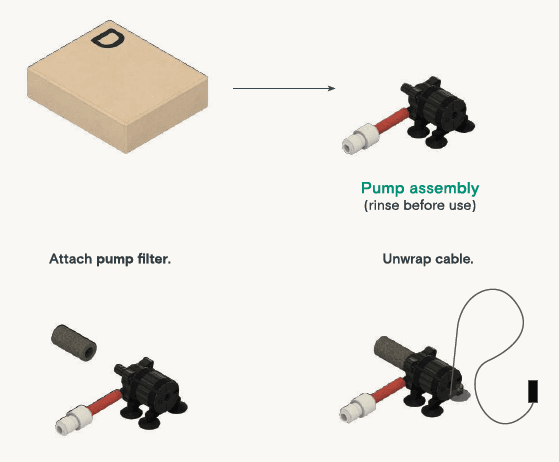

9. Unpack Box D

Something missing? Contact us at support.risegardens.com

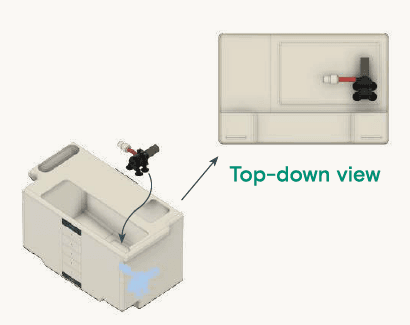

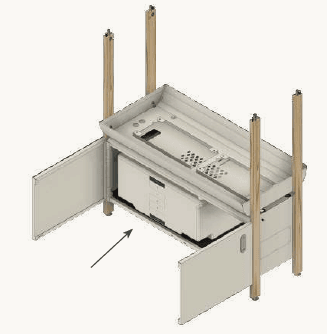

10. Install Pump

1. Install the pump assembly onto the bottom of the water tank using suction cups. To reduce noise, ensure the pump is not touching the sides of the tank.
2. Return the water tank to the cabinet. Slide to the back left corner. The water level label should face outwards.

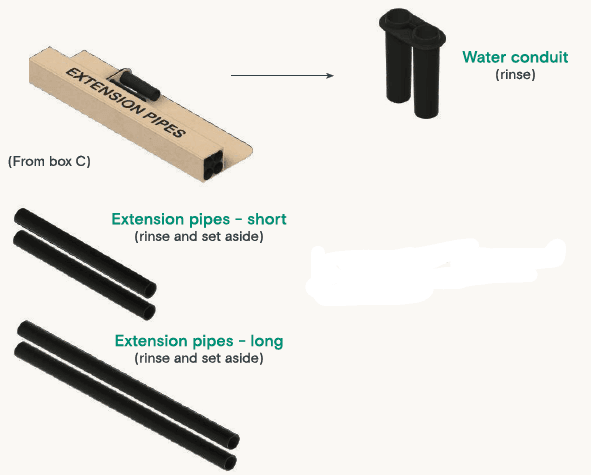

11. Retrieve Conduit and Extension Pipes

Use pipes for double- and triple-level gardens. Retain unused pipes for future extensions.

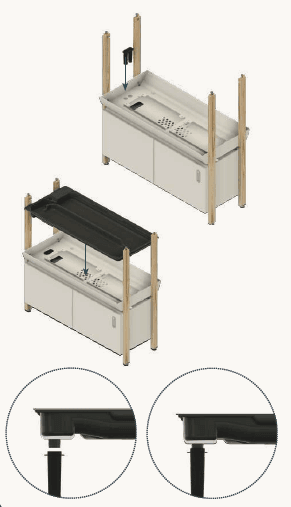

12. Install Water Conduit and Water Tray

1. Place the water conduit into the two circular holes on the left side of the metal tray. Verify that the water conduit is positioned above the holes in the water tank.
2. Ensure that the bottom of the water tray is dry, then return the water tray to the metal tray.

Note that the water tray tubes slot into the water conduit.

Steps 13-18 only apply to double- and triple-level gardens.

If building a single-level garden, skip steps 13-18

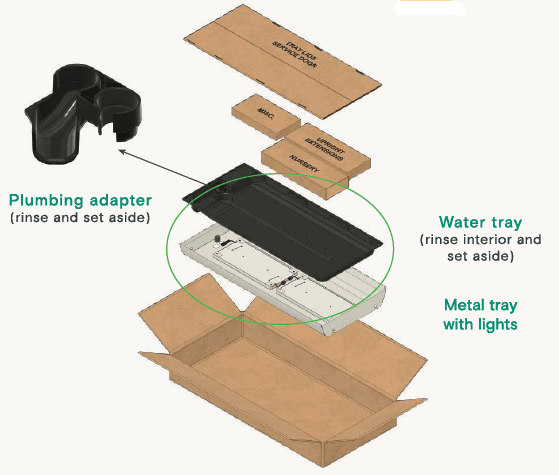

13. Unpack Extension Box

If building a single-level garden, skip this page.

Something missing? Contact us at support.risegardens.com

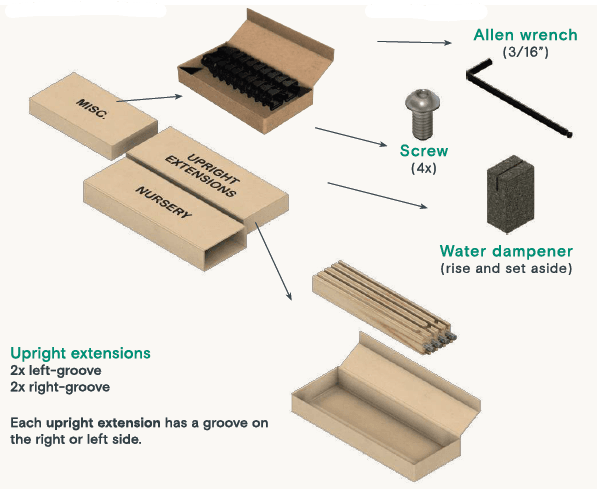

14. Obtain Hardware Kit and Upright Extensions

If building a single-level garden, skip this page.

Something missing? Contact us at support.risegardens.com

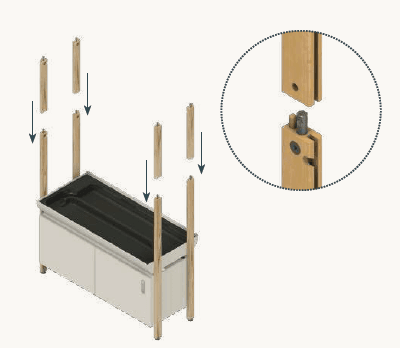

15. Extend uprights

If building a single-level garden, skip this page.

• Align the dowels and grooves of each (4) upright extension with the upright, then lower the upright extension onto the upright.

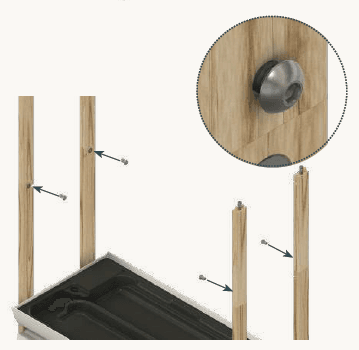

• Fasten each (4) upright extension with a screw. Leave about a ¼” gap. Do not tighten yet.

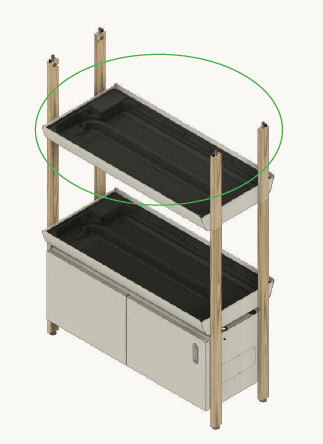

16. Install Metal Tray with Lights

If building a single-level garden, skip this page.

1. Lower metal tray with lights onto each (4) screw.
   Circular holes of the metal tray with lights align with plumbing holes on the left of the level below.
2. Once all (4) screws are fully engaged with the keyholes, tighten.
3. Feed the light cable through the front-right hole in the metal tray with lights.
   Tuck the light cable into the groove in the upright, then into the front-right hole on top of the cabinet.

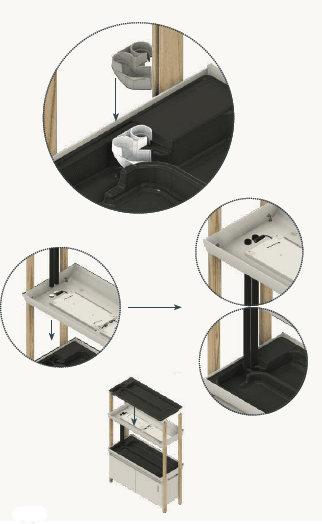

17. Add plumbing to the extension

If building a single-level garden, skip this page.

1. Place the plumbing adapter into the water tray of the base level.
2. Insert long extension pipes (from the Base Garden package) through the circular holes in the metal tray above and lower into the plumbing adapter.
3. Ensure the bottom of the water tray is dry. Return the water tray to the extension metal tray.

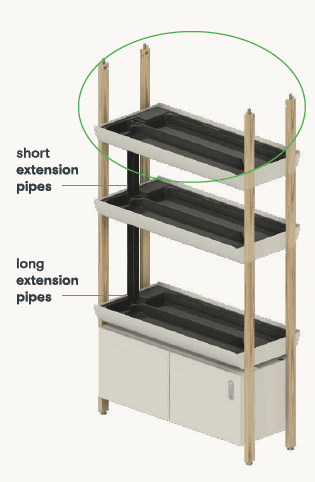

18. Add a second extension to the Triple-level Garden

If building a single-level garden, skip this page.

If building a double-level garden, skip this page.

If building a triple-level garden, repeat steps 11-16 with the third level.

For the second extension, use the short extension pipes.

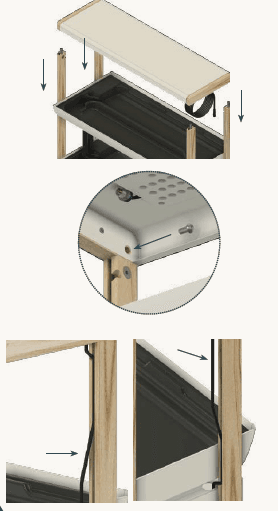

19. Add Top Shelf

1. Align the top shelf with the dowels and lower it onto the uprights.
   Ensure that the cable is on the right-hand side.
2. Install a screw Into underside corner of each (4) corner of top shelf.
3. Insert the cable in the right rear upright, and feed the light cable into the rearmost hole of the cabinet.

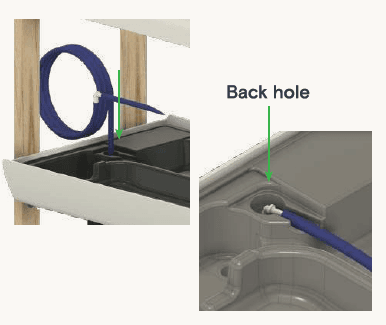

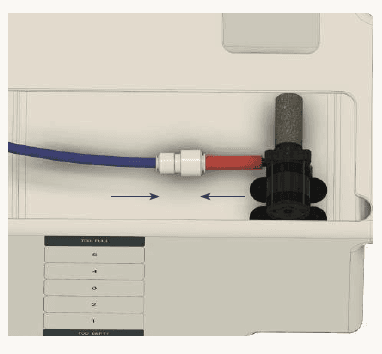

20. Connect Tubing to Pump

1. Uncoil the tubing and feed it into the raised hole at the back of the top water tray until the short segment rests in the groove.
2. The end of the tubing should now be in the water tank. Connect the tubing to the pump coupler. Push the tubing fully and firmly into the pump coupler. Pull to ensure the tubing is fully connected.

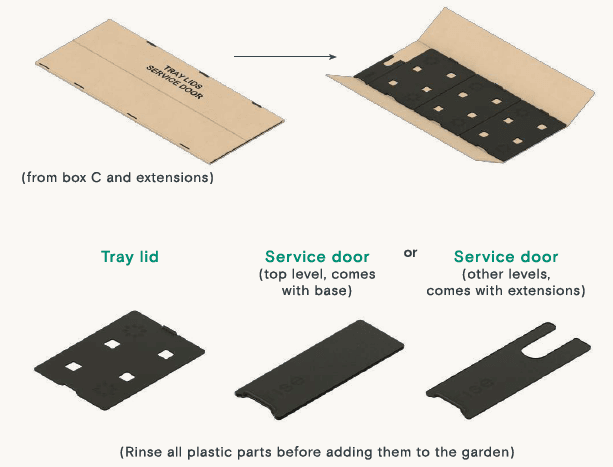

21. Install Tray Lids and Service Doors

Something missing? Contact us at support.risegardens.com

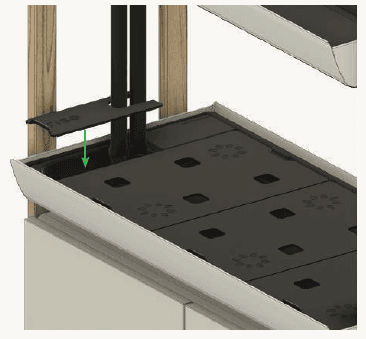

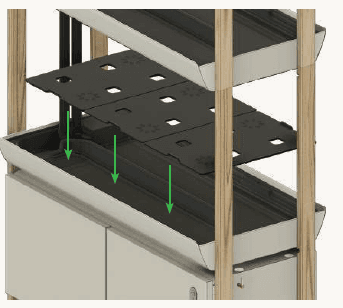

22. Cover Water Tray

1. Place tray lids on top of water tray (s).
2. Place service doors on the left side.

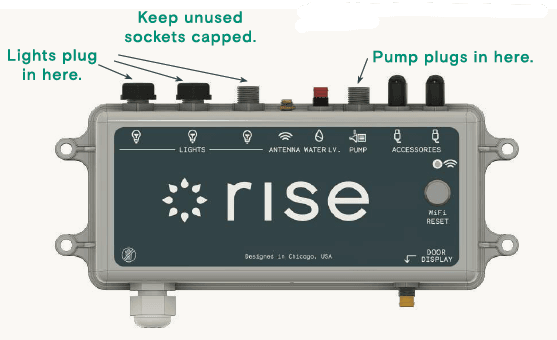

23. Identify the Control Box

The lights plug into the back. One socket is uncapped.

To plug in an additional level of lights, unscrew the cap.

NOTE: All connectors are keyed. If the plug does not fit initially, gently rotate the plug until the keys line up and the plug is able to be inserted into the socket. Do not force the plug as this may break or bend the connector.

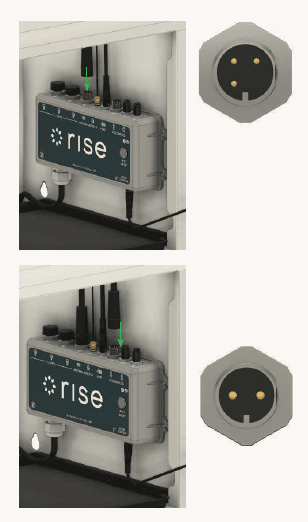

24. Plug in electronics

1. Plug light cable from the top shelf into control box and screw in to secure.
   NOTE: All connectors are keyed. If the plug does not fit, gently rotate the plug until the keys line up and the plug can be inserted into the socket. Do not force the plug as this may break or bend the connector.
2. If building a double- or triple-level garden, connect additional light cables from the metal tray(a) with lights.
3. Plug cable from pump into control box and screw to secure.

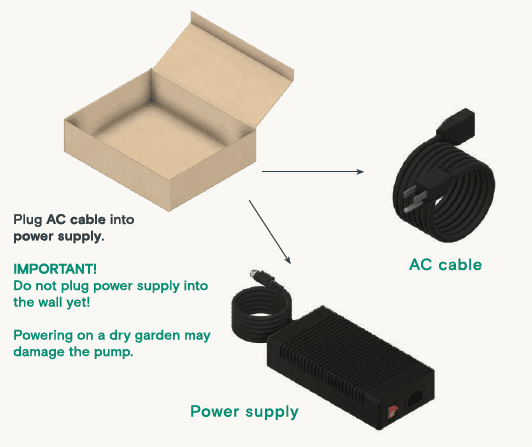

25. Unpack Power Supply

Something missing? Contact us at support.risegardens.com

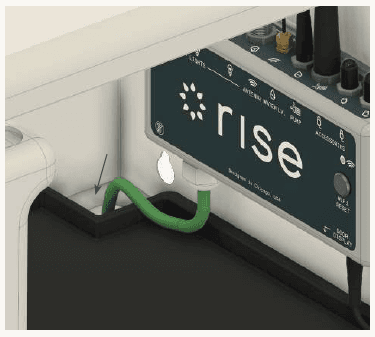

26. Antenna and Power

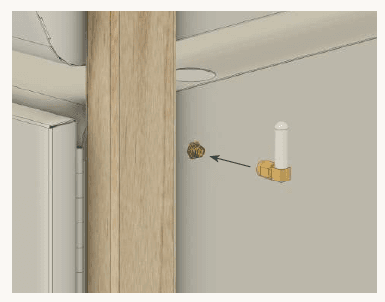

1. Screw in the small antenna onto the connector on the right exterior side of the cabinet.
2. Route the power cable out of the hole in the back-right corner of the cabinet floor, and connect it to the power supply.
   Place the power supply outside of the cabinet, vent-side-up, in an area with unrestricted airflow.

IMPORTANT!

Do not plug the power supply into the wall yet! Powering on a dry garden may damage the pump.

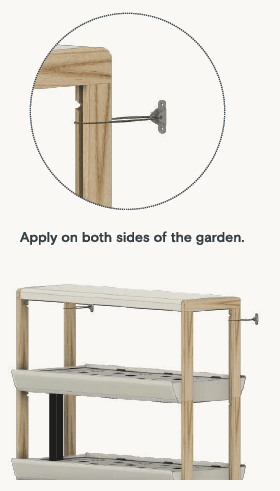

27. Tip-prevention Kit (optional)

• If you’re concerned about the garden tipping because of children or pets, attach a tip-preventing kit.
• A kit with two straps is provided to secure the garden to residential wall studs.
• To use the kits, loop the metal cable around each rear upright, just under the top shelf.
• Position the garden such that the cable is not loose.
• If a stud is not accessible, use 4x anchors appropriate to your wall material and rated for at least 251bs.

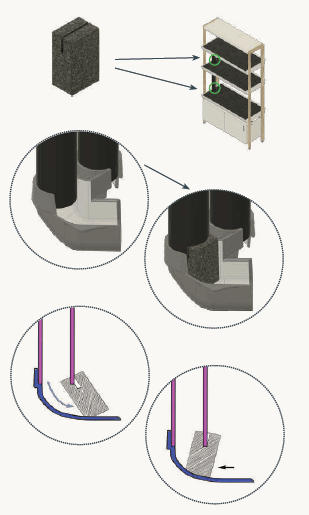

28. Water Dampener

• A foam water dampener is provided with each extension hardware kit in order to reduce splashing.
• Single-level gardens do not require a water dampener. Double-level gardens use one dampener, and triple-level gardens use two.
• Each water dampener inserts into the gap between the plumbing adapter and the extension pipe. The wall of extension pipe rests within the slit on water dampener.
• Each water dampener is intended to fall out in the event of excess water flow or pressure. If it is falling out prematurely, try pushing the water dampener slightly further in.

29. Powering on

• Fill the water tank about halfway.
• Connect the power supply to a power source, and flip the power switch on the power supply. Always turn off the power supply before plugging or unplugging any electronics.
• The lights should turn off,  and the pump should start running. If the pump does not run, ensure it is connected, then press and hold the cabinet door display button for 5 seconds to toggle the pump.
• The control box should have a solid red light, indicating it is ready to connect via the Rise Gardens App.
• Monitor the garden for a few minutes to ensure there are no leaks.
• Check out our quick-start guide to get growing!

Warranty and returns

Limited Warranty Policy- Indoor Gardens

All our Indoor Gardens come with a 3-year warranty for hardware components and a 1-year warranty on electronic components against defects in workmanship and materials.

To be eligible for a warranty replacement, you must have proof of purchase ( order number or email confirming purchase) and be the original owner of the Indoor Garden.

Damage or equipment failure due to normal wear and tear, improper or negligent assembly, maintenance, accident, abuse, improper or abnormal use, and relocation is not covered under the warranty.

Return Policy – Indoor Gardens

If you find yourself unsatisfied with your purchase, you have 90 days from the time of delivery to return your purchase, unless your garden was purchased as part of a promotion stipulating that all sales are final. To be eligible for the return of a product other than a Garden, your item must be unused and in the same condition that you received it. Perishable goods such as seed pods & nutrients are not eligible for return. Please reach out to our Support Team for any returning inquiries at [email protected].

To complete any return, we require a receipt or proof of purchase. All items must be returned in their original packaging. If you do not have original packaging, you will need to purchase it from Rise Gardens.

For returns not related to a warranty claim, customers are responsible for the return shipping cost. The cost of shipping labels and packaging kits provided by Rise Gardens will be deducted from your refund. Any eligible refund will be issued only once the returned item is received by Rise Gardens.
