The Rise Roma Garden Assembly Instructions

The Rise Roma Garden Assembly

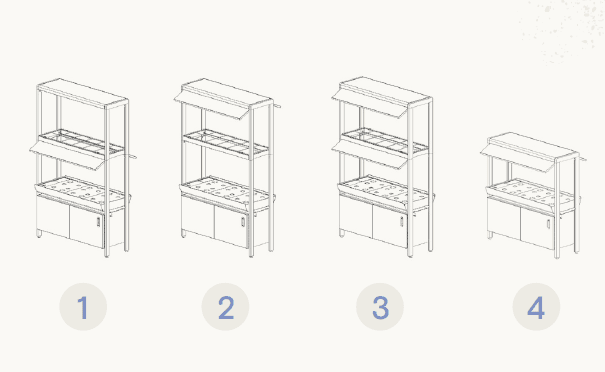

The Roma has a few different configurations.

This manual is for configuration #1

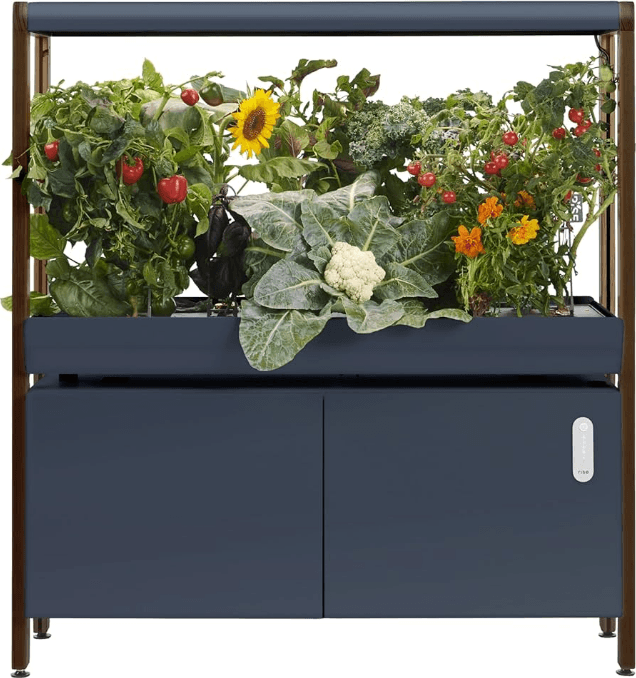

The Rise Roma is an extension for a base (single-level) Rise Garden.

Do not use in conjunction with any other Rise Garden extensions (double- or triple-level).

Disconnect power

If building a garden from scratch, skip this page.

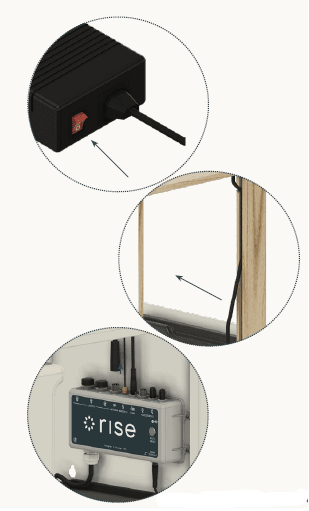

1. Disconnect the garden from power by flipping the switch on the power supply or by unplugging the power supply from the wall.
2. Remove the top shelf cable from the protective channel in the upright.
3. Unscrew the top shelf cable connector from the control box. Remove the cable from the cabinet.

Something missing? Contact us at support.risegardens.com

Remove Top Shelf

If building a garden from scratch, skip this page.

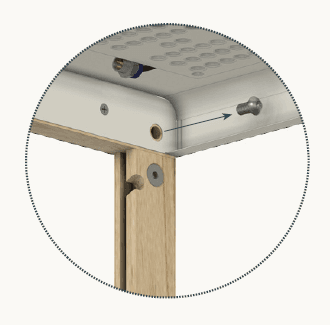

1. Remove screw from each (4) corner of top shelf using allen wrench.

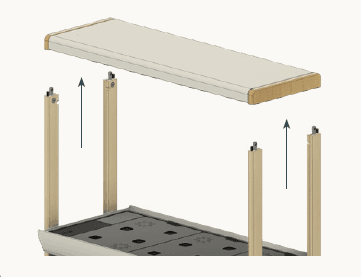

2. Gently lift the top shelf off of uprights and set aside.

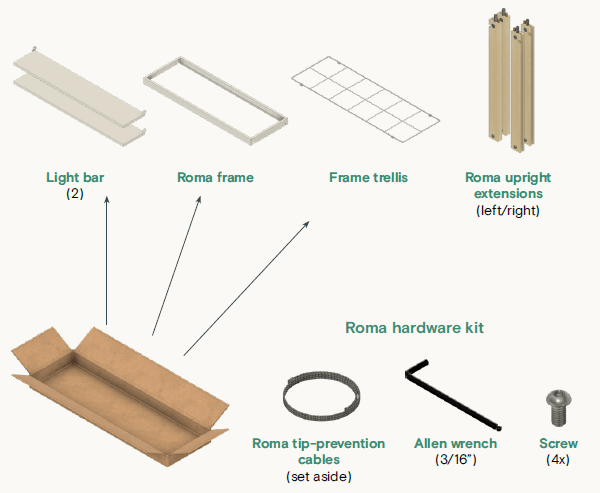

3. Unpack the Roma Extension

Something missing? Contact us at support.risegardens.com

4. Extend Uprights

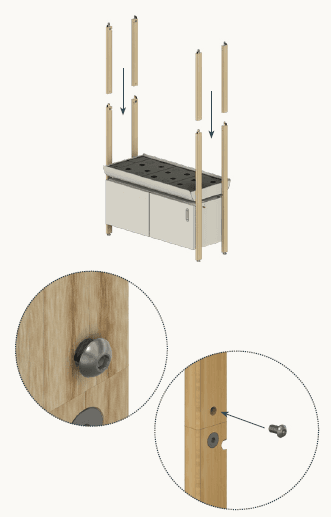

1. Align the dowels and grooves of each (4) Roma upright extension with the upright, then lower the Roma upright extension onto the upright.
2. Fasten each (4) Roma upright extension with a screw. Leave about a1/8” gap.
   Do not tighten yet.

Something missing? Contact us at support.risegardens.com

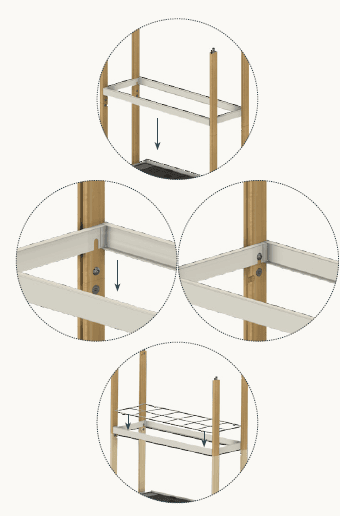

5. Install Frame

1. Lower frame onto each (4) screw. Do not tighten yet.
2. The frame trellis attaches magnetically to the frame.

Something missing? Contact us at support.risegardens.com

6. Add Light Bars to Frame

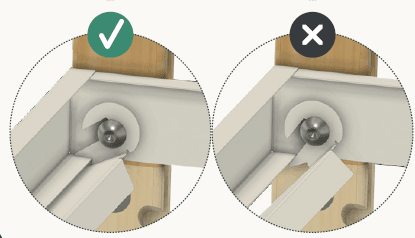

1. Align the slot on each side of light bar with an untightened screw.
2. Pull light bar forwards, over (2) screws.
3. Let light bar engage fully with both (2) screws, and tighten.Note: bottom of light bar hook rests on top of frame edge.
4. Repeat for the second light bar.

7. Add Top Shelf

1. Align the top shelf with the dowels and lower it onto the uprights.
   Ensure that the cable is on the right-hand side.
2. Install a screw into the underside of each (4) corner of top shelf.

Something missing? Contact us at support.risegardens.com

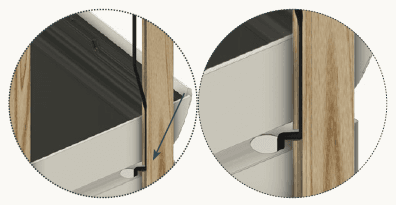

8. Route Cables to Control Box

1. Tuck the cable from the top shelf and each light bar into the uprights.
2. Feed cables into the cabinet.Note: the cable from one light bar will need to travel across the top of the cabinet from the left to the right side.

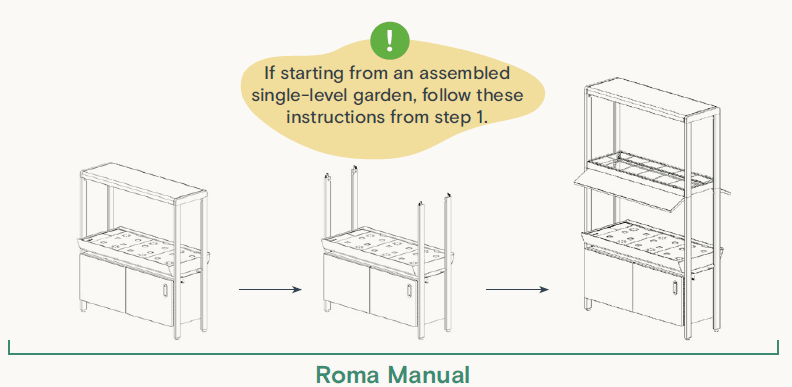

If extending an assembled single-level garden, you have already done the next few steps. Skip to step 15.

If you are building a fresh garden, continue.

Something missing? Contact us at support.risegardens.com

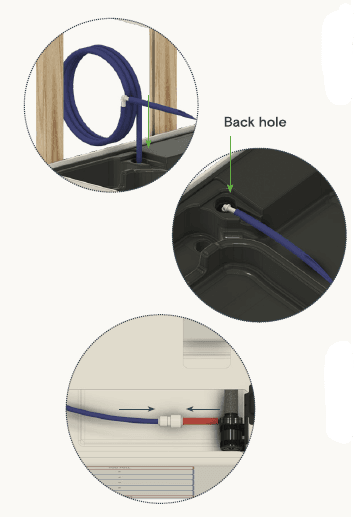

9. Connect Tubing to Pump

1. Uncoil the tubing and feed it into the raised hole on the top water tray until the short segment rests in the groove.
2. The end of the tubing should now be in the water tank. Connect the tubing to the pump coupler. Push firmly.

10. Unpack Tray Lids and Service Doors

Something missing? Contact us at support.risegardens.com

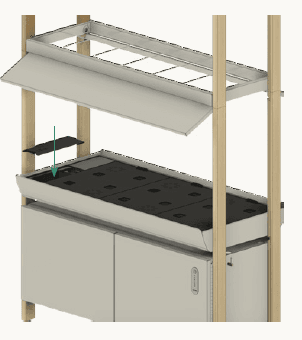

11. Cover Water Tray

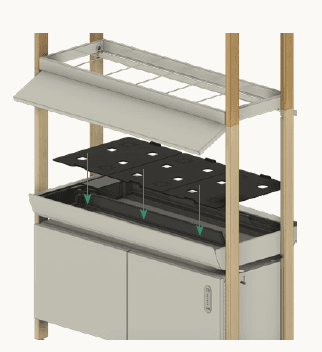

1. Place the tray lids on top of the water tray.
2. Place the service door on the left side.

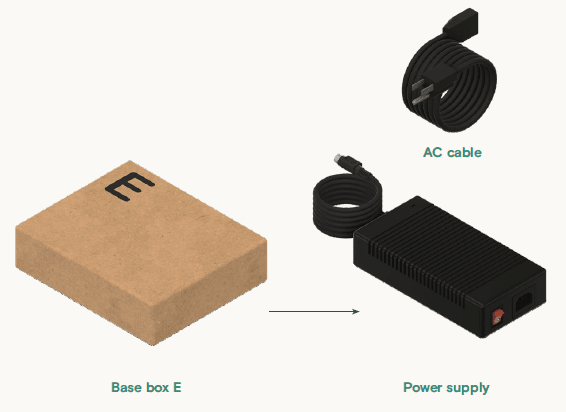

12. Unpack Power Supply

• Plug the AC cable into the power supply.

Something missing? Contact us at support.risegardens.com

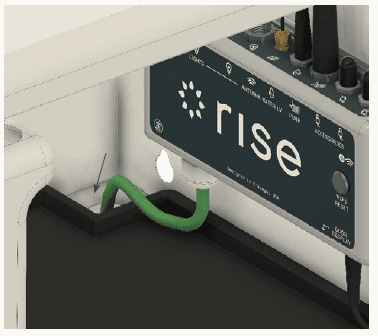

13. Antenna and Power

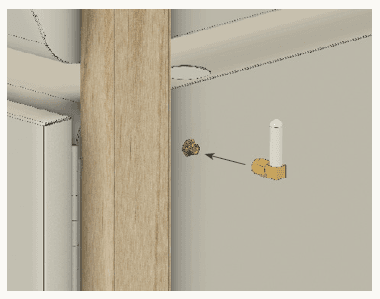

1. Screw antenna from hardware kit onto the connector on the right exterior side of cabinet.
2. Route the power cable out of the hole in the back-right corner of the cabinet floor, and connect it to the power supply. Do not connect the power supply to the wall yet.
   Place the power supply outside of the cabinet, vent-side-up, in an area with unrestricted airflow.

14. Identify the Control Box

• Lights connect to the three rear-most plugs.
• By default, one socket is uncapped. To plug in an additional level of lights, unscrew the caps.
  Note: All connectors are keyed; if the plug does not fit initially, gently rotate the plug until the keys line up and the plug is able to be inserted into the socket. Do not force the plug as this may break or bend the connector.

15. Plug in electronics

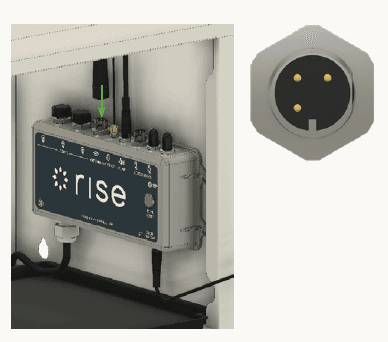

1. Plug cable from the top shelf into control box and screw in to secure.Note: All connectors are keyed; if the plug does not fit initially, gently rotate the plug until the keys line up and the plug is able to be inserted into the socket. Do not force the plug as this may break or bend the connector.
2. Connect additional light cable(s) from light bars.
   Use the included wraps to bundle excess cable.

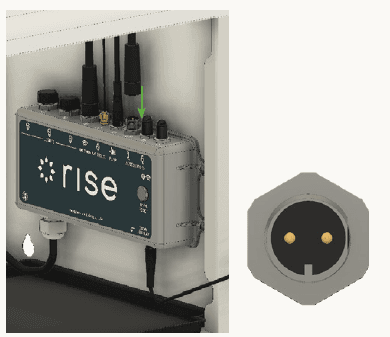

3. Plug cable from pump into control box and screw to secure.

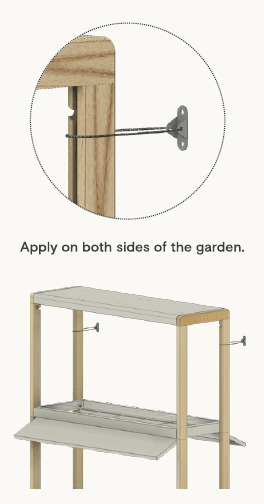

16. Tip-prevention Kit (optional)

• A kit with two straps is provided in the base to secure the garden to residential wall studs.
• The Roma garden requires longer straps, provided with the Roma extension.
• If the Roma strap has loops, use the included pin to secure it with the bracket provided with the base garden.
• To use the kits, loop the metal cable around each rear upright, just under the top shelf.
• Position the garden such that the cable is not loose.
• If a stud is not accessible, use an anchor appropriate to your wall material and rated for at least 25 lbs.

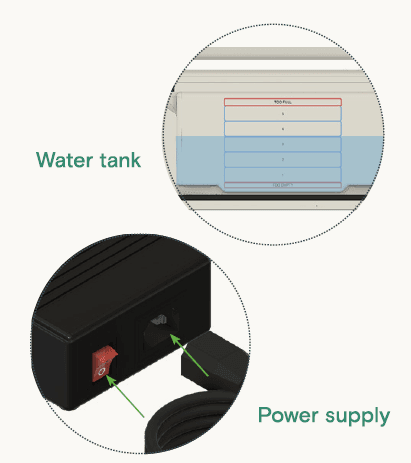

17. Powering on

• Fill the water tank about halfway.
• Connect the power supply to a power source, and flip the power switch on the power supply. Always unplug the power supply before plugging or unplugging any electronics.
• The lights should turn off, and the pump should start running.
• The control box should have a solid red light, indicating it is ready to connect via the Rise Gardens App.
• Monitor the garden for a few minutes to ensure there are no leaks.
• Check out our quick-start guide to get growing!

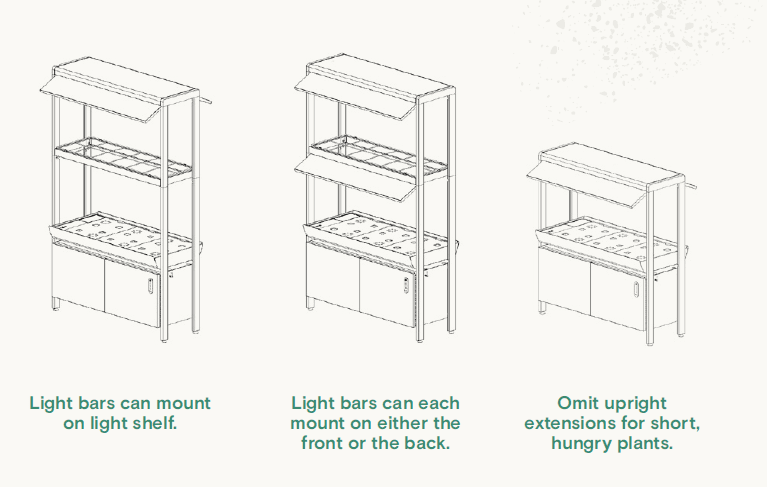

For other configurations…

Something missing? Contact us at support.risegardens.com

Warranty and returns

Limited Warranty Policy – Indoor Gardens

All our Indoor Gardens come with a 3-year warranty for hardware components and a 1-year warranty on electronic components against defects in workmanship and materials.

To be eligible for a warranty replacement, you must have proof of purchase (order number or email confirming purchase) and be the original owner of the Indoor Garden.

Damage or equipment failure due to normal wear and tear, improper or negligent assembly, maintenance, accident, abuse, improper or abnormal use, and relocation is not covered under the warranty.

Return Policy – Indoor Gardens

If you find yourself unsatisfied with your purchase, you have 90 days from the time of delivery to return your purchase, unless your garden was purchased as part of a promotion stipulating that all sales are final. To be eligible for the return of a product other than a Garden, your item must be unused and in the same condition that you received it. Perishable goods such as seed pods & nutrients are not eligible for return. Please reach out to our Support Team for any return inquiries at support.risegardens.com.

To complete any return, we require a receipt or proof of purchase. All items must be returned in their original packaging. If you do not have original packaging, you will need to purchase it from Rise Gardens.

For returns not related to a warranty claim, customers are responsible for the return shipping cost. The cost of shipping labels and packaging kits provided by Rise Gardens will be deducted from your refund. Any eligible refund will be issued only once the returned item is received by Rise Gardens.
