TIGERKING 54958161 Electronic Safe Box Instruction Manual

TIGERKING 54958161 Electronic Safe Box

Table of Contents

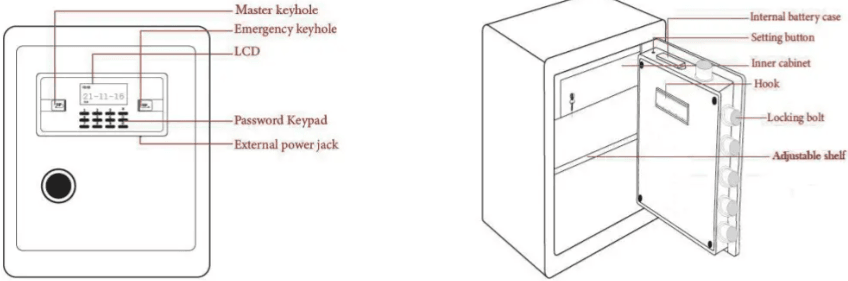

COMPONENT DESCRIPTION

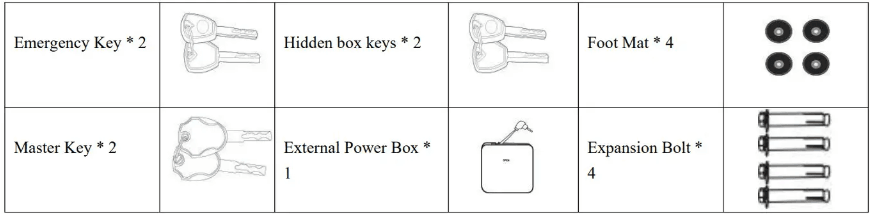

ACCESSORIES LIST

HOW TO OPEN THE SAFE FOR THE FIRST USE

Please use the key to open the safe for the first use. The operation is as follows.

Sliding the cover of the master keyhole to the left and then sliding the cover of the emergency keyhole to the right exposed the lock channel.
Insert the master key into the left keyhole, turn 90° clockwise.
Insert the emergency key into the right keyhole and turn 50° counterclockwise.
Rotate the handle clockwise, and the door will open successfully.
Open the cover of the battery box behind the door and put 4 AA alkaline batteries according to the sequence of “+”,”-“. The system is powered on.
Then, you can try to use the original password to open the safe.
The factory uniﬁed personal password is “1234.”

Tip:

Before entering the password, press “#” to wake up the LCD display screen
After entering the password, please press “#” to confirm

HOW TO SET THE NEW PASSWORD

Input the password, and the screen will display ”open”.
While the screen displays “OPEN”, press the “*” key within 8 seconds to enter the state of modifying the personal password, and the screen will display “——-“.
Enter 1-8 digits and then press the “#” key to confirm.
The screen displays ”into”, personal password is reset successfully.

Note: While inputting the new password, you can press the “*” key to clear the wrong digit entered

THREE WAYS TO OPEN THE SAFE

Use the key only, master key + emergency key + knob Insert the master key into the left keyhole, turn 90° clockwise. Then, insert the emergency key into the right keyhole and turn 50° counterclockwise. Rotate the handle clockwise, and the door will open successfully.
Use the password only, password + knob

Make sure the battery of the safe has enough power
Make sure the master keyhole is horizontal before using password
In the standby state, press the “#” key to rouse the system. The screen will display “——-”
Enter the correct password and press the # key to confirm.
The screen will display ”open” and then rotate the handle clockwise to open the door.
If the password is wrong, the error will display on the screen. And then the screen will re-display “——-“, you can input the password again.
If you enter the wrong password for three times the alarm will continue to sound for 60 seconds. The alarm will stop when you enter the correct password.

External battery box + password + knob When the battery of the safe runs out, you can use the external battery box. And then open the safe with the password.

Note: The external battery box is powered by 4 AA batteries, which are not included. Never put the external battery box in your safe.

HOW TO SET THE DATE FOR YOUR SAFE

When powering on for the first time. The year, month, day and time are 00-01-01 and 00-00 respectively.
In the sleep state, press the “*” key, the screen will display the year, month, day 00-01-01.
When the date or time is displayed, press the “#” key once to switch between the year, month, day, hour, minute, and day of the week.
Use the number keys “0” and “8” to change the flashing year, month, day or hour, minute, and day of the week. Each time you press the “0” key, the number will decrease by one bit, and each time you press the “8” key, the number will increase by one bit.
The system will identify the validity of the input numbers, and invalid values beyond the range will not be confirmed.

The valid ranges of each parameter are as follows:

Year: 00-99 Month: 01-12 Day: 01-31 Week: 1-7

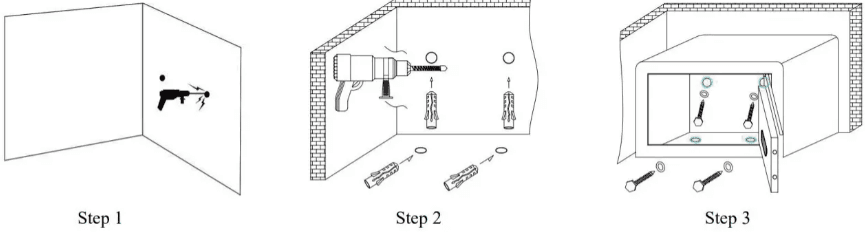

MOUNTING INSTRUCTIONS

The safe can be mounted to a wall or floor

WLL MOUNTING

Drill the appropriate size holes for the anchors you are using
Carefully press the anchor into the holes at this time
Mount the safe by running screws from inside of the safe and securing to anchors. Ensure the safe is mounted securely.

FLOOR MOUNTING

Use proper drill tools depending on the type of floor you are mounting the safe on (wood, tile, or concrete)
Measure the location of the pre-set drill holes, mark their exact position onto the floor.
Drill the appropriate size holes for the anchors you are using
Carefully press the anchor into the holes at this time

DURAL ALARM SYSTEM

The alarm will be issued when enter wrong password 3 times or your safe is hit hard. The alarm will stop when you enter the correct password.
In standby state, if you press the “0” key, the screen will display “BELL ON” and then enter the vibrating alarm state. In this state, if you move or hit the safe, the alarm will be issued. The alarm will stop, and the vibrating alarm will be automatically dismissed when you enter the correct password.

IDDEN CODE FUNCTION

Press the “#” key to wake up, press the “*” key once before entering the password, and the entered password will not display numbers.

After opening the door, it will automatically restore the non-hidden number.

TECHNICAL PARAMETERS

Working power: four “AA” alkaline batteries
Working voltage range: 4.6V – 6.0V
Working under voltage point: 5.0V ± 0.2V
Quiescent current is less than 50U A
When the battery of the safe runs out, the date and time will recover to the original. You need to reset the date and time. But your personal password won’t be changed.
