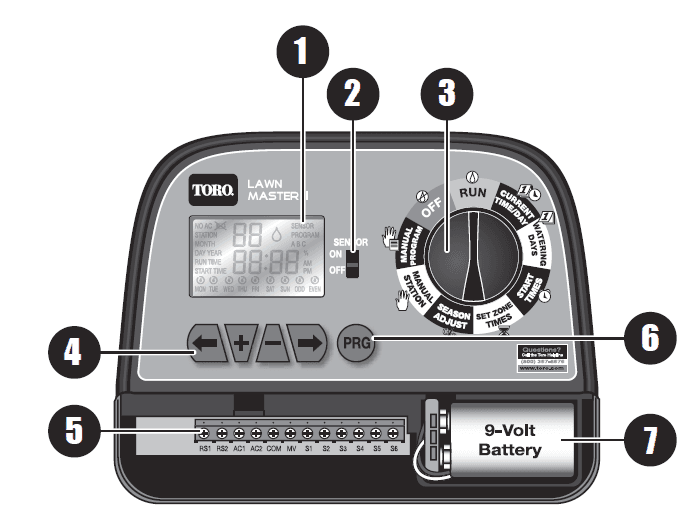

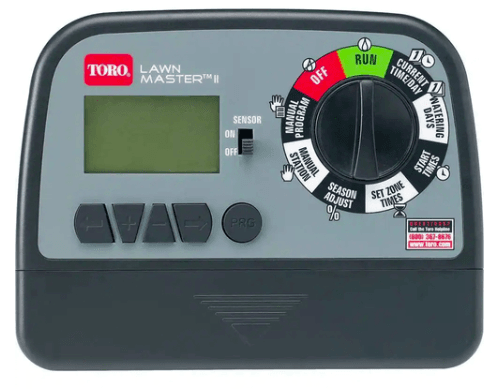

Components Overview

1. LCD Display (See “LCD Display Overview” for details)
2. Sensor Switch – Use to Enable or Disable the optional rain sensor.
3. Function Dial – Select from the controller functions. (See “Function Dial Overview” for details)
4. Navigational Buttons – Use to navigate through the function menus.
   • Navigate to the previous menu item.
   • Navigate to the next menu item.
   • Adjust/Increase the selected value.
   • Adjust/Decrease the selected value.
5. Terminal Block RS1 & RS2 – Sensor AC1 & AC2 – AC Power COM – Valve Common MV – Master Valve S1 through S6 – Stations 1–6 (Station count will depend on 4-Zone or 6-Zone model)
6. Program Button – Press to select from Program A, B, or C.
7. 9-Volt Battery (not included) – Install to retain date, time, and scheduled programs into the memory

LCD Display Overview

1. MONTH – The flashing 2-digit number indicates the current month.
2. STATION – Indicates which station number is selected.
3. NO AC – Flashes when the AC power source is not detected.
4. Low/No Battery – Indicates the need to install a new 9-volt battery.
5. Active Watering – Indicates that a program or manual operation is currently active.
6. SENSOR – Indicates that the sensor terminals have been activated. If a rain sensor (optional) is installed, the SENSOR indicates that rain has been detected.
7. PROGRAM A, B, or C – Indicates which program is selected.
8. Season Adjust – Indicates that the automatic programs have been adjusted.
9. AM or PM indicator.
10. Watering / Non-Watering icon indicators.
11. DAY – Indicates the current day. YEAR – Indicates the current year.
12. RUN TIME – Indicates the run time for the displayed station.
13. START TIME – Indicates the start time number and duration.
14. Weekdays – for selective watering schedule.
15. ODD or EVEN a watering schedule

Controller Installation

For safe, reliable operation, select an installation site which is:

• Weather protected.
• Within 4 ft. (1.2 m) from a grounded 110 VAC, 60 Hz outlet which is not controlled by a light switch or utilized by a high current load appliance, such as a refrigerator, air conditioner, or garage door opener.
• Accessible to the sprinkler control valve wiring and optional accessory wiring.
• Step 1 – Use the Screw Location Template on the back page to mark the screw locations. Use a level to align the two screws horizontally. Install two screws, 5 inches (12.7 cm) apart, into the wall at eye level. Leave the screw extended approximately 1/4 inch (6 mm) from the wall to accommodate the controller case. If installing into drywall or masonry, install proper screw anchors.
• Step 2 – Hang the cabinet using the back panel’s keyhole slot. Make sure the cabinet slides down securely onto the screws.
• Step 3 – (Optional) Remove the controller’s access panel and install a center mounting screw. Tighten securely.

Power Connection

• Step 1 – Remove the controller’s lower panel cover to access the power supply terminals.
• Step 2 – Connect the plug-in transformer cables to the terminals labeled “AC1” and AC2”. Polarity is not observed in this connection.
• Step 3 – Replace the lower panel cover, making sure that the transformer cable is routed through the provided opening at the bottom of the controller.
• Step 4 – Plug the transformer into a 120 VAC, 60Hz wall outlet.

Rain Sensor Installation (Optional)

• IMPORTANT! The sensor circuit is designed for a NORMALLY-CLOSED rain sensor. If a rain sensor is not connected, the sensor switch must be in the “OFF” position or the jumper wire must be installed.
• Step 1 – Remove the controller’s lower panel cover to access the sensor terminals.
• Step 2 – Route the rain sensor’s cable to the controller.
• Step 3 – Remove the jumper cable from the “RS1” and “RS2” terminals. Connect the sensor cables to the terminals.
• Step 4 – Replace the lower panel cover.
• Step 5 – Place the “SENSOR” switch to “ON” to monitor the sensor status

Master Valve and Station Connection

• Step 1 – To provide a valve common connection, splice one cable wire (generally the white wire) and connect it to one solenoid lead from each of the valves.
• Step 2 – Connect a separate wire to the remaining solenoid lead from each valve. For reference, note the wire color code being used for each valve connection
  and the associated watering station.
• Step 3 – Remove the controller’s lower panel cover to access the master valve and station terminals.
• Step 4 – Route the wire cable into the controller through the opening at the base of the unit.
• Step 5 – Secure the designated valve common wire to the “COM” terminal.
• Step 6 – Secure the Master Valve to the “MV” terminal and the stations to their corresponding terminals (S1, S2, S3, …).
• Step 7 – Reinstall the lower panel cover.

RUN Position

• Rotate the function dial to RUN to enable the controller to operate as programmed. Lawn Master II will only operate scheduled programs while in the RUN position.

CURRENT TIME/DAY Setup

• Step 1 – Place the function dial in the CURRENT TIME/DAY position.
• Step 2 – With YEAR displayed, press +/- or adjust to the current year’s value. Press to advance to MONTH.
• Step 3 – With MONTH displayed, press +/- or adjust the current month’s value. Press the button to advance to DAY.
• Step 4 – With DAY displayed, press +/- or adjust the current day’s value. Press to advance to AM/PM.
• Step 5 – With AM or PM flashing, press +/- or select AM or PM. Press to adjust the HOUR value.
• Step 6 – With the HOUR value flashing, press +/- or adjust the hour to the current time. Press to adjust the MINUTE value.
• Step 7 – With the MINUTE value flashing, press or adjust the minutes to the current time. Pressing will return you to the YEAR display (Step 2).
• Step 8 – Place the function dial to RUN when finished

SET ZONE TIMES Setup

The SET ZONE TIMES setup tells the controller how much time each station will be activated (runtime).

• Step 1 – Place the function dial in the SET ZONE TIMES position.
• Step 2 – Press PRG to select the program being modified. Select from A, B, or C.
• Step 3 – Press or to select the Zone (station) number (1–6) being modified.
• Step 4 – Press + or  – adjust the desired time duration (runtime) you want the station to be active. Each station can have a runtime of one minute and up to six hours. For unused stations, adjust the runtime to 0:00.
• Step 5 – Repeat steps 2–4 for the remaining stations and programs.
• Step 6 – Return the function dial to RUN when finished.
