Tribit BTH70 XFree Tune Over Ear Bluetooth Headphones

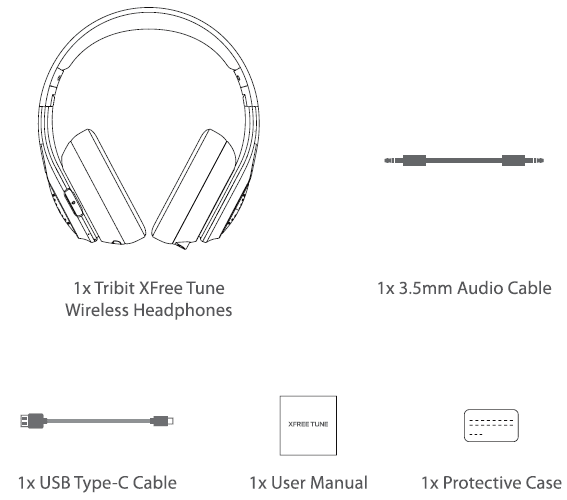

Package Contents

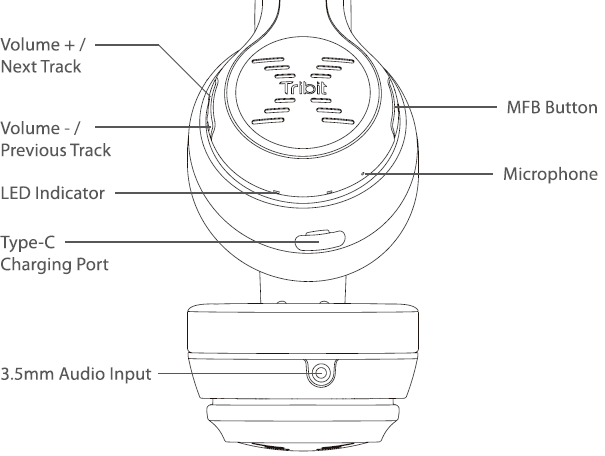

Product Diagram
Turn on/ off
- To power on, press and hold the MFB button for 3 seconds. The LED indicator will flash in blue for 3 times.
- To power off, press and hold the MFB button for 3 seconds. The LED indicator will flash in red twice.
To Connect Via Bluetooth
- Press and hold the MFB button for 3 seconds until the LED flashes blue. A moment later, the headphones will automatically enter pairing mode, with the LED flashing red and blue alternately.
- Activate the pairing function of the device you want to pair with the headphones.
- In the list of available devices, find and select”Tribit XFree Tune”. Once connected, the LED indicator will flash blue once every 5 seconds.
- If a code or PIN is required for pairing, please enter “0000”.
Simultaneous Connection with Two Devices
- Follow the instructions in the “Pairing 11 section to pair the headphones with Device A.
- Once paired, disable the Bluetooth function on Device A.
- Follow the instructions in the “Pairing” section to pair the headphones with Device B.
- Once paired with Device B, reactivate the Bluetooth function on Device A and select “Tri bit XFree Tune” in the list of paired devices.
- You can now make and receive calls from either of the two paired devices.
Operation of Buttons
| Volume up | Press”+” button |
| Volume down | |
| Next track | Press and hold the volume”+”for 2 seconds |
| Previous track | Press and hold the volume “-“for 2 seconds |
| Play/ Pause | Press the MFB button once |
| Answer/ End call | Press the MFB button once |
| Reject call | Long press the MFB button |
| Redial last called number | Double-press the MFB button when in stand by state |
| Transfer conver sion to phone/ headphones | Double-press the + button during conversation to shift between headphones and phone. |
| Activated Siri | Press and hold both+ and – button simultaneously for 1s |
| Factory reset | In unconnected state (after powering on), press and hold both + and – buttons simulta neously for 5s |
How to Charge
Connect one end of the USB Type-C Cable to an SV power adapter (not included) and the other end into the headphones. The status indicator will glow red during the charging process, then turn off after the headphones are fully charged (within 3 hours).
Customer Service
18-month limited warranty. For FAQS and more information, please email support@tribitaudio.com
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
