Tribit BTH80 CallElite 81 Wireless Headset

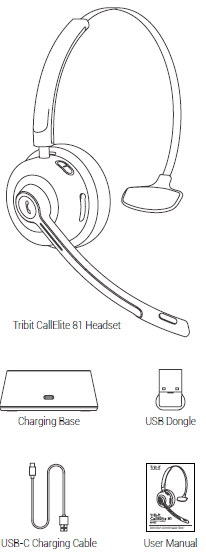

Package Contents

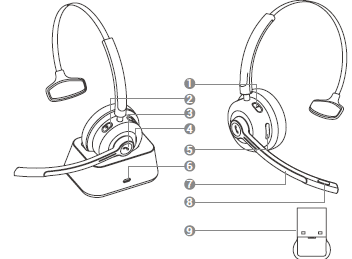

Product Illustration
- Volume –
- Volume +
- MFB button
- LED Indicator
- USB-C Charging Port (headset jack)
- USB-C Charging Port (charging base)
- MIC Bar
- Mute button
- USB Dongle
Specifications
Frequency Range: 2.402GHz ~ 2.480GHz
Max. Transmission Power ≦ 6dBm
Power On / Off
- Power on: Press and hold the MFB button for 2s until there is a prompt voice “Power on”. The green LED indicator will glow steadily for 2s.
- Power off: Press and hold the MFB button for 4s until there is a prompt voice “Power off”. The red LED indicator will flash for 1s and then turn off.
Bluetooth Connection
- Press and hold the MFB button for 4s until the green LED indicator flashes, and then the headset will automatically enter Bluetooth pairing mode. The red/green indicator lights will flash alternately.
- Open the Bluetooth menu on your phone and refresh the Bluetooth device list, then select the audio device named “Tribit CallElite 81” to begin pairing.
Mute Button
- In the conversation state, short press the mute button and there is a prompt voice “Mute on”. Then, the conversation will be muted.
- In the mute state, short press the mute button and there is a prompt voice “Mute off”. Then, the conversation will be restored to normal.
- The mute function is only valid during conversation. When you put someone on mute, they aren’t able to hear anything you’re saying, but you can still hear them. For any third-party software, you may probably set the mute function on the device it connects to.
Buttons Functionality
| Increase the volume | Short press + button |
| Decrease the volume | Short press – button |
| Next track | Press and hold the + button for 2s |
| Previous track | Press and hold – button for 2s |
| Play / Pause | Short press MFB button |
| Answer / End a call | Short press MFB button |
| Reject an incoming call | Press and hold the MFB button for 1s |
| Activate / Turn off Siri | Press and hold the MFB button for 2s |
| Clear the pairing list | Press and hold the MFB and + buttons for 4s in power-on state simultaneously to clear the pairing list, and then the headset will automatically go back to pairing mode. |
Voice Prompt
| Power on | Power on |
| Power off | Power off |
| Pairing | Pairing |
| Successfully connects to your phone | Connected |
| Bluetooth disconnection | Disconnected |
| Low battery reminder | Battery low |
Charging Instruction
Charge the headset directly
Connect one end of the USB-C charging cable to a 5V power adapter (not included) and the other end to the headset. The red LED indicator will glow sturdily during charging, while it will change steady green after the headset is fully charged.
Charge the headset by the charging base.
Connect one end of the USB-C charging cable to a 5V power adapter (not included) and the other end to the charging base. The red LED indicator will glow sturdily during charging, while it will change steady green after the headset is fully charged.
Note:
Once the headset is placed on the charging base, it will automatically shut off. After charging, the headset will auto-power on and connect to the last device once you remove it from the charging base.

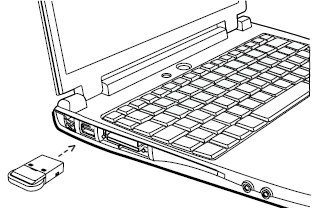

USB Dongle
- For the first use, please insert the dongle into the USB interface of your computer to power it on. It will auto-enter pairing state (blue indicator flashing).
- Power on the wireless headset, and try to get the headset as close as possible to the dongle, and then it will auto-connect to the dongle successfully in about 30s. If it has ever been paired, the headset will auto-connect to the dongle each time it is powered on.
- After that, you can listen to music or chat with others if your computer is playing music or is on an online conversation.
FAQs
Q: What devices does the headset work for?
A: The headset is suitable for those Bluetooth-enabled Android, iOS, and PC devices.
Q: Does the dongle support plug-and-play, or do I need to download a driver before use?
A: It supports plug-and-play. No need to download any drivers.
Q: The headset beeps after being used for a while.
A: Please charge the headset for a certain time to make sure it isn’t in low battery condition, or the mute function is activated.
Q: Does it have a mute function?
A: Yes, but the mute function is only valid during conversation. For any third-party software, you may probably set the mute function on the device it connects to.
Q: What are the charging ways for this headset?
A: The headset can be charged by connecting it to the charging base or to a power outlet directly through the provided USB-C cable.
Q: How to mute a conversation?
A: Click the mute button during conversation, and you will hear the voice of “Mute on,” and then the conversation will be muted. Click the mute button again to restore conversation, and you will hear the voice of “Mute off”.
Q: How to clear off the pairing list (reset the headset)?
A: Press and hold the MFB button and volume + button for 5 seconds; then the LED indicator will light off for 1 second and then flash in red/green alternately. You will hear the voice of “power on” and “pairing”, which indicates the headset has entered pairing state.
