USX Mount XML008 Full Motion TV Wall Mount

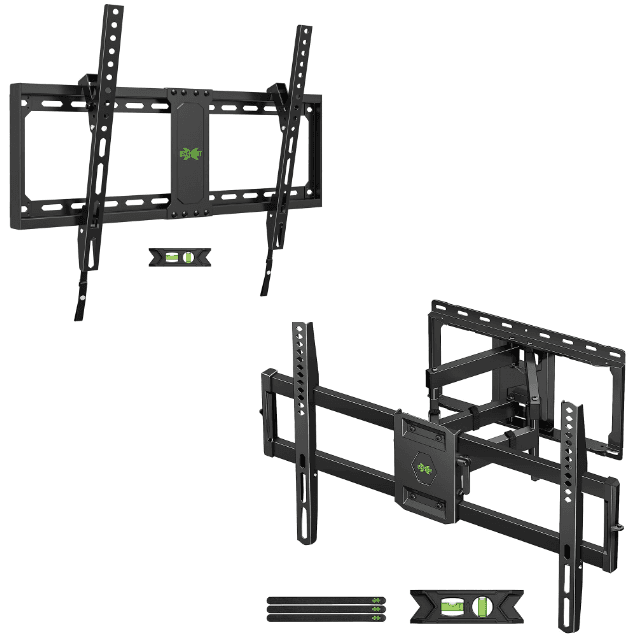

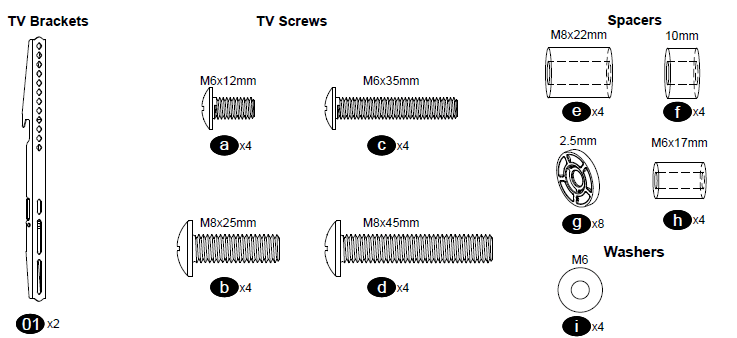

Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Parts and Hardware for STEP 1

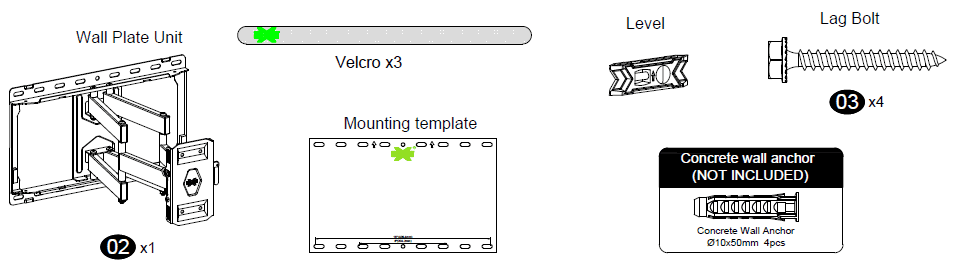

Parts and Hardware for STEP 2

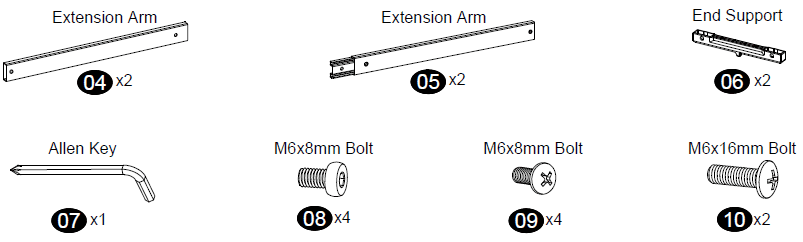

Parts and Hardware for STEP 3

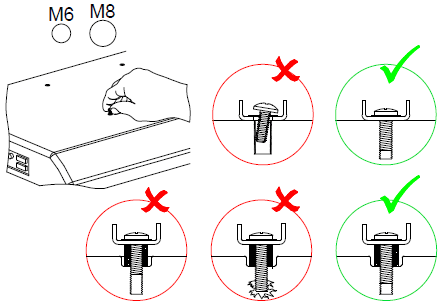

STEP 1 Attach Brackets to TV
Select TV Screws

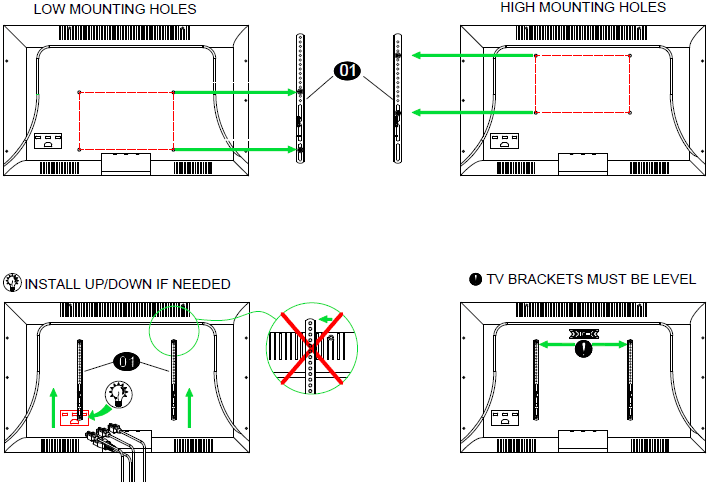

Figure out the suitable position of brackets
Need Spacer?
No, choose suitable screws and washers.
Yes, choose suitable screws, washers, and spacers.
Tips: If you need to combine M6/M8(b/c/d) screws with 2.5mm spacers( g ), you have to remove the inner circle.

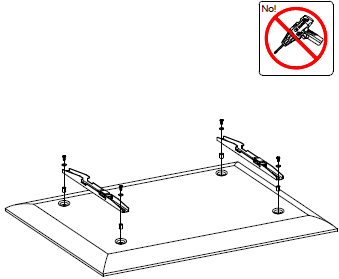

Attach the TV Plate
STEP 2A Attach Wall Plate to Wall Wood Stud Option
CAUTION: Avoid potential personal injury or property damage!
- Drywall covering the wall, must not exceed 5/8 in. (16 mm)
- Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
- Maximum horizontal space between fasteners: 16 in. (406 mm)
- The stud center must be verified

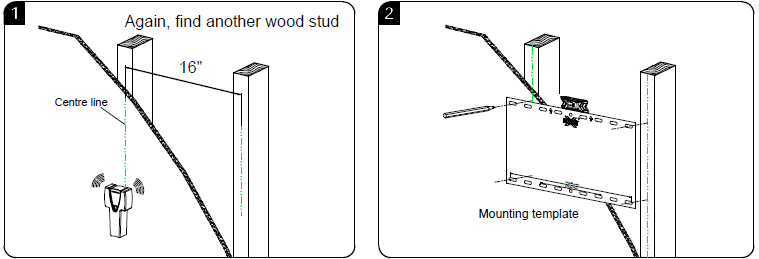

- Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail, or an edge-to-edge stud finder.
- Position the mounting template at your desired height and line up the holes with your stud center line. Level the wall plate and mark the hole locations.
- Drill pilot holes using a 5/32 in. (4 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm). Be sure to drill into the center of the studs.
- Install the wall plate using four lag bolts. Tighten the lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.

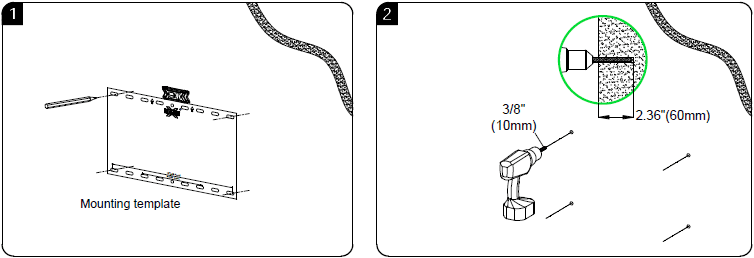

STEP 2B Attach Wall Plate to Solid Concrete Wall
CAUTION: Avoid potential personal injury or property damage!
- Mount the wall plate assembly directly onto the concrete surface
- Minimum solid concrete thickness: 8 in. (203 mm)
- Position the mounting template on the wall at your desired height. Level the wall plate and mark the hole locations.
- Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.36 in. (60 mm).
- Insert four anchors.
CAUTION: Be sure the anchors are seated flush with the concrete surface.
- Insert wall plate using four lag bolts. Tighten the lag bolts only until they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.

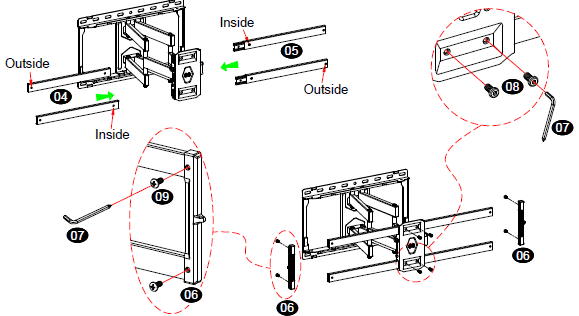

STEP 3 Extension Arms and end support Assembly
Please make sure you install these extension arms in the right direction.

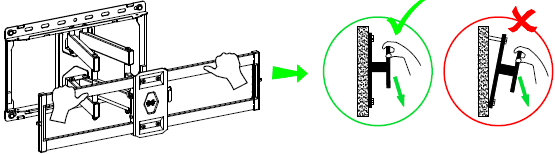

STEP 4 Wall Plate Installation Integrity Test
Before hanging the TV, please try to pull the mount to make sure that it has been assembled on the wall tightly.

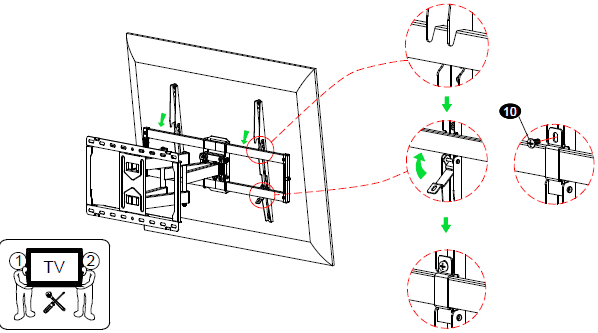

STEP 5 Hang and Secure the TV to the Wall Plate
Hang the TV/bracket assembly onto the wall plate, wrap clips on the bracket around the extension arms, and tighten them using bolts 10.

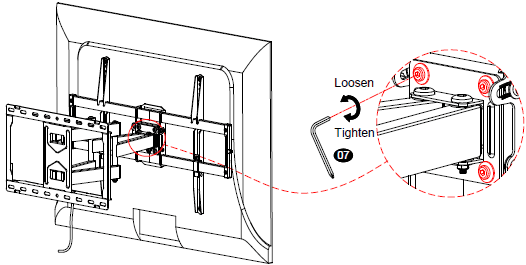

STEP 6 Adjustments
TV leveling adjustment (±3°):
Loosen 4 leveling bolts on the rear of the TV plate by a maximum of 2 turns, adjust to level, and retighten to secure.
Tilting angle adjustment (+5°/-15°)：
Loosen the handle and tilting bolt, adjust the TV to your desired position, then tighten the handle and tilting bolt. Put the handle level when finish.
Cables manage:
Manage TV cables orderly and guide them through the velcros.
For more Manuals by USX Mount, visit ManualsLibraryy
USX Mount XML008 Full Motion TV Wall Mount-FAQs
How do I use wall anchors to mount my TV?
If you can’t mount into wall studs, use toggle or butterfly anchors. These expand behind the drywall to provide extra support and hold the mount securely in place.
Can I install a full motion TV mount without studs?
Yes, you can use toggle anchors if wall studs aren’t available. They distribute the TV’s weight and help prevent drywall damage, but ensure they are rated for the TV’s size and weight.
Will any TV wall mount work with my TV?
Most TVs support the VESA mounting standard, so any wall mount that matches your TV’s size, weight, and VESA pattern should work. Always double-check the specifications before buying.
How much weight can a full motion TV mount hold?
The USX Mount XML008 can hold TVs from 37″ to 84″ and up to 120 lbs (54.5 kg). Be sure to check your TV’s weight and mounting pattern before installation.
Why should I choose a full motion mount?
A full motion mount allows you to tilt, swivel, and extend your TV for the best viewing angles, offering the most flexibility compared to fixed or tilting mounts.
Can I use drywall anchors alone for a TV mount?
It’s not recommended to use standard drywall anchors for mounting a TV, especially a full motion one. Use studs or heavy-duty toggle anchors designed for heavier loads.
Do I need to mount a Frame TV?
Yes, The Frame TV comes with a Slim Fit Wall Mount in the box, which helps it sit nearly flush against the wall for a clean, picture-frame appearance.
Who can help unmount my TV?
Services like HelloTech offer professional TV dismounting and remounting. They’re easy to schedule and handle everything for you.
What tools do I need to mount the TV?
You’ll need basic tools like a stud finder, drill, level, Phillips screwdriver, ratchet, tape for positioning the template, and a pencil for marking drill points.
