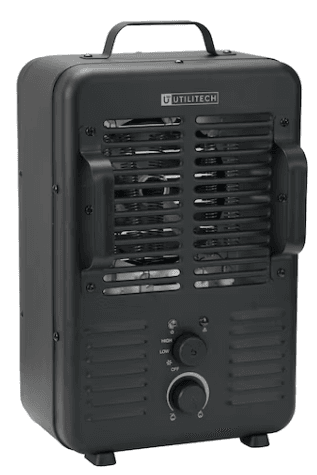

Utilitech BNS-15U Indoor Electric Space Heater
PRODUCT FEATURES & SPECIFICATIONS
| FEATURES |
| Adjustable Thermostat |
| Front Mounted Control Panel |
| Power Indicator Light* |
| Caution Indicator Light** |
| Safety Overheat Protection*** |
| Safety Tip-Over Protection**** |
| Fan-Forced Heat Circulation |
| Convenient Carry Handle |
| Sturdy Metal Frame |
| SPECIFICATIONS |
| Two Heat Settings: |
| High – 1500 watts (5120 BTU) |
| Low – 1300 watts |
| Fan Only Option |
| 120V A.C. |
| 60Hz |
| 12.5A |
IMPORTANT SAFETY FEATURES
POWER INDICATOR LIGHT
The power indicator light, located near the control panel, lights whenever the heater is plugged in.
CAUTION INDICATOR LIGHT
This heater includes a visual alarm to warn that parts of the heater are getting excessively hot. If the caution light comes on, immediately turn the heater off and inspect for any objects on or adjacent to the heater that may cause high temperatures. DO NOT OPERATE THE HEATER WITH THE CAUTION LIGHT ON.
AUTOMATIC OVERHEAT PROTECTION
The heater is equipped with an automatic overheat protection device located inside the body of the heater. If the heater grille is obstructed, or if the heater gets too hot for any reason, the automatic overheat protection device will turn the heater off. To reset the heater, simply turn the power off and unplug the heater for 10 minutes until it cools down and you may plug in and restart the heater. Be sure that the heater is on a smooth level surface with no obstructions.
SAFETY INFORMATION
IMPORTANT INSTRUCTIONS
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use the provided handle when moving this heater.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the heater and keep them away from the sides and rear. Ensure a minimum clearance of 5.5 inches (14cm) from both sides and rear of the heater to adjacent walls. Keep the rear grille away from walls or drapes to not block the air intake.
- Do not use the heater unattended. Use of extreme caution is necessary when any heater is used by or near children, invalids, disabled persons, or pets.
- Do not use a heater outdoors. This product is intended for indoor use only.
- Use your heater only in dry environments. This heater is not intended for use in a bathroom, laundry area, or similar locations, or near sinks, washing machines, swimming pools, or other sources of water. Never locate the heater where it may fall into a bathtub or other water container. Do not use it in damp environments such as flooded basements.
- Do not place the heater on a small, unlevel, uneven, or any surface that might allow the heater to tip or fall.
- For proper operation, the heater should be placed on a smooth, non-combustible surface. Do not place on rugs, carpets, vinyl flooring, or other plastic surfaces. Not for use outdoors or in wet areas.
- This heater is not designed as a primary heat source.
- Use only electrical wiring that is in good working order and that meets applicable codes and ordinances.
- Always plug heaters directly into a wall outlet/receptacle. Never use an extension cord or relocatable power tap (outlet/power strip). Always unplug the heater when not in use.
- Do not run the power cord under the carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Arrange the cord away from the traffic area where it will not be tripped over.
- To disconnect the heater, turn the controls off then remove the plug from the outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces like a bed, where openings may become blocked.
- A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
- Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons or property.
- Hyperthermia can result in death. Symptoms of hyperthermia include high body temperature, headache, nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to experience symptoms related to hyperthermia, turn off the heater, and seek medical attention.
- To avoid excessive room temperatures which can cause hyperthermia: DO NOT leave the product running unattended in a confined space around infants, or individuals with reduced physical, sensory, or mental capabilities.
AUTOMATIC TIP-OVER SWITCH
If the heater is tipped over, the automatic tip-over switch will turn off the heating elements until the heater is upright.
OPERATING INSTRUCTIONS
POWER INDICATOR: This heater is equipped with a power indicator light. The power indicator light, located near the power control, lights whenever the heater is plugged in.
TURNING HEATER ON:
To start the heater, turn the ON/OFF POWER LEVEL/FAN Dial from the OFF position to the LOW (1300W) or HIGH (1500W) setting. Then rotate the THERMOSTAT CONTROL clockwise to the HIGH THERMOSTAT position as described below.
NOTE: During the heater’s initial use, you may experience a slight odor or smoking. This is the result of the heating element fabrication protective coating “burning off”. This is normal and will go away after a few minutes of use.

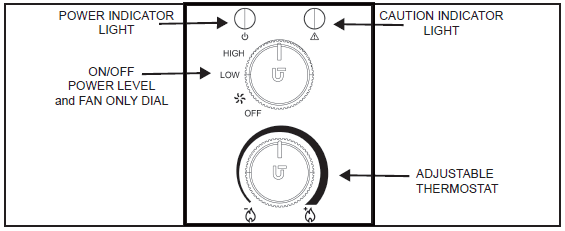

CONTROL PANEL
POWER CONTROL DIAL: This heater has two heat settings: High (1500W) and Low (1300W). Use the higher setting (1500 W) to raise the room temperature quickly. When the desired temperature is reached use the Low (1300 W setting. It is usually sufficient to maintain a comfortable temperature.
ADJUSTABLE THERMOSTAT: After the heater has been turned on and the room has reached the desired temperature, slowly rotate the thermostat control dial counter-clockwise until the heater shuts off (you should hear a faint “click”). By leaving the thermostat at this setting it will automatically maintain this temperature. To lower the temperature, rotate the knob further counter-clockwise (towards the LOW
position). To raise the temperature, rotate the thermostat knob clockwise (towards the HIGH
position).
ASSEMBLY INSTRUCTIONS
Before initial use, some assembly is required. With a Phillips screwdriver, attach the handle to the heater body using the screws provided as shown.
CARE AND MAINTENANCE
CLEANING
CAUTION – Before cleaning the heater be sure to disconnect the power cord and allow the heater to cool completely. Clean the outside surface with a clean damp cloth. Do not use harsh chemicals or abrasive cleaners. DO NOT IMMERSE THE HEATER IN WATER. Allow the heater to dry completely before use. Any other service should be performed by an authorized service representative.
REPAIR: DO NOT OPERATE THE HEATER WITHOUT THE GRILLE IN PLACE. DO NOT USE THE HEATER IF IT HAS MALFUNCTIONED OR BECOME DAMAGED IN ANY WAY.
STORAGE: Keep the original carton for storage of the heater. Coil and tie the power cord to avoid damage during storage.
WARRANTY
LIMITED WARRANTY
ONE YEAR LIMITED WARRANTY. The manufacturer warrants this product to be free from manufacturing defects in material and workmanship. This one-year warranty does not cover transit damages. This warranty does not apply to the finish of any portion of the product. Serving performed by unauthorized persons shall render the warranty invalid. For warranty service, contact Customer Service at 866-994-4148, 8 a.m.- 8 p.m., EST, Monday – Sunday. Some states do not allow the limitation or exclusion of certain damages. Therefore, these limitations and exclusions may not apply to you. This warranty gives the consumer specific legal rights. You may have other rights that vary from state to state.
For more manuals by Utilitech visit, ManualsLibraryy
Utilitech BNS-15U Indoor Electric Space Heater-FAQs
What are the safety rules for using a space heater?
Keep the heater at least three feet away from flammable materials like clothing, papers, and rugs. Avoid placing it in high-traffic areas or doorways where it could be a tripping hazard. Always plug it directly into a wall outlet, not an extension cord.
How does a space heater work?
Space heaters use either convection or radiant heating. Radiant heaters emit infrared heat that warms objects and people nearby, while convection heaters circulate warm air throughout the room.
Do space heaters use AC or DC power?
Most space heaters run on AC power, as they are purely resistive devices. However, they can operate on either AC or DC power if properly designed.
What is the biggest drawback of electric space heaters?
While electric space heaters are generally safe and don’t produce emissions, they still pose fire and burn hazards if not used correctly.
How long is it safe to run a space heater?
It’s generally safe to use a space heater for 6-8 hours if you are in the room and monitoring it.
Do space heaters turn off automatically?
Yes, many modern space heaters have automatic shut-off features, such as tip-over protection and thermostatic controls, to prevent overheating and reduce fire risks.
What is the working principle of an electric heater?
Electric heaters work on the principle of Joule heating, where an electric current passes through a resistor, converting electrical energy into heat energy.
What is the purpose of a space heater?
Space heaters are designed to provide targeted heating for a single room or small area by circulating warm air, making them an efficient choice for supplemental heating.
How quickly can a space heater warm a room?
Most space heaters can raise a room’s temperature within 30 minutes, depending on the room size and insulation.
