W-KING D8 Outdoor Wireless Speaker User Manual

W-KING D8 Outdoor Wireless Speaker

Package Contents

• D8 Outdoor Wireless Speaker
• USB Type-C Charging Cable
• 3.5mm Audio Cable
• User Manual

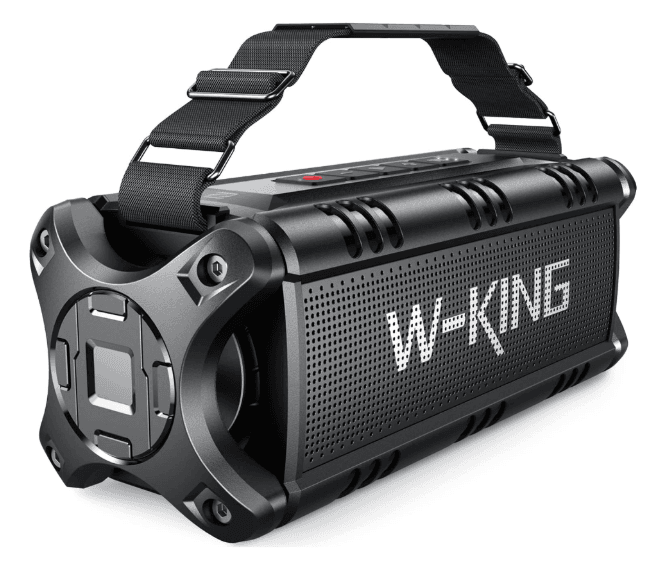

Product Diagram

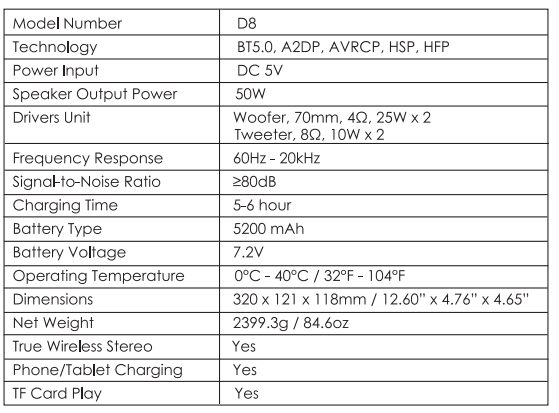

Specification

Charging

• Fully charge this speaker before first use. Connect it to a USB charger or charging port with the included USB Type-C charging cable to charge. When there are 3 solid white lights, your speaker is fully charged and ready for use. Charging takes around 4 hours.
  • Note
  • Please use 5V/2A power adapter to charge your speaker. The power adapter is NOT INCLUDED.
• Power On / Off
• Long press the ON/OFF button for 2-3 seconds to power on or off (LED indicator flashes blue or off)

Pairing

1. When you turn on the speaker, the speaker will automatically enter pairing mode, and the LED indicator will start to flash blue rapidly
2. Activate the pairing function on your phone or other compatible device and select “W-KING D8.”
3. If a code or pin is required for pairing, please enter “0000.”
4. When successfully paired, the LED indicator will stay blue
   • Notes
     • To reset the speaker (to clear the pairing list or any program errors), use a straightened paper clip or a toothpick to carefully short-press the reset hole
     • The speaker will automatically shut down after 10 minutes in pairing mode if no devices are paired
     • If your paired device is switched off or manually disconnected, the speaker will enter pairing mode and automatically shut down after 10 minutes
     • If the speaker or connected device exceeds the operating range, the speaker will disconnect. The connection to the last successfully connected device will be re-established once you re-enter wireless range within 10 minutes. To connect to other devices, please repeat the previous “Pairing” steps

Playing Audio via Audio Input Connection

1. Connect the D8 to your PC, laptop, or other device with an audio output port using the included 3.5mm audio cable
2. Long press the on/off button for 2-3 seconds to turn on, and the LED indicator will light up solid green
   • Notes
   • The speaker will disconnect from your phone or other paired device when an audio cable is plugged into the audio input jack
   • When playing audio using the audio input jack, press the volume + / – to adjust the volume and short-press play/pause to pause or resume. Next/previous track control on the speaker is disabled in audio input mode
   • For some computers, you may need to access the audio control panel to manually set the speaker as the default audio device

Charging Phone/Tablet

1. Connect your phone/tablet to the USB port of the D8 speaker
2. Turn on the speaker; your device will be charged automatically
3. Turn off the speaker to discharge your device

Adjust Sound Effects

• Short press the sound effect button “” to adjust sound effect

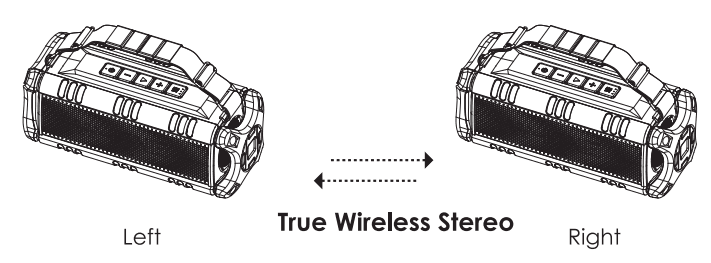

True Wireless Stereo Pairing

1. Turn on both of your D8 speakers simultaneously, you will see the blue LED indicator flashes rapidly on the two devices
2. Select one speaker as the leading speaker, double-press the ON/OFF button to start pairing.
3. After successfully pairing, the blue LED indicator of the leading speaker flashes slowly, and the secondary speaker LED remains bright blue
4. Turn on your phone’s Bluetooth, search “W-KING D8,” and connect. The blue LED indicator of the leading speaker stays bright. The two speakers will play music simultaneously when complete pairing
5. To disconnect True Wireless Stereo pairing, press the volume button “+” and “-” at the same time. You will see a blue LED flash rapidly on the secondary speaker, which means True Wireless Stereo has unpaired successfully

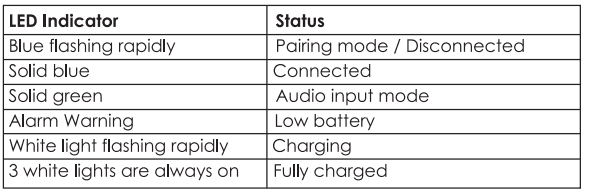

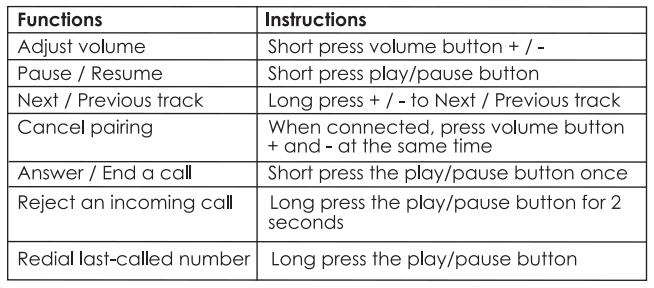

Controls & LED Indicators

Product Care & Use

• Keep away from liquids, extreme heat, and strong magnetic fields
• Do not use this speaker at high volume for extended periods, as this may cause permanent hearing damage or loss

Warranty & Customer Support

• For questions, support, or warranty claims, contact us at
• Amazon E-mail: support.amazon@w-king.com
• Please contact us with your region, order number, and product model.
• Please note, W-KING can only provide after-sales service for products purchased directly from our official online store. If you have purchased from a different seller, please contact them directly for service or warranty issues.
• Notice for US
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation

FCC Rules

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
• These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
• However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
  television recention.
