Waykar PDGT701BA Commercial 180 Pints Dehumidifier with Pump User Manual

Waykar PDGT701BA Commercial 180 Pints Dehumidifier with Pump

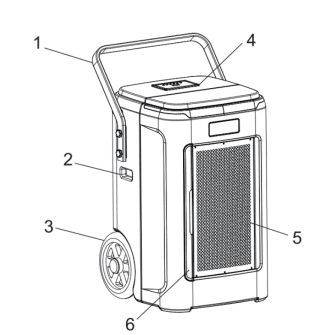

PRODUCT STRUCTURE

1. Handle Bar
2. Handle
3. Wheels
4. Control Panel
5. Air Inlet
6. Air Filter

1. Air Outlet
2. pump Drain Outlet
3. Cord Winder
4. Power Cord Port
5. Pump Reservoir
6. Emergency Drain Outlet

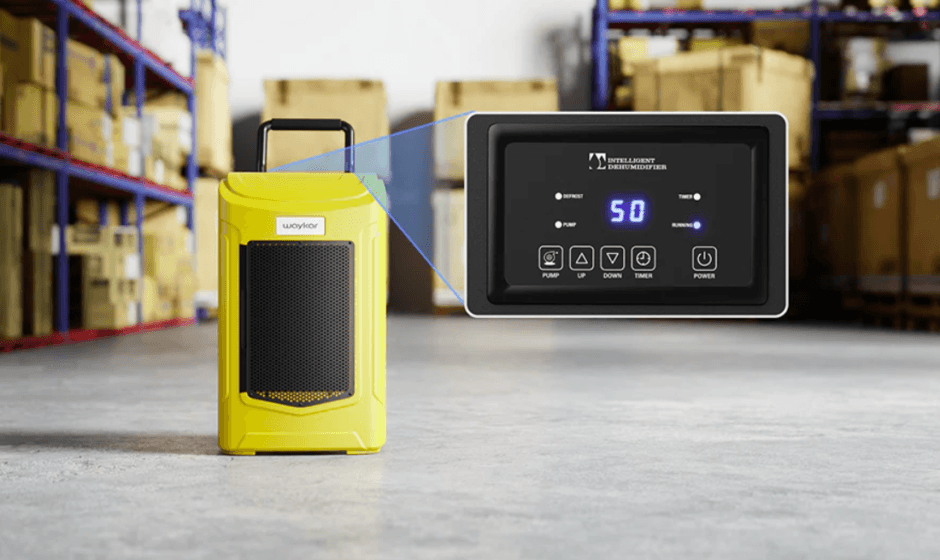

1. Understand the Control Panel

2. Setting

Setting Humidity

• The humidity level can be set within a range of 10% RH to 98% RH in 1% increments. When it starts work, it will first automatically detect and show the room’s humidity. Press the “UP” button to change the humidity selection in 1% increments. Press “DOWN” to make it decrease by 1%RH Flash and show the setting humidity.
• When the humidity level is set at 30% RH, the dehumidifier will work in continuous dehumidifying mode. Press the “function” button once or no button operation for a few seconds, will automatically exit the humidity setting state.

Timer Setting

• In the power on or standby state, press the “Timer” button once to enter the timer setting state: The Timing indicator lights u,p and the digital number flashes to show the time. In the timing setting state, press the “Up” or “Down” button to set the desired time (setting range: 01-24h, can be cycled).
• Press the button once again or no button operation for a few seconds, the timing setting state will automatically be exited. If the time is set to be 00, the time setting is invalid.

Pump Function

• When the water tank is full, the PUMP will automatically start pumping water, and the indicator light will flash.
• When the water level in the water tank is too low, the PUMP will automatically stop pumping water, and the indicator light goes out.
• In the power-on state, long-press the “PUMP” button for 3 seconds, the PUMP function is forced to open, and the indicator PUMP will flash.

OPERATION INSTRUCTION

• Auto Defrost
• When the frost builds up on the evaporator coils, the compressor will cycle off, and the fan will continue to run until the frost disappears.
• Auto-Restart
• If the dehumidifier shuts off unexpectedly due to power being cut, the dehumidifier will restart with the previous function setting automatically when the power resumes.
• Auto Drain
  • Thanks to the built-in pump, the dehumidifier will drain the condensation water automatically.

Wait 3 Minutes before Resuming Operation

• To avoid any damage to the dehumidifier, the dehumidifier will not start operation following a complete cycle until after 3 minutes. The operation will automatically start after 3 minutes.
• Note: If the dehumidifier has been turned off before a power outage, the dehumidifier will not auto-restart after the power resumes.

3. Display Status Description

• When the machine is defrosting, the defrost indicator ‘DEFROST will be flashing, defrosting ends the light goes out.
• When the pump is draining, the PUMP Indicator will be flashing.
• When setting or checking the timer, the timer indicator TIMER will be flashing.
• When the timer is set up properly, the indicator will light up, the light goes out when the timer function is not activated.
• When the fan delays to start, the running indicator will be flashing; it will light up when the fan is running.
  • 1 . The digital number will be flashing when the target humidity is set or the room humidity is lower than the set humidity.
  • 2. When the setting value is read out to be lower than the room humidity, the digital number will remain illuminated.

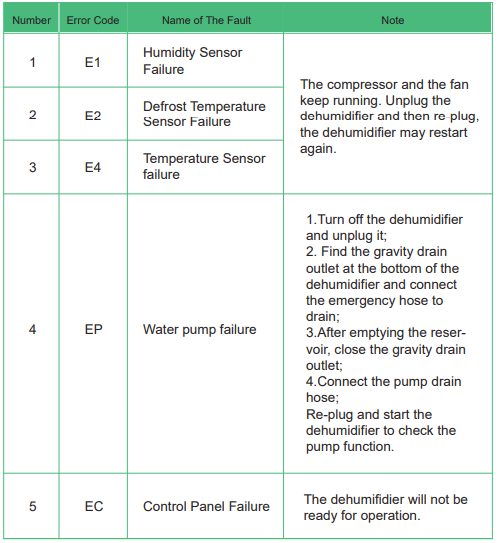

4. Error & Protection Code

Attention

• When the machine signals the alarm, it will flash or display the alarm. In case there are multiple errors on the unit, it will display the errors in turn. When one of the above malfunctions occurs, the buzzer will alarm for a few seconds. Press any key during the alarm to release the alarm sound.
• Note: Before starting the machine, please ensure that the air outlet has been opened, otherwise, the machine will overheat. Do not pull out the power cord to stop the machine.

5.InstaIIing the Handle

1. Take out 4 screws and a handle from the accessories, and put the handle into the groove at the back of the humidifier, making the screws correspond to the screw holes.
2. Tighten all the four screws on the hands respectively, the installation is finished.
3. Put the handle into the groove at the back of the dehumidifier, making the 4 screws correspond to the screw hole.
4. Tighten all the four hand screws, complete the installation.

6. Continuous Drainage

This dehumidifier has an internal pump that will automatically drain the condensate out via the long drain hose. Before turning on the dehumidifier, make sure the hose has been connected to the drain outlet properly.

1. Uncoil the entire hose.
2. Attach the hose to the drain outlet.
3. Place the unattached end of the hose in a sink, drain bucket, or outdoors: Anywhere that the water can drain out safely (Please ensure that no kinks or Other obstructions will stop the water from flowing.

NOTE

• Ensure that the water that runs outdoors does NOT create a slip hazard.
• If you use a bucket or other container for water collection, check it regularly to prevent overflows.
• The drain hose for the water pump can drain up to 15ft vertically. More than 15ft may cause water backup to the pump, resulting in leakage.
• When turning off the dehumidifier, please take the hose out from the water collection container to avoid water backflow and cause water leakage.

7.  Manual Drainage

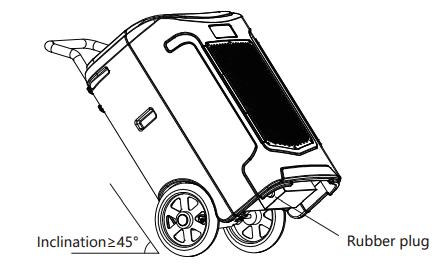

In power-disconnected status, tilt the dehumidifier as the figure, pull out the rubber plug, and put the dehumidifier straight to drain the sewage in the water tank.

CLEANING AND MAINTENANCE

WARNING: Turn the dehumidifier off and remove the plug from the wall outlet before cleaning

• A-Cleaning the Dehumidifier
  Clean the dehumidifier housing with a soft, damp cloth. Do not submerge or place water on the dehumidifier or control panel. Water may damage the electronic components of the dehumidifier. Do not use chemical solvents such as benzene, alcohol, gasoline, or other heavy-duty cleaners. The surface may become damaged or deformed.
• B-Cleaning the Air Filter
  The working performance of the dehumidifier will be greatly reduced if the filters become blocked. Please check and clean the filter regularly.To Clean the Filter

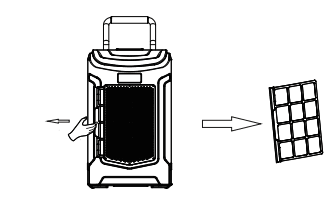

  • 1. Slide the filter out
  • 2. Vacuum any dirt from the filter using the vacuum cleaner and air gun attachment
  • 3. Immerse the filter in lukewarm water (about 1040F) with a mild detergent, and then wash it and allow it to dry.
  • 4. Once dry, reinstall the filter into the dehumidifier.
• C-Dehumidifier Storage & Transportation
  When you want to store the dehumidifier because you don’t use it for a long time. Please pay attention to the following steps:
  • 1 )Press and hold the PUMP button for 3-5 seconds to empty the water in the pump reservoir before transportation or storage.
  • 2)Transport and store the dehumidifier upright.

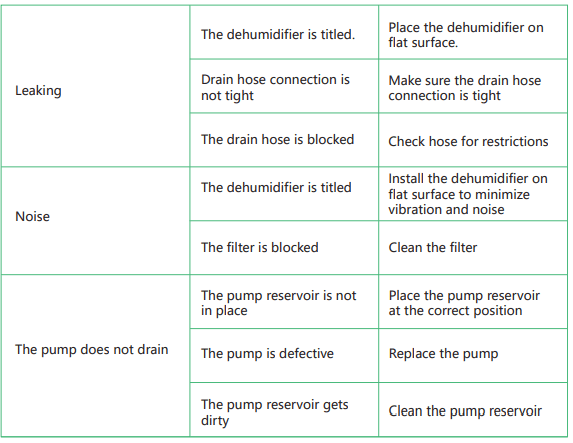

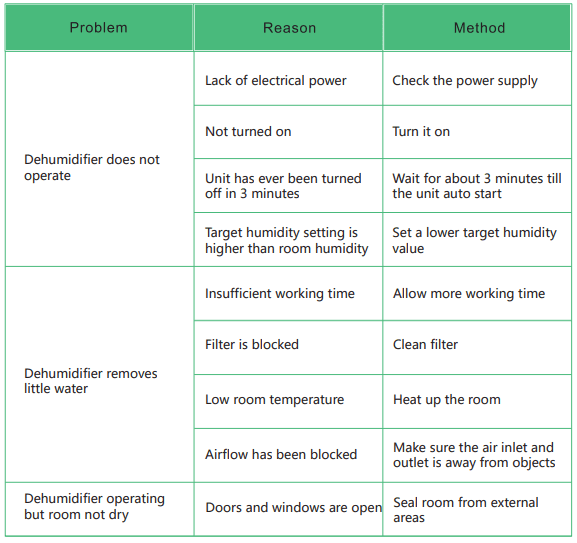

COMMON FAULTS AND SOLUTIONS

• Check the information below for troubleshooting steps that will save you Time to resolve issues that may happen with the unit. The list includes most issues, but not the results of defective units, crafts, or materials in the unit. If all the troubleshooting steps have been exhausted and the issue is still occurring, feel free to get in touch with Waykar Customer Service to get further assistance.

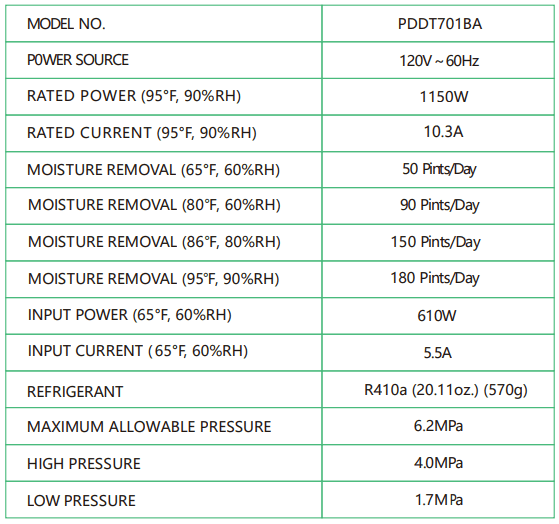

TECHNICAL PARAMETERS

For more manuals by Waykar, visit ManualsLibraryy

Waykar PDGT701BA Commercial 180 Pints Dehumidifier with Pump- FAQs
