Whirlpool 465 Series Electric and Gas Ranges

MODELS WITH ELECTRONIC CONTROLS GAS RANGES

The following chart shows the gas range models with electronic controls:

• Self-Clean Model

Electric Ranges

• The following chart shows the electric range models with electronic controls

OVEN CONTROLS

The Super Capacity 465 ranges use one of the following five electronic controls:

K.E.T. Single-Knob Control (Knob With Electronic Thermostat)

• This oven control includes: Bake Temperature settings with Broil and Clean, Oven On, Oven Heating, & Door Locked/Cleaning indicators

EZ-Touch™ 100

• This oven control offers an electronic LED Display, Indicator Lights,Custom Broil, Auto Clean, Child Lockout, and Start Prompt (no Time-Of-Day function).

EZ-Touch™ 150

• Adds a Time-Of-Day Clock, Color-Keyed Temperature and Clock/Timer  Pads, Electronic Minute Timer and Signal

EZ-Touch™ 200

• Adds an Illuminated Vacuum Fluorescent Display, AccuBake Temperature Management System, Separate Time/Temp Displays, and Integrated Light Touch Pad.

EZ-Touch™ 300

• Adds Delay Cook and Off functions.

USING THE OVEN CONTROLS

To set the various oven control functions, use the following procedures:

• CHILD LOCKOUT: Press and hold START for 5 seconds.
• TEMPERATURE ADJUSTMENT
  • Press and hold BAKE for 4 seconds.
  • Press the TEMP UP or DOWN arrow.
  • Press START.
• FAHRENHEIT/CELSIUS CONVERSION: Press and hold the CUSTOM BROIL for 5 seconds.
• ADJUSTABLE AUDIBLE SIGNAL: Press and hold STOP TIME for 5 seconds.
• CLOCK DISABLE: Press and hold CLOCK for 5 seconds.
• DEMO FEATURE: Press and hold TIMER SET for 5 seconds.
• PREHEAT COUNTDOWN TIMER AND SIGNAL
  • Press BAKE.
  • Press START.
• CUSTOM BROIL
  • Press CUSTOM BROIL
  • Press TEMP.
  • Press START.
• SELF-CLEAN COUNTDOWN TIMER
  • Press AUTO CLEAN.
  • Press START.
• CANCEL OR STOP: Press CANCEL.
• ELECTRONIC TIME-OF-DAY CLOCK
  • Press CLOCK.
  • Press TEMP.
  • Press START.
• ELECTRONIC MINUTE TIMER AND SIGNAL
  • Press TIMER.
  • Press TEMP.
  • Press START.
  • To cancel or turn off the Timer, press
  • TIMER twice.
• TO USE COOK TIME
  • Press COOK TIME.
  • Press HR & MIN.
  • Press START.
• TO USE STOP TIME
  • Press STOP TIME.
  • Press HR & MIN.
  • Press START.
• TO USE COOK TIME AND DELAY START TIME
  • Press COOK TIME.
  • Press HR & MIN.
  • Press START.
  • Press STOP TIME.
  • Press HR & MIN.
  • Press START.
• START PROMPT: Press START to begin the selected function

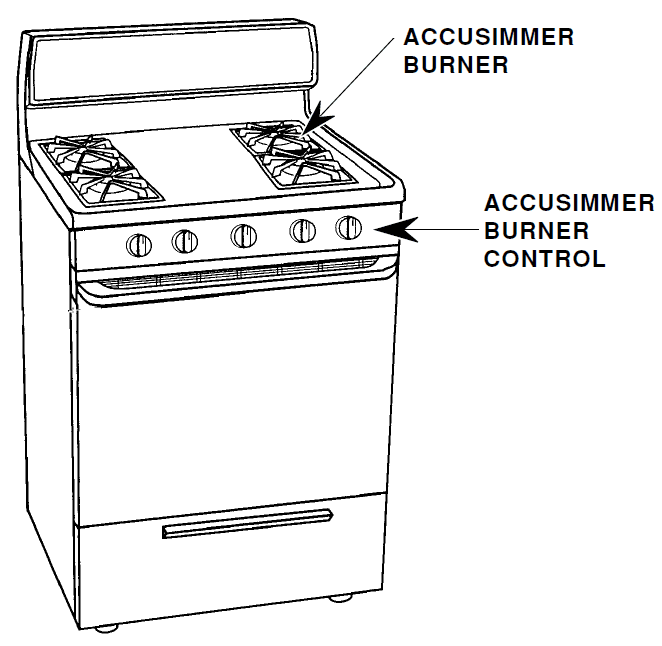

ACCUSIMMER™ BURNER

• The exclusive sealed gas venturi burners provide precise, even flame control so that each burner stays lit, even under sudden draft conditions. Airflow to the front and rear burners is adjusted at the front of the venturi by prying the slots open or closed, or by rotating the air shutters.

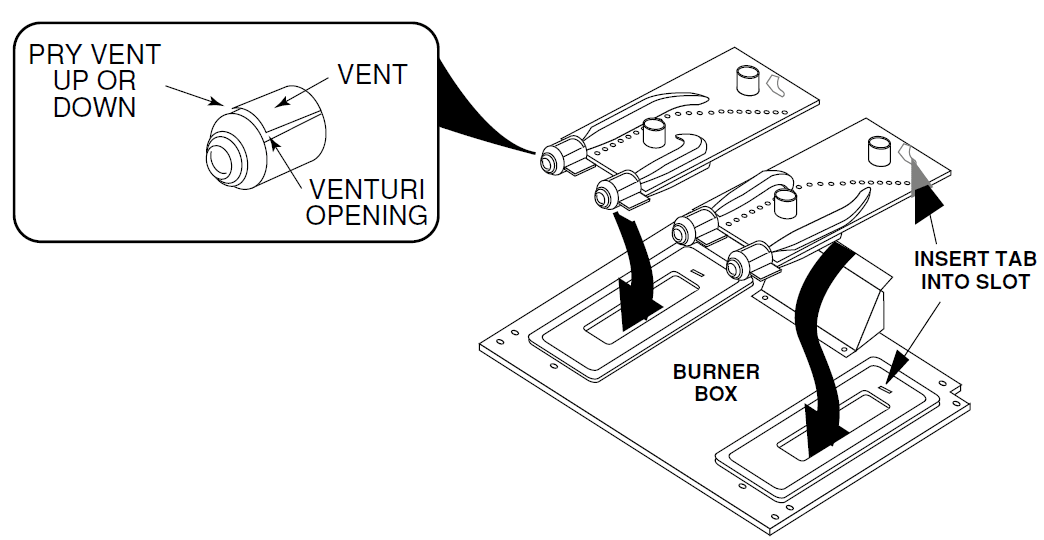

THE VENTURI SYSTEM

• The exclusive sealed gas venturi burners provide precise, even flame control so that each burner stays lit, even under sudden draft conditions. Airflow to the front and rear burners is adjusted at the front of the venturi by prying the slots open or closed, or by rotating the air shutters.

GAS RANGE COMPONENT LOCATIONS

Conventional Burners

Sealed Burners

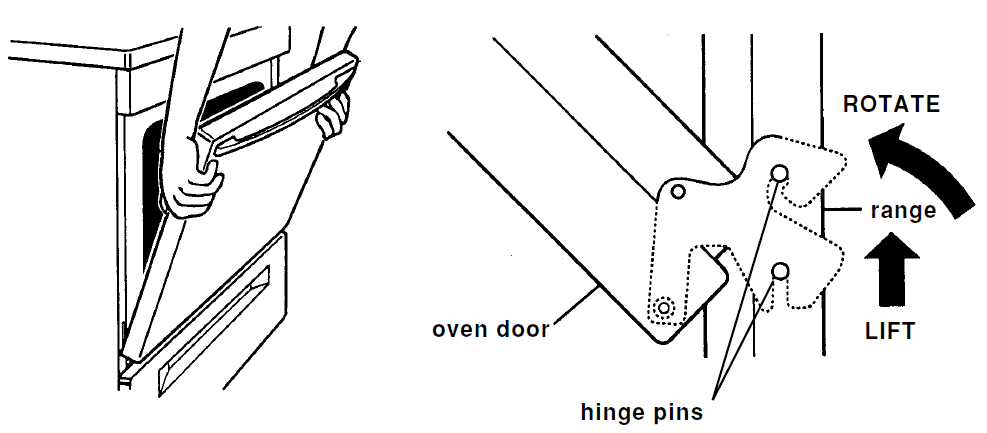

OVEN DOOR REMOVAL

The procedure for removing the oven door is the same for both gas and electric ranges. The door removal is different from previous ranges. To remove the door:

1. Open the door half way and install a nail or a screw into the hinge hanger holes on both sides of the door.
2. Close the oven door as far as the nails or screws will allow, lift the door off the two hinge pins, pull the door towards you so that the hinges are free of the slots, and remove it

L.P. CONVERSION

L.P. Conversion Kits will be shipped with the product. Kits include four top burner orifice spuds. The kit numbers are as follows:

Kit #3196473—Sealed Burner Models

• (2) #65 spuds–8500 B.T.U. (brass)
• (1) #68 spud–6500 B.T.U. (black)
• (1) .7 mm spud–5500 B.T.U. (nickel)

Kit #3196471—Open Burner Models

• (4) #66 spuds (8000 B.T.U. each)

ORIFICE SPECIFICATIONS

OVEN DOOR LOCK SYSTEM

• The oven door lock system uses a solenoid-activated, push-push mechanism. The oven door will lock as soon as it is closed and the CLEAN function is programmed into the Electronic Oven Control (EOC). When the solenoid is activated, the plunger extends, and the actuator rod moves the latch to lock the door.

IGNITION SYSTEM OPERATION

• OHMS LAW: I = E/R
• AMPS = VOLTAGE DIVIDED BY RESISTANCE

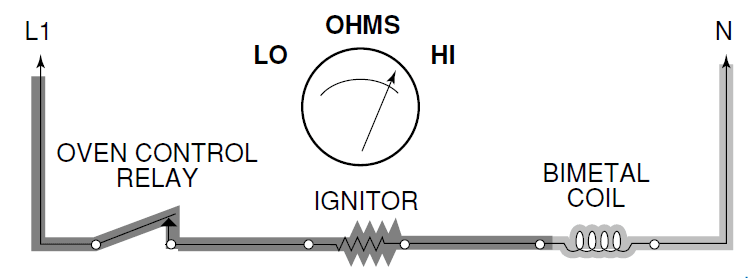

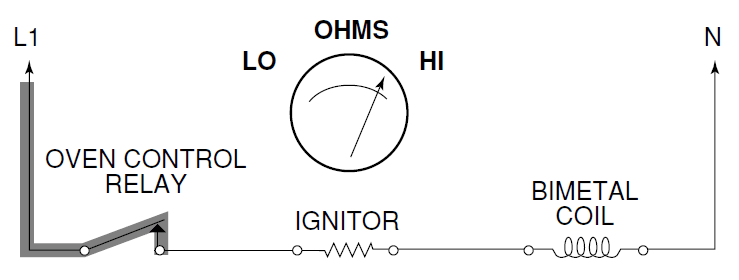

• A cold ignitor has a high resistance. When the oven control relay closes
• Current flows through the ignitor and the bimetal coil.

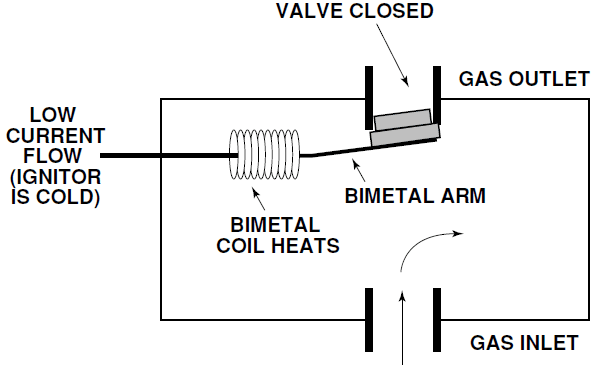

• As the bimetal coil heats, it heats the bimetal arm inside the gas safety valve.
• As the bimetal arm heats, it bends and opens the gas safety valve outlet to the burner.

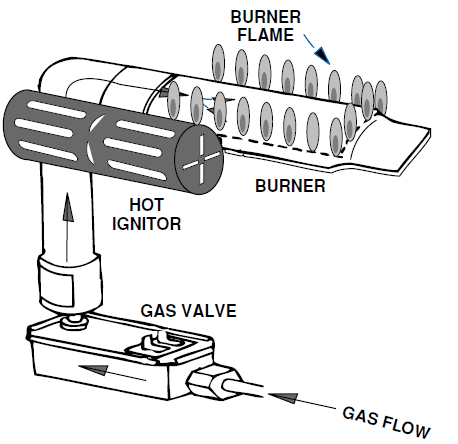

• The gas at the burner is lit by the hot ignitor and a flame is produced

TYPICAL GAS RANGE WIRING DIAGRAM

K.E.T., EZ-100 & EZ-150 Controls

GAS RANGE STRIP CIRCUITS

K.E.T., EZ-100 & EZ-150 Controls

OVEN DOOR LOCK SYSTEM

CURRENT FLOW

• Voltage is supplied to the control transformer whenever the range is plugged in. Current flows fro L1, through the transformer, to the neutral side of the line. When voltage is supplied to the EOCs Latch Solenoid Relay, current flows through the Latch Solenoid, to the neutral side of the line.

THE OVEN TEMPERATURE SENSOR

To test the oven temperature sensor, perform the following steps:

1. Use an ohmmeter and set the range switch to R x 10.
2. With no power applied, touch the leads of the ohmmeter to the connector pins of the sensor (you do not have to separate the connectors). Depending upon the oven temperature, you should obtain the corresponding reading shown in the chart:


   Temperature (˚F)	Resistance (W)
   32 ± 1.9	1000 ± 4.0
   75 ± 2.5	1091 ± 5.3
   250 ± 4.4	1453 ± 8.9
   350 ± 5.4	1654 ± 10.8
   450 ± 6.9	1853 ± 13.5
   550 ± 8.2	2047 ± 15.8
   650 ± 8.6	2237 ± 18.5
   900 ± 13.6	2697 ± 24.4

ELECTRIC RANGE COMPONENT LOCATIONS

• For a description and test procedure for the Oven Temperature Sensor, refer to the previous page.

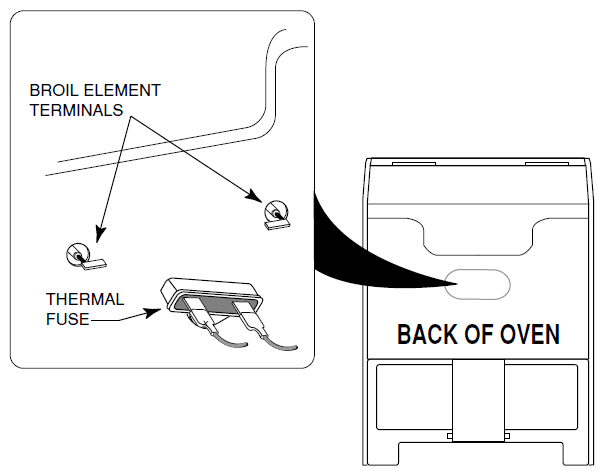

OVEN THERMAL FUSE

• The oven thermal fuse is located on the back of the range. A thermal fuse is used on electric models with EZ-200 and EZ-300 oven controls.

ACCUBAKE TEMPERATURE MANAGEMENT SYSTEM

• The AccuBake™ Temperature Management System provides better baking results. Both the Bake and Broil elements can cycle independently or together to maintain more even temperatures. The following “Relay Cycling Chart” shows how the relays operate the two elements to obtain various bake and broil temperatures

Relay Cycling Chart

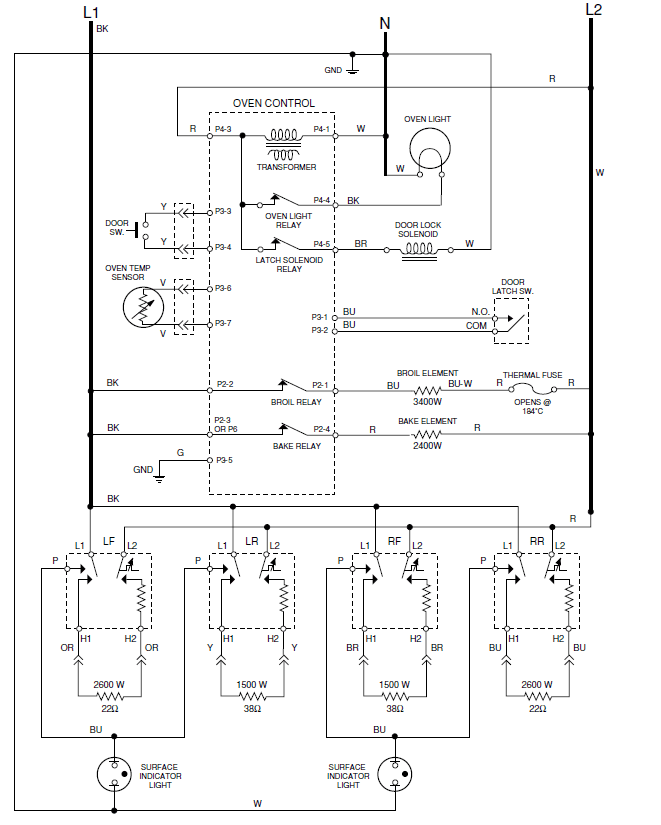

ELECTRIC RANGE WIRING DIAGRAM

EZ-200 & EZ-300 Oven Controls
