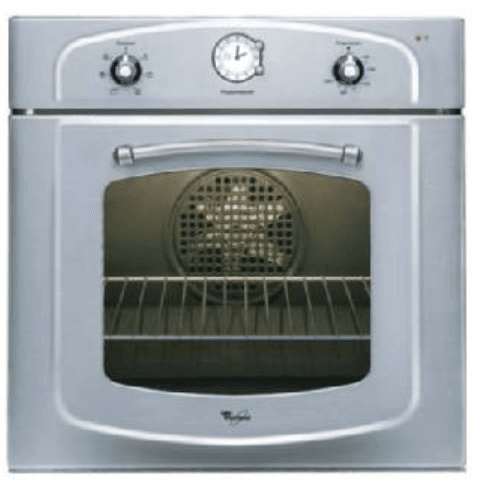

Whirlpool AKP 288 Electric Oven

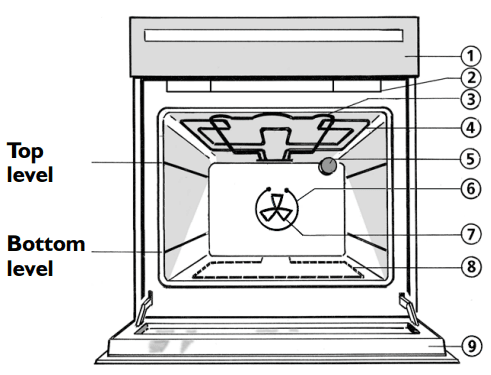

PRODUCT SHEET
- Control panel
- Cooling fan (not visible)
- Upper heating element
- Grill heating element
- Rear oven lamp
- Circular heating element (not visible)
- Fan
- Lower heating element (hidden)
- Oven cool door
ACCESSORIES

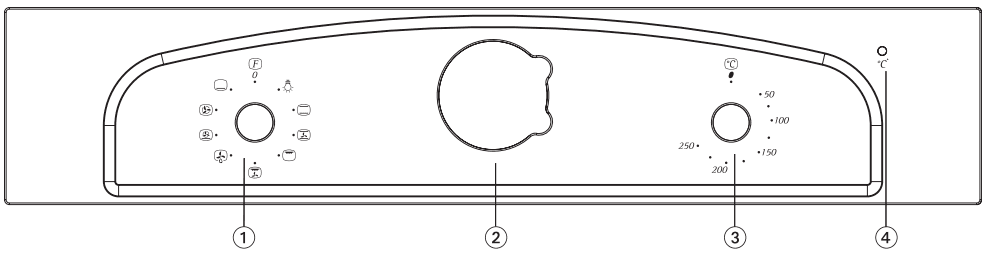

CONTROL PANEL
- Function selector knob
- Analog clock
- Thermostat knob
- Red thermostat led
ANALOG CLOCK
The analog clock allows:
- Viewing the time of the day. To adjust the time of the day, pull the button (B) and turn it clockwise to set the time.
- Programming the cooking start time. The maximum programmed cooking start time is 12 hours.
- Programming the cooking time. Select the cooking time (available with any function) to turn the oven on for a specified period of time. At the end of the specified time the oven will switch off automatically. The maximum programmed cooking time is 180 minutes. Make sure that the window (C) displays a symbol
or (OFF) at the start of cooking.
or (OFF) at the start of cooking.
MANUAL COOKING (without cooking start time or cooking duration)
- Pull the button (A) and turn it until the hand (D) points to the time shown on the clock (hour hand).
- Turn the button (A) clockwise (without pulling), until the symbol | or
is displayed in the window (C). - Turn the selector knob to the required symbol. The oven light switches on.
- Turn the thermostat knob clockwise to the required temperature. The red thermostat indicator light switches on.
- At the end of cooking, turn the knobs (function selector and thermostat) to OFF-0 or • (depending on the model).
- For going back to 0 or(OFF position), turn the button A clockwise.
is displayed in the window (C).MANUAL COOKING (with cooking start time but without cooking duration)
- Pull the button (A) and turn it until the hand (D) points to the time at which cooking is to start. (e.g. in the figure: hours 6.00).
- Turn the button (A) clockwise (without pulling), until the symbol | oris displayed in the window (C).
- Turn the selector knob to the required symbol. The oven light will not switch on until the hands point to the same time as hand D.
- Turn the thermostat knob clockwise to the required temperature. The red thermostat indicator light will not switch on until the hands point to the same time as hand D.
- At the end of cooking, turn the knobs (function selector and thermostat) to OFF-0 or • (depending on the model).
PROGRAMMED COOKING (with cooking start time and cooking duration)
- Pull the button (A) and turn it until the hand (D) points to the time at which cooking is to start. (e.g. in the figure: hours 6.00).
- Turn the button (A) clockwise (without pulling) until the required cooking duration is displayed in the window (C) (1 – 180 min.).
- Turn the selector knob to the required symbol. The oven light will not switch on until the hands point to the same time as hand D.
- Turn the thermostat knob clockwise to the required temperature. The red thermostat indicator light will not switch on until the hands point to the same time as hand D.
- At the end of the set cooking time an acoustic signal will sound and the oven will switch off automatically. To exclude the acoustic signal, turn button (A) clockwise (without pulling) until the symbol 0 oris displayed in the window.
- At the end of the set cooking time, cooking may be prolonged by following the instructions given above, or by using the manual cooking procedure.
PROGRAMMED COOKING (with cooking duration but without cooking start time)
- Pull the button (A) and turn it until the hand (D) points to the time shown on the clock (hour hand).
- Turn the button (A) clockwise (without pulling) until the required cooking duration is displayed in the window (C) (1 – 180 min.).
- Turn the selector knob to the required symbol. The oven light switches on.
- Turn the thermostat knob clockwise to the required temperature. The red thermostat indicator light switches on.
- At the end of the set cooking time an acoustic signal will sound and the oven will switch off automatically. To exclude the acoustic signal, turn button (A) clockwise (without pulling) until the symbol 0 oris displayed in the window.
- At the end of the set cooking time, cooking may be prolonged by following the instructions given above, or by using the manual cooking procedure.

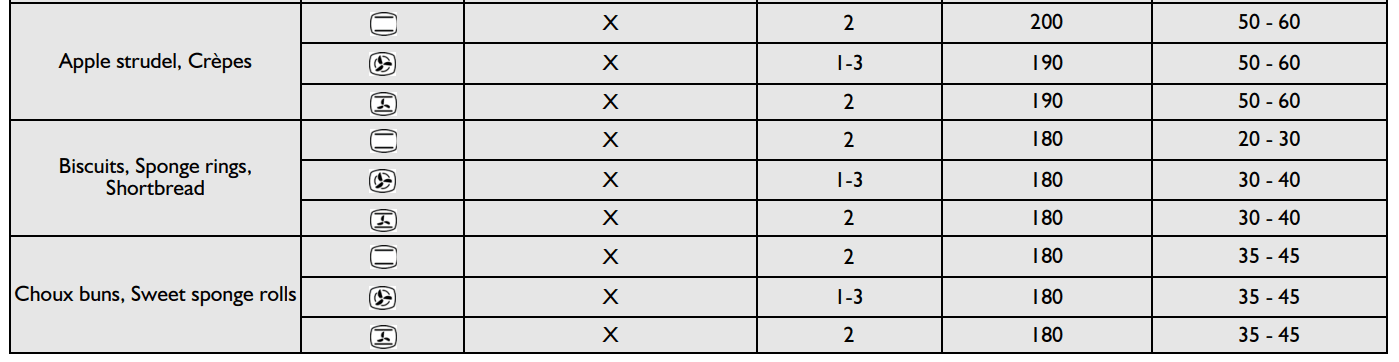

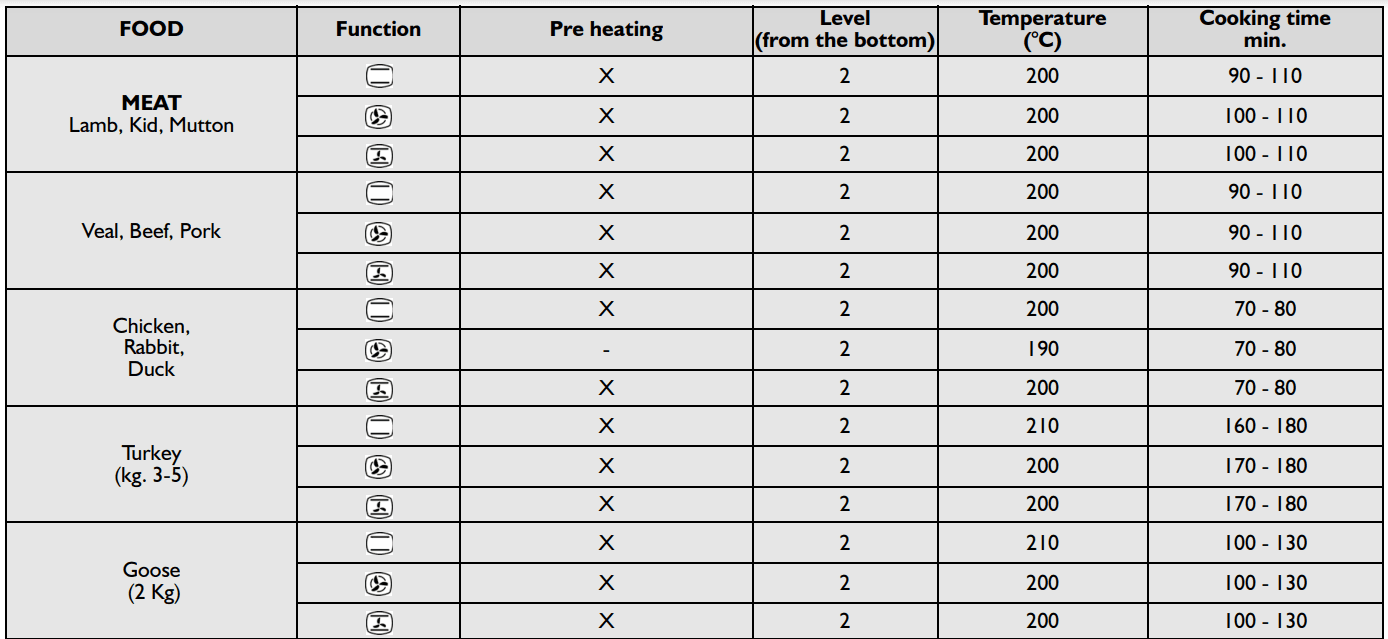

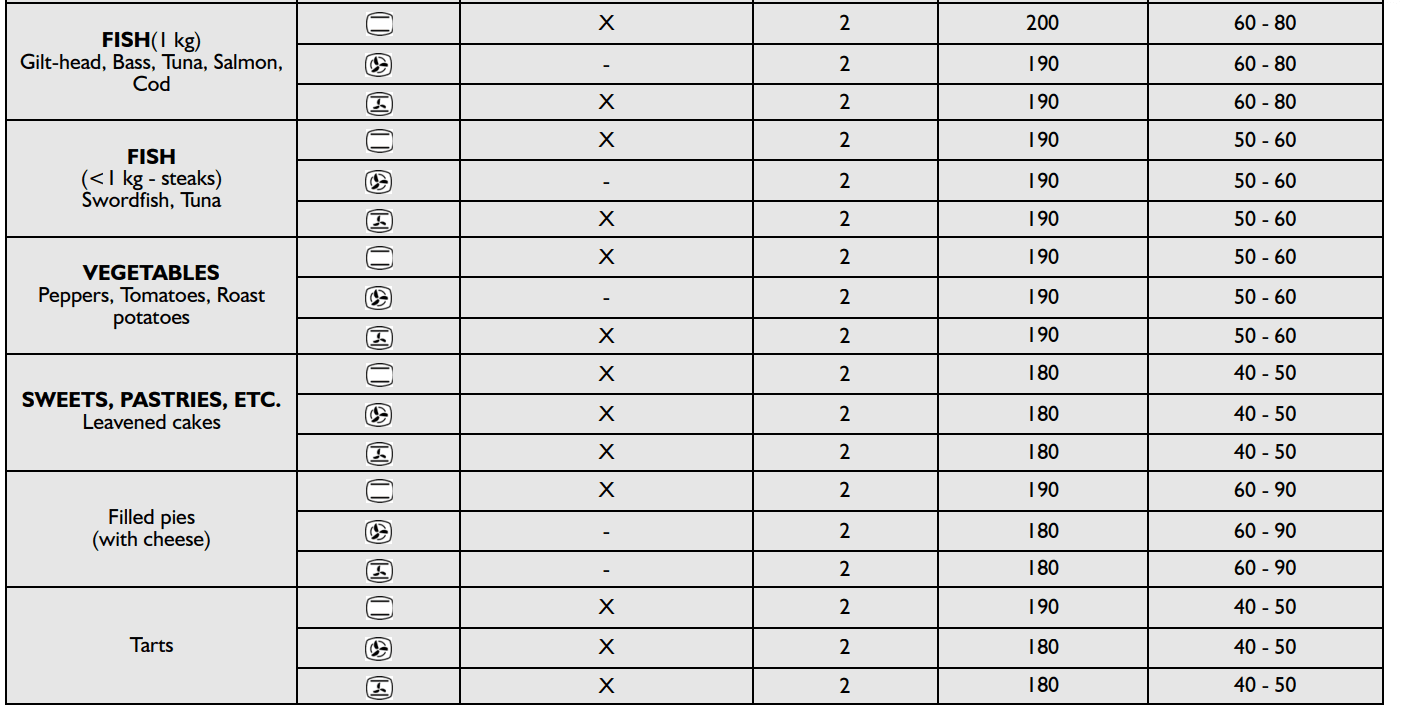

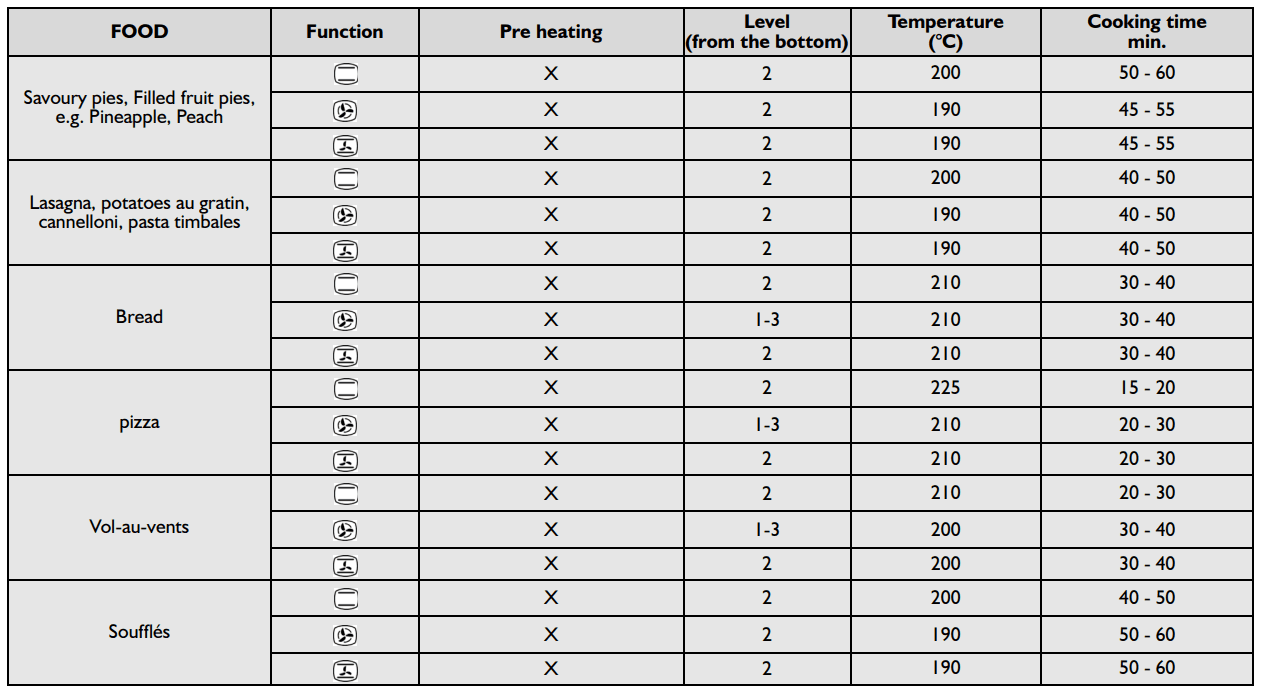

COOKING TABLES

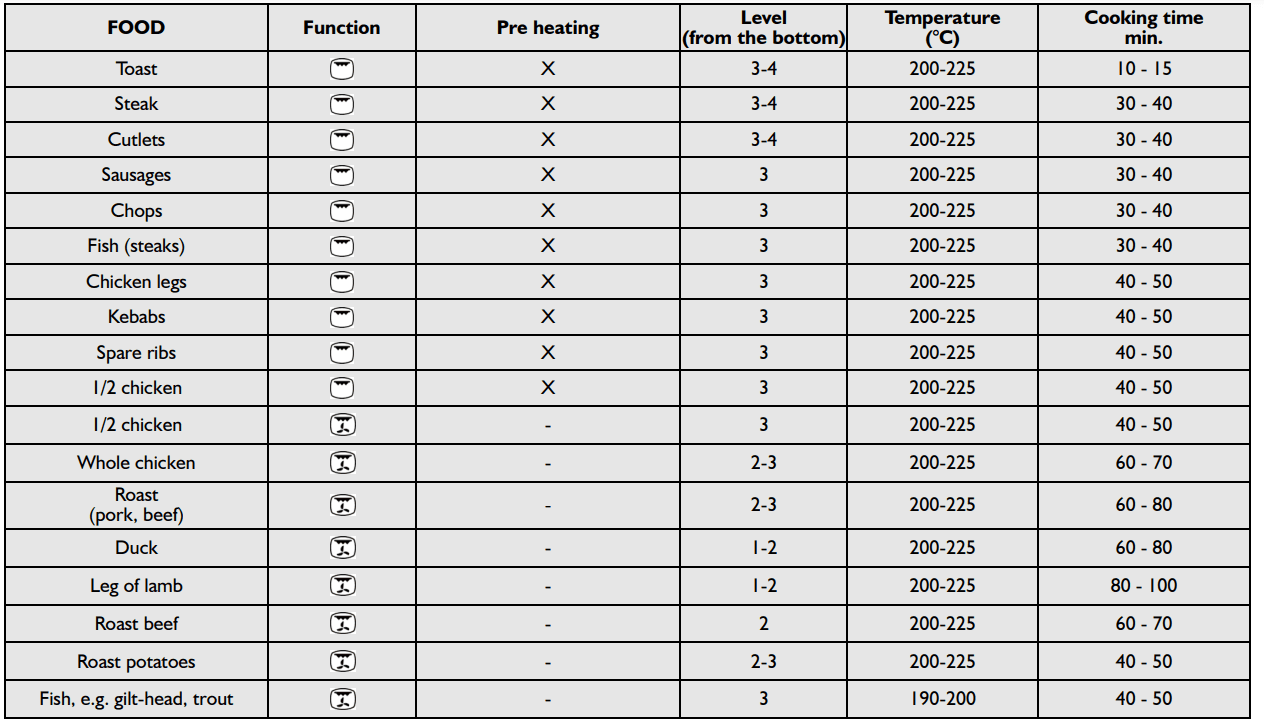

COOKING TABLE FOR GRILL FUNCTION
Note: Cooking times and temperatures are for guidance only.
For more manuals by Whirlpool, visit ManualsLibraryy
Whirlpool AKP 288 Electric Oven-FAQs
Why is my Whirlpool oven not working?
Your oven may not work due to several reasons, including a faulty baking or broiling element, a malfunctioning igniter, a blown fuse, an issue with the control board, or insufficient power from the outlets.
Does a Whirlpool oven turn off automatically?
Yes, the oven shuts off automatically when the set cook time ends, and “End” will appear on the display.
How can I adjust the temperature on my Whirlpool oven?
1. Press and hold the BAKE button for 5 seconds until the current calibration appears (e.g., “0°F CAL”).
2. Use the TEMP or TEMP/TIME arrows to adjust the temperature in increments of 10°F (5°C).
How do I reset my Whirlpool electric oven?
To reset:
1. Turn off the power to the oven at the circuit breaker.
2. Wait one minute, then turn the circuit breaker back on.
3. Check if the error code is resolved. If it reappears, further troubleshooting may be needed.
How do I turn the oven on?
1. Rotate the oven function knob to select a function.
2. Adjust the temperature knob to the desired temperature.
3. Ensure the clock is set correctly; the oven won’t work unless the clock is set.
Where can I find Whirlpool service manuals?
Visit Whirlpool’s Owner’s Center online, where you can find product manuals, troubleshooting tips, and other resources specific to your appliance.
How do I locate the model number of my Whirlpool oven?
The model number is found:
1. Inside the oven door, on the inner rim.
2. For cooktops, lift the cooktop to find the number underneath.
How do I prepare my electric oven for first-time use?
Before using your oven for cooking:
1. Remove any protective film, cardboard, and accessories.
2. Heat the empty oven to 250°C for about one hour to eliminate odors.
How does an electric oven work?
Electric ovens use heating elements powered by electricity to distribute heat within the oven compartment. Depending on rack placement and settings, the oven can perform tasks like browning meats, melting cheese, and crisping pastries.
What is the recommended cleaning process before first use?
Heat the oven empty at 250°C for about one hour to burn off any manufacturing residues or odors. Make sure no accessories or packaging remain inside during this process.
