Whirlpool WH31S2E Two Door Mini Fridge User Manual

Whirlpool WH31S2E Two Door Mini Fridge

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of explosion fire, electrical shock, and/or injury to persons, including the following: Read all instructions before using the appliance.

1. This appliance must be grounded. Connect only to a properly grounded outlet. See Important Grounding Instructions on page 3.
2. Install or locate this refrigerator only in accordance with the provided Installation Instructions.
3. To protect against electric shock, do not place a cord, plug, or refrigerator in water or other liquid.
4. The refrigerant of this product is R600a, which is flammable. Make sure not to damage the cooling system during the transportation and installation.
5. Please note that servicing shall be done by factory-authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

SAVE THESE INSTRUCTIONS

Before you throw away your old refrigerator or freezer:

1. Take off the doors.
2. Leave the shelves in place so that children may not easily climb inside.

Refrigerants
All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with a qualified disposal company for instructions.

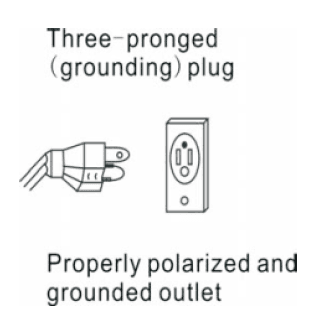

IMPORTANT GROUNDING INSTRUCTIONS

This appliance must be grounded due to the event of an electrical short circuit. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

1. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

LOCATION REQUIREMENTS

NOTES:

• It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source.
• Do not install in a location where the temperature will fall below 55°F (13°C). For best performance, do not install the refrigerator behind a cabinet door.

INSTALLATION INSTRUCTIONS

1. Before using the refrigerator for the first time, remove all of the packing materials, including the foam base and adhesive tape holding accessories in place.
2. The refrigerator should be located on a firm, flat surface that is strong enough to support the refrigerator when it is fully loaded.
3. Leave a minimum of½” between each side of the appliance and the wall. The top and back of the appliance should have a minimum of 1 ½• clearance. This
   allows for proper air circulation. This appliance is intended to be free-standing and should not be built-in or placed in a recessed area.
4. The refrigerator legs must be adjusted during installation in order to function properly. The leveling legs on the front corners can be adjusted by turning clockwise to raise the appliance, and counter-clockwise to lower it. Be sure to have the appliance slope slightly backward to ensure that the door closes tightly.

OPERATING INSTRUCTIONS

1. Allow the refrigerator to stand upright for 4 hours before using.
2. Plug into a grounded outlet (see Important Grounding Instructions).
3. The temperature of the refrigerator can be controlled manually with the control dial. However, the number shown on the knob does not directly represent the temperature. Instead, the larger the number is, the cooler the interior temperature will be. Change to “O” stops the cooling but does not turn the power off. Turn the knob to setting 4 for normal use; turn it to setting 5-7 if a cooler temperature is required or to setting 1-3 when a warmer temperature is needed.
4. Food should be kept in sealed containers to prevent odors or drying.
5. Hot food should be cooled down before placing into the appliance to prevent an increase in interior temperature and power consumption. Placing food inside too soon will impact the performance.
6. Reducing the frequency of door opening can lower power consumption.

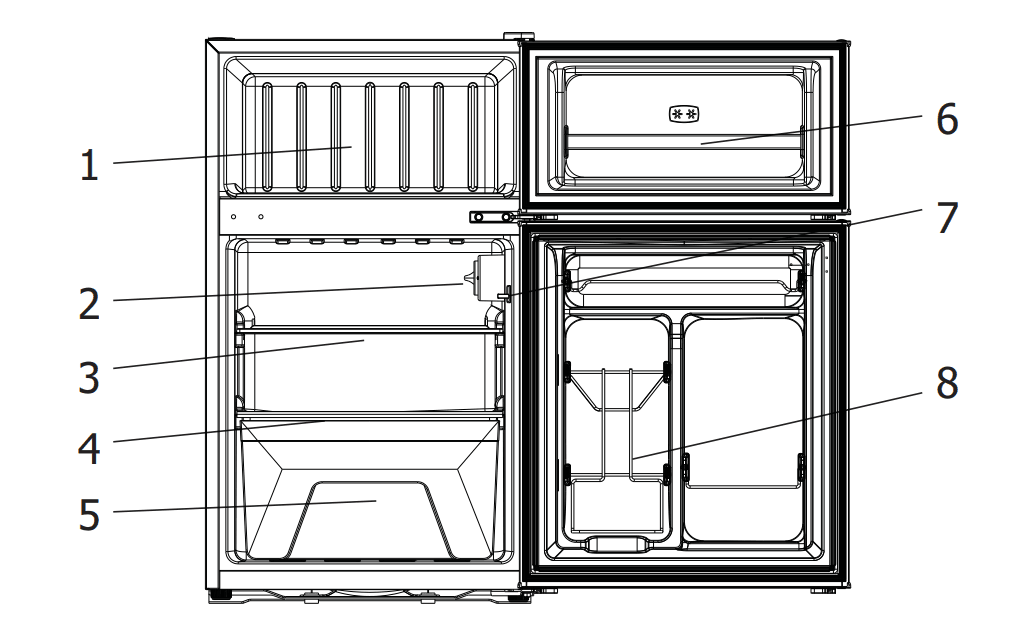

PARTS AND FEATURES

1. Freezer compartment
2. Lamp and temperature control knob
3. Glass shelf
4. Crisper glass cover
5. Vegetable crisper
6. Rod
7. Lamp switch
8. Steel tube

SPECIFICATIONS

CLEANING

Interior

Clean the interior of the appliance with a mixture of warm water and baking soda, using about 1- 2 tablespoons per quart of water. Use a sponge or soft cloth and be sure to wring excess moisture out before cleaning around the controls. Rinse thoroughly with warm water and dry with a clean, soft cloth.

Exterior

The exterior surface can be cleaned using warm water and a mild detergent. Rinse thoroughly and dry with a clean, soft cloth.

Door Gasket

The door gasket must be kept clean to ensure a proper seal. Be sure to clean the gasket frequently, using the method described above.

DEFROSTING

Frost build-up on the walls of the freezer section will increase energy consumption and reduce the efficiency of the appliance. Defrost the freezer section whenever the frost reaches a thickness of ¼ “.

1. Remove food from the refrigerator and freezer compartment.
2. If your model has a drip tray, be sure to place it under the freezer compartment to collect water. Emptying the drip tray may be necessary during the defrosting process.
3. Turn the unit off and unplug it from the outlet.
4. The defrosting process can take several hours. Open the door to speed up the process.
5. When defrosting is completed, wipe the compartment with a soft cloth to remove any remaining water.
6. Reset the refrigerator temperature, following the operating instructions on page 4.

ATTENTION: Do not use sharp or pointed objects to remove frost or ice from the surfaces of the freezer compartment. This can cause damage to the compartment walls and cooling coils and will void the warranty.

POWER FAILURE

When a power failure occurs, the refrigerator can normally store food for several hours. Do not put additional food into the appliance during a power failure, and do not open the door. Disconnect the plug from the outlet, and reconnect when the power has been restored. Always inspect for, and discard, any spoiled or thawed food in the refrigerator or freezer before resuming use of the appliance.

VACATION

Before leaving on any vacation, remove food that could spoil while you are gone. If you plan to be gone for an extended time, we recommend that all of the food should be removed from the appliance and it should be turned off and unplugged from the outlet. Clean the interior according to the directions provided in the Cleaning section of this manual, and leave the door open.

MOVING THE REFRIGERATOR

1. Turn off the refrigerator and unplug from the outlet.
2. Remove all food and securely tape down all loose items inside.
3. Tape the door shut.
4. Do not lift or pull the door or door handle during transportation.
5. When moving, the appliance can not be tilted over 45 degrees as possible damage to the sealed system could occur.
6. Take care to avoid strong vibration or impact on the appliance.

REVERSING lHE DOOR

1. Top Hinge Cover
2. Top Hinge Screws
3. Top Hinge
4. Freezer Door
5. cabinet Plugs
6. Refrigerator Door
7. Middle Plug
8. Middle Hinge
9. Refrigerator Door Plug
10. Middle Hinge Screws
11. Leveling Legs
12. Bottom Hinge Screws
13. Bottom Hinge

Do not tilt the appliance over 45°when revising the door as possible damage to the sealed system may occur.

1. Remove the top hinge cover and 3 top hinge saws which are below it. Then remove the top hinge.
2. Remove Freezer Door
3. Remove 2 cabinet plugs and 1 door handle plug.
4. Remove the middle hinge screws and the middle hinge
5. Remove the refrigerator door.
6. Remove right and left leveling legs.
7. Remove 3 bottom hinge screws and the bottom hinge.
8. Install the bottom hinge on the other side of the leveling legs with 3 bottom hinge screws.
9. Install right and left leveling legs. There are two holes below the refrigerator to flt the two leveling legs.
10. Install the refrigerator door.
11. Install the middle hinge on the other side.
12. Install the freezer door and fix the top hinge with 3 top hinge saws and fix the top hinge cover.
13. Adjust the leveling legs.

REPLACEMENT OF INTERIOR LIGHT

Uninstall the cover and replace the light with a screwing light (120V/10W). Refer to the illustrations and instructions below:

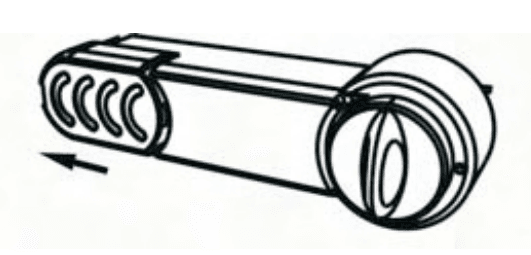

1. Move the lamp cover 1.2~2 inches according to the arrow point direction.

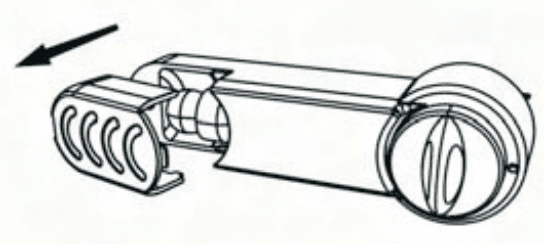

2. Take out the lamp cover.

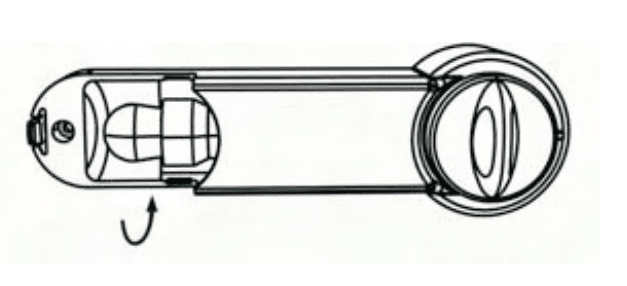

3. Rotate and take out the bulb in a counterclockwise direction.

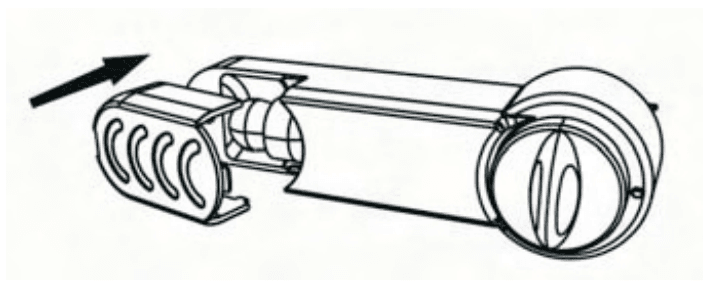

4. Replace the bulb and reinstall the cover.

The following are normal conditions that can be encountered during the operation of this appliance:

• The flow of refrigerant through the coils can cause a noise.
• The sides of the appliance may become warm as a result of the cooling function.

Assistance

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts

If you need to order replacement parts

we recommend that you only use factory-specified replacement parts. Factory-specified replacement parts will fit right and work right because they are made with the same precision used to build every new refrigerator. To locate factory-specified replacement parts in your area, call us or your nearest designated service center. toll-free: 1-855-666-4477.

Limited Warranty

This warranty applies to products purchased and used in Canada. This is the only express warranty for this product and is in lieu of any other warranty. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase, except as noted below. During this period, we will repair or replace this product at our option. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, or neglect including failure to clean the product regularly in accordance with the manufacturer’s instructions, used for commercial purposes, or any use not in conformity with the printed directions. We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. If you have a claim under this warranty, please call our CUSTOMER SERVICE NUMBER. For faster service please have the model number and serial number ready for the operator to assist you. This warranty is provided by Galanz-Zhongshan Galanz Consumer Electric Appliances Co., Ltd.
