Womier S-K80 Mechanical Gaming Keyboard
Keyboard Features

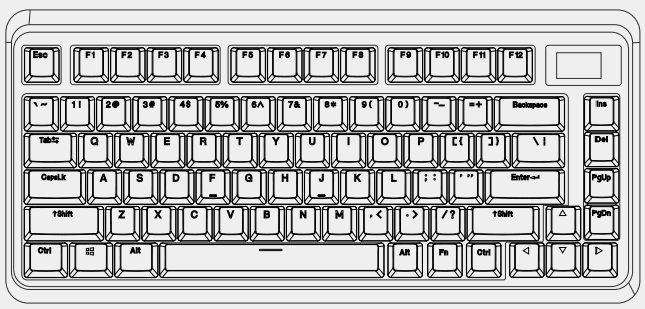

Top View
OLED display
Select the screen by turning the knob.

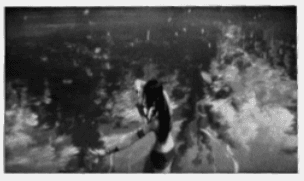

Boot screen
Support for custom startup screen.
Note: The programmer is only for Windows systems currently.
Requirements: GIF, under 255 frames (240 x 135 pixels recommended)
Home screen
- A. Battery Status
- B. Win Mode
- C. Mac Mode
- D. Win Lock
- E. Caps Lock..
The OLED display will show the current settings and items enabled/disabled.
Function setting screen
Wired Mode
Type-C cable length

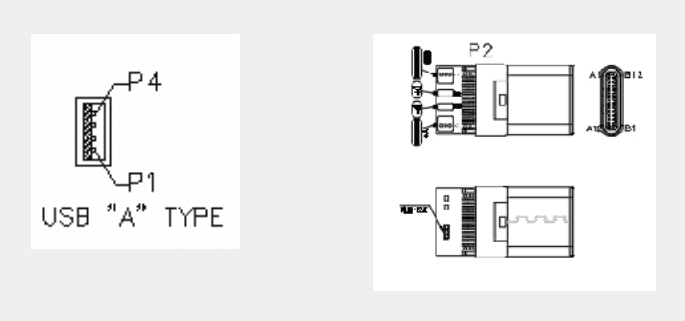

total length 1800 mm30 mm. The keyboard is connected to the host through a cable signal line, and the arrangement of the pins of the interface is as follows:
Backlight effect/color control
- Use the combination Key FN + / → to change the screen to this page.
- 2. Use the combination Key FN + Enter to enter the Backlight effect/Colour selection page.
- Use the combination Key FN + -/→ to select the Backlight effect/Colour.
- Use the combination Key FN + Enter to confirm the Backlight effect/Colour.
Backlight brightness/speed control
- Use the combination Key FN + -/→ to change the screen to this page.
- Use the combination Key FN + Enter to enter the Backlight brightness/Speed control selection page.
- 3. Use the combination Key FN + -/→, Increase/Decrease the Backlight brightness/Backlight brightness/Speed control, Total 5 levels optional: 0%-20%-40%-60%-80% 100%
- Use the combination Key FN + Enter to confirm the Backlight brightness/Speed control.
Volume/language setting
- Use the combination Key FN + -/→ to change the screen to this page.
- Use the combination Key FN + Enter to enter the Volume/Language selection page.
- Use the combination Key FN + -/→ to select the Volume/Language.
- Use the combination Key FN + Enter to confirm the Volume/Language.
Keyboard Bottom Switch Instructions

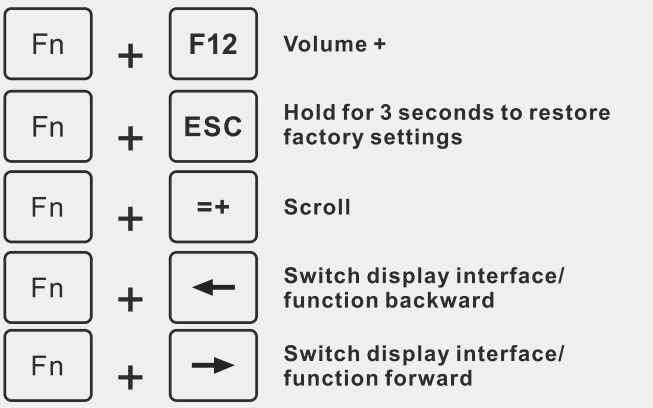

Multimedia key for Windows
Multimedia key for Mac

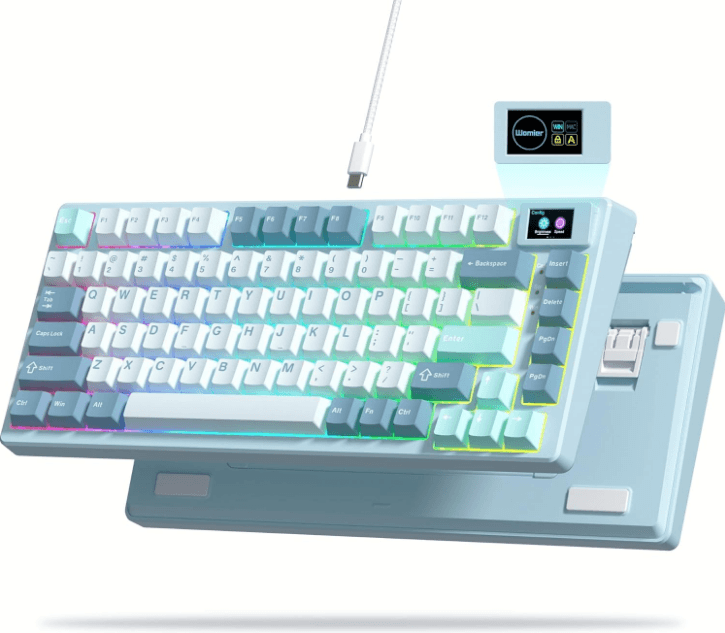

Product basic
