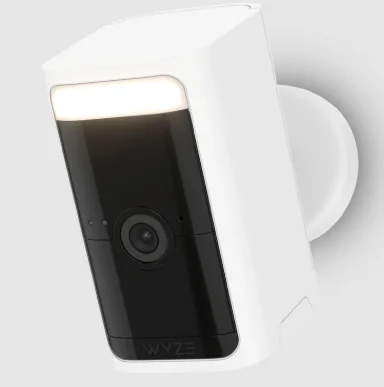

Wyze Battery Cam Pro
GET BETTER SECURITY WITH
Record Full-Length Videos
Get unlimited full-length video recordings.
Smart AI Detection
Detect people, packages, vehicles, and more.
Back-to-Back Event Recording
Capture everything without 5-minute gaps.
Exclusive Discounts
Get exclusive discounts on Wyze products.
Subscribe or learn more at services.wyze.com.

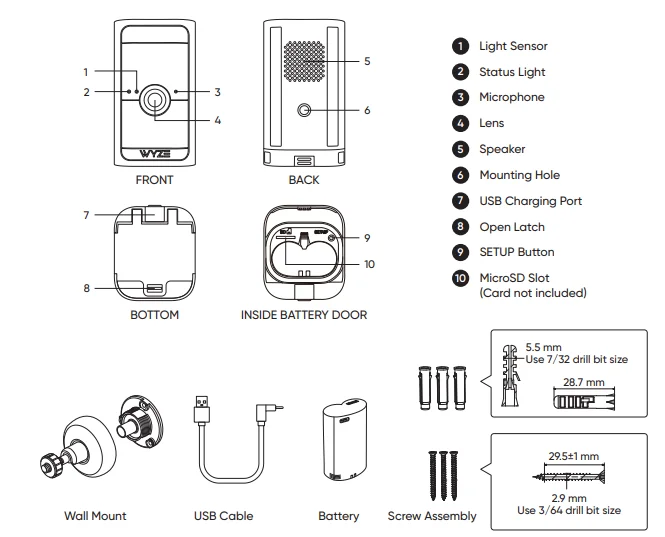

IN THE BOX
- Wyze Battery Cam Pro × 1
- Battery Pack × 1
- Wall Mount × 1
- USB Cable × 1
- Screw Assembly × 1
- Silica Gel Desiccant × 1
- Quick Start Guide × 1
Read this manual carefully and save it for future reference.
Disclaimer: The products, accessories, user interfaces, etc., illustrated in this guide are intended for reference only. Due to product updates, the actual product and the illustrations in this guide may vary.
SETUP
- Download the Wyze app and sign in or create an account.
- Open the Wyze app and tap the + sign in the top left corner of the Home tab. Follow the in-app instructions to set up the camera.
- Follow along in the app to mount the camera.
WALL MOUNT

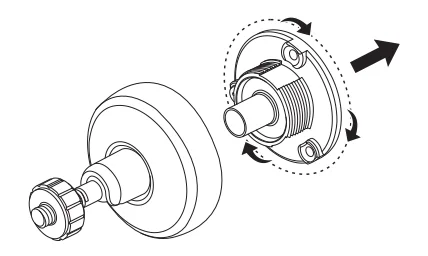

- Rotate the wall mount base clockwise.

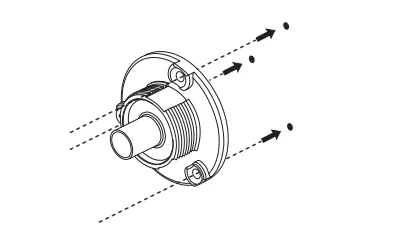

- Locate the position of the holes, then drill holes into the wall.
- Insert the drywall anchor into the hole for masonry and drywall installations. For wood posts, trim, etc., skip to the next step.

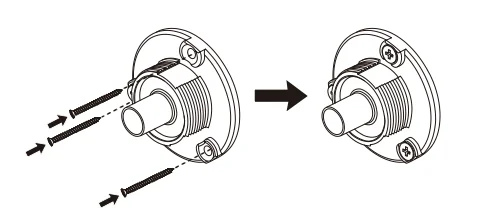

- Screw the base into the drywall anchor or wall.

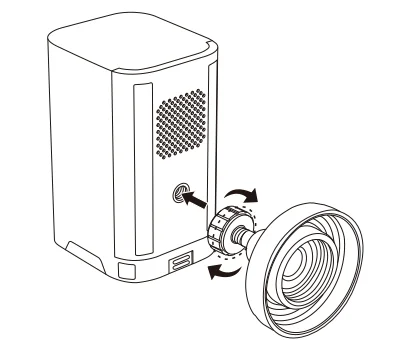

- Screw the wall mount into the back of your Wyze Battery Cam Pro.

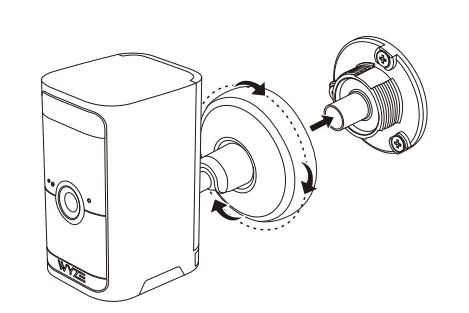

- Rotate the wall mount clockwise into the base.
CHARGING THE DEVICE

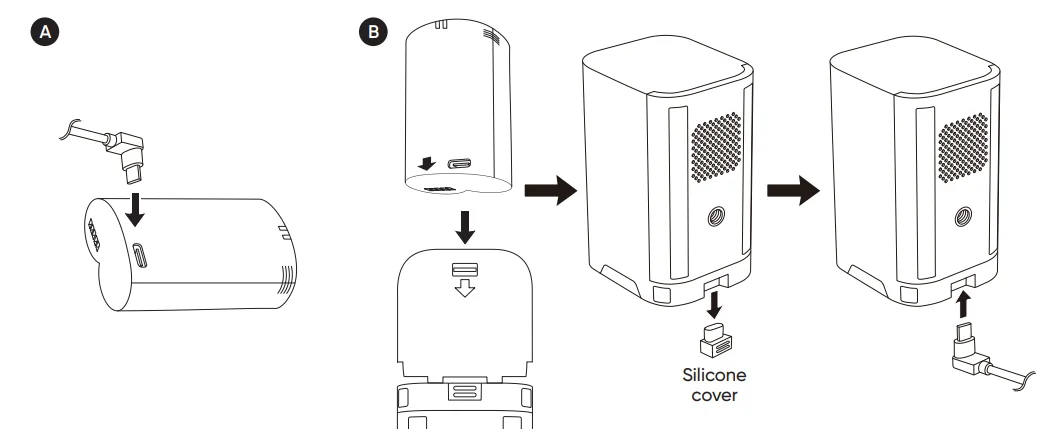

You can charge the battery either A) directly with the provided USB-C cable, or B) by inserting it into the camera connected to a 5V/2A power adapter.

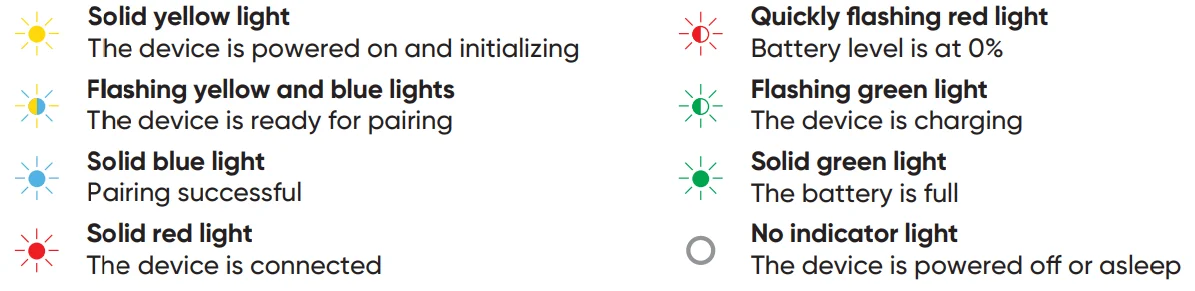

CAMERA STATUS LIGHT GUIDE
BATTERY STATUS LIGHT GUIDE
PRECAUTIONS
- Prolonged direct sunlight can heat the inside of your camera past its maximum operating temperature of 122°F (50°C). Avoid direct sunlight where possible and only use your camera in environments within its operating temperature range: -4° to 122°F (-20° to 50°C).
- To fully charge your battery, plug the included USB-C cable into the USB-C port on your battery pack and connect it to a 5V/2A power adapter for 9 hours. This product is intended to be supplied by a UL Listed power adapter marked “LPS” (Limited Power Source) and rated with an output of 5Vdc, 2A minimum, Tma = 50ºC minimum.
- If powered by a power adapter with a ground pin, the adapter should be properly grounded.
CAUTION: Risk of fire or explosion if the battery is replaced with an incorrect type.
- Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types).
- Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting a battery, can result in an explosion.
- Leaving a battery in an extremely high-temperature environment can result in an explosion or the leakage of flammable liquid or gas.
- A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
Where applicable, antenna type(s), antenna model(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated.
FCC WARNING
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
ISED RSS WARNING
This device contains licence-exempt transmitters/receivers that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference, and
- This device must accept any interference, including interference that may cause undesired operation of the device.
ISED RADIATION EXPOSURE STATEMENT
This equipment complies with ISED RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Only use the power supply provided. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
