Ymiko YM-AF001 Automatic Pet Feeder User Guide

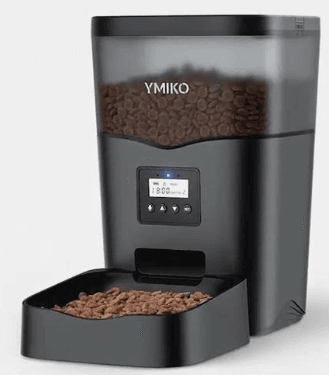

Ymiko YM-AF001 Automatic Pet Feeder

Safety Precautions

Warning

• Dispose of all packaging materials properly. Some items may be packed in polybags; these bags could cause suffocation; keep away from children and pets.
• DO NOT allow small children to play with, in or around the pet feeder.
• To reduce the risk of injury, please keep close supervision when an appliance is used near children.
• DO NOT use the feeder with pets not able to reach the food tray or with any physical disability.
• DO NOT immerse the base part in water at any time as it may damage electronic components like the control panel.
• DO NOT place any foreign object in the pet feeder.
• DO NOT use outdoors. Check operation frequently to be sure the unit is dispensing properly.
• DO NOT use wet, canned or moist food.
• DO NOT disassemble the unit other than as instructed in this User Guide.
• DO NOT use the feeder for anything other than its intended use.
• Only use attachments recommended or sold by the manufacturer. The use of attachments not recommended or sold by the manufacturer may cause an unsafe condition. Do not modify the pet feeder.
• DO not operate any appliance if the unit is malfunctioning or has been damaged. Do not attempt repairs on the pet feeder yourself. Contact our customer service immediately for further instructions.
• Always unplug when not in use and before cleaning.
• Never pull on the electrical power cord to remove the plug from the wall outlet.
• If the plug of this device gets wet, turn off electricity to that wall outlet. Do not attempt to unplug.
• Examine the feeder after installation. Do not plug in if there is water on the power cord or plug.
• To avoid tripping, always position power cord out of the way of foot traffic.

CAUTION

• DO NOT allow pets to chew on or swallow any parts. If you are concerned about the power cord, purchase a cord conduit (a hard plastic protector) at any hardware store to protect the power cord.
• If an extension cord is necessary, one unit with a proper rating should be used.
• DO NOT install or store the pet feeder where it will be exposed to weather or temperatures below 4 °C/ 39°F.
• Use alkaline D batteries to power. Do NOT use rechargeable batteries.
• Check the batteries regularly. Before leaving for extended time, always replace batteries with new ones.
• DO NOT lift the pet feeder by lid, food tank, or food tray. Lift and carry it using both hands and the base, while keeping the unit in an upright position.
• Suitable for dry food ONLY, with kibble size ranging from 2-10mm I 0.07-0.4in in diameter. Larger kibble may get stuck at the food outlet.
• Read and observe all important notices listed on the pet feeder and in the packaging.

Product Diagram

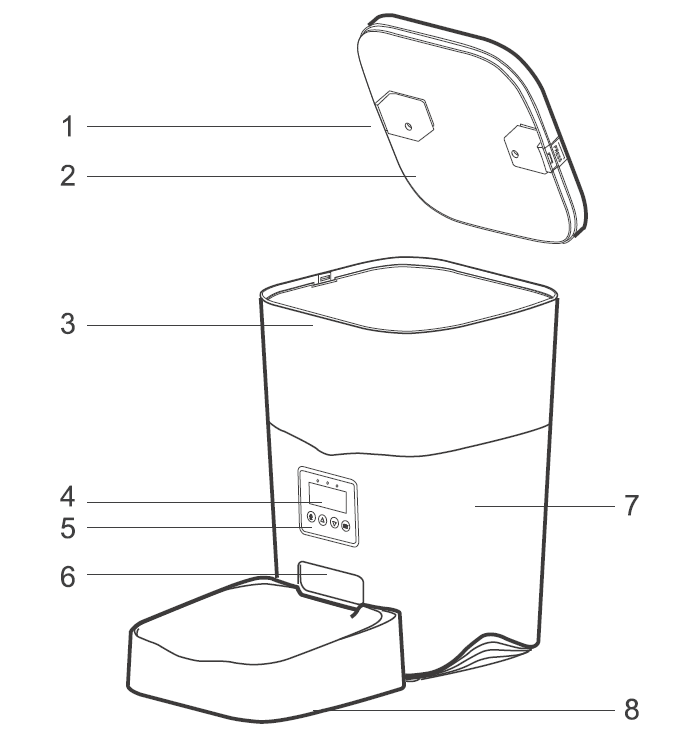

Front View

1. Lid Grip
2. Lid
3. Food Tank
4. LCD Screen
5. Control Panel
6. Food Outlet
7. Base
8. Food Tray

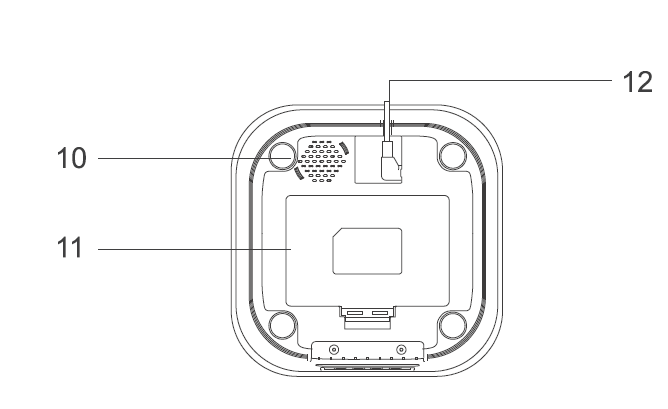

Bottom View

• Speaker
• Battery Compartment
• Power Socket

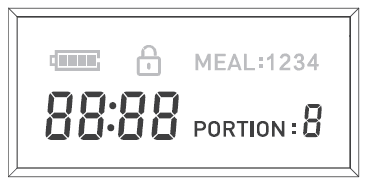

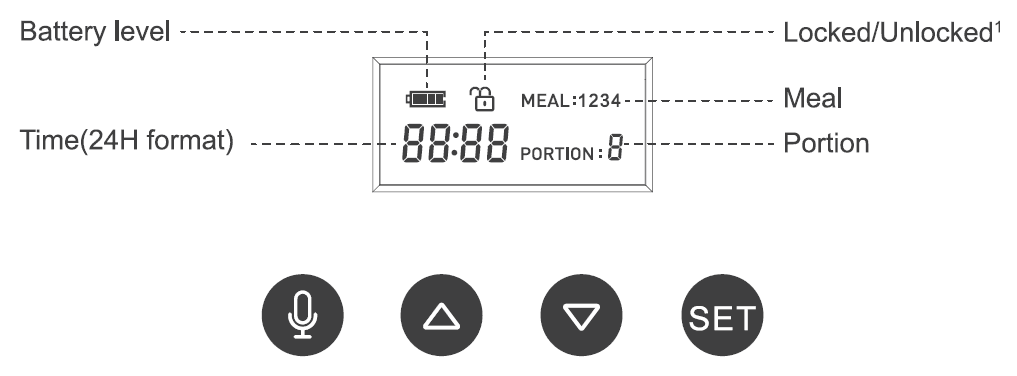

Screen Details

Button Function

• Press and hold the record button for 3s until a beep is heard. Release, record (max 10s) and press again to end as a double beep is heard. Repeat to record a new audio.
• Press the up button to increase value. Press and hold for 10s when the screen off to reset all settings
• Press the down button to decrease the value. Press and hold for 3sto unlock.
• Press set button to enter the setting menu and switch between time, meal, and portion settings and when the specific icon blinks on the screen indicating it’s ready settings.

Note: Automatically lock the screen after 30s of standby.

Cleaning & Care

It’s recommended to clean the feeder regularly for the health of your pet. When the food tank starts getting dirty and there is a lot of loose food at the bottom of the food tank, you can remove the food cover for cleaning. Use a soft damp cloth to clean the feeder base which contains the control panel. Never get this part wet and DO NOT wash with running water. You can wash the Food Cover in warm soapy water. DO NOT put the product in the dishwasher, or it will be permanently damaged!

What’s in the box

1 x Automatic Pet Feeder
1 x 5V Power Adapter
1 x User Guide Kit

How To Use

Warning: Please use the original 5V power supply

Assembling

• Removing feeder from box and packaging.
• Place the feeder in a desired location.

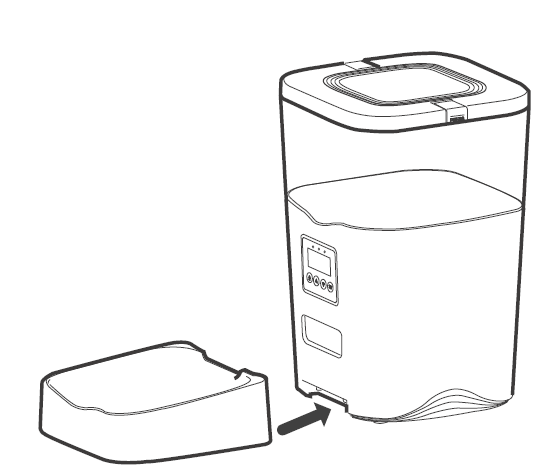

• Align the bulging of the food tray and holes in thembase, and push upward to connect the two.
  Note: Dispose of all packaging materials properly. Some items may be packed in polybags; these bags could cause suffocation; keep away from children and pets.

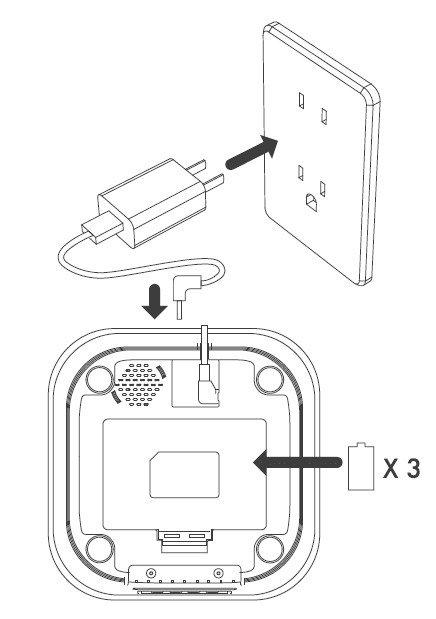

Connecting Power

• Insert the 5V power adapter into a wall socket. Plug in the power socket of the feeder.
• Open the battery compartment at the bottom of the unit, and install 3 alkaline D batteries (not included) in case of outage.
• The LCD display will light up automatically indicating the feeder is on now.

Note:

1. Battery NOT included.
2. Before connecting to power, make sure all parts are clean and completely dry.

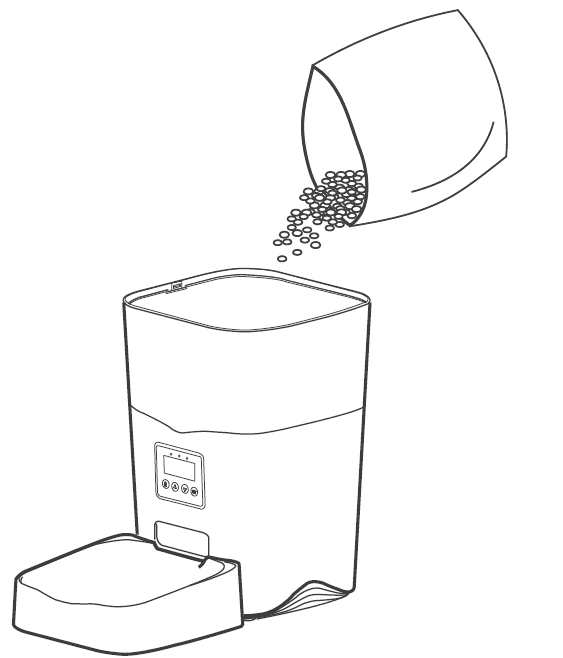

Filling Food Tank

• Fill food tank with dry pet food. Close the lid and it will snap into place due to gravity.

Note:

1. Do NOT use canned, wet or moist pet food.
2. Recommend kibble size ranging from 2-10mm/0.07-0.4in in diameter.

Setting the Time

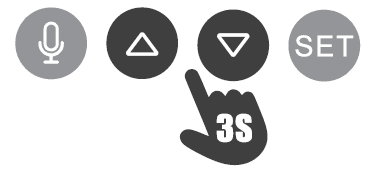

• Press and hold the Unlocked button 3s to unlock the screen.

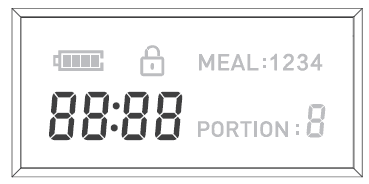

• Press and hold the Set button for 3s to, and the Time icon 88:88 will blink the hour field.
• Press the Up/ Down buttons to scroll through numbers to set the hour.
• Press the Set button to move to the minute field, set the minute similarly.

Setting the Meals Per Day

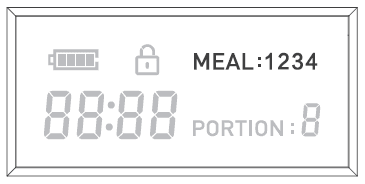

• After the current time is set, press the Set button, and the LCD display will show the current time and blink the Meal number. Press the Up/ Down buttons to set 1-4 meals per day.

Setting the Time & Portion of Meals

• Aller the meal number is set, the LCD display will blink the current Meal number. E.g., the meal number now is blinking “1”, indicating it’s ready for settings of the first meal.

Setting the time of the current meal

• Press the Set button 8 and the hour field of the Time icon will blink.
• Press the Up/ Down button to set the hour.
• Press the Set button 8 and Up / Down buttons to set the minute in the similar way.

Setting the portion of the current meal

• Press the Set button 8 and the Portion number will blink.
• Press the Up/ Down button to set the portion on the desired volume of the current meal to be dispensed.
• Press the Set button 8 to repeat the process above for the 2nd to 4th meal if needed.

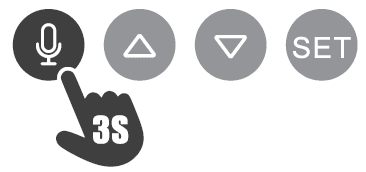

Recording a Meal Call

• Press and hold the Record button Otar 3s until a beep is heard.
• Record your voice for less than 1 Os, press the Record button O again to save. 2 beeps will be heard indicating it’s saved. You can press the Record button to check the voice you just recorded.
• Repeat the process to change your recordings every time.

Note:

1. Only press and play the recording if there’s any.
2. When feeding time is up, the recording will be played after food is dispersed.

Manually Feeding Your Pet

• Press the up and down button at the same time when the screen is unlocked and one portion will be fed each time.

Note:

1. The normal schedule and portion will not be affected.

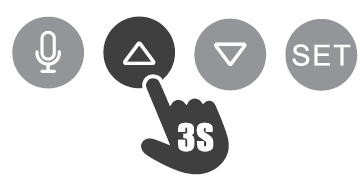

Reset All Settings

• Press and hold the Up button O for 1 Os when screen off to reset all settings(time, meals per day and time & portion of meals).

Note:

1. The voice record can’t be reset and repeat the process of Recording a Meal Call to change your recordings every time.

Troubleshooting

Specifications

Warranty

We provide a 1-year warranty for this appliance. Please email our support team atftvservice365@gmail.com if you have any questions, and attach your order ID in your email. We’ll get back to you as quick as possible.
