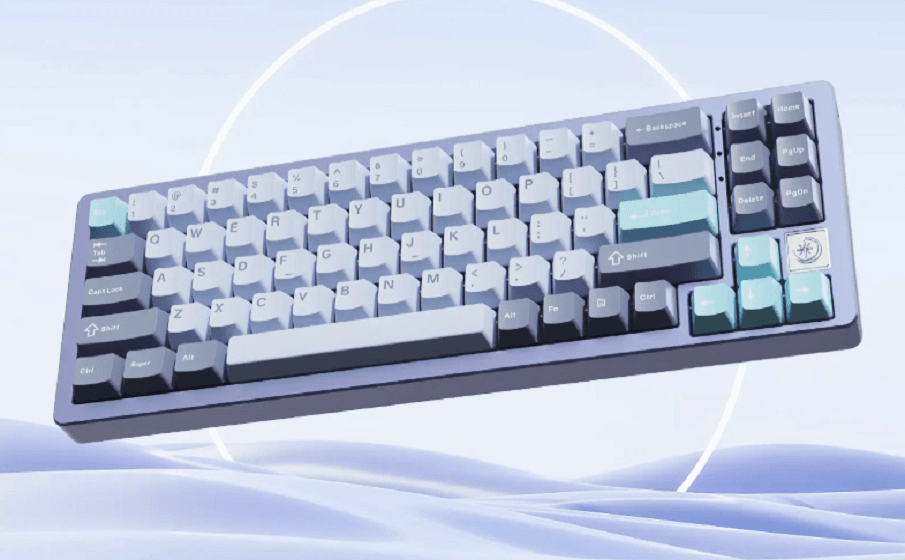

YUNZII AL71 Full Aluminum Mechanical Keyboard
Tri-Mode Wireless CNC Aluminum Customized Mechanical Keyboard
Content List:
- AL71 Aluminum Keyboard x1
- USB Cable for TYPE-C x1
- Keycap and Switch Puller x1
- Warranty Manual x1
- 2.4G Wireless Receiver x1

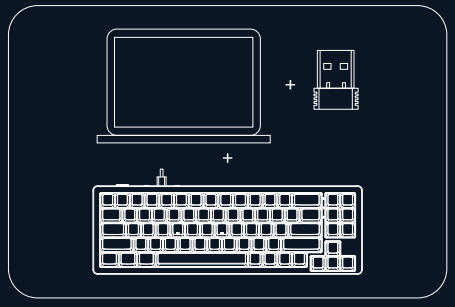

2.4G Wireless Receiver Connection:
- Switch the mode button to 2.4G Mode. Then long press FN+R=2.4G, and the indicator light blinks blue Plug the 2.4G receiver into the computer USB port, then it will pair and install the compatible program automatically. The indicator light will stay on when paired successfully.
Quick Start Guide:

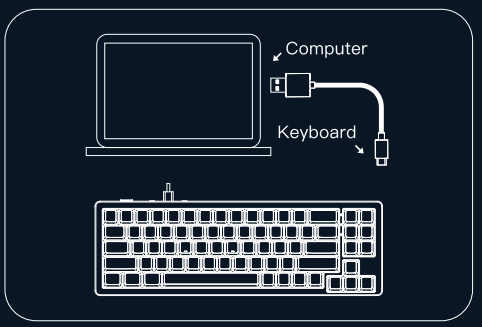

USB Cable Connection:
- Switch the mode button to the middle Wired Mode. When the cable is plugged in. The keyboard will connect with the computer automatically, then it is ready for usage
- Switch the mode button to the middle Wired Mode. When the cable is plugged in. The keyboard will connect with the computer automatically, then it is ready for usage.

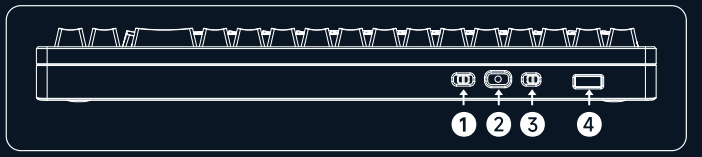

YUNZII AL71 Keyboard On-Off Manual
- Tri-Mode Switch Between Bluetooth,
- Switch for MacOS and Windows Mode
- TYPE-C Port
- 2.4G Receiver Port
Charging:
- Charge the keyboard by connecting the original charging cable to the computer USB port, or using a DC-5V charger. Note the direction of the TYPE-C cable and insert it carefully. The RGB will light red when charged and will go off when fully charged.
- Compatible System:
- The AL71 keyboard supports Windows2000, WindowsXP, Vista Win7, Win8, Win10, Win11, MacOS and mobile phone systems.
Quick Start Guide of FN key combination:
- Double-press the FN Key, change the 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, -, =, to <F1-F12>.

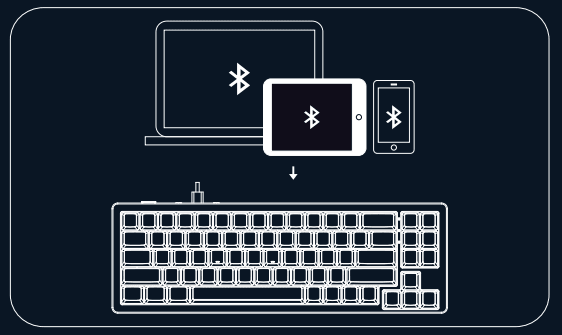

Bluetooth Connection:
- Switch the mode button to Bluetooth Mode. Then long press
- FN+Q=BT1 and the indicator light blinks green. Press
- FN+W=BT2 and the indicator light blinks pink. Press
- FN+E=BT3 and the indicator light blinks yellow.

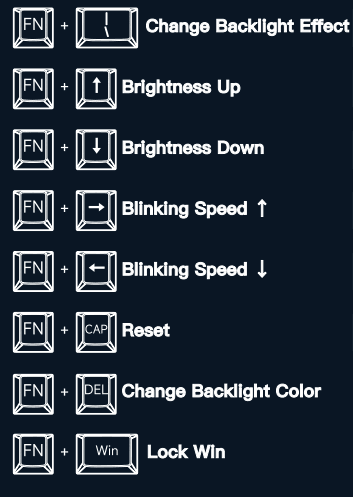

Quick Start Guide of RGB Settings:
For more manuals by YUNZII visit, ManualsLibraryy
YUNZII AL71 Full Aluminum Mechanical Keyboard-FAQs
How can I check the battery level on my YUNZII AL71 keyboard?
Press Fn + Space to check the battery level at any time. The keyboard supports both 2.4G wireless and wired connections.
Is the YUNZII AL71 compatible with VIA software?
Yes, the AL71 TKL keyboard is compatible with VIA and works seamlessly with Windows, macOS, iOS, Android, and iPadOS devices.
What’s the difference between the Crystal White and Silent switches?
1. Crystal White: A linear switch offering a smooth and consistent typing feel.
2. Silent Switch: Also linear, but designed to produce minimal noise and requires less force to press.
What does “75% keyboard” mean?
A 75% keyboard is a compact layout that includes essential keys like the function row, arrow keys, and navigation cluster, typically featuring 81–84 keys. It’s perfect for users who want to save space without sacrificing key functionality.
How do I know when the keyboard is fully charged?
The charging light turns off when the keyboard is fully charged.
Tip: The keyboard enters sleep mode after 10 minutes of inactivity. Press any key to wake it—this might take a few seconds.
How long does the battery last?
Battery life varies depending on usage, backlight settings, and connection type. On average, it can last from several weeks to a few months on a single charge.
How do I turn off the keyboard’s LED lights?
Press Fn + Backspace to turn all LEDs off.
For Mac users:
1. Fn + 4 opens Launchpad (Mac mode only).
2. Fn + Page Up increases status light brightness (wireless mode only).
What does keyboard compatibility mean?
In general terms, keyboard compatibility means a keyboard can be used to navigate a device or interface without needing a mouse. In this case, the YUNZII AL71 is compatible with major operating systems like Windows, macOS, Android, and iOS.
