Amazon Basics AB-258NA Belgian Waffle Maker User Manual

Amazon Basics AB-258NA Belgian Waffle Maker

1. IMPORTANT SAFEGUARDS

Read these instructions carefully and retain them for future use. If this appliance is passed to a third party, then these instructions must be included. When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse the cord, plugs, or the appliance in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn the control knob to “off”, then remove the plug from the wall outlet.
• Do not use the appliance for anything other than its intended use.
• Do not immerse in water.
• Do not operate the appliance with the lid open.
• Do not stand or lean over the appliance when opening it. Hot steam may be released.
• Always place the appliance on a level, heat-resistant surface.
• Use a trivet to prevent heat from damaging any solid surface countertops.
• The appliance is intended for household use.

1.1 Instructions for Polarized Plug

Risk of injury! Any other servicing than mentioned in this manual should be performed by an authorized service representative.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.
• A short supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
• Extension cords are available and may be used if care is exercised in their use.

If an extension cord is used:

• The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
• The cord should be arranged so that it will not drape over the countertop or tabletop, where it can be pulled on by children or tripped over unintentionally.
• If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

1.2 Additional Safety Instructions for Canada

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or the lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices, and other working environments;
• farm houses;
• by clients in hotels, motels, and other residential-type environments;
• bed and breakfast type environments.

2. Intended Use

• This appliance is intended for making and reheating waffles.
• This appliance is intended for household use only.
• This appliance is intended to be used in dry indoor areas only.

3. Before First Use

Danger: Risk of suffocation! Keep any packaging materials away from children and pets. These materials are a potential source of danger, e.g., suffocation.

• Remove all packing materials.
• Remove and review all components before use.
• Check the appliance for transport damage.
• Clean the appliance before first use.
• Before connecting the appliance to the power supply, check that the power supply voltage and current rating correspond with the power supply details shown on the appliance rating label.
• The appliance may emit a slight smell or smoke when it is first used. This is entirely safe and harmless. Ensure there is adequate ventilation in the room.
• Place the appliance on a level, heat-resistant surface.

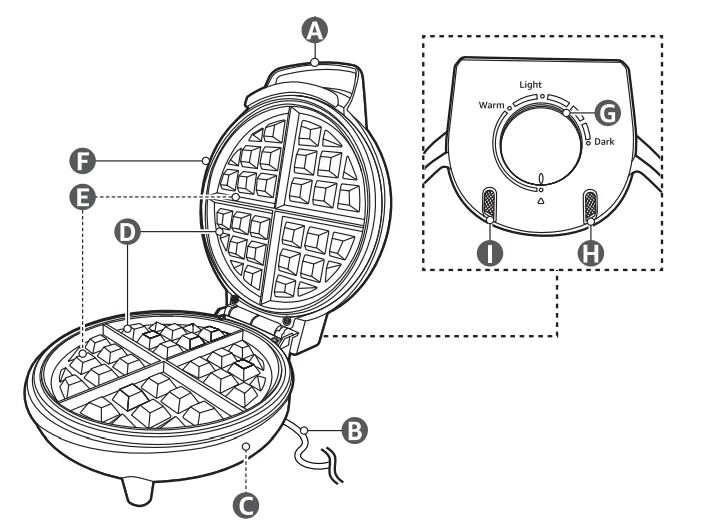

4. Appliance Description

• Handle
• Supply cord with plug
• Cord storage
• Cooking surfaces
• Heating elements
• Lid
• Control knob
• Ready indicator (green color)
• Power indicator (red color)

5. Control Knob Description

6. Operation

CAUTION: Risk of burns! The appliance becomes hot during operation and may release steam. Use heat-resistant gloves when opening or closing the lid (F).

6.1 Making Waffles

NOTICE

• Always preheat the appliance. Wait for the ready indicator (H) to light up before adding waffle batter.
• Do not overfill the bottom cooking surface (D) to prevent waffle batter from overflowing.
• Make a test batch to determine the appropriate amount of waffle batter to use. It is recommended to use approx. 1/2 cup (118 ml) per waffle. Adjust the amount of waffle batter as needed for subsequent batches.
• It is normal for the ready indicator (H) to light up and go off during cooking.

1. Connect the power plug (B) to a suitable outlet. The power indicator (I) lights up.
2. Lift the handle (A) to open the lid (F) (Fig. 1).

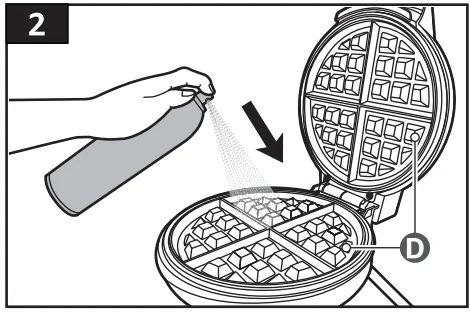

3. Lightly spray or apply cooking oil to the cooking surfaces (D) according to preference (Fig. 2). Add oil to the cooking surfaces (D) in between cooking if necessary.
4. Lower the handle (A) to close the lid (F).
5. Rotate the control knob (G) to the desired shade level. The appliance starts preheating.
6. When the appliance is preheated (approx. 3–5 minutes on DARK), the ready indicator (H) lights up.
7. Open the lid (F) (Fig. 1).

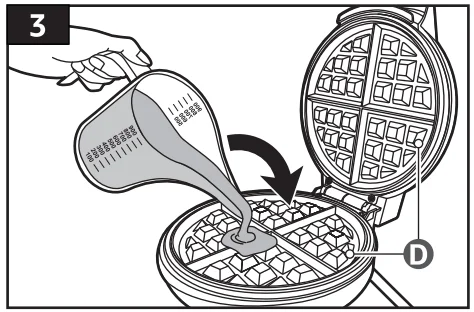

8. Pour approx. 1/2 cup (118 ml) of waffle batter into the center of the bottom cooking surface (D) (Fig. 3). Make sure to fill all crevices.
9. Close the lid (F).
10. Cooking time may vary from 3 to 6 minutes. Let the waffle cook for at least 3 minutes before opening to check. If it is not thoroughly cooked, close the lid (F) again to continue cooking.
11. Cook the waffle until it is done to your preference.
12. When the waffle is done, open the lid (F). Use wooden or silicone utensils to remove the waffle.
13. Place the waffle on a wire rack to cool down.
14. To continue making more waffles, repeat steps 5 to 10.
15. After use, rotate the control knob (G) to the arrow marked on the appliance. Disconnect the appliance from the outlet. Let it cool down before cleaning.

6.2 Reheating Waffles

1. Connect the power plug (B) to a suitable outlet. The power indicator (I) lights up.
2. Rotate the control knob (G) to WARM. The appliance starts preheating.
3.  When the appliance is preheated (approx. 2 minutes), the ready indicator (H) lights up.
4. Lift the handle (A) to open the lid (F) (Fig. 1).
5. Place a waffle onto the bottom cooking surface (D).
6. Lower the handle (A) to close the lid (F).
7. Reheating time may vary from 3 to 6 minutes. Let the waffle reheat for at least 2 minutes before opening to check. If it is not hot enough, close the lid (F) again to continue reheating.
8. When the waffle is thoroughly reheated, open the lid (F). Use wooden or silicone utensils to remove the waffle.
9. Place the waffle on a wire rack to cool down.
10. To continue reheating more waffles, repeat steps 4 to 10.
11. After use, rotate the control knob (G) to the arrow marked on the appliance. Disconnect the appliance from the outlet. Let it fully cool down before cleaning.

12. Tips

• Mix waffle batter to a slightly lumpy consistency. Do not overmix to avoid waffles becoming tough.
• Use room temperature ingredients for best results.
• Add a small amount of water or milk to refrigerated waffle batter to thin it out. Cold waffle batter may take a longer time to thoroughly cook to completion.
• Close the lid (F) immediately after removing a waffle to maintain a consistent temperature for subsequent batches.
  Freeze leftover waffles for a convenient meal. Separate each waffle with wax paper and place them in an airtight container. Store in the freezer for up to 4 months for the best flavor.
• For an indulgent treat, serve waffles with ice cream, sprinkles, fruit, or any preferred toppings.

9. Cleaning, Storage, and Maintenance

WARNING: Risk of electric shock!

• To prevent electric shock, unplug the appliance before cleaning.
• During cleaning, do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.

CAUTION: Risk of burns! Let the appliance cool down completely before cleaning or storing.

9.1 Cleaning

9.1.1 General Cleaning

• Clean the appliance after each use.
• To clean the exterior of the appliance, wipe with a soft, slightly damp cloth.
• Wipe the appliance dry after cleaning.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal, or sharp utensils to clean the appliance.

9.1.2 Cleaning the Cooking Surfaces

1. Remove any crumbs from the cooking surfaces (D).
2. Absorb excess oil using a dry paper towel.
3. Wipe the cooking surfaces (D) with a soft, slightly damp cloth and a small amount of mild dish soap.
4. Wipe away any soap residue with a clean, slightly damp cloth.
5. Let the cooking surfaces (D) dry completely before the next use.

9.2 Storage

• Store the appliance in a dry area. Keep away from children and pets.

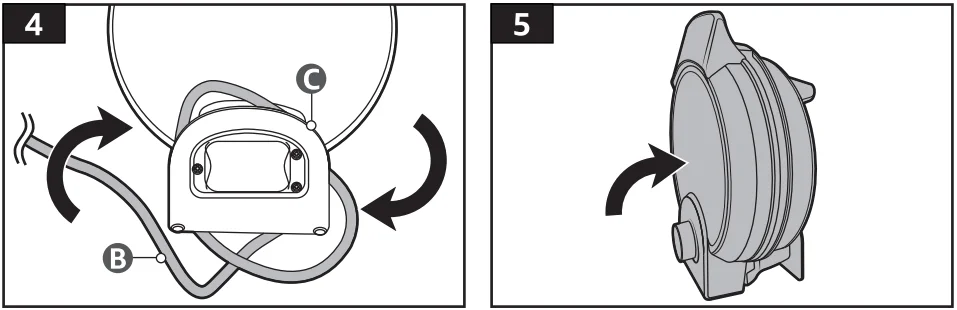

• Store the supply cord (B) by wrapping it loosely around the cord storage (C) (Fig. 4).
• Store the appliance vertically to maximize countertop space (Fig. 5).

9.3 Maintenance

WARNING: Risk of injury! Any other servicing than mentioned in this manual should be performed by an authorized service representative. This appliance contains no user-serviceable parts. Do not attempt to disassemble the appliance.

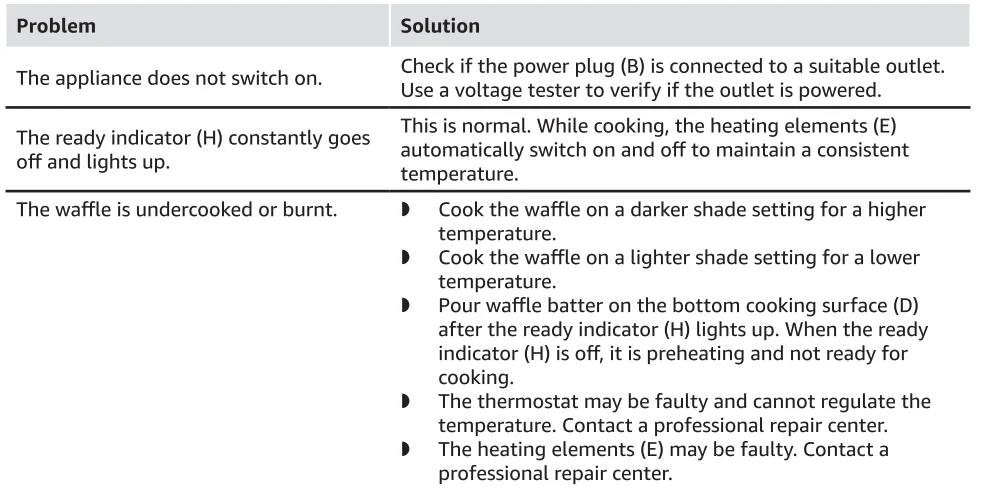

10. Frequently Asked Questions

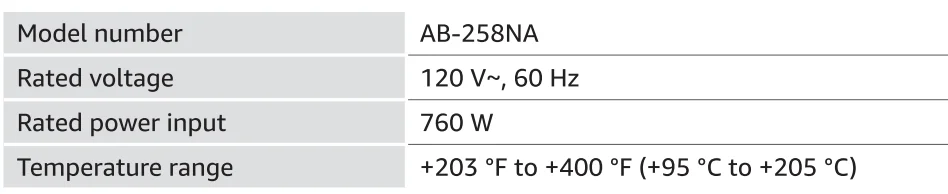

11. Specifications

12. Feedback and Help

We would love to hear your feedback. Please consider leaving a rating and review through your purchase orders. If you need help with your product, log in to your account and navigate to the customer service / contact us page.
