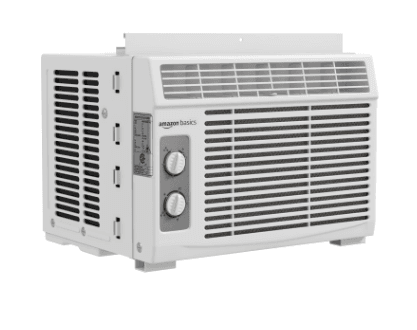

Amazon Basics B07Y2CND3Q Window-Mounted Air Conditioner
Product Description

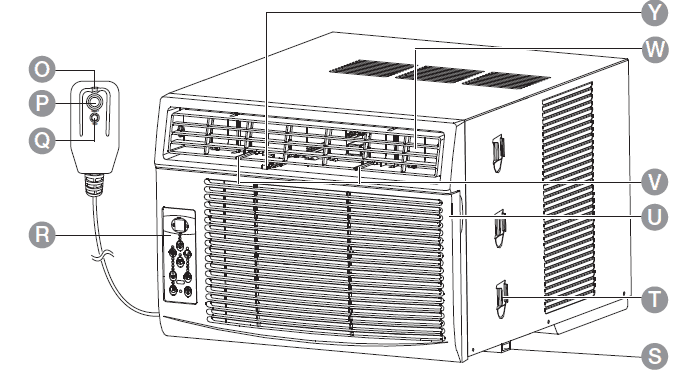

Main unit
- O Power plug with indicator
- P RESET button
- Q TEST button
- R Control panel
- S Bottom rail
- T Shutter locks
- U Front grill
- V Air vent control lever (for B07Y2C57KD and B07Y2B3ZXV only)
- W Air vents
- Y Fresh air vent control
Controls

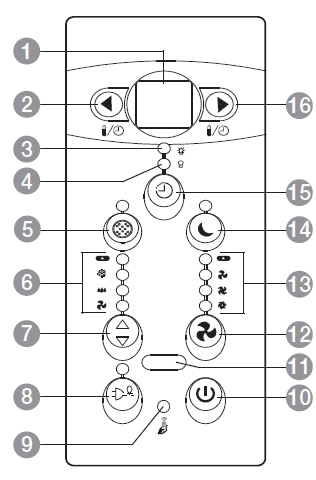

Control panel

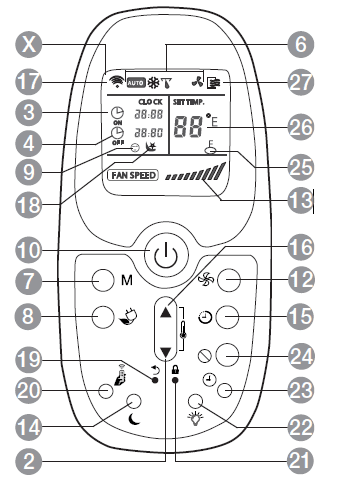

Remote control
- Main unit display
- Decrease button
- Timer on indicator
- Timer off indicator
- Clean filter button
- Mode indicator
- Mode button
- Energy Saver button
- Follow me indicator
- On/off button
- Remote control receiver
- Fan button
- Fan speed indicator
- Sleep button
- Timer button
- Increase button
- Relay signal indicator
- Sleep indicator
- Reset button
- Follow me button
- Lock button
- LED button
- Clock button
- Cancel button
- Child lock indicator
- Temperature indicator
- Power on indicator
- X Display

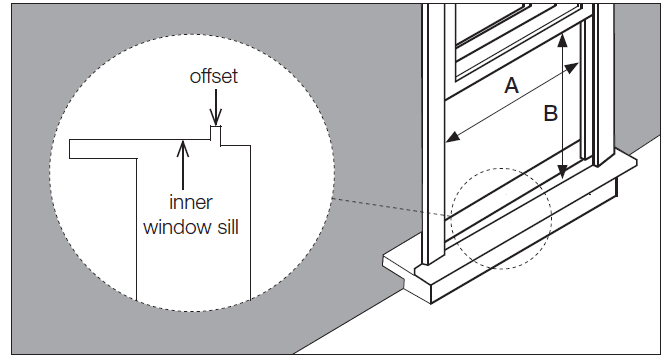

Window Requirements
Wooden window
Vinyl-clad window
Installation
- The product should be installed by 2 skilled persons.
- Ensure the product is installed securely and firmly to avoid vibration and noise.
- The window should be able to withstand the weight of the product.
- Install the product where the sunlight does not directly shine on it. If the product receives direct sunlight, build an awning to shade it.
- The rear part of the product must be installed outdoors, not inside a building, garage, or another room.
- There should be no obstacles, such as a fence or wall, within 20″ (50 cm) from the back of the product and the side louvers. Obstacles might limit the heat radiation, which greatly reduces the cooling efficiency of the product.
- Install the product with its bottom portion approx. 30-60″ (75-150 cm) above the floor level.
- Install the product within reach of the wall outlet.
Step 1

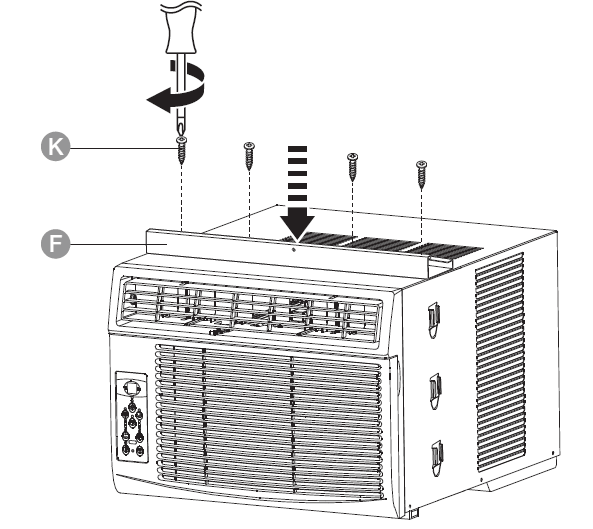

- Attach the top rail (F) with 4 screws (K) by following the pre-drilled holes on the unit.
Step 2

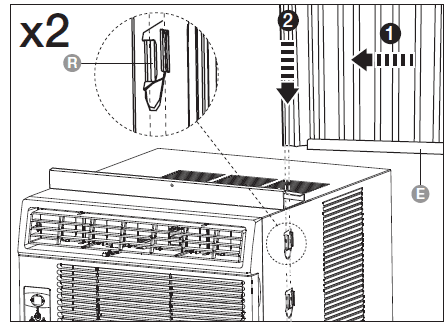

- Slide the rail of the right accordion shutter (E) out of the frame.
- Slide the rail into the shutter locks (T) of the main unit.
- Repeat on the other side with the left accordion shutter (D).

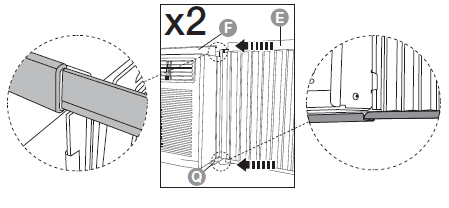

Step 3
- Slide the top and bottom rails of the right accordion shutter (E) into the top rail’s (F) channel and the bottom rail (S).
- Repeat on the other side with the left accordion shutter (D).

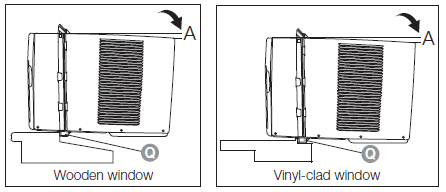

Step 4
- Place the product on the window sill. The bottom rail (S) needs to be placed against the window sill’s offset.
Step 5

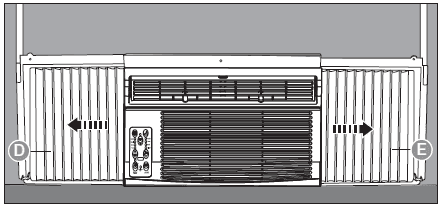

- Fully extend the accordion shutters (E) and (D) so they fit the window frame.
Not shown: Use the strips of the weather stripping (C) to close any leaking points. Cut them to the required size and remove the wax paper. To improve insulation, stick them in appropriate areas.

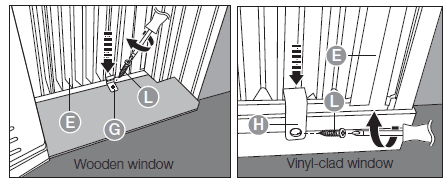

- Wooden windows: Secure the accordion shutters (E) and (D) with the brackets (G) and the screws (L).
- Vinyl-clad windows: Secure the accordion shutters (E) and (D) with the brackets (H) and the screws (L).
Step 7

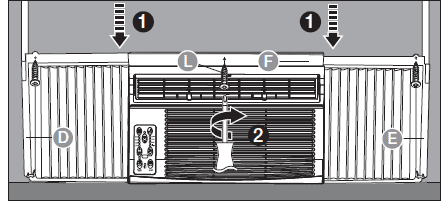

- Close the window sash, so it rests on the top rail (F) and the accordion shutters (E) and (D).
- Attach the accordion shutters (E) and (D) and the top rail (F) guided by the pre-drilled holes to the window sash using 3 screws (L).
Step 8

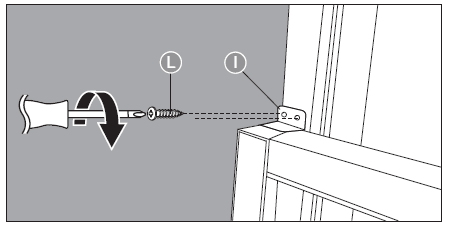

- Secure the position of the lower window sash using the bracket (I) and 2 screws (L).

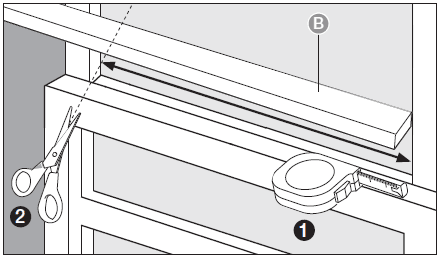

Step 9
- Measure the width of the window sash.
- Cut the sash seal (B) so it fits the space between the lower and upper window sash.
Step 10

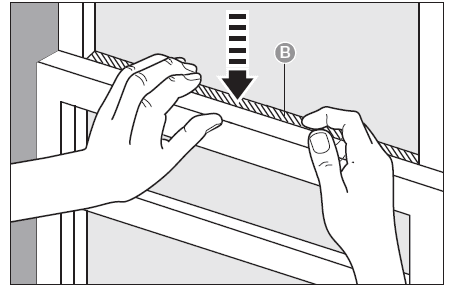

- Place the sash seal (B) between the lower and upper window sash.
Step 11

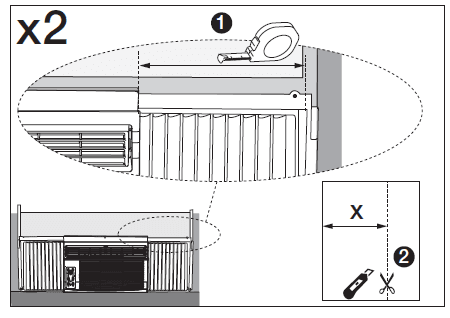

- Measure the widths between the isolation board intakes of the accordion shutters (E) and (D).
- Cut the isolation boards (N) according to the measured widths.
Step 12
- Slide the isolation boards (N) into the ledge of the accordion shutters (E) and (D).
Installing/replacing the batteries
NOTICE The batteries are not provided. Use 2 x 1.5 V type AAA/LR03 batteries.
Switching on/off
To switch on/off the product, press the on/off button (10) either on the remote control or on the control panel.

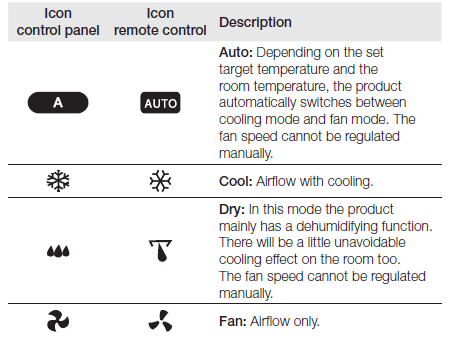

Mode control
To set the mode, press the mode button (7). The active mode is indicated by the mode indicator (6).
Fan control
To set the fan mode, press the fan button (12). The fan speed is indicated by the fan speed indicator (13).
Temperature control
NOTICE The temperature control does not work in fan mode.
Set the target temperature with the decrease (2) and increase (16) buttons. The set temperature is shown on the display of the control panel and the remote control.
Timer control
You can set the timer (0.5 to 24 hours) after which period the product automatically switches on or off.
Set timer
- Press the timer button (15) to initialize the timer setting.
- Press the timer button (15) several times to toggle between the on-timer and the off-timer. The chosen function is indicated by the timer indicators (3 and/or 4).
- Set the timer with the decrease (2) and increase (16) buttons. The set time is shown on the display of the control panel and the remote control.
- Wait 5 seconds. The timer is now set and starts to run. The timer indicator (3 and/or 4) lights up if a timer is running.
Cancel timer
- To reset the timers, press the cancel button (24) or press and hold the timer button (15) for 3 seconds.
- This deletes the timer setting.
- If the ON timer is being canceled, the product switches off.
- If the OFF timer is being canceled, the product switches on.
- Alternatively, you can set the concerned timer to 0.0 h.
Sleep function
NOTICE The sleep function works only when the product is set to cooling or auto mode.
- The sleep function increases the target temperature by 2 °F (1 °C) 30 minutes after activation.
- After another 30 minutes, the target temperature is increased by another 2 °F (1 °C).
- The product maintains the temperature for the following 6 hours. Afterwards, the product returns to the originally selected temperature.
- Press the sleep button (14) to activate the sleep function. The activated sleep function is indicated with a light above the sleep button (14) and with an on the remote control display (X).
Clean filter reminder
The product measures the total working time. After 250 hours of operation, the indicator above the clean filter button (5) lights up.
- Clean the removable air filter (see Cleaning and Maintenance).
- Press the clean filter button (5) to reset the counter.

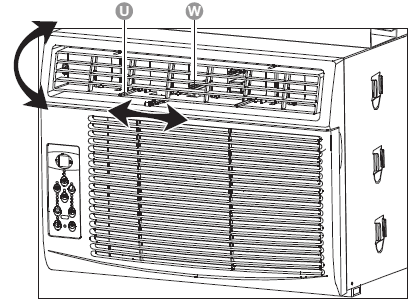

Airflow direction control
- To adjust the airflow direction, move the air vent control lever (U) left or right and the air vent (W) up or down.

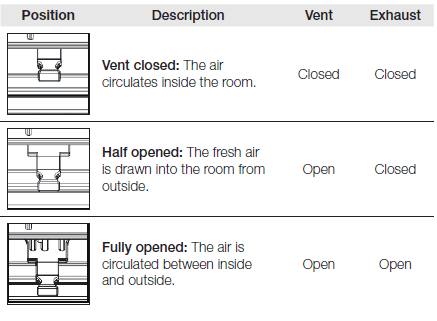

Fresh air vent control (only for B07Y2C57KD and B07Y2B3ZXV)
- Change the position of the fresh air vent control (V) to choose one of the below air circulation modes.

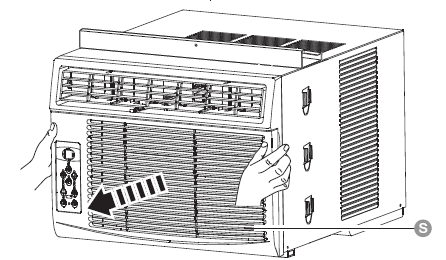

Cleaning the removable air filter
- Open the front grill (U) and remove the filter.
- Pull out the -filter on the right side.
- Rinse the filter thoroughly in warm water with mild detergent.
- Gently shake off the excess water from the filter and air-dry it.
- Put the filter back in the main unit and close the front grill (U).
Troubleshooting
| Problem | Solution |
|
The product does not switch on. | •Check if the power plug is connected to the power outlet. Check if the power outlet works. • Plug’s Leakage Current Detection and Interruption device tripped. Press the RESET button (P). • The circuit breaker of the electrical installation tripped. Flip the suspect breaker to the “on” position. |
|
The product does not cool efficiently. | • Clean the removable air filter. •Check the air vents for obstructions. • Adjust the airflow direction. • Ensure the doors and windows are closed. • The compressor has shut off due to a changed operating mode. After switching off the product, wait at least 3 minutes before switching it on again. |
|
Ice forms on the product. | • Clean the removable air filter. • Set to the fan mode to remove the ice. Decrease the set temperature to stop ice from forming. |
| The product is noisy and vibrates abnormally. | • Incorrect installation. Refer to installation instructions. • Clean the removable air filter. |
| Problem | Solution |
| The product turns on and off rapidly. | • Outside temperature is extremely hot. Set fan speed to a higher setting. • Clean the removable air filter. |
| Water drips inside when the product is on. | • Incorrect installation. Refer to installation instructions. |
| Water drips outside when the product is on. | • This is normal during excessively humid days. The product removes a large quantity of moisture from the humid room. |
| The product does not respond to the remote control. | • Operate the remote control within 26 ft (8 m) from the product. • Point the remote control directly towards the product when operating. |
| The main unit display shows an error code. | • Unplug the product from the power supply, and then connect it again. • Refer to the table below for the details of the code. |
Specifications
| B07Y2CND3Q | B07Y2C57KD | |
| Model number: | 22020310002997 | 22020310003018 |
| Voltage/frequency: | 115 V~, 60 Hz | 115 V~, 60 Hz |
| Rated input: | 490 W (max. 700 W) | 925 W (max. 983.6 W) |
| Rated current: | 4.5 A (max. 6.5 A) | 8.03 A (max. 9.68 A) |
| Standby power: | 0.9 W | 1 W |
| Fuse: | 15 A | 15 A |
| Cooling capacity: | 250 ft2 (23.2 m2), 6000 BTU/h | 450 ft2 (52 m2), 10000 BTU/h |
| Design pressure: | 300/520 PSI (20.7/35.9 bar) | 300/520 PSI (20.7/35.9 bar) |
| Indoor side air flow (Hi/Mi/Lo): | 189/145/132 ft3/min (287/247/224 m3/h) | 300/266/240 ft3/min (510/452/408 m3/h) |
| Indoor side noise level (Hi/Mi/Lo): | 56/53/52 dB(A) | 61/58/56 dB(A) |
| Operating temperature indoor: | 62-90 °F (17-32 °C) | 62-90 °F (17-32 °C) |
| Operating temperature outdoor: | 64-109 °F (18-43 °C) | 64-109 °F (18-43 °C) |
| Dimensions (W x H x D): | approx. 18.5 x 13.4 x 15.7″ (47.1 x 34 x 40 cm) | approx. 19 x 14.7 x 21.5″ (48.2 x 37.2 x 54.5 cm) |
| Net weight: | approx. 41.9 lbs (19 kg) | approx. 57.3 lbs (26 kg) |
| Refrigerant type + Quantity: | R32, 7.8 oz (220 g) | R32, 12.35 oz (350 g) |
| Remote control range: | 26 ft (8 m) | 26 ft (8 m) |
| Battery type: | 2 x 1.5 V, type AAA/ LR03 | 2 x 1.5 V, type AAA/ LR03 |
| B07Y2B3ZXV | B07N6LPL7V | |
| Model number: | 22020310003057 | 22020310003018 |
| Voltage/frequency: | 115 V~, 60 Hz | 115 V~, 60 Hz |
| Rated input: | 1000 W (max. 1207 W) | 667 W (max. 865 W) |
| Rated current: | 9.72 A (max. 11.99 A) | 5.9 A (max. 8.4 A) |
| Standby power: | 1 W | 0.9 W |
| Fuse: | 15 A | 10 A |
| Cooling capacity: | 550 ft2 (42 m2), 12000 BTU/h | 118-172 ft2 (11-16 m2), 8000 BTU/h |
| Design pressure: | 300/520 PSI (20.7/35.9 bar) | 300/520 PSI (20.7/35.9 bar) |
| Indoor side air flow (Hi/Mi/Lo): | 300/270/244 ft3/min (510/459/415 m3/h) | 196/165/148 ft3/min (333.2/280.5/251.6 m3/h) |
| Indoor side noise level (Hi/Mi/Lo): | 60.5/59.3/57.5 dB(A) | 57.7/55/53.3 dB(A) |
| Operating temperature indoor: | 62-90 °F (17-32 °C) | 62-90 °F (17-32 °C) |
| Operating temperature outdoor: | 64-109 °F (18-43 °C) | 64-109 °F (18-43 °C) |
| Dimensions (W x H x D): | approx. 19 x 14.7 x 21.5″ (48.2 x 37.2 x 54.5 cm) | approx. 18.5 x 13.4 x 15.7″ (47.1 x 34 x 40 cm) |
| Net weight: | approx. 67.7 lbs (30.7 kg) | approx. 47 lbs (21.3 kg) |
| Refrigerant type + Quantity: | R32, 10.58 oz (320 g) | R32, 10.58 oz (300 g) |
| Remote control range: | 26 ft (8 m) | 26 ft (8 m) |
| Battery type: | 2 x 1.5 V, type AAA/ LR03 | 2 x 1.5 V, type AAA/ LR03 |
For more manuals by Amazon Basics visit, ManualsLibraryy
Amazon Basics B07Y2CND3Q Window-Mounted Air Conditioner-FAQs
How does a window-mounted air conditioner work?
Window AC units cool indoor air by pulling in hot air from outside, cooling it using a refrigerant, and circulating the cooled air back into the room while expelling the hot air outside.
What happens if my window AC is tilted too much?
Excessive tilting can cause the unit to vibrate or move, potentially damaging the compressor and other components, leading to costly repairs.
What is the best temperature setting for a window AC?
For energy efficiency and comfort, set the temperature to 78°F when you’re home, 82°F while sleeping, and 85°F when you’re away.
How long should I wait to turn on a window AC after installation?
Allow the AC to settle for at least 30 minutes after installation. In some cases, it may take up to 24 hours for the refrigerant to stabilize fully.
Can I install a window AC sideways?
No, installing the unit sideways can damage the compressor, leading to permanent failure of the unit.
What happens if the window AC is not level?
An unlevel AC can vibrate excessively, create noise, and strain components, leading to faster wear and potential repairs.
What are the risks of overloading an AC?
Overcharging the system with refrigerant can strain the equipment, reduce efficiency, and shorten the lifespan of the unit.
Does a window AC need ventilation?
Yes, window AC units have side vents to cool the condenser coil and rear vents to exhaust hot air. Proper ventilation is essential to prevent overheating.
Where should I avoid installing a window AC?
Avoid installing near trees or dirty areas where leaves and debris can clog the unit.
Is it safe to use a window AC in a closed room?
Keep interior doors open to promote airflow and improve cooling efficiency throughout the home.
What is the ideal temperature for AC at night?
The National Sleep Foundation recommends setting the AC between 60°F and 67°F for optimal sleep conditions. For infants, aim for 67°F to 69°F.
