Amazon Basics EK3211 Digital Kitchen Scale User Manual

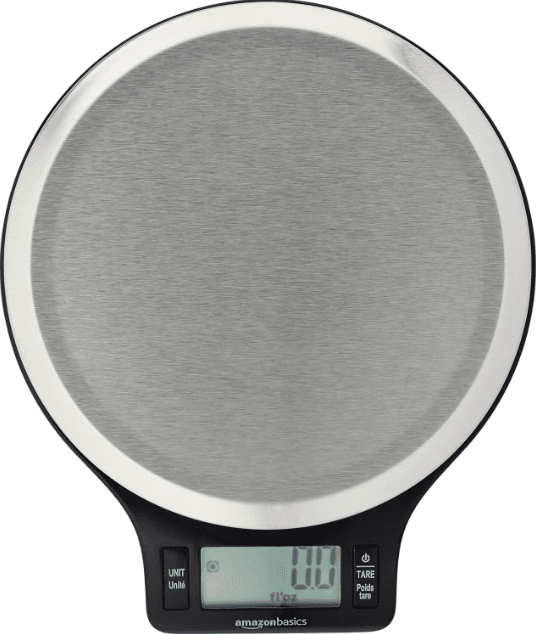

Amazon Basics EK3211 Digital Kitchen Scale

Before First Use

• Check the product for transport damage.

DANGERS: Risk of suffocation! Keep any packaging materials away from children – these materials are a potential source of danger, e.g., suffocation.

WARNING: Keep out of reach of children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Features

• Measures the volume of liquids
• Measures weight in two unit systems: g, lb, oz
• Measures volume in two unit systems: ml, fl’oz
• Low battery/overload indicator
• High-precision strain gauge sensor
• Tare function
• Auto off function

Battery Warnings

DANGER: Risk of explosion! Risk of explosion if the battery is replaced with an incorrect type.

• When used correctly, primary batteries provide a safe and dependable source of portable power. However, misuse or abuse may result in leakage, fire, or explosion.
• Always take care to install your batteries correctly, observing the”+” and”-” marks on the battery and the product. Batteries that are incorrectly placed into some equipment may be short-circuited or charged. This can result in a rapid temperature rise, causing venting, leakage, explosion, and personal injury.
• Always replace the whole set of batteries at one time, taking care not to mix old and new ones or batteries of different types. When batteries of different brand or types are used together, or new and old batteries are used together, some batteries may be overdischarged due to a difference in voltage or capacity. This can result in venting, leakage, and explosion, and may cause personal injury.
• Keep batteries out of the reach of children, especially small batteries that could be easily ingested.
• Immediately seek medical attention if a cell or battery has been swallowed. Also, contact your local poison control center.
• Store unused batteries in their original packaging and away from metal objects. Unpacked batteries could get jumbled or mixed with metal objects. This can cause battery short-circuiting, which may result in venting, leakage, and explosion, and personal injury; one of the best ways to avoid this from happening is to store unused batteries in their original packaging.
• Never dispose of batteries in a fire. When batteries are disposed of in a fire, the heat build-up may cause an explosion and personal injury. Do not incinerate batteries except for approved disposal in a controlled incinerator.
• Never attempt to recharge primary batteries. Attempting to charge a non-rechargeable (primary) battery may cause internal gas or heat generation, resulting in venting, leakage, explosion, and personal injury.
• Never short-circuit batteries, as this may lead to high temperatures, leakage, or explosion. When the positive(+) and negative(-) terminals of a battery are in electrical contact with each other, the battery becomes short-circuited. This may result in venting, leakage, explosion, and personal injury.
• In the event that the electrolyte comes into contact with the skin or eyes, immediately flush with fresh water for at least 15 minutes and seek medical attention.
• Never heat batteries in order to revive them. When a battery is exposed to heat, venting, leakage, and explosion may occur and cause personal injury.
• Never attempt to disassemble, crush, puncture, or open batteries. Such abuse may result in venting, leakage, rupture and cause personal injury.

Instructions for Use

•  Always purchase the correct size and grade of battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity(+ and-).
• Remove batteries from equipment that is not to be used for an extended period.
• Remove used batteries promptly.

Operation

To install or replace batteries

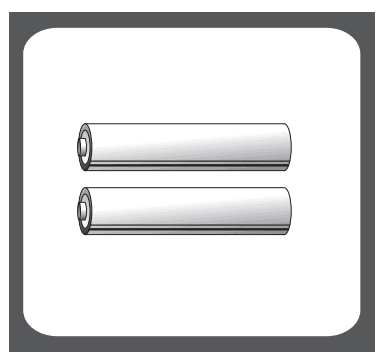

2x AAA batteries.

• For battery installation, clean battery contacts and also those of the equipment prior.
• Remove the battery compartment cover.
• Remove used batteries (if applicable).
• Insert new batteries by putting one side of the battery down first and then pressing down on the other side. Follow the polarity(+/-) marked on the battery compartment.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the appliance before being charged.
• If the appliance is to be stored unused for a long period, the batteries should be removed.
• The supply terminals are not to be short-circuited.
• Do not mix old batteries with new batteries.
• Always replace with new batteries.
• Do not mix alkaline, standard carbon-zinc, or rechargeable batteries.

WARNING: Batteries contain chemicals that may be harmful to the environment. Please abide by local
environmental laws and guidelines when disposing of used batteries.

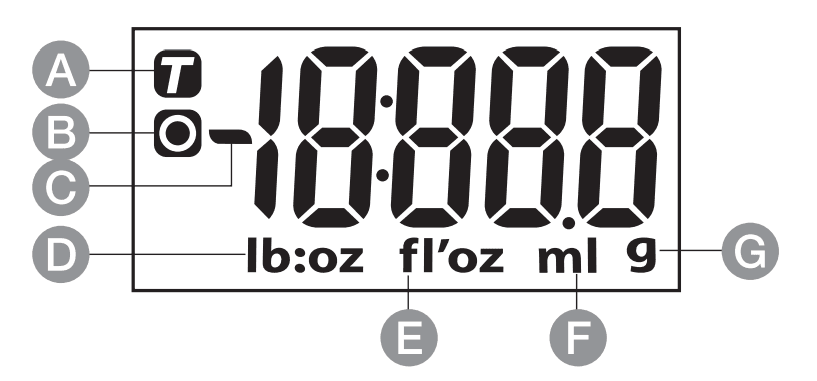

LCD

• A Tare Weight
• B Zero Weight
• C Negative Value
• D Weight unit (lb: oz)
• E Volume unit (fl’oz)
• F Volume unit (ml)
• G Weight unit (g)

lb: pound
oz: ounce
For example, if 1:1 is displayed, it means the weight of the object on the scale is 1 lb: 1 oz. (Note: 1 Ib = 16 oz)

Button Illustrations

• Unit and Mode Conversion
• Power Switch, Tare

Working Modes

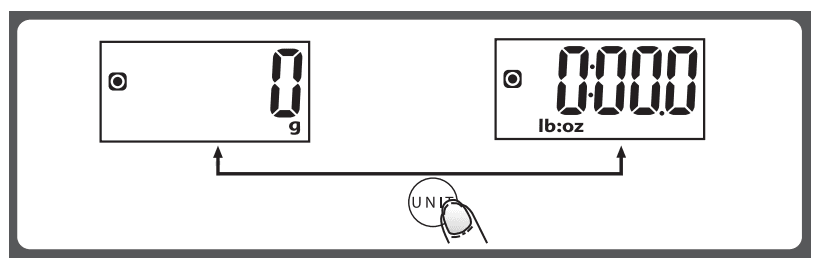

To Convert Weight Unit
Press to find the measurement system you want to use.

• When setting g as the weight unit, the default volume unit is ml.
• When setting lb: oz as the weight unit, the default volume unit is fl’oz.

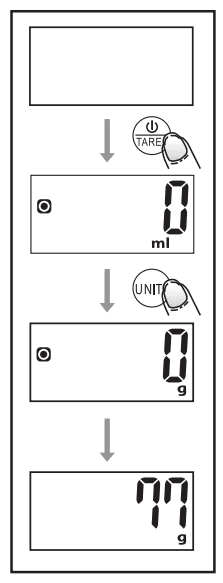

To Start Weighing

Weight mode

1. Place the scale on a flat, solid surface.
2. If using a container to hold ingredients, place it on top of the scale before turning it on.
3. Turn on the scale by pressing.
4. When the LCD screen shows “0” you can begin weighing your ingredients. If needed, pressto convert to weight mode.
5. Place the ingredients you want to weigh on the surface of the scale. The weight of ingredients will be shown on the display.

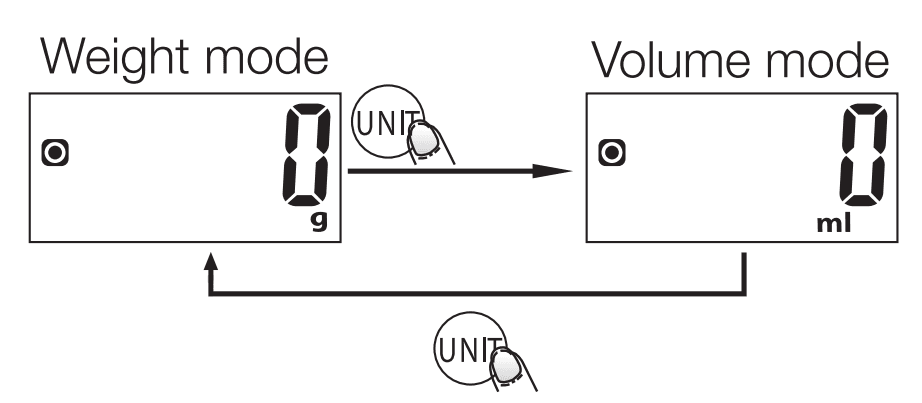

6. If weighing liquid, pressto select volume mode to view volume.

Volume mode

1. Place the scale on a flat, solid surface.
2. Pressto turn on the scale.
3. When the LCD screen shows “0”, pressto choose mode.
4. Place the container for the liquid on top of the scale.
5. Pressto reset the LCD screen to “0”.
6. Pour liquid into a container. The volume of liquid will be shown on the display.
7. To view the weight of the liquid, pressto select weight mode.

NOTICE: The volume of actual liquid may be different than what is displayed because the density of liquid is not always equivalent to 1g/cm3.

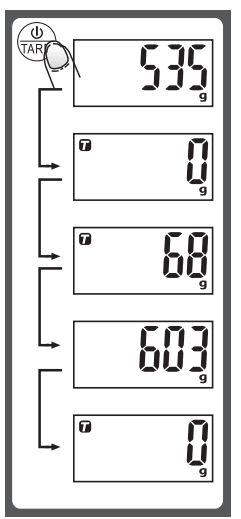

“Tare” function

The Tare function allows you to measure items as they are added to the scale to get the separate and total weight of items.

1. Place the first item(s) (> 4% of the scale’s maximum weight capacity) to weigh on the scale and get the weight.
2. Without removing item(s), pressto reset the LCD reading to “0”.
3. Add the next item (s). The display will show the weight of that item.
4. You can repeat this sequence until you are done weighing items.

When the total sum of the first item(s) on the scale > 4% of the scale’s maximum weight capacity, the Tare function is used. (4%=80 g when capacity is 2000 g; 200 g when capacity is 5000 g) The Tare function is active once the T icon appears on the upper left corner of the LCD screen.

Under this condition:

By pressing, you can see the total weight of all loads on the scale. If you want to weigh more loads, just pressto reset the LCD reading to ‘0’ again.

Auto shut off
Auto shut-off occurs if the display shows ‘0’ or shows the same weight reading for 2 minutes.

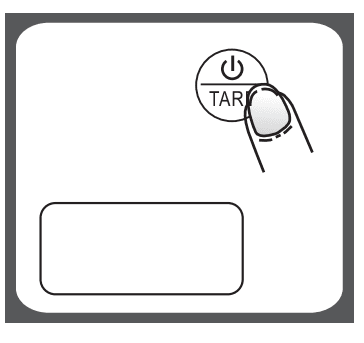

Manual shut off
To maximize battery life, pressand hold for 3 seconds to turn off the scale when you’re done using it.

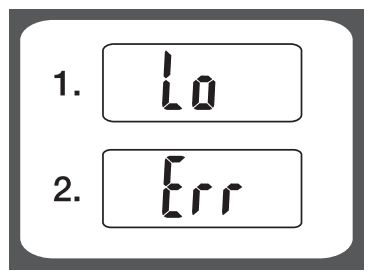

Warning indicators

1. Low batteries. Replace with new batteries.
2. Maximum weight capacity (11 lb, 5000 g) has been exceeded. Remove items to prevent damage to the scale.

Cleaning and Maintenance

• Clean the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical/abrasive cleaning agents.
• Scale should be cleaned immediately after contact with fats, spices, vinegar, and strongly flavored foods/colored foods. Avoid contact with acidic/citrus juices.
• Always use the scale on a hard, flat surface. DO NOT use on carpet.
• This scale is a high-precision device. DO NOT strike, shake, or drop the scale.
• Please keep it dry.
• Please check whether the battery is installed or at a high level if the scale can not be turned on.
• The scale is for family use only, not for commercial purposes.

Disposal (for Europe only)

The Waste Electronic and Electrical Equipment A (WEEE) laws aim to minimise the impact of
electrical and electronic goods on the environment and human health, by increasing reuse and recycling and by reducing the amount of WEEE going to landfill. The symbol on this product or its packaging signifies that this product must be disposed of separately from ordinary household wastes at its end of
life. Be aware that this is your responsibility to dispose of electronic equipment at recycling centres in order to conserve natural resources. Each country should have its collection centres for electrical and electronic equipment recycling. For information about your recycling drop-off area, please contact your related electrical and electronic equipment waste management authority, your local city office, or your household waste disposal service.
