Aqara Smart Natural Gas Detector
Product Introduction
The Smart Natural Gas Detector is a home-use combustible gas detector that warns of leakage of natural gas.
In case the concentration of natural gas (methane as its main component) is detected to reach the alarm setting value, the detector will immediately release a sound and light alarm signal and send a notice to the mobile phone app via the hub. You shall be on the alert and take immediate and effective measures to troubleshoot the danger, avoiding serious explosion accidents.
*An Aqara Zigbee 3.0 hub is required.
*To work with Apple HomeKit, a compatible Aqara hub is required. Please see www.aqara.com/support for more information.
Silence/Self-Test Button
- Reset: Press quickly three times
- Silence: Press once (in case of alarm)
- Self-Test: Press and hold for over 3 seconds
- Communication Distance Test: Press once
What’s In The Box
Quick Setup
Add Device
- Before activating the accessory, please make sure you have the Aqara Home app downloaded and an Aqara Zigbee 3.0 hub installed.
- Connect the device to power through the adapter. After connecting to the power supply, the device will warm up for 3 minutes. Please wait for 3 minutes, and the next step will be performed after the green indicator light is always on.
- Please open the app, tap “Home”, and then tap “+” in the top right corner to enter the “Add Device (Accessory)” page. Select “Smart Natural Gas Detector” and add it according to instructions in the Aqara Home app.
- Please see www.aqara.com/support for additional information.
*If adding fails, please move the product closer to the hub and try again.
*For the description of the preheat function, please see the description of the preheat function.
Installation and Usage
Please confirm that communication between the Smart Natural Gas Detector and the Aqara Zigbee 3.0 hub works normally, and then install and fix it in position.
Installation Instructions
- The detector should be installed indoors and located in the same room as the stove or gas source.
- The detector should be installed within a horizontal distance of more than 1 meter and less than 4 meters from the stove, and the height should be more than 0.5 meters above the stove for wall mount installation, with the distance from the ceiling less than 0.3 meters.
- The detector should not be installed directly above the stove or in any position that can be directly affected by the exhaust, steam, and cooking fumes from the stove.
- The detector should not be installed near the fans, air conditioners, fresh air entrances, and exits where the wind speed is too fast.
- The detector should not be installed in places with massive moisture or large amounts of water vapor, such as bathrooms.
- The detector should not be installed in places with temperatures below -10°C or above 55°C.
Ceiling mount position
Wall mount position
Installation
Please first place the detector in the target position for installation, connect the power cord, and press the silence/self-test button to verify the communication distance. You should make sure that the device communicates properly with the hub before installing and fixing it in position.

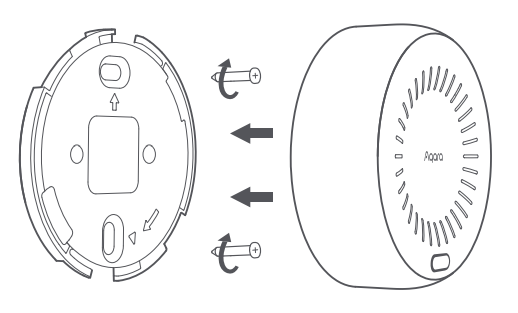

Installation with screws
- Choose a suitable position and use an impact drill to punch holes in accordance with the holes on the mounting plate.
- Install the expansion tube at the punch position.
- Secure the mounting plate with self-tapping screws.
- Align the “△” mark on the back of the detector with the same mark on the mounting plate, and rotate clockwise to fix it.
- Use screws first to ensure a more secure installation.

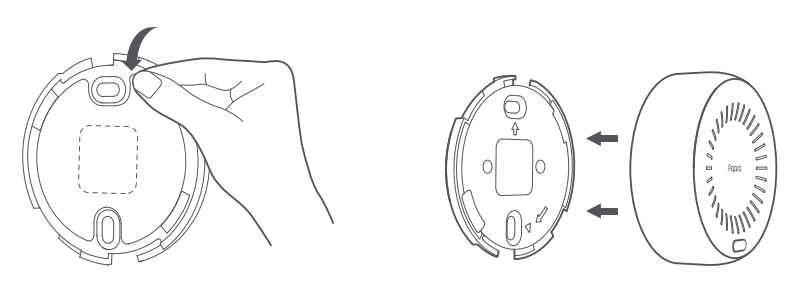

Installation with adhesive
- Remove the protective film on one side of the adhesive sticker, and stick the adhesive sticker on the back of the mounting plate.
- Choose a proper position for installation and make sure its surface is smooth, cl,ean and dry.
- Please do not stick the mounting plate on the surface of the wall paint and other coatings, otherwise the sticking position is prone to peeling after a period of time, resulting in falling off of the detector.
- Remove the protective film on the other side of the adhesive sticker, stick, and secure the mounting plate evenly.
- Make sure that the mounting plate is firmly stuck within 30 seconds (it is recommended to leave it still for 24 hours before installing the detector).
- Align the “△” mark on the back of the detector with the same mark on the mounting plate, and rotate clockwise to fix it.

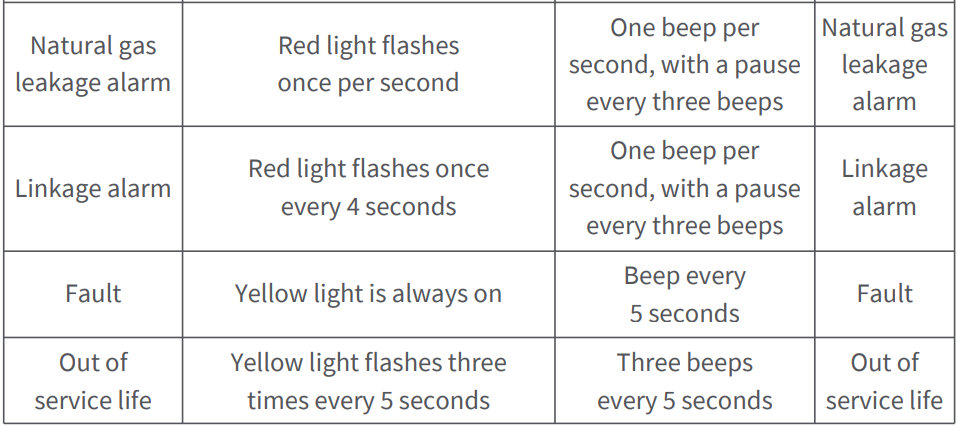

Status signal of the detector
The detector is equipped with a wireless networking interface, which can output the following status signals.
The wireless networking interface of the detector can output a signal corresponding to its measured concentration and display the corresponding value in the app as a percentage of the lower explosive limit (LEL).
Preheating
Once the detector is powered on, the buzzer beeps three times and the indicator flashes red, y, and green in a cycle. After 3 minutes, the preheating ends, and the indicator remains green, which indicates that it is detecting normally.
Tips: In case of use for the first time or non-use for a long time, the detector should be charged continuously for more than 72 hours for the optimal detection capacity.
Self-test
- In the normal working status of the detector, the indicator is always green. Hold down the silence/self-test button for more than 3 seconds to confirm that the indicator flashes red, yellow, and green in turn, with three beeps of the buzzer, which indicates that the self-test is normal.
- Press and hold the button until the indicator and buzzer repeat the above sound and light signals with a pause every three seconds, and then release.
- During the self-test, a forward direction 12V pulse voltage signal is output between wiring terminals T+ and T- within 30 seconds to close the solenoid valve.
- A monthly self-test on the detector is recommended. Please contact the after-sales service immediately in case of any faults.
Natural gas leakage alarm
- Natural gas leakage detected
- When the detector works normally and detects that the concentration of natural gas is at or above the configured threshold value, the indicator keeps flashing red once per second, and the buzzer alarms loudly, with one beep per second and a pause every three beeps.
- After the detector alarms, a positive 12V pulse voltage signal is output between wiring terminals T+ and T- to close the solenoid valve.
- In case of natural gas leakage
- Do not switch on or off any electrical appliance during the alarm of the detector.
- Do not cut off the power of the detector, and the detector can automatically close the solenoid valve if the terminal has been connected to the valve.
- Extinguish all fires and close the main natural gas valve immediately.
- Open doors and windows for ventilation.
- Do not use a telephone in the building where the presence of gas is suspected.
- In case of the natural gas leakage hazard is eliminated
- After pressing the silence/self-test button, the buzzer will be silenced for 10 minutes, with no sound prompt during this period until the end of the silence status. During the silence, if you hold down the silence/self-test button for more than 3 seconds, the alarm sound prompt function will be restored.
- In case the natural gas concentration is below the alarm setting value, the detector will automatically return to the normal working status.
- If there is a connected solenoid valve, after confirming that the security hazard has been eliminated and the gas supply needs to be restored, you should reset the solenoid valve according to the operating instructions.
- A false alarm of the detector may be triggered as a result of the following conditions..
- The cooking wine is used for cooking.
- The detector is too close to the stove.
- The stove temperature is high, or there is massive steam in the kitchen.
- The hairspray, mousse, air freshener, insecticide, paint, etc. They are used near the detector.
- The sensor is covered with a lot of dust or cooking fumes.
Natural gas leakage linkage alarm
- When the detector works normally and receives the linkage alarm signal of natural gas leakage, the indicator keeps flashing red once every 4 seconds, and the buzzer sounds loudly, with one beep per second and a pause every three beeps.
- Once the linkage alarm occurs, you should promptly check the main detector that triggers the automation, take immediate and effective measures to prevent fire, explosion, and other accidents.

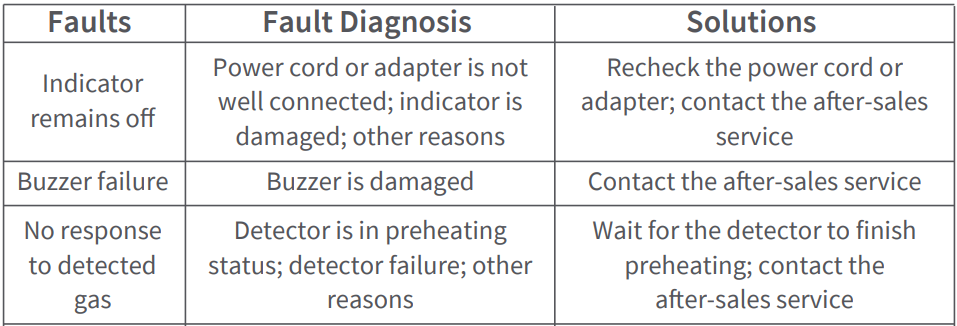

Fault
- In case the detector fails, the indicator is always yellow, with one beep of the buzzer every 5 seconds, which means that the detector is unable to detect the leakage normally. Please contact the after-sales service with the least possible delay.
- In case the detector fails, after pressing the silence/self-test button, the buzzer will be silenced for 8 hours, with no sound prompt during this period until the end of the silence status. During the silence, if you hold down the silence/self-test button for more than 3 seconds, the fault sound prompt function will be restored.
Out of service life
- In case the detector is out of service life, the indicator flashes yellow three times every 5 seconds, with three beeps of the buzzer every 5 seconds, which means that the cumulative working time of the detector has reached the end of service life. Replace the detector with the least delay possible.
- In case the detector is out of service life, after pressing the silence/self-test button, the buzzer will be silenced for 8 hours, with no sound prompt during this period until the end of the silence status. During the silence, if you hold down the silence/self-test button for more than 3 seconds, the out-of-service-life sound prompt function will be restored.
Product Specifications
Smart Natural Gas Detector
- Model: JT-BZ-03AQ/A
- Target Gas: Methane (CH4)
- Input: 12.0V
0.5A 6.0W
- Wireless Protocols: Zigbee
- Dimensions: ⌀80.4 × 31 mm
- Operating Temperature: -10°C ~ 55°C
- Operating Humidity: 0 ~ 93% RH, no condensation
- What is in the Box: Detector × 1, Mounting Plate × 1, Adapter × 1,
- Adhesive Sticker × 1, Self-Tapping Screw × 2, Expansion Tube × 2, User Manual × 1
Manufacturer: Lumi United Technology Co., Ltd.
Address: Room 801-804, Building 1, Chongwen Park, NanshaniPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District, Shenzhen, China.
Online Customer Service: www.aqara.com/support
Made in China
Precautions
- This product is only used to detect natural gas (methane) and cannot be used to detect LPG and artificial coal gas.
- Please do not directly impact the detector with high-concentration combustible gas (such as pure natural gas) lest partial or total reduction of the sensitivity of the detector.
- The detector can be tested with a lighter with a testing distance above 10cm. Do not test the detector at short range with a lighter and during preheating.
- Avoid violent collision or falling from a high place during installation and use lest failure of the detector.
- Weekly cleaning of the detector cover is recommended to ensure that the detector is not clogged with grease, dirt, or dust. You can use a brush or dry lint cloth, excluding cleaning agents.
- This product has the function of reporting or notifying “natural gas leakage alarm” via wireless network, which is affected by the installation environment of the device, the network environment and maintenance conditions of the device and the hub connected to the device, the network environment and conditions of the mobile phone used by the user, and the authorization scope and conditions of the app used by the user. The manufacturer or producer makes no warranties or promises as to the reliability and timeliness of this function.
- The product application is at the user’s own risk. In no event shall the manufacturer or producer be liable for any risk, loss, damage, compensation, liability, or expense arising from or suffered as a result of any alleged malfunction of the product (including but not limited to failure to deliver push messages, failure of automated execution, etc.) or failure to achieve its efficacy or purpose.
- This product has the function of “silencing” the sound emitted by the device via the wireless network. When users adopt this function in various scenarios (including but not limited to mobile phone app operation, automation settings), please make sure to check the installation site of the device first to eliminate the hazard or danger of natural gas leakage at the site, ensuring that it will not lead to fire, explosion and other accidents (such as false alarm of the device) due to “silencing” before operating.
Scan to get the Zigbee 3.0 Install Code on the last page of the manual.
*Please read this manual carefully and keep it in a safe place.
*If necessary, the contents of this manual will be modified or adjusted without special notice.
