Arctic Air Pure Chill 2 Air Cooler Manual

Arctic Air Pure Chill 2 Air Cooler

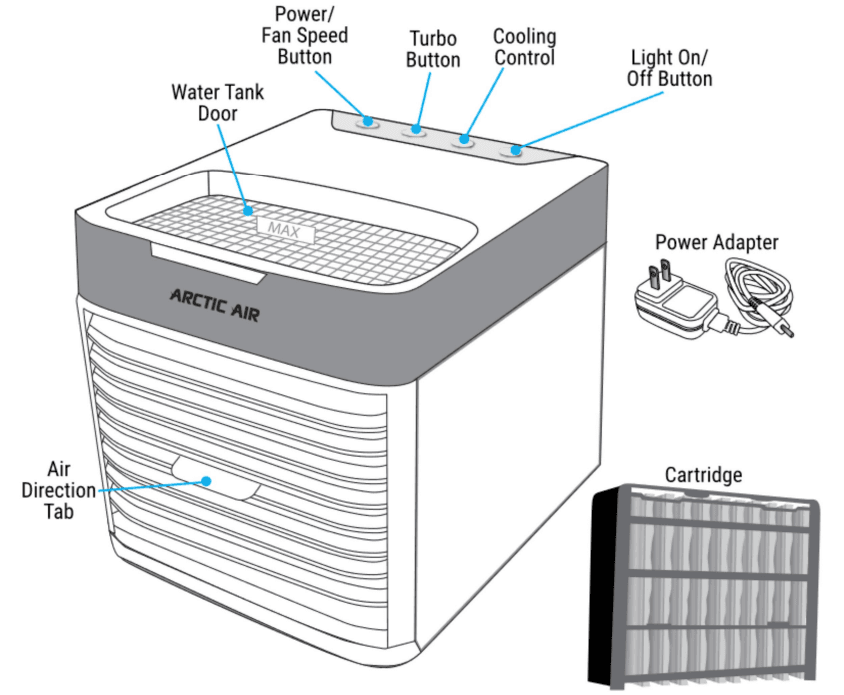

WHAT’S INCLUDED:

SETUP:

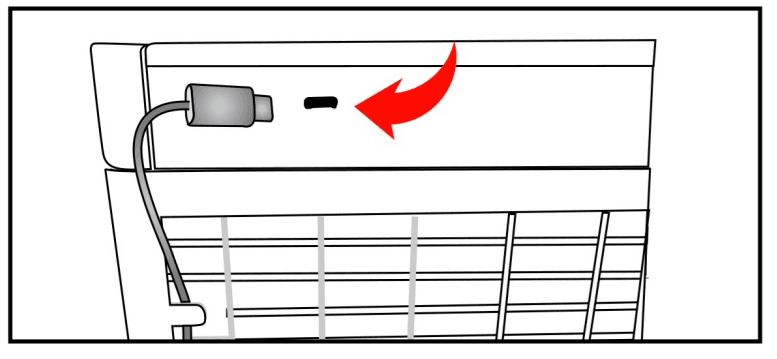

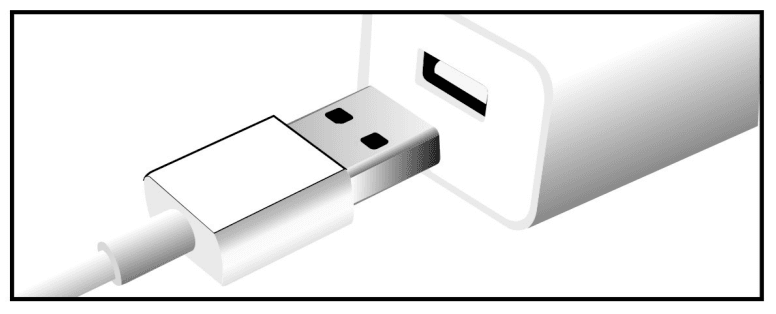

1. Set Arctic Air™ Pure Chill'” 2.0 on a flat surface such as a table or desk. Plug the small end of the USB cable into the port located on the back of the unit and plug the Power Adapter into a wall outlet.






   NOTE: Connect a power bank to the USB port to take Arctic Air™ Pure Chill™ 2.0 on the go!

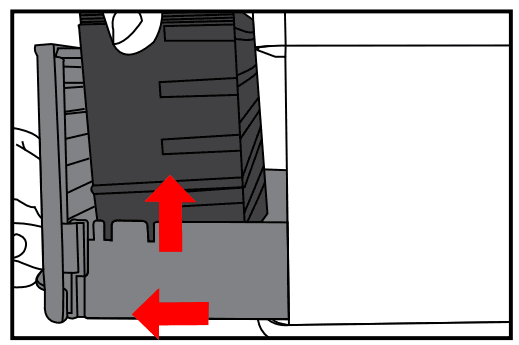

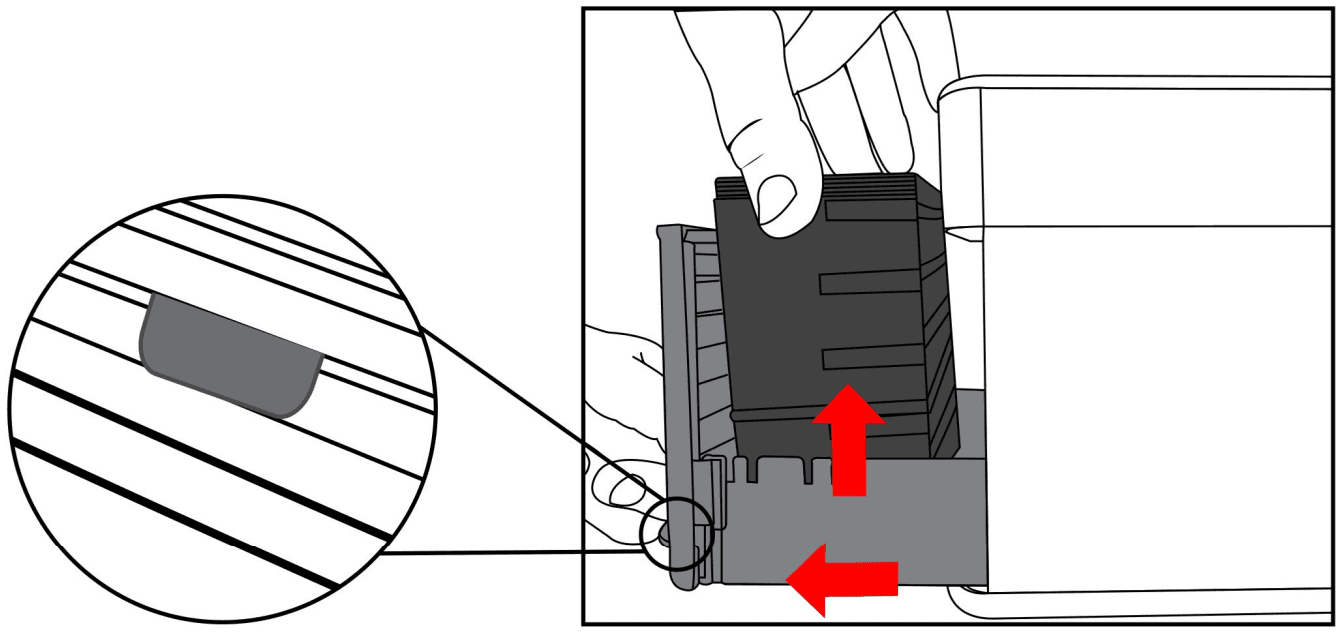

2. Use the Cartridge Drawer Tab to pull out the cartridge drawer and remove the cartridge.

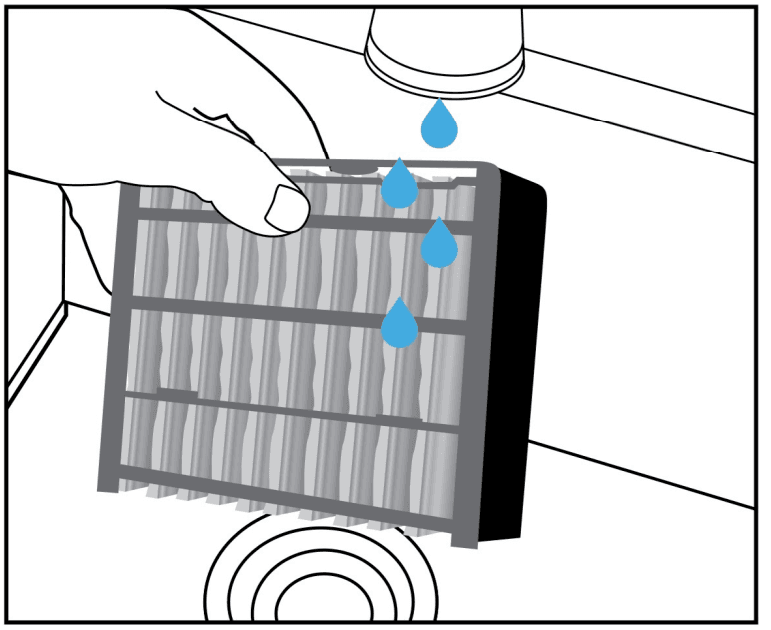

3. For best results, lightly pre-soak under cold, running water. For even more cooling power, place a wet cartridge in the freezer until frozen. Place back in the drawer when done.

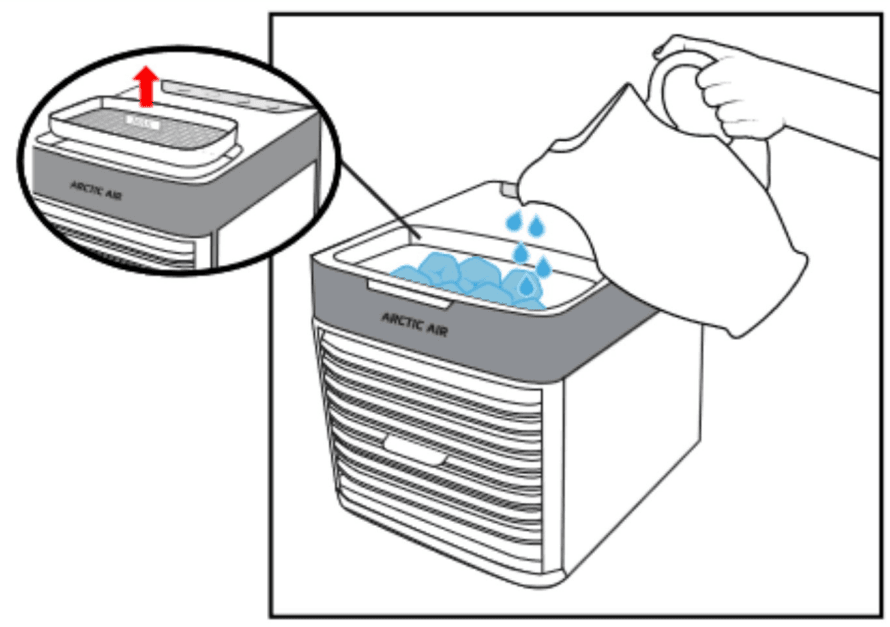

4. Fill the water tank by gently pouring water into the opening until the level reaches near the top. You can check by looking at the side of the tank.

FOR BEST RESULTS: Remove the water tank lid and place ice cubes in tank prior to filling with water, and put lid back on. This will provide an extra cold blast of air. Repeat as ice cubes melt.

USAGE:

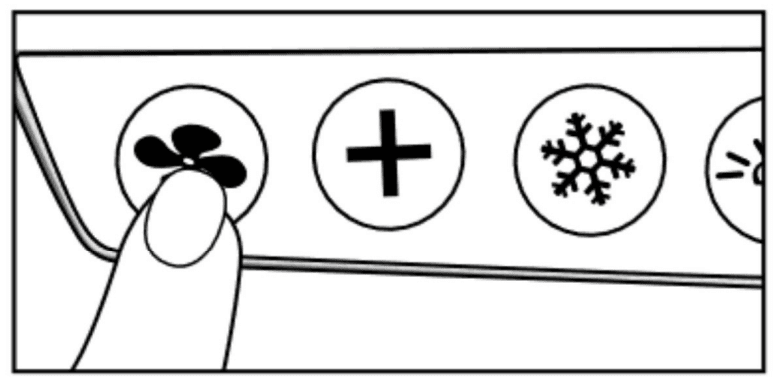

1. Press thebutton to turn Arctic Air Pure ChiLL- 2.0 on – it will default to High-speed mode.
   • 1st press: Power on, High
   • 2nd press: Medium
   • 3rd press: Low
   • 4th press: Power off
     NOTE: Arctic Ai( Pure Chill'” 2.0 will run up to 8 hours on High, 10 hours on Medium
     and 12 hours on Low.

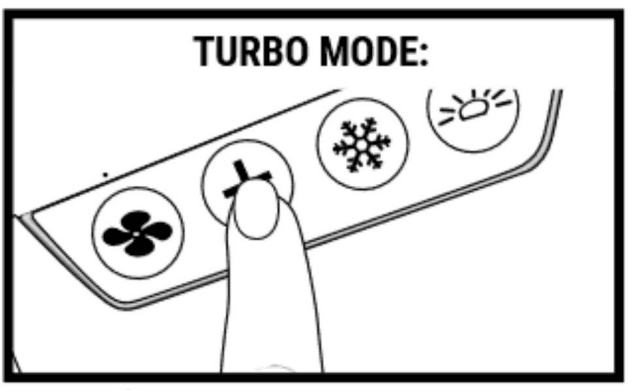

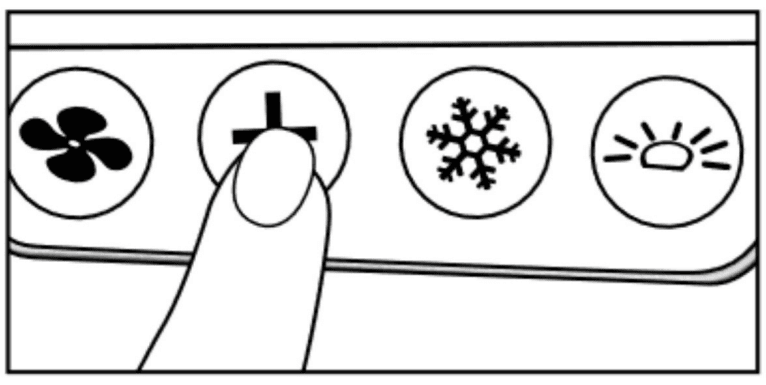

2. Press + to start TURBO mode for maximum fan power and cooling.

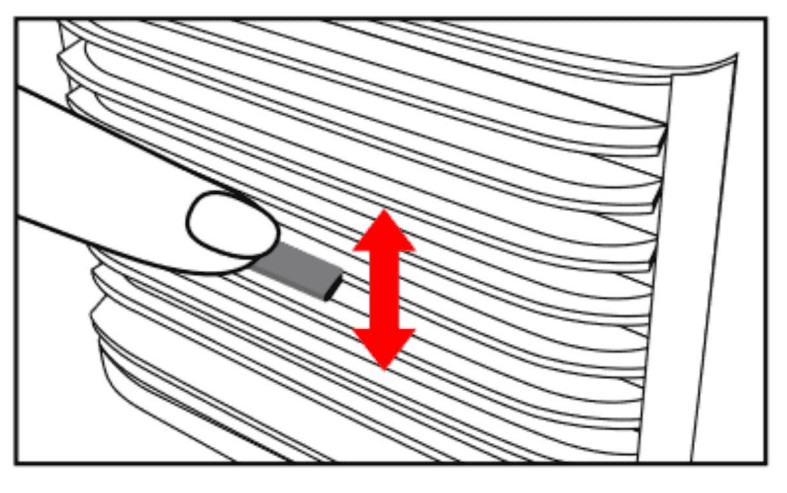

3. Use the Air Direction Tab to adjust airflow up/down to your preference.
4. Choose your light color by pressingbutton. You can choose between solid colors or a color-cycle mode. Color order: Blue, Red, White, Teal, Purple, Yellow, Green, Color Cycle

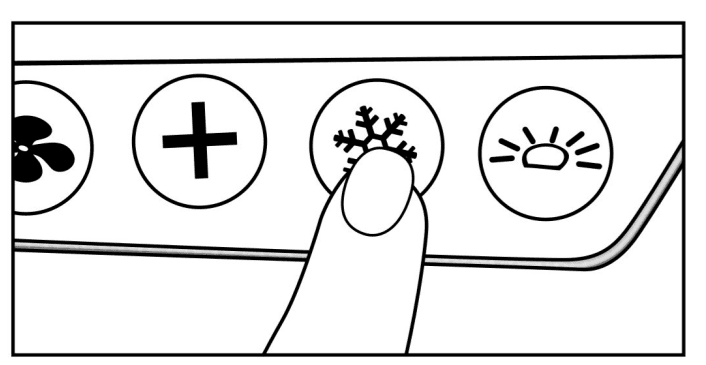

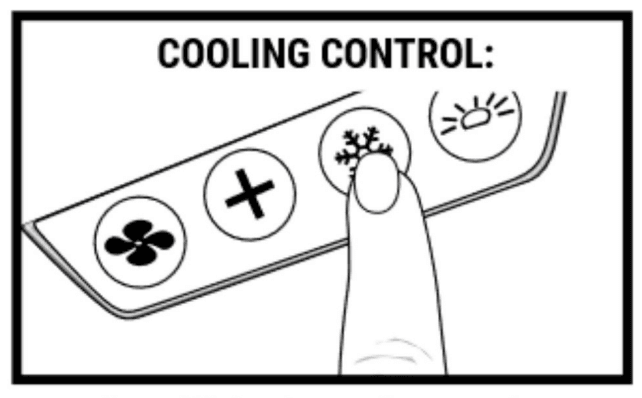

5. Control cooling output by pressingButton. You can choose HIGH cooling mode or LOW cooling mode.

MAINTENANCE:

We recommend weekly cleaning of your Arctic Air”‘ Ultra and Filter to keep them in the best working condition. and replacing the Filter every 3·6 months.

• DISHWASHER: Place the filter in the top rack of your dishwasher & run the cycle normally. Remove and let air dry.

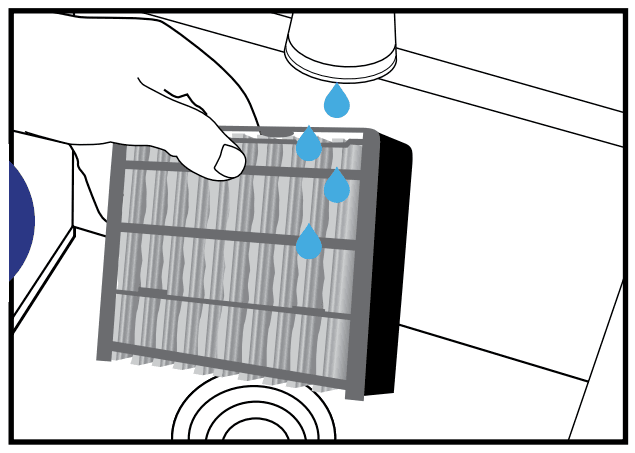

• HAND WASH: Hand wash gently with wann water & soap. Shake out excess water & let microwave air dry.

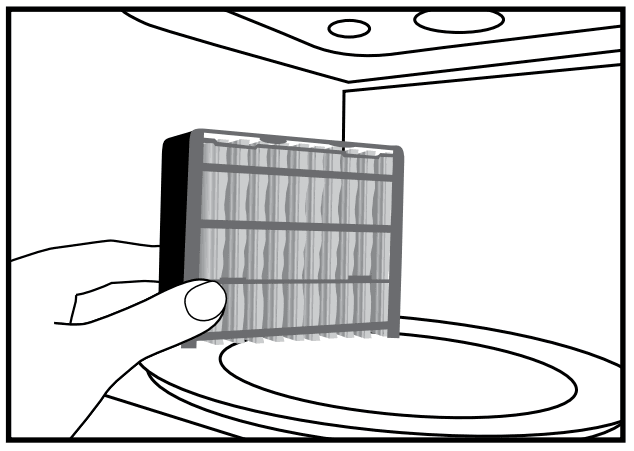

• MICROWAVE: Betweerwashes, sanitize your filter by placing inthe microwave on high for 30-second increments, up to 2 minutes. Let sit until cool.

IMPORTANT: If you see mold on the filter or notice a musty smell, stop and clean the filter before further use. Fully submerge the filter in a pot or bowl filled with equal parts clean water and white vinegar – allow to soak for 45-60 minutes. Rinse with warm water, wring out, and let air dry.

UNIT CLEANING

• To prepare for cleaning, run Arctic Air” Pure Chill'” 2.0 until all water has emptied from the water tank, or hold Arctic Air™ Pure Chill'” 2.0 over a sink and carefully dump out to avoid
  splashing or spilling.

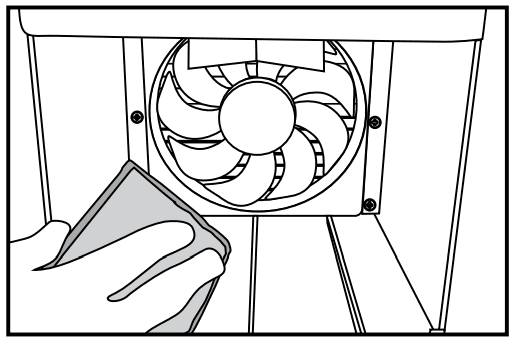

• Remove the cartridge tray from Arctic Air™ Pure Chill'” 2.0. Using warm, soapy water, wipe the cartridge tray and grill, then rinse off until clean. Let air dry.
• If you notice the water tank is dirty, use a small, bendable brush (i.e. toothbrush, bottle brush, etc) and carefully clean the inside of the tank until clean. Rinse clean with warm water.

WARNINGS:

• Do not carry Arctic Air™ Pure Chill'” 2.0 when filled with water. Some water may remain in the unit even if the tank is empty.
• Use only clean water. If needed, use distilled water.
• Please read and follow regular maintenance as recommended in the “Maintenance” section of this guide.
• Arctic Air™ Pure Chill'” 2.0 works best in non-polluted areas. Large dust/dirt particles may reduce the lifetime of the unit.
• We recommend use only in dry locations. If using in a moist area or environment, take care not to get water on external areas of the product.
• If a leak or spill occurs on the surface of the device, unplug Arctic Air™ Pure Chill'” 2.0 and let it dry for 24 hours. Then, use it as normal.
• Do not place in direct sunlight for extended periods of time.
• Before not using Arctic Air'” Pure Chill'” 2.0 for extended periods of time, empty the water tank, turn unit on, and set to highest fan speed for at least 4 hours. This will dry out then cartridge and inside of your unit.
• Only use the original power adapter and cord supplied in the package.
• Do not touch the power supply or power cord with wet hands.
• Unplug Arctic Air'” Pure Chill'” 2.0 when cleaning, removing/replacing cartridges, or moving the device.
• For best results, place Arctic Air'” Pure Chill'” 2.0 on a higher surface like a table or countertop.
• Do not place Arctic Air'” Pure Chill'” 2.0 near a heater or any electrical equipment.
• Do not place the device in passageways or high traffic areas where there is a possibility of tripping or knocking it over.
• Do not allow any foreign objects inside Arctic Air™ Pure Chill'” 2.0.
• Do not place items on top of Arctic Air'” Pure Chill'” 2.0.
• Do not block the device’s front and back grills.
• Do not turn the device upside down.
• Do not submerge the Arctic Air'” Pure Chill'” 2.0 under water or other liquids.
• Do not place Arctic Air'” Pure Chill'” 2.0 near open flames or fire sources.
• People with limited physical, visual or mental abilities or lacking proper experience and/or knowledge should never use the device without supervision of those responsible for their safety or those capable of assistance in using the device.
• The device can be switched off completely only when disconnected from the power supply.
• The manufacturer does not bear any responsibility for any damage from failure to comply with this product guide.
• A replaceable water cartridge is designed specifically for this product. If your cartridge has been broken or damaged, you can purchase a replacement.

ONTEL ® ASSUMES NO RESPONSIBILITY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF THE PRODUCT. IN PURCHASING AND USING THIS PRODUCT, YOU ASSUME ALL RESPONSIBILITY FOR CLEANING THE PRODUCT AND MONITORING THE PRODUCT FOR MOLD. ADDITIONALLY, ONTEL ® SPECIFICALLY DISCLAIMS ALL EXPRESSED WARRANTIES NOT OTHERWISE SET FORTH HEREIN AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF.

FOR BEST RESULTS:

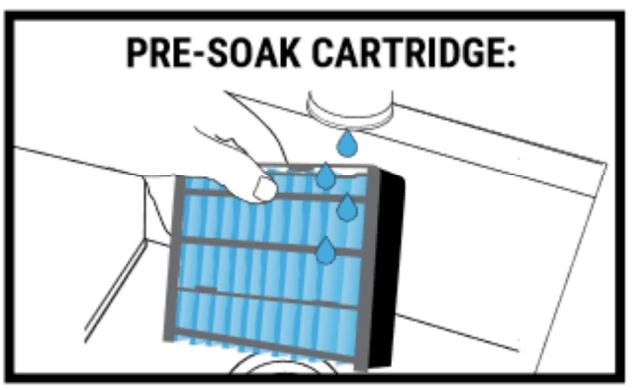

• To ACTIVATE COOLING, soak your cartridge under a running cold water

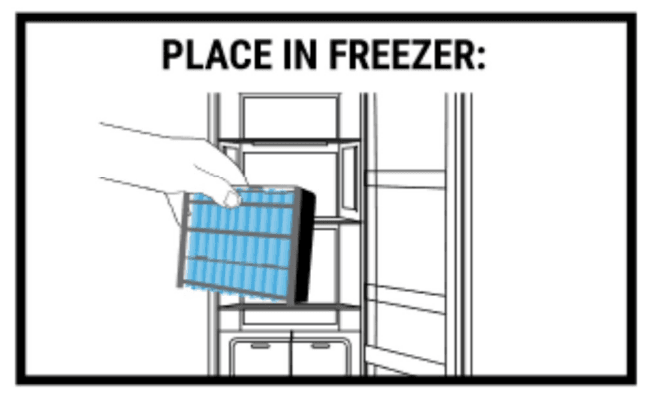

• For MAXIMUM COOLING, place a wet cartridge in the freezer until frozen.

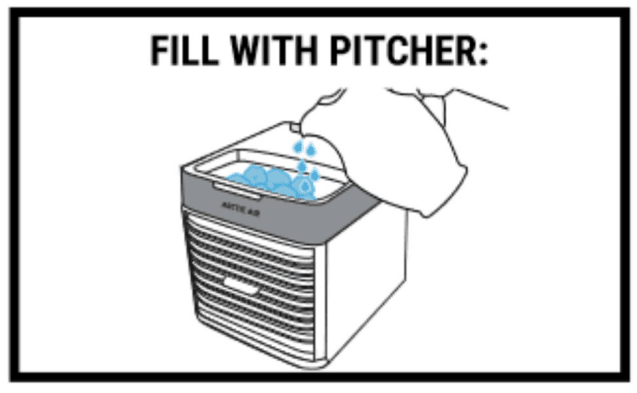

• Place on a flat surface & fill the tank with a water pitcher.

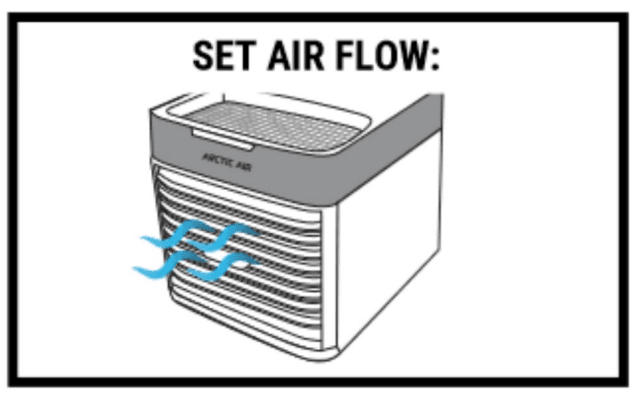

• Point towards you and adjust the vents to direct the airflow.

NEW FEATURES:

• Press + to start TURBO MODE for maximum fan power and cooling.




• Control high or low cooling output by pressingbutton.
