Arctic Air Ultra Evaporative Air Cooler instructions

Arctic Air Ultra Evaporative Air Cooler

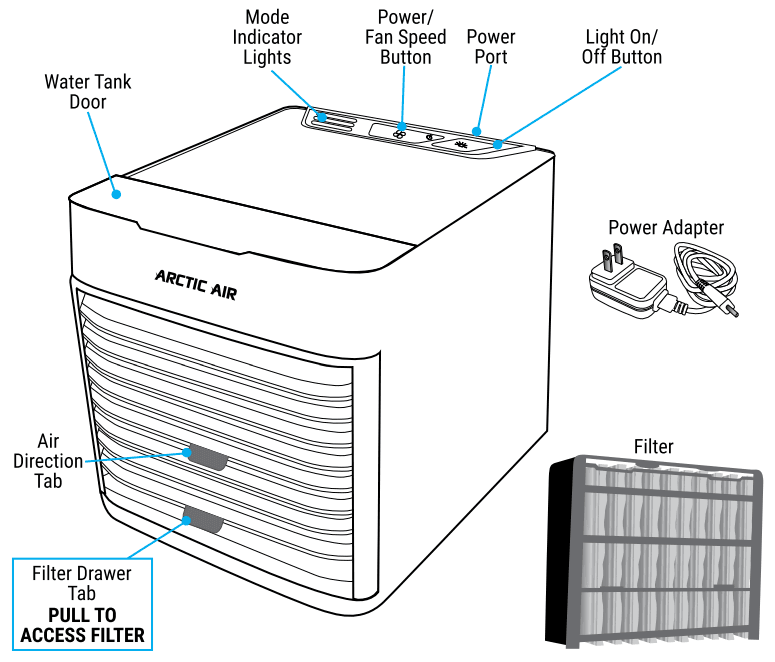

WHAT’S INCLUDED

SETUP:

1. Set Arctic Air™ Ultra on a flat surface such as a table or desk. Attach the Power Adapter to the Power Adapter Port, and plug the Power Adapter into a wall outlet.

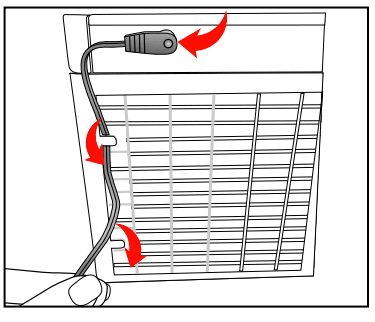

   NOTE: Use built-in Cord guides along the back to keep the cord away from the fan.

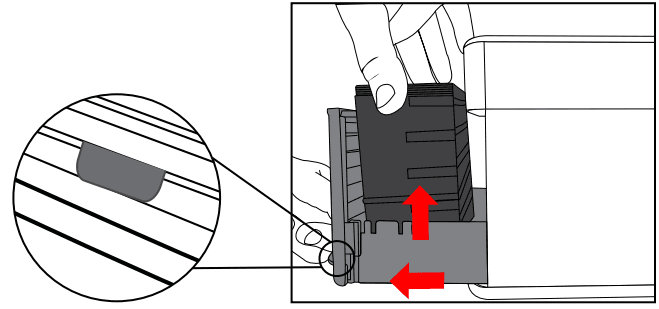

2. Use the Filter Drawer Tab to pull out the filter drawer & remove the filter.

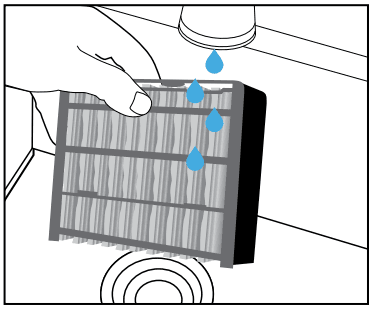

3. For best results, lightly pre-soak under cold, running water. For even more cooling power, place a wet filter in the freezer until frozen. Place back in the drawer when done.

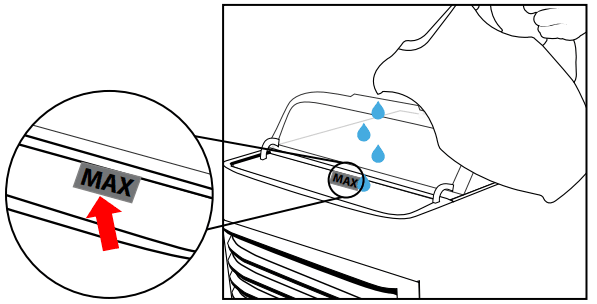

4. Open the water tank door and fill it out until the line is on the MAX FILL tab. Close the Water Tank Door when done.

USAGE:

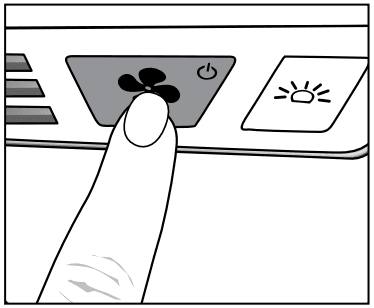

1. Press thebutton to turn Arctic AirTM Ultra on – it will default to High-speed mode.
   • 1st press: Power on, High
   • 2nd press: Medium
   • 3rd press: Low
   • 4th press: Power off
     NOTE: Arctic Air111 Ultra will run up to 8 hours on High, 10 hours on Medium, & 12 hours on Low.

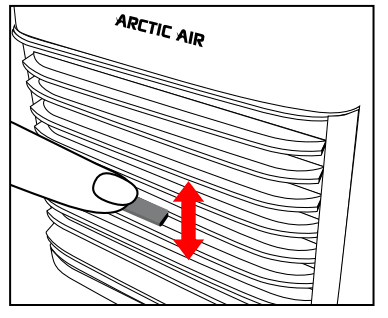

2. Use the Air Direction Tab to adjust airflow up/down to your preference.

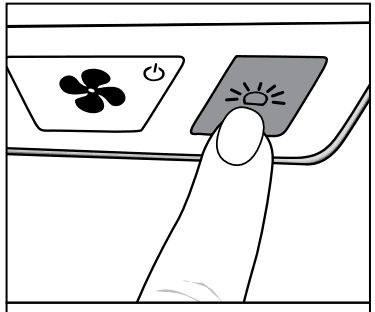

3. Choose the night light setting by pressingbutton – the default setting is High brightness.
   • Default: Light on, High brightness
   • 1st press: Low brightness
   • 2nd press: Light off

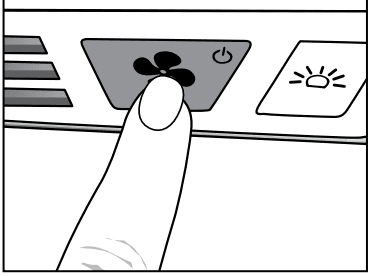

4. To power off, press the 0 button until the fan turns off (one press after Low speed}, and the Mode Indicator Lights are no longer lit.

MAINTENANCE:

We recommend weekly cleaning of your Arctic Air”‘ Ultra and Filter to keep in best working condition.and replacing the Filter every 3·6 months.

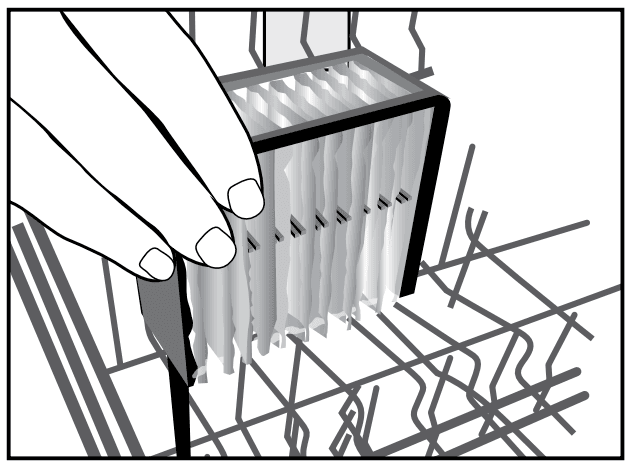

• DISHWASHER: Place the filter in the top rack of your dishwasher & run the cycle normally. Remove and let air dry.
• HAND WASH: Hand wash gently with wann water & soap. Shake out excess water & let microwave air dry.
• MICROWAVE: Betweerwashes, sanitize your filter by placing inthe microwave on high for 30-second increments, up to 2 minutes. Let sit until cool.

IMPORTANT: If you see mold on the filter or notice a musty smell, stop and clean the filter before further use. Fully submerge the filter in a pot or bowl filled with equal parts clean water and white vinegar – allow to soak for 45-60 minutes. Rinse with warm water, wring out, and let air dry.

UNIT CLEANING

• To prepare for cleaning, run Arctic Air”‘ Ultra until all water has emptied from the water tank, or hold Arctic Air”‘ Ultra over a sink and carefully dump it out to avoid splashing or spilling.

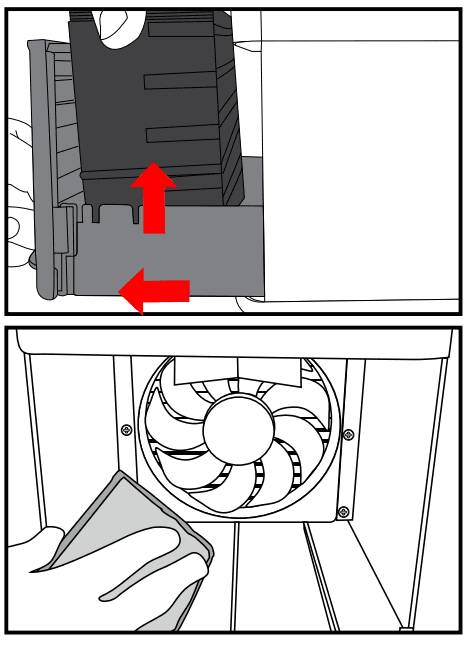

• Remove the Filter tray from Arctic Air™ Ultra. Using warm, soapy water, wipe the filter tray and grill, then rinse off until clean. Let air dry.
• If you notice the water tank is dirty, use a small, bendable brush (i.e. toothbrush, bottle brush, etc) and carefully clean the inside of the tank until clean. Rinse clean with warm water.

WARNINGS:

• Do not carry Arctic Air”‘ Ultra when filled with water. Some water may remain in unit even if tank is empty.
• Use only clean water. If needed, use distilled water.
• Please read and follow regular maintenance as recommended in the “Maintenance” section of this guide.
• Arctic Air”‘ Ultra works best in non-polluted areas. Large dust/dirt particles may reduce lifetime of unit.
• We recommend use only in dry locations. If using in a moist area or environment, take care not to get water on external areas of the product.
• If a leak or spill occurs on the surface of device, unplug Arctic Air”‘ Ultra & let it dry for 24 hours. Then, use it as normal.
• Do not place in direct sunlight for extended periods of time.
• Before not using Arctic Air'” Ultra for extended periods of time, empty the water tank, turn unit on, and set to highest fan speed for at least 4 hours. This will dry out then filter and inside of your unit.
• Only use the original power adapter and cord supplied in the package.
• Do not touch the power supply or power cord with wet hands.
• Unplug Arctic Air”‘ Ultra when cleaning, removing/replacing the filter, or moving the device.
• For best results, place Arctic Air™ Ultra on a higher surface like a table or countertop.
• Do not place Arctic Air'” Ultra near a heater or any electrical equipment.
• Do not place the device in passageways or high traffic areas where there is a possibility of tripping or knocking it over.
• Do not allow any foreign objects inside Arctic Air'” Ultra.
• Do not place items on top of Arctic Air”‘ Ultra.
• Do not block the device’s front and back grills.
• Do not turn the device upside down.
• Do not submerge the Arctic Air'” Ultra under water or other liquids.
• Do not place Arctic Air'” Ultra near open flames or fire sources.
• People with limited physical, visual or mental abilities or lacking proper experience and/or knowledge should never use the device without supervision of those responsible for their safety or those capable of assistance in using the device.
• The device can be switched off completely only when disconnected from the power supply.
• The manufacturer does not bear any responsibility for any damage from failure to comply with this product guide.
• A replaceable water filter is designed specifically for this product. If your cartridge has been broken or damaged, you can purchase a replacement.

ONTEL ® ASSUMES NO RESPONSIBILITY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF THE PRODUCT. IN PURCHASING AND USING THIS PRODUCT, YOU ASSUME ALL RESPONSIBILITY FOR CLEANING THE PRODUCT AND MONITORING THE PRODUCT FOR MOLD. ADDITIONALLY, ONTEL ® SPECIFICALLY DISCLAIMS ALL EXPRESSED WARRANTIES NOT OTHERWISE SET FORTH HEREIN AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF.

FOR BEST RESULTS:

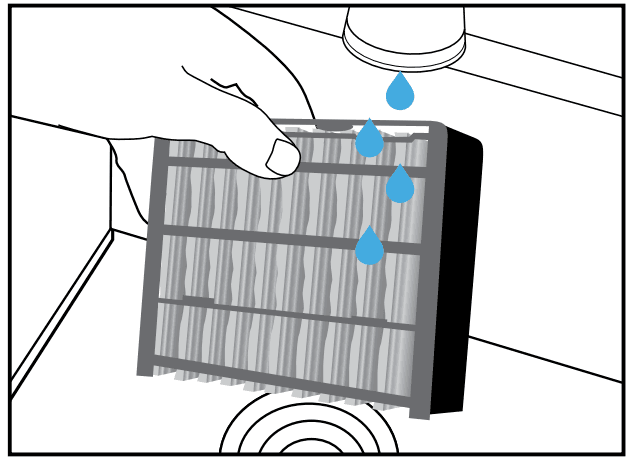

1. PRE-SOAK FILTER:
   Place your filter under running cold water until wet.
   TIP: For even more cooling, place a wet filter in the freezer until frozen.

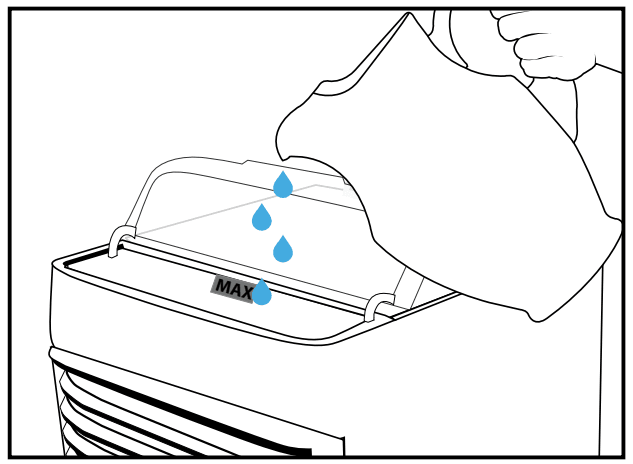

2. FILL WITH PITCHER:
   Place on a flat surface & fill the tank with a water pitcher.

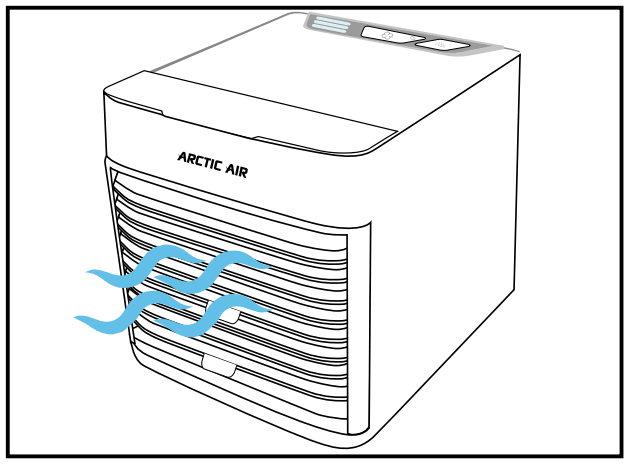

3. SET AIRFLOW:
   Point towards you, and adjust the grill to direct airflow.



4. FILTER CLEANING:
   We recommend regular cleaning of your filter. See the product Guide or Care & Cleaning label on the filter for instructions.

Please Note: You may notice some condensation forming on the front grill. This is normal.
