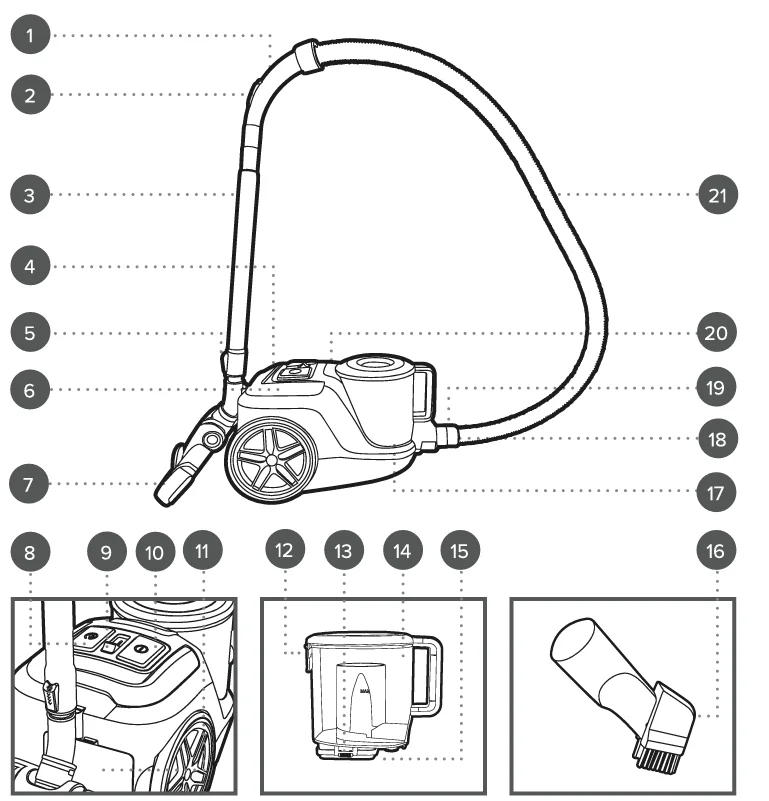

Description of parts

1. Suction hose neck
2. Air valve
3. Telescopic extension tube
4. Vacuum cleaner main unit
5. Telescopic extension tube button
6. Handle
7. Floor brush
8. Cord rewind button
9. Adjustable power setting slider
10. On/off power button
11. Exhaust filter
12. Dust container lid release catch
13. HEPA filter release hooks
14. Dust container
15. HEPA filter
16. 2-in-1 crevice and brush tool
17. Mesh filter
18. Suction hose lock
19. Air inlet
20. Dust container release catch
21. Suction hose

SAFETY INSTRUCTIONS

• When using electrical appliances, basic safety precautions should always be followed.
• Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Children aged from 8 years and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge can use this appliance, only if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Unless they are older than 8 and supervised, children should not perform cleaning or user maintenance.
• This appliance is not a toy.
• If the power supply cord, plug, or any part of the appliance is malfunctioning or if it has been dropped or damaged, cease using the product immediately to avoid potential injury.
• This appliance contains no user serviceable parts; only a qualified electrician should carry out repairs.
• Improper repairs may place the user at risk of harm.
• Keep the appliance and its power supply cord out of the reach of children.
• Keep the appliance out of the reach of children when it is switched on or cooling down.
• Keep the appliance and its power supply cord away from heat or sharp edges that could cause damage.
• Keep the appliance away from other heat-emitting appliances.
• Keep the appliance free from dust, lint, hair, or anything that may reduce the airflow of the appliance.
• Do not immerse the appliance in water or any other liquid.
• Do not operate the appliance with wet hands.
• Do not expose the appliance to rain.
• Do not leave the appliance unattended whilst connected to the mains power supply.
• Do not remove from the mains power supply by pulling the cord; switch off and remove the plug by hand.
• Do not pull or carry the appliance by its power supply cord.
• Do not use the appliance if it has been dropped or if there are visible signs of damage.
• Do not use the appliance for anything other than its intended use.
• Do not use any parts/accessories other than the parts supplied with this appliance, as this may cause damage.
• Do not use any damaged accessories.
• Do not use this appliance outdoors.
• Do not store the appliance in direct sunlight or in high-humidity conditions.
• Do not use this appliance if any of the openings are blocked.
• Do not use the appliance to pick up flammable liquids, matches, cigarette ends, hot ashes, or any hot, burning, or smoking objects.
• Do not use this appliance to pick up hard, sharp objects such as glass or nails, etc.
• Do not use the appliance to pick up water or any other liquid, as this poses a risk of electric shock.
• Take care when equipping accessories with rotating parts, as this could cause entrapment.
• Switch off the appliance, disconnect it from the mains power supply, and allow it to cool fully before changing or fitting accessories and before cleaning or user maintenance.
• Use of an extension cord with the appliance is not recommended.
• This appliance should not be operated by means of an external timer or separate remote control system.
• This appliance is intended for domestic use only. It should not be used for commercial purposes.

Thermal cut-out device

If the dust container and filters are not cleaned on a regular basis, the vacuum cleaner may overheat, which will cause the thermal cut-out device to activate due to restricted flow of air around the unit. If the vacuum cleaner cuts out, press the power button to turn it off and unplug it from the mains power supply. Proceed to empty the dust container, clean all of the filters, and allow the vacuum cleaner to cool for approx. 1 hour.

Care and maintenance

Always unplug the vacuum cleaner from the mains power supply before attempting any cleaning or maintenance. Wipe the external surface of the vacuum cleaner with a soft, damp cloth and allow it to dry thoroughly. Do not use any harsh or abrasive detergents or cleaning agents to clean any part of the vacuum cleaner. Remove the cyclonic cone to clean the inside of the dust container.

Dos and don’ts

DO:

• Check that the filters are kept clear of obstruction.
• Make sure that the dust container and filters are cleaned regularly to preserve suction and to prolong the life of the vacuum cleaner.
• Clean the filters at least every three weeks with clean water to keep the vacuum cleaner working efficiently.

DON’T:

• Use the vacuum cleaner without the filters or dust container in position.
• Use the vacuum cleaner to pick up flammable liquids, matches, cigarette ends, hot ashes, or any hot, burning, or smoking objects.

Instructions for use

Before first use

Before using the vacuum cleaner for the first time, clean the exterior with a soft, damp cloth and dry thoroughly.

Assembling the vacuum cleaner

Before fitting any accessories into the air inlet, check that the vacuum cleaner is disconnected from the mains power supply.

1. Fit the dust container by pushing it onto the vacuum cleaner main unit, aligning the indents on the dust container to the loops on the vacuum cleaner main unit, and clicking it into place.
2. To attach the suction hose, insert the suction hose lock into the air inlet and push it into place until it clicks.
3. To remove the suction hose, simultaneously push both locking tabs and pull the suction hose lock firmly away from the air inlet.

Using the telescopic extension tube

The floor brush and 2-in-1 crevice and brush tool all fit onto the telescopic extension tube to help to reach into confined spaces, such as behind radiators or underneath car seats.

1. Fit the telescopic extension tube by pushing the large opening of the telescopic extension tube over the end of the suction hose neck.
2. Push the chosen attachment onto the end of the telescopic extension tube.
3. Adjust the telescopic extension tube to the required length by pressing the telescopic extension tube button down and sliding the inner tube in or out.
4. Release the telescopic extension tube button to lock the telescopic extension tube into position at the selected length.

Using the floor brush

1. Push the floor brush onto the end of the telescopic extension tube, or the suction hose neck if the telescopic extension tube is not being used.

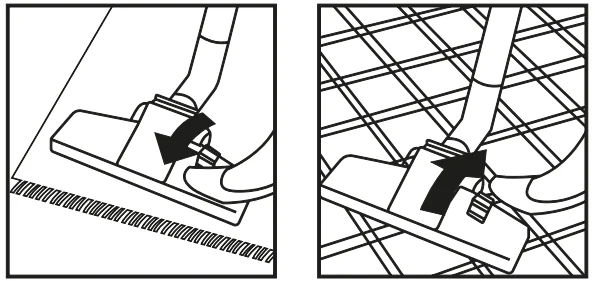

2. Select which position on the floor brush is required for the floor type by pressing the switch forward or backwards. Switching it forward retracts the brushes for use on hard floors, and switching it backwards extends the brushes for use on carpets.
3. Carefully pull out the power supply cord until it is at a suitable length; do not exceed the red mark. Plug it into the mains power supply.
4. Turn on the vacuum cleaner by pressing the power button. Press the power button again to switch it off.

Using the 2-in-1 crevice and brush tool

The crevice/brush tool is a 2-in-1 attachment with a rotating head that can be used as either a crevice tool for removing dust and dirt from folds in fabrics, radiators, corners, recesses, and other places that are hard to reach, or as a brush tool that is perfect for cleaning shelves, cupboards, and windowsills.

1. Push the 2-in-1 crevice and brush tool onto the end of the telescopic extension tube or the suction hose neck if the telescopic extension tube is not being used.
2. Rotate the head until the desired brush or crevice tool is selected.
3. Turn on the vacuum cleaner by pressing the power button; press the power button again to switch it off.

After use

1. Turn off the vacuum cleaner by pressing the power button.
2. Switch off and unplug the vacuum cleaner from the mains power supply.
3. Press and hold the cord rewind button until the power supply cord has completely wound back into the cable drum.

Emptying the dust container

Before emptying the dust container, switch off and unplug the vacuum cleaner from the mains power supply. It is recommended to empty the dust container outdoors.

1. Whilst securely holding the vacuum cleaner main unit, remove the dust container by pushing the dust container release catch and pulling the dust container away.
2. Holding the dust container over a bin or refuse bag, pull the dust container’s base release clip to open the dust container. Empty the dust container slowly and carefully to reduce the amount of dust released back into the atmosphere. Shake the dust container gently to dislodge any stubborn dust.
3. To close the dust container, place the lid back onto the top of the container, aligning the lid with the indent in the handle of the dust container.
4. Replace the dust container by pushing it onto the vacuum cleaner main unit, aligning the dust container indent with the release button.

Cleaning the dust container, HEPA filter, and mesh filter

The filters can only be accessed when the dust container has been removed.

1. Empty the dust container following the instructions in the section entitled ‘Emptying the dust container’.
2. Once the dust container is empty, close it.
3. The HEPA filter is located at the bottom of the dust container, and the HEPA mesh filter is located on the base of the main unit. Press the HEPA filter release hooks to remove the HEPA filter.
4. Remove the HEPA filter and the HEPA mesh filter.
5. Shake off the HEPA filter and HEPA mesh filter until the majority of the dust has been removed, then wash them under clean, warm water and allow them to dry thoroughly.
6. Wash the dust container in clean, warm water and allow it to dry thoroughly.
7. Once all the parts have dried fully, insert the HEPA filter back into the bottom of the dust container by pushing it back into the filter housing.

Cleaning the exhaust filter

The exhaust filter is located at the back of the vacuum cleaner’s main unit.

1. To remove the exhaust filter for cleaning, press down on the release hook and pull it away from the vacuum cleaner main unit.
2. Remove the exhaust filter from the exhaust filter housing.
3. Shake off the exhaust filter until the majority of the dust has been removed, then wash it under clean, warm water and allow it to dry thoroughly.
4. Once the exhaust filter has dried fully, slot it back into the exhaust HEPA filter housing, clicking it into place.

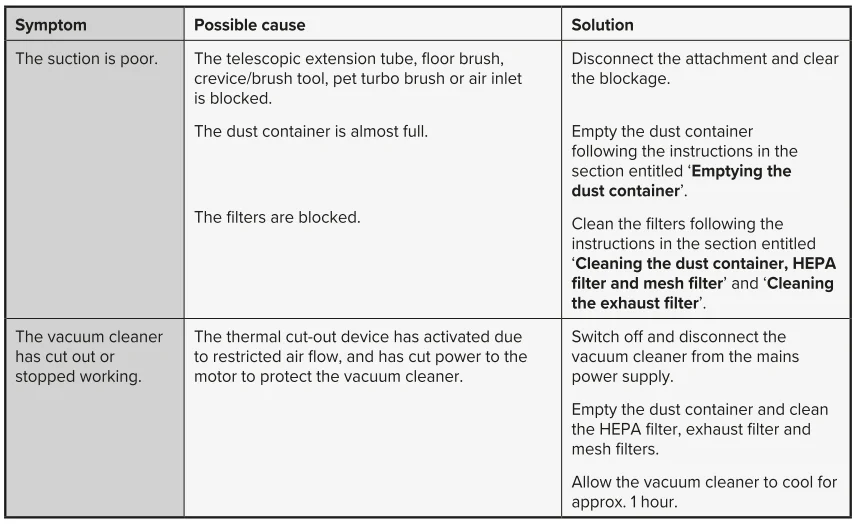

Troubleshooting

Static electricity

The vacuum cleaner may build up static electricity during use. This can result in static electric shocks when touching metal components of the vacuum cleaner. There is no need to worry if this happens. Discharge the vacuum by touching the extension tube against other metal objects nearby.

Storage

Check that the vacuum cleaner is cool, clean, and dry before storing it in a clean, dry place.

Specifications

• Product code: BEL01797
• Rated voltage: 220-240 V ~ 50 Hz
• Rated wattage: 700 W
