Bella Pro 4-Qt Slim Air Fryer Instruction Manual

Bella Pro 4-Qt Slim Air Fryer

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles or knobs. Use oven mitts or potholders.
3. To protect against electric shock, do not immerse cords, plugs, or appliances in water or other liquids.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and
   knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet

FOR HOUSEHOLD USE ONLY

ADDITIONAL IMPORTANT SAFEGUARDS

• CAUTION HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires, or other injury to persons or damage to property.
• CAUTION: This appliance is hot during operation and retains heat for some time after turning it OFF. Always use oven mitts when handling hot materials, and allow metal parts to cool before cleaning. Do not place anything on top of the appliance while it is operating or while it is hot.

1. All users of this appliance must read and understand this instruction manual before operating or cleaning this appliance.
2. The cord to this appliance should be plugged into a 120V AC electrical outlet only.
3. If this appliance begins to malfunction during use, pull the frying basket drawer out of the body. Then, remove the plug from the wall outlet. Do not use or
   attempt to repair the malfunctioning appliance.
4. Do not leave this appliance unattended during use.
5. Do not immerse the power cord in any liquid. If the power cord to this appliance is damaged, it must be replaced by contacting Consumer Service.
6. Keep the cord out of reach from children and infants to avoid the risk of electric shock and choking.
7. Place the Air Fryer on a flat, heat-resistant work area.
8. Do not obstruct the air outlet or air inlets on the back and sides of the Air Fryer with any objects. Avoid escaping steam from the air outlet during air frying.
9. Keep the appliance at least 4 inches away from walls or other objects during operation.
10. Always use the frying basket handle to open the frying basket drawer.
    • WARNING: After air frying, make sure to place the frying basket drawer on a flat, heat-resistant surface.

NOTES ON THE CORD

• A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping
  over a longer cord.
• B.. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
• C. If a long detachable power-supply cord or extension cord is used :
  • 1. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance;
  • 2. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.
  • 3. The longer cord should be arranged so that it does not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally.

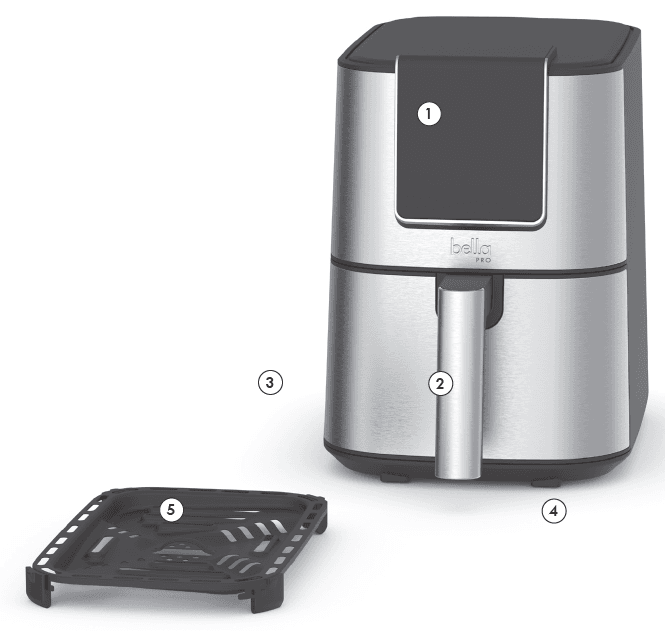

GETTING TO KNOW YOUR 4 QT AIR FRYER

The product may vary slightly from the illustration

• 1) Touch Membrane Control
• 2) Frying Basket with Cool Touch Handle
• 3) Power Cord with a Polarized Plug (not shown)
• 4) Non-skid Feet
• 5) Ceramic Coated Crisping Tray

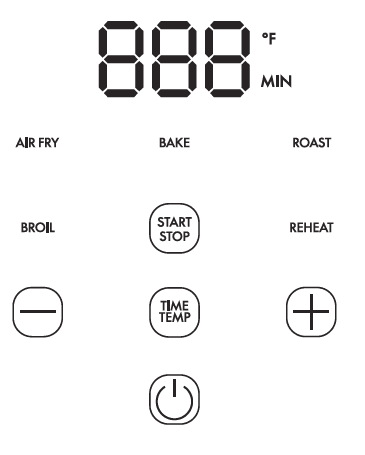

TOUCHSCREEN CONTROL

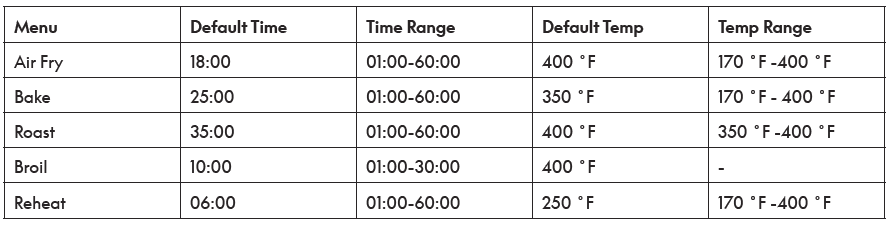

1. There are 5 menu options, each with a preset time and temperature.
2. Press on the desired function, and the preset temp/time will be displayed

BEFORE USING FOR THE FIRST TIME

1. Remove all packing material and labels from the inside and outside of the air fryer. Check that there is no packaging underneath and around the frying basket.
2. Your air fryer is shipped with the frying basket locked inside the air fryer body. Firmly grasp the frying basket handle to open the frying basket and place on a flat, clean work area.
3. Wash the frying basket and crisping tray in hot, soapy water.
4. DO NOT IMMERSE THE AIR FRYER BODY IN WATER. Wipe the air fryer body with a damp cloth. Dry all parts thoroughly.

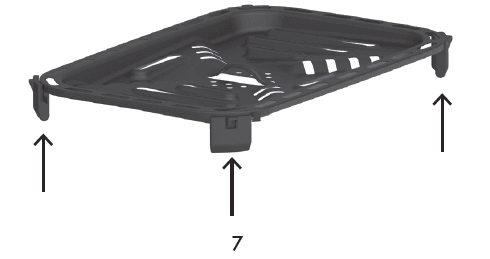

5. To ensure the crisping tray fits snugly into the frying basket drawer, there are 4 rubber tips attached to the sides of the tray. Before using, check to make sure all 4 rubber tips are in place. If they become separated from the tray, simply slide them onto the tabs as shown. (See Fig 2.)

OPERATING INSTRUCTIONS

WARNING! This air fryer should not be used to boil water.
NOTE: During first use, the air fryer may emit a slight odor. This is normal.

1. Place the Air Fryer on a flat, heat-resistant work area, close to an electrical outlet.
2. Firmly grasp the frying basket handle to open the frying basket; then, remove it from the machine and place on a flat, clean surface.
3. Place the crisping tray into the base of the frying basket.
4. Arrange food on top of the crisping tray. Do not overfill frying basket with food. To ensure proper cooking and air circulation, NEVER fill any frying basket more than 2/3 full. When air frying fresh vegetables, we do not recommend adding more than 1-1/2 cups of food to the frying basket.
5. Fully insert the frying basket into the front of the Air Fryer.
6. Plug cord in the wall outlet
7. To begin, press the POWER button.
   • MANUAL OPERATION
8. Press the desired function. Once selected, the light above the function will flash.
9. The default Temperature and Time for the selected preset will alternate on the screen every 5 seconds.
10. To adjust the air frying TEMPERATURE, press the TIME/TEMP button until you see the temperature displayed, then press (-) to reduce the temperature and (+) to increase the temperature in 5-degree increments.
    • NOTE: To toggle between Fahrenheit and Celsius, press and hold the TIME/TEMP button and the (+) button at the same time for 5 seconds.
11. To adjust the air frying TIME, press the TIME/TEMP button until you see the time displayed, then Press (-) to decrease the time and (+) to increase the time in 1-minute increments.
12. When the desired TIME and TEMPERATURE appear on the display, press the START/STOP button to turn the air fryer on to its working mode. The preset temperature and time will alternate on the display until the time has expired.
    • IMPORTANT: The air fryer will not heat until the START/STOP button is pressed. If no buttons are pressed, the air fryer will automatically turn OFF within 3minute.
    • NOTE: If the air fryer basket is removed while the air fryer is in working mode, the unit will pause, and the display will flash. Once the basket is put back in place, the working mode will resume. If the basket is not put back in place after 10 minutes, the unit will automatically shut off.
13. Once the timer reaches 00:00, a tone will sound, and END will be displayed.

AIR FRYING TECHNIQUE

1. Please consult the Air Frying Chart and/or follow package instructions for suggested TIME and TEMPERATURE.
2. To assure even cooking/browning, ALWAYS open the frying basket halfway through the cooking time and check, turn or shake foods in the frying basket. Adjust TIME or TEMPERATURE if needed.
   WARNING: Extreme caution must be used when handling the hot frying basket and crisping tray. Avoid escaping steam from the frying basket and the food.
   CAUTION: Always use oven mitts when handling the hot air fryer basket.
   CAUTION: Hot oil can collect at the base of the drawer. To avoid the risk of burns or personal injury or to avoid oil from contaminating air-fried foods, always unlock and remove the frying basket from the drawer before emptying. NEVER turn the drawer upside down with the frying basket attached.
3. If additional air frying is needed, adjust TEMPERATURE if desired, and set TIME for 2 to 5-minute intervals until fully cooked.
4. Once the timer reaches 00:00, a tone will sound, and END will be displayed.
5. To turn the air fryer OFF at any time, simply press the POWER button.
   WARNING! ALWAYS USE A MEAT THERMOMETER TO ENSURE THAT MEAT, POULTRY, AND FISH ARE COOKED THOROUGHLY BEFORE EATING.
6. If the recipe instructions instruct, allow cooked foods to rest for 5 to 10 minutes. Remove the frying basket from the machine and place on a flat, heat-resistant surface.
7. Use tongs or a long fork to transfer the air-fried foods onto a serving plate. Promptly place the frying basket into the front of the air Fryer. Continue with subsequent batches, if any.
8. Unplug the Air fryer when not in use.

FOR BEST RESULTS

1. Use your air fryer to cook pre-packaged foods with a fraction of the oil in a fraction of the time!
2. Always check food halfway through cooking time to determine final cook time and temperature.
3. Always pat food dry before cooking to encourage browning and avoid excess smoke.
4. To avoid excess smoke when cooking naturally high-fat foods, such as chicken wings or sausages, it may be necessary to empty fat from the frying basket drawer between batches.
5. For crispier results, air fry small batches of freshly breaded foods. Create more surface area by cutting food into smaller pieces. Press breading onto food to help it adhere. Refrigerate breaded foods for at least 30 minutes before frying.
6. Arrange breaded food in a frying basket so that food is not touching to allow air flow on all surfaces.
7. Spray olive oil or vegetable oil work best as oil is distributed evenly and less oil is needed.
8. Do not overfill the frying basket with food. NEVER fill any frying basket more than 2/3 full. When air frying fresh vegetables, we do not recommend adding more than 3 cups of food to the frying basket

CARE & CLEANING INSTRUCTIONS

WARNING! Allow the Air fryer to cool fully before cleaning.

1. Unplug the Air Fryer. Remove the frying basket. Make sure the frying basket and crisping tray have cooled completely before cleaning. Use the center hole of the crisping tray to lift the crisping tray up and out of the frying basket.
2. Wash the frying basket and crisping tray in hot, soapy water. Do not use metal kitchen utensils or abrasive cleansers or cleaning products as this may damage the coating.
3. Wipe the air fryer body with a soft, non-abrasive damp cloth to clean.

STORING INSTRUCTIONS

1. Make sure the air fryer is unplugged and all parts are clean and dry before storing.
2. Never store the air fryer while it is hot or wet.
3. Store the air fryer in its box or in a clean, dry place

LIMITED TWO-YEAR WARRANTY

• SENSIO Inc. hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship and for 90 days in respect to non-mechanical parts. At its sole discretion, SENSIO Inc. will either repair or replace the product found to be defective or issue a refund on the product during the warranty period.
• The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty.
