IMPORTANT SAFETY INSTRUCTIONS

1. READ ALL INSTRUCTIONS BEFORE USE
2. Do not abuse, sit on, stand on, or place any heavy objects on the door or dish rack of the dishwasher when it is open. The appliance could tip forward.
3. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
4. When loading items to be washed, locate sharp items so that they are not likely to damage the door seal. Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position
   position.
5. Check that the detergent receptacle is empty after completion of the wash cycle.
6. Use only detergent and rinse additives designed for an automatic dishwasher.
7. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
8. Keep children away from detergent and rinse aid. Keep children away from the open door of the dishwasher, there could still be some detergent left inside.
9. This appliance is not intended for use by persons (including children with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge) unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is open.
12. The door should not be left in the open position since this could present a tripping hazard.
13. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a similarly qualified person, in order to avoid a hazard.
14. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
15. Please dispose of packing materials properly.
16. Use the dishwasher only for its intended function.
17. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.
18. The appliance is to be connected to the water mains using new hose sets, and old hose sets should not be reused.
19. The maximum number of place settings to be washed is 6.
20. The maximum permissible inlet water pressure is 14.5 psi (1 MPa).
21. The minimum permissible inlet water pressure is 5.8 psi (0.04 MPa).
22. Do not use this dishwasher outdoors.
23. This appliance must be properly installed in accordance with the installation instructions before its use.
24. This appliance must be connected to a proper electrical outlet with the correct electrical supply.
25. Disconnect the electrical power and water intake hose to the dishwasher before cleaning and/or servicing.
26. Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

SET UP & USE

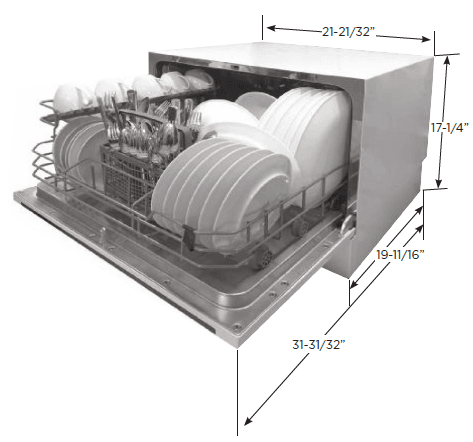

INSTALLATION INSTRUCTIONS

CAUTION: The installation of the pipes and electrical equipment should be done by professionals.

The installation position of the dishwasher should be near the existing inlet and drain hoses and power cord. One side of the cabinet sink should be chosen to facilitate the connection of the drain hoses of the dishwasher.

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

WARNING: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE GROUND CONNECTION FROM THE POWER CORD.

WATER CONNECTION

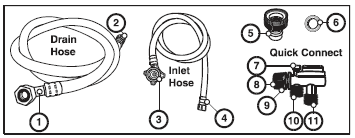

Your dishwasher comes equipped with a ‘quick connect’ assembly (includes inlet and drain hose). The faucet adapter must be installed on the faucet before you can connect the dishwasher. This adapter is included inside your dishwasher. The faucet adapter is compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet connections.

Rear of Dishwasher

1. Power cord
2. Inlet port
3. Drain port

QUICK CONNECT ASSEMBLY

Drain Hose:

• Drain port connection
• Quick connect connection

Inlet Hose:

• Inlet port connection
• Quick connect connection

Faucet Adapter

• Faucet adapter
• Faucet washer

Quick Connect

• Pressure relief valve
• Faucet adapter connection
• Locking collar
• Inlet hose connection
• Drain hose connection

WARNING: In order to avoid that, there is more water stays in the inlet hose; please close the faucet after using.

1. Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use Teflon tape to eliminate if necessary).
2. Connect the six-sided connection of the drain hose to the drain port connection on the back of the dishwasher cabinet. Do not over-tighten (to avoid damage to threads).
3. Connect the star-shaped connection of the inlet hose to the inlet port on the back of the dishwasher cabinet. Do not over-tighten (to avoid damage to threads).
4. Connect the circular connection of the drain hose to the longer (bottom) male connection on the quick connect.
5. Connect the circular connection of the inlet hose to the shorter (top) male connection on the quick connect.
6. Attach the quick connect to the faucet adapter by pulling down the outer locking collar on the quick connect while pushing the quick connect upward onto the faucet adapter.
7. When the quick connect snaps onto the faucet adapter, release the locking collar. Verify the connection is secure.
8. Slowly open the hot water line and check for any sign of water leaks at all hose connections. If leaks are located, immediately close the water supply and repair the hose connections.

DISCONNECTING YOUR DISHWASHER

1. Shut off the water supply at the faucet.
2. Disconnect the power supply cord.

START OF DISHWASHER

The following things should be checked before starting the dishwasher:

1. The dishwasher is level and fixed properly.
2. The inlet valve is open.
3. There is a leakage at the connections of the conductors.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are knotted.
7. All packing materials and printings should be taken out of the dishwasher.

CONTROL PANEL

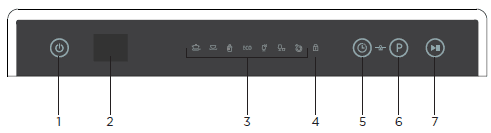

1. Power Button: To turn on/off the power supply.
2. Display: To show delay time, rinse-aid warming, and Error codes.
3. Program indicator lights: Identify the selected program.
4. Child lock indicator light: To press the Delay Button and the Washing Program Selector Button at the same time.
5. Delay Button: Press the button to delay the washing time.
6. Washing Program Selector: Press the button to select a washing program.
7. Start/Pause Button: Press this button to start or pause the dishwasher

PARTS AND FEATURES

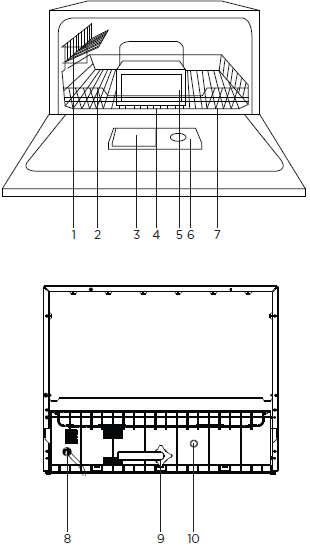

1. Cup shelf
2. Basket
3. Detergent dispenser
4. Filter assembly
5. Cutlery basket
6. Rinse aid dispenser
7. Spray arms
8. Power cord
9. Inlet pipe connector
10. Drain pipe connector

RINSE AID DISPENSER

The rinse aid is released during the final rinse to prevent water from forming droplets that can leave spots and streaks on your dishes. It also improves drying by allowing water to shed off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FUNCTION OF RINSE AID

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing and spot and streak-free drying.

ATTENTION!

Only use branded rinse aid for the dishwasher. Never fill the rinse aid dispenser with any other substances. (e.g., Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

WHEN TO REFILL THE RINSE AID DISPENSER

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator “C” located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

1. Open the dispenser, turn the cap to the “open” (left) arrow, and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with the “open” arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid splatter during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don’t forget to replace the cap before you close the dishwasher door.

ADJUSTING RINSE AID DISPENSER

The rinse aid dispenser has four settings. The recommended setting is on “3”. If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number on “4”.

NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

DETERGENT DISPENSER

The dispenser must be refilled before the start of each wash cycle, following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid than a conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise, it could get damp and will not dissolve properly.

LOADING THE BASKET

Position the dishes and cookware so that they will not get moved by the spray of water.

PLATE RACKS OF BASKET

The basket is fitted with plate racks which can be stowed horizontally if required.

CUTLERY BASKET

Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket.

WARNING: DO NOT LET ANY ITEM EXTEND THROUGH THE BOTTOM. ALWAYS LOAD SHARP UTENSILS WITH THE SHARP POINT DOWN.

TURNING ON THE APPLIANCE

Starting a wash cycle.

1. Draw out the basket.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply is 120V/60 Hz.
4. Make sure that the water supply is turned on to full pressure.
5. Close the door and press the button on/off to turn on the power supply.
6. Press the program button to select the wash program you need: Heavy->Normal->BabyCare->ECO->Glass->Speed->Rinse->Mini-party.
7. Then press the Start/Pause button, and the dishwasher begins to start.

NOTE: When you press the Start/Pause button to pause during washing, the display time will stop blinking, and the program will pause and remain in this cycle till you restart it again.

CHANGE THE PROGRAM

You can modify the washing program when the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled.

To change the washing program, press the program button for more than three seconds. The machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled “Starting a wash cycle”)

NOTE: If you open the door when washing, the machine will pause. When you close the door, you need to press the start/pause button to keep the machine working.

FORGOT TO ADD A DISH

A forgotten dish can be added any time before the detergent cup opens.

1. Press the start/pause button.
2. Open the door a little to stop the washing.
3. After the spray arms stop working, you can open the door completely.
4. Add forgotten dishes.
5. Close the door.
6. Press the start/pause button, the dishwasher will run after 10 seconds.

CLEANING & MAINTENANCE

FILTERING SYSTEM

The filter prevents larger remnants of food or other objects from getting inside the pump. The filter system consists of a coarse filter, a flat (Main filter), and a micro filter (fine filter).

Main Filter

Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.

Fine Filter

This filter holds soil and food residue in the sump area and prevents it from being deposited on the dishes during the wash cycle.

Coarse Filter

Larger items, such as pieces of bone or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

FILTER ASSEMBLY

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter assembly must be regularly maintained. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction.

CLEANING THE FILTER

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward.

WARNING: When cleaning the filters, don’t knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be debased.

CARING FOR THE DISHWASHER

The control panel can be cleaned by using a lightly dampened cloth and then dried thoroughly.

The exterior uses a good appliance polish wax.

Never use sharp objects, scouring pads, or harsh cleaners on any part of the dishwasher.

PROTECT AGAINST FREEZING

Please take frost protection measures on the dishwasher in winter. Each time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and the water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to use up water in sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service personnel.

TROUBLESHOOTING & WARRANTY

BEFORE YOU CALL FOR SERVICE

IF THE APPLIANCE FAILS TO OPERATE:

• Check to make sure that the appliance is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE APPLIANCE YOURSELF.

If you have a problem with this product, please contact the W Appliance Co. Customer Satisfaction Center at 844-299-0879 or service@appliance.com.

Troubleshoot your problem by using the chart below. If the appliance still does not work properly, contact W Appliance Co.’s customer service center or the nearest authorized service center. Customers must never troubleshoot internal components.
