IMPORTANT SAFETY INSTRUCTIONS

1. Air conditioner must be connected to a proper electrical outlet with the correct electrical supply.
2. Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-pronged electric receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle
   MUST be properly grounded.
3. Do not operate air conditioner if the power cord is frayed or otherwise damaged. Avoid using it if there are any cracks or abrasion damage along the length, or plug connector or if the unit malfunctions or is damaged in any manner. Contact an authorized service technician for examination, repairs or adjustments.
4. DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5. Do not block airflow around the air conditioner. The exhaust hose should be free of any obstructions.
6. Always unplug the air conditioner before servicing it or moving it.
7. Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulfurous. Avoid any chemicals coming in contact with your air conditioner.
8.  Do not place any object on the top of the unit.
9. Never operate the air conditioner without filters in place.
10. Do not use the air conditioner near a bathtub, shower or wash basin.

HANDLING ALKALINE BATTERIES

1. Should fluid from the battery accidentally get into your eyes, there is a threat of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap water and then consult a physician immediately.
2. Do not put the battery in a fire, expose it to heat, dismantle or modify it. If the insulation or safety valve is damaged, the battery may leak fluid, overheat or explode.
3. Do not insert the battery with the poles reversed. Doing so may cause some abnormality or a short and the battery may leak fluid, overheat or explode.
4. Keep the battery out of the reach of children. If the battery is swallowed, contact a physician immediately.
5. If the alkali fluid gets in your mouth, rinse your mouth with water and contact a physician immediately.
6. If the alkali fluid gets on your skin or clothes, it may burn your skin, thoroughly rinse the affected area with tap water.
7. Do not mix new and old batteries or other makes of batteries. The different attributes may cause the battery to leak fluid, overheat or explode.
8. This battery was not made to be recharged. Recharging this battery may damage the insulation or internal structure and may cause the battery to leak fluid, overheat or explode.
9. Do not damage or remove the label on the exterior of the battery. Doing so may cause the battery to short, leak fluid, overheat or explode.
10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause the battery to leak fluid, overheat or explode.
11. Do not alter the shape of the battery. If the insulation or safety valve is damaged, the battery may leak fluid, overheat or explode.
12. Immediately remove batteries when they have lost all power. Leaving the batteries in the unit for a long time may cause the batteries to leak fluid, overheat or explode due to gas that is generated by the batteries.
13. Remove the batteries from the unit when not using the unit for an extended period of time. The batteries may leak fluid, overheat or explode due to gas that is generated by the batteries.
14. Do not apply solder directly to the batteries. The heat may cause the batteries to leak fluid, overheat or explode.
15. Do not get the batteries wet. Doing so may cause the batteries to overheat
16. Store batteries someplace out of direct sunlight where the temperature and humidity are not high. Not doing so may cause the batteries to leak fluid, overheat or explode. Also, it may cause the life and performance of the batteries to decline.
17. Follow the regulations of the local government when disposing of these batteries.

SAFETY GUIDELINES

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage.

POWER CORD OPERATION

The power supply cord contains a current device that senses damage to the power cord. To test your supply cord follow these steps:

1. Plug in the Air Conditioner.

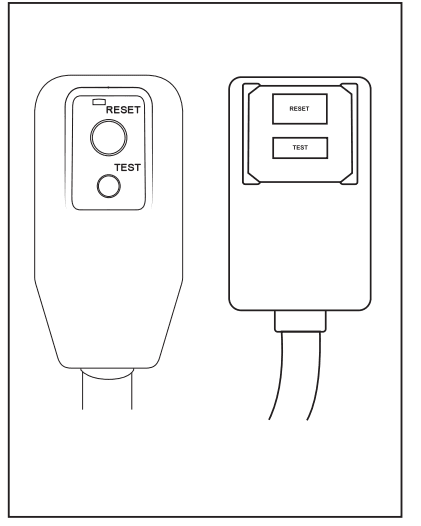

2. The power supply cord head has two buttons, a TEST button and a RESET button. Press the TEST button and notice a click as the RESET button pops out.
3. Press the RESET button. Once again notice a click as the button engages.
4. The power supply cord will now supply electricity to the unit.

NOTE

• Do not use this device to turn the unit on or off.
• Always make sure the reset button is pushed in for the correct operation
• The power supply cord must be replaced if it fails to reset when either the test button is
  pushed, or it cannot be reset.
• If the power supply cord is damaged, it cannot be repaired.
• It must be replaced by one obtained from the product manufacturer.
• After the unit has stopped, the compressor operates for the first 3 minutes. This is to protect the unit. The operation will automatically start after 3 minutes.

OPERATING CONDITION

The air conditioner must be operated within the temperature range indicated below:

NOTE: · Unit performance may be affected when in use outside of these operating temperatures.

SET UP & USE

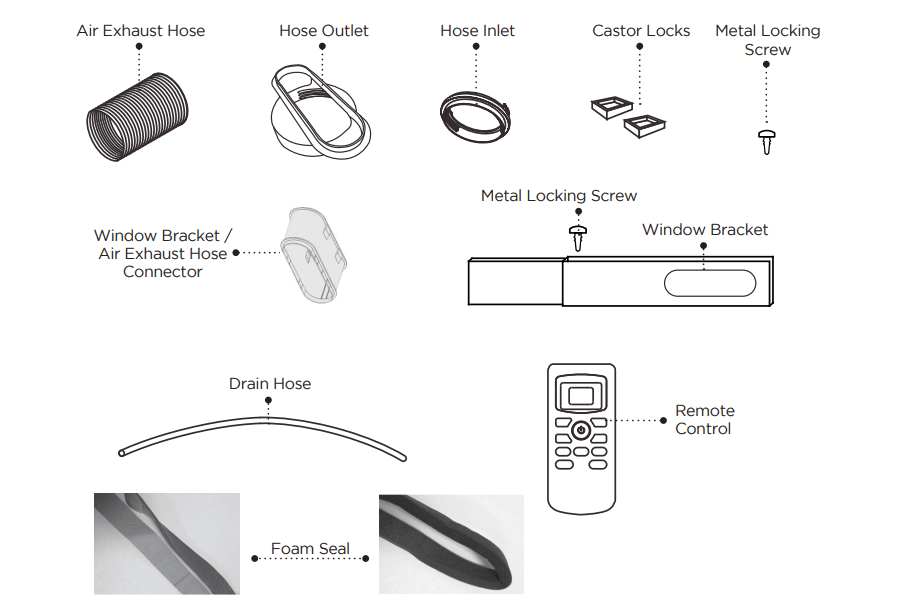

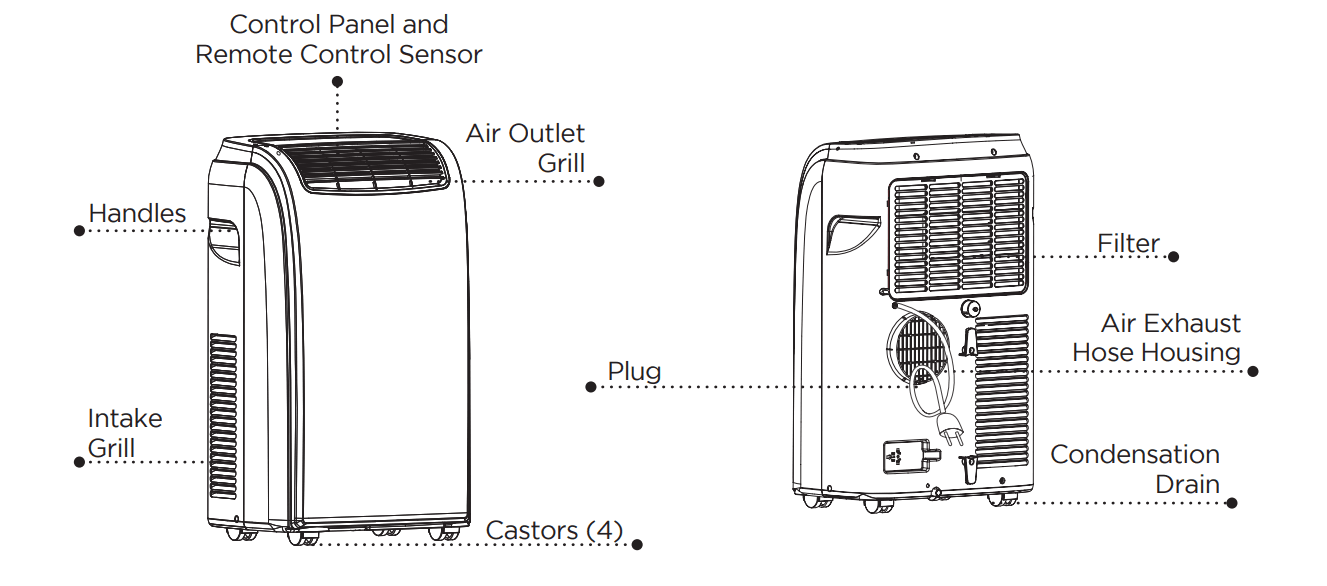

PARTS & FEATURES

SPECIFICATIONS

BPACT08 / BPACT10

• Unit Dimensions (W x D x H): 11.5” x 16.5” x 26”
• Unit Weight: Approx. 52.9 lbs. / 57.3 lbs.
• Electric Requirements: 115V ~ 60Hz

INSTALLATION GUIDE LOCATION

• The air conditioner should be placed on a firm floor to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit.
• The unit has casters to aid placement, but it should be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects.
• The unit must be placed within reach of a properly rated grounded socket.
•  Never place any obstacles around the air inlet or outlet of the unit.
• Allow 12 inches to 36 inches of space from the wall with a window for efficient air-conditioning.

SUGGESTED TOOLS FOR WINDOW KIT INSTALLATION

• Screwdrivers (medium size Phillips)
• Tape measure or ruler
• Knife or scissors
•  Saw (In the event that the window kit needs to be down in size because the window is too narrow for direct installation)

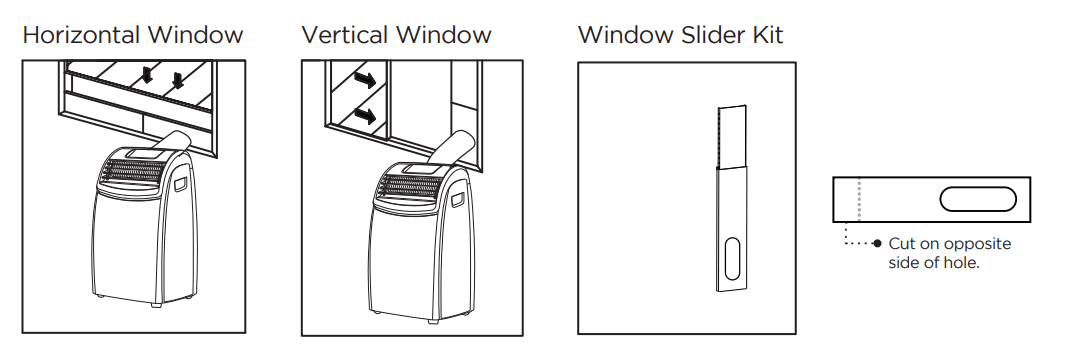

WINDOW SLIDER KIT INSTALLATION

Your window slider kit has been designed to fit most standard “Vertical” and “Horizontal” window applications; however, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of window. Minimum and maximum window openings:
MAXIMUM: 59” (145 cm)

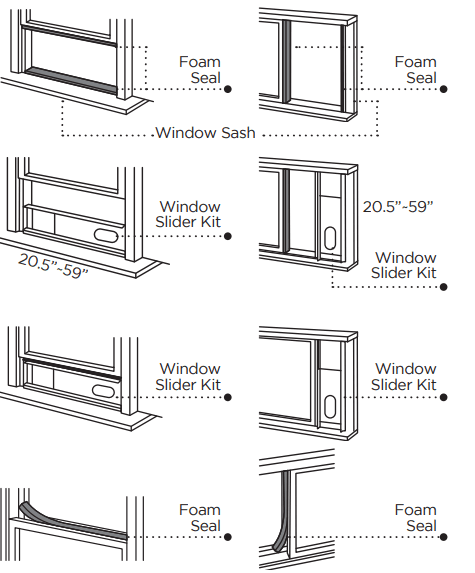

DOUBLE-HUNG SASH/SLIDING CASEMENT WINDOW INSTALLATION

1. Cut the foam seal (adhesive type) to the proper length and attach it to the window sash.
2. Attach the window slider kit to the window sash. Adjust the length of the window slider kit according to the width of window. Shorten the adjustable window kit if the width of window is less than 20.5”.
3. Cut the foam seal (adhesive type) to the proper length and attach it on the top of the window.
4. Close the window securely against the window slider kit.
5. Secure the window slider kit to the window sash.
6. Cut the foam seal to an appropriate length and seal the open gap between the top window frame and outer window frame.

EXHAUST HOSE INSTALLATION

The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance with the way it is being used:

COOL,AUTO,DEHUMIDIFY: Air exhaust hose and hose inlet should be connected to the portable air conditioner.

FAN: Air exhaust hose and hose inlet should be disconnected from the portable air conditioner.

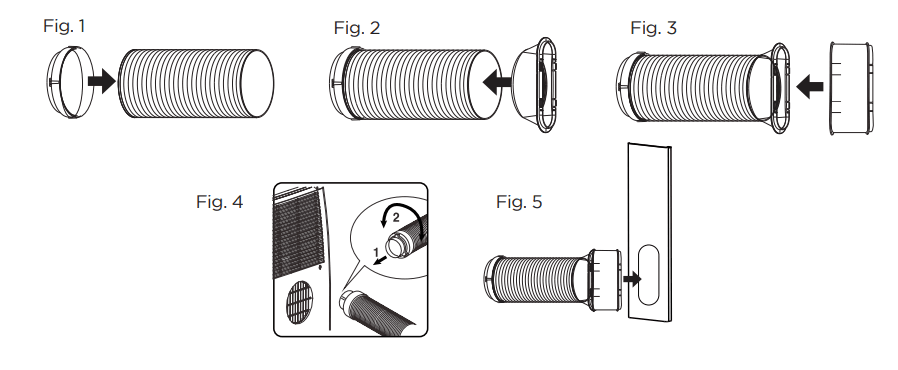

To install:

1. Connect the hose inlet to one end of the air exhaust hose. Push the hose inlet over the end of the hose, push in slightly, and then start threading it on in a counterclockwise direction. (see Fig 1)
2. Connect the hose outlet to the other end of the air exhaust hose. Push the hose outlet over the end of the hose, push in slightly, and then start threading it on in a counterclockwise direction. (see Fig 2)
3. Align the window bracket/air intake hose connector with the hose outlet and push in until it locks into place. You will hear a clicking sound when it does. (see Fig 3)
4. Place the hose inlet against the air outlet opening hook on the back of the portable air conditioner and firmly push and rotate counterclockwise to lock it into place. (see Fig 4)
5. After connecting the hose inlet to the unit, insert the window bracket/air intake hose connector into the opening of the window bracket. Align the connector with the opening on the inside (side with the channels) of the window bracket and push in until it locks into place. You will hear a clicking sound when it does.

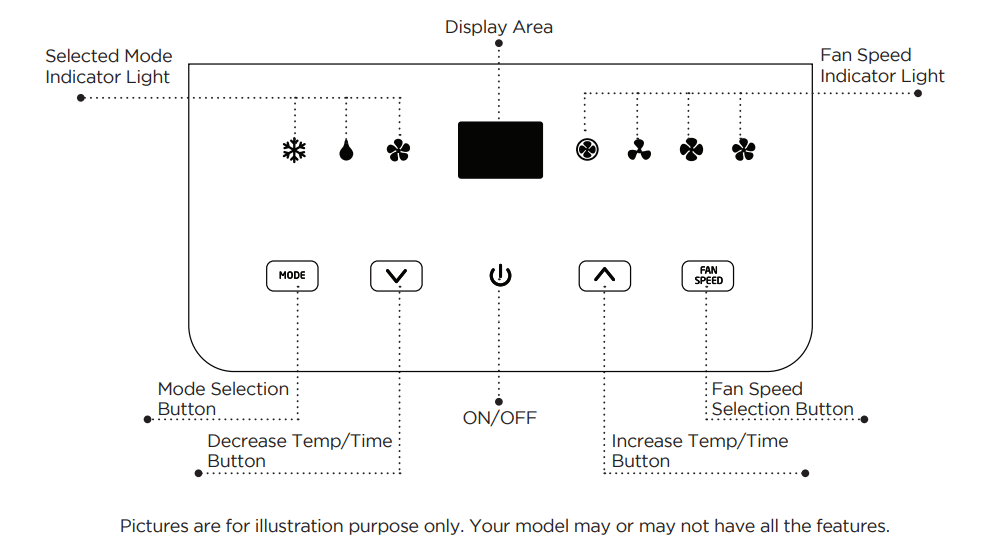

CONTROL PANEL

OPERATING FROM THE CONTROL PANEL

The Control Panel enables you to manage all the main functions of the appliance but to fully exploit its potential, you must use the remote control unit.

TURNING THE APPLIANCE ON

• Plug into the dedicated electrical outlet. Two lines appear on the display indicating that the appliance is in standby. (Fig. 6)
• Press the button until the appliance comes on. The last function active when it was turned off will appear.
  * Never turn the air conditioner off by unplugging it from the mains. Always press the button, then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify the operation.
  Note: Before pressing the Power On button make sure the condensate drain plug in the rear of the unit is securely in place to avoid any leaking.
• Press the MODE button until the light corresponding to the required Mode lights up.

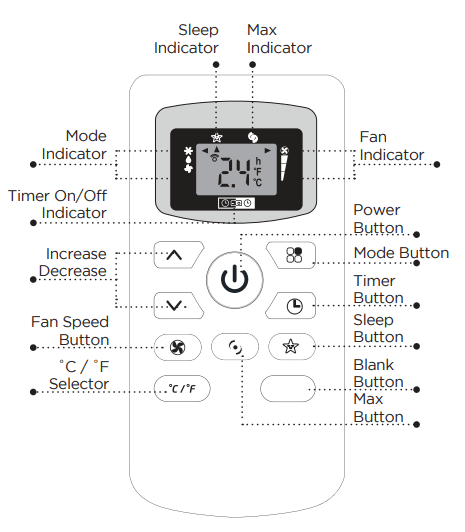

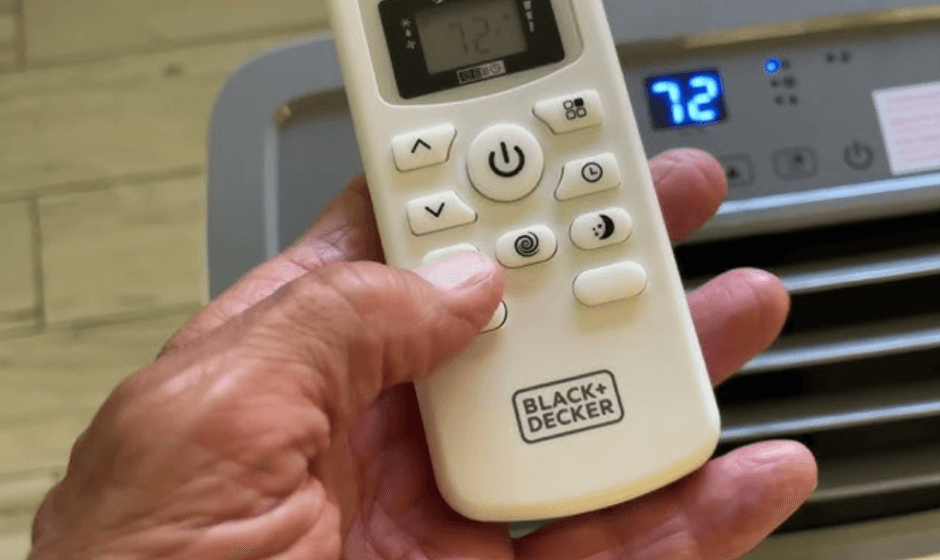

CONTROL PANEL ON REMOTE CONTROL

CORRECT USE

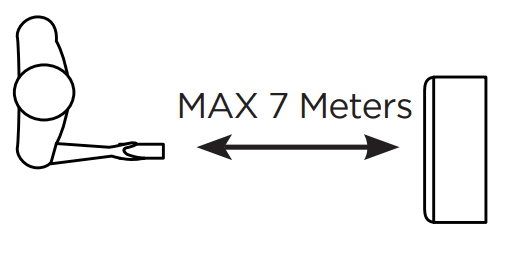

Point the remote control at the receiver on the appliance. The remote control must be no more than 7 meters away from the appliance (without obstacle between the remote control and the receiver). The remote control must be handled with extreme care. Do not drop it or expose it to direct sun light or sources of heat.

INSERTING OR REPLACING THE BATTERIES
Removing the cover on the rear of the remote control: Insert two R03 “AAA” 1.5V batteries in the correct position (see instructions inside the battery compartment);

Replace the cover

If the remote control unit is replaced or disposed of, the batteries must be removed and discarded in accordance with current legislation as they are harmful to the environment.

OPERATING FROM THE REMOTE CONTROL

The first part of the controls on the remote control are the same as those on the control panel of the appliance. You should therefore refer to the instructions in the chapter Operating from the Control Panel to turn the appliance on and select the operating mode (Cool, Dry, Fan) and the fan speed. The following section describes the additional functions corresponding to the controls on the bottom part of the remote control.

COOLING MODE

• Press the POWER button to turn the appliance on.
• Press the MODE buttonto select COOL.
• Set the temperature using the button.
• To select fan speed, press the FAN SPEED button repeatedly until the required speed is selected (HIGH / MED / LOW / AUTO FAN).
  NOTE: In COOLING mode, the appliance automatically removes excess moisture from the atmosphere.

DEHUM MODE

• Keep the windows and doors closed for an effective dehumidification.
• When used as a dehumidifier only keep the air exhaust hose disconnected.
• Press the POWER button to turn the appliance on.
• Press the MODE button to select DRY. The fan speed will always be on FAN (Fan Speed Auto) and cannot be adjusted in DRY mode.
  NOTE: When in the dehumidifier mode, you can use the drain located in the middle of the back of the unit for external drainage.

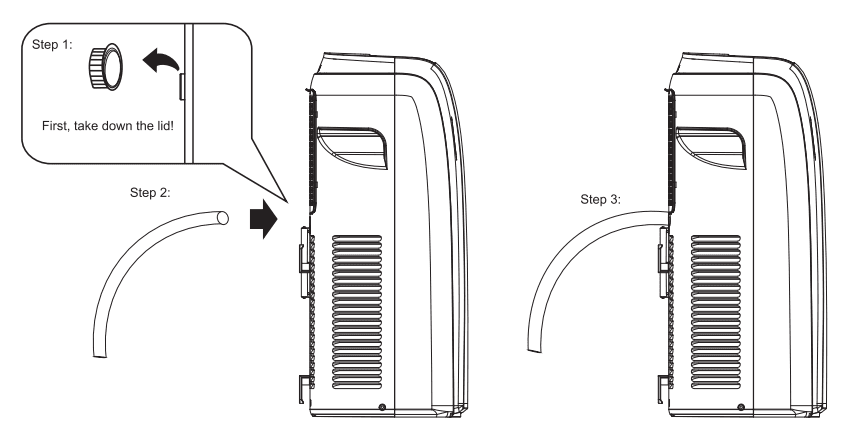

  To use:
  • Loosen the drain plug cover by turning counterclockwise and remove it.
  • Connect the included hose on to the exposed drain plug thread.

FAN MODE

• Press the POWER button to turn the appliance on.
• Press the MODE button to select FAN
• To select fan speed, press the FAN SPEED button repeatedly until the required speed is selected (HIGH / MED / LOW) and AUTO FAN SPEED can not be selected.

MAX FUNCTION

• Ideal for the summer to cool rooms rapidly.
• Activate by simply pressing the MAX button.
• The appliance operates in cool mode at fan speed auto. While this function is selected, it is not possible to set the temperature or change the fan speed.

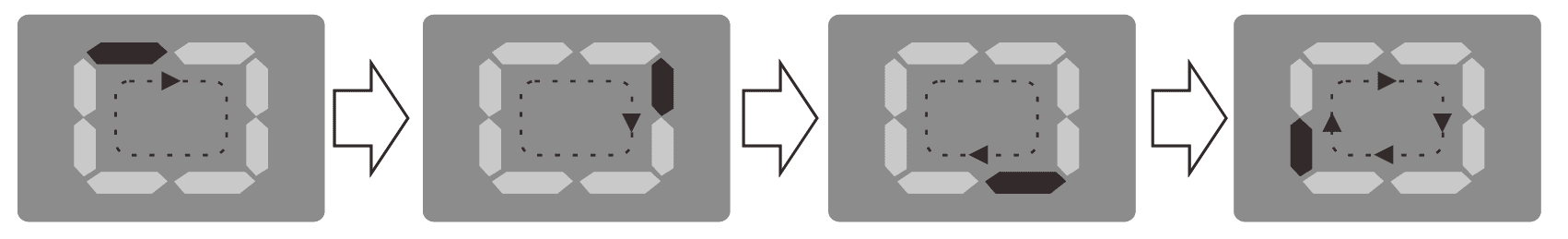

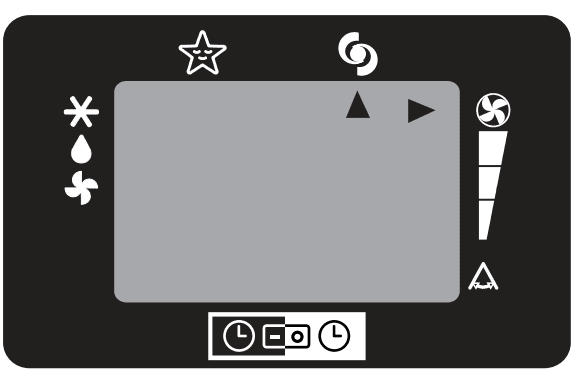

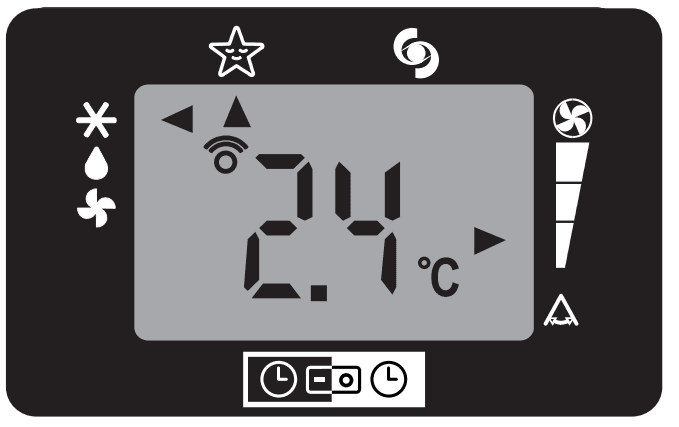

• Display on the control panel:

SLEEP OPERATION

The selected temperature will increase (cooling) by 1˚F/1˚C for the first 60 minutes. The temperature will then increase (cooling) by another 1˚F/1˚C after an additional 60 minutes. This new temperature will be maintained for 8 hours before it returns to shutdown.

NOTE: · This feature is not available under FAN mode.

• This function is useful for the night as it gradually reduces the operation of the appliance. To set this function correctly.
• Select the operating mode (COOL/DRY) as described above.
• Press the SLEEP buttonthe appliance operates in the previously selected mode.

SETTING THE TIMER

• This timer can be used to delay the appliance start-up to the shutdown, this avoids wasting electricity by optimizing operating periods.

WATER DRAINAGE METHOD

This air conditioner is equipped with the very latest MIST technology which means the water tank nearly never fills, hence water drainage will generally only be required at the end of the season (see START-END OF SEASON OPERATIONS on page 19. However, the MIST technology does not operate when the unit is in HEAT mode. Thus the tank may still require emptying in HEAT mode.

NOTE: As a safety measure to positively prevent water spillage the air conditioner is equipped with a fail-safe device if the water tank fills. The unit will completely stop, and the control panel displays ft (FULL TANK) as mentioned in SELF DIAGNOSIS on page 17. The compressor and fan will not restart until the tank has been drained.

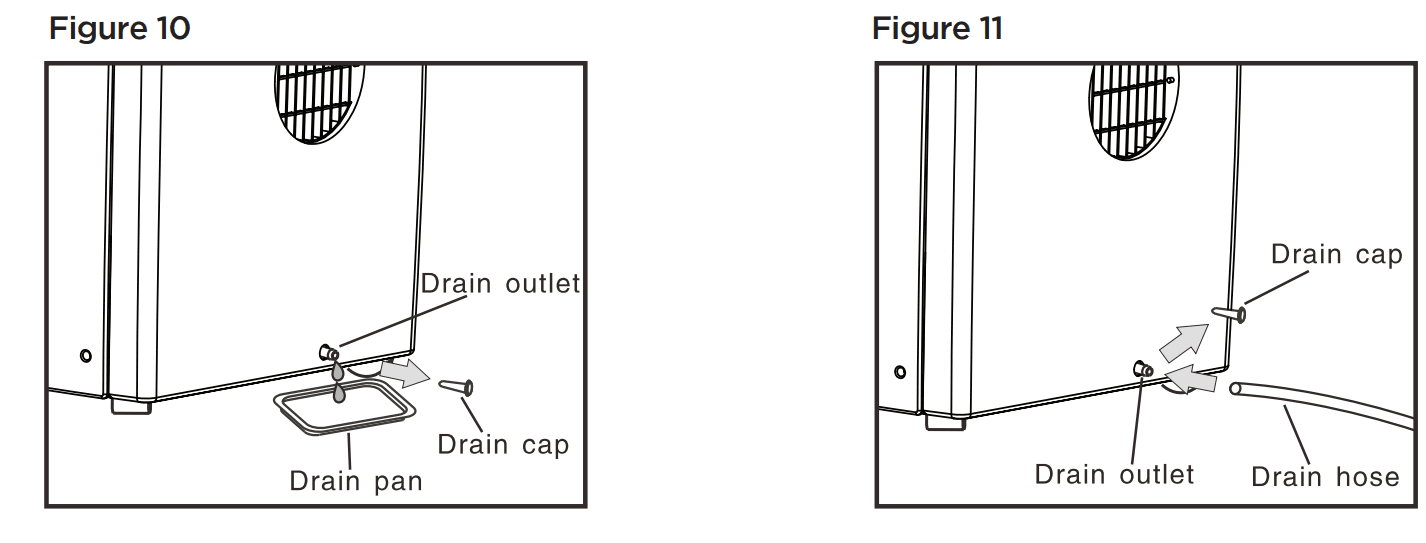

INTERMITTENT DRAINAGE (FIG. 10 AND FIG. 11)

• Turn the air conditioner off then drain the water tank by unplugging the drain cap and allowing the water to flow into a receptacle pan. Your pan may not hold the full contents of the water tank. A number of fills of your pan may be required.
• To ensure all water has been removed tilt the unit by lifting it slightly upwards from the front until no more water drains from the outlet.
• Restart the air conditioner by pressing the power button. Ensure that the unit is in COOL or DRY mode. The compressor will start approximately 3 minutes after the unit is switched on.

CLEANING

Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or button on the remote control. Wait for a few minutes then unplug from the electrical outlet.

CLEANING THE CABINET

You should clean the appliance with a slightly damp cloth and then dry it with a dry cloth.

• Never wash the air conditioner with water. It could be dangerous/
• Never use petrol, alcohol or solvents to clean the appliance.
• Never spray insecticide liquids or similar

CLEANING THE FILTER
To keep your air conditioner working efficiently, you should clean the evaporator filter every week of operation.

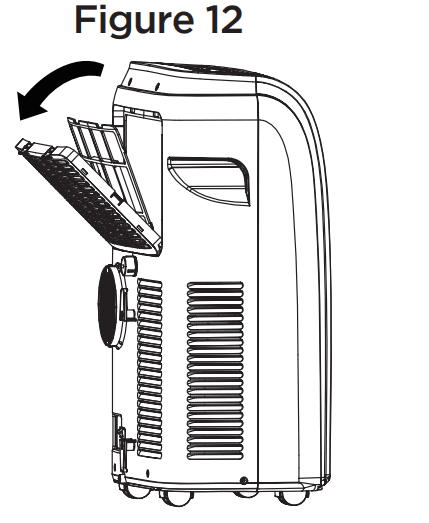

The filter is housed in the intake grill. (Fig. 12) Use a vacuum cleaner to remove dust accumulations from the filter. If it is very dirty, immerse it in warm water and rinse a number of times. The water should be lukewarm. After washing, leave the filter to dry then re-insert the filter.

START-END OF SEASON OPERATIONS START OF SEASON CHECKS

Make sure the power cable and plug are undamaged. Follow the installation instructions precisely.
END-OF-SEASON OPERATIONS

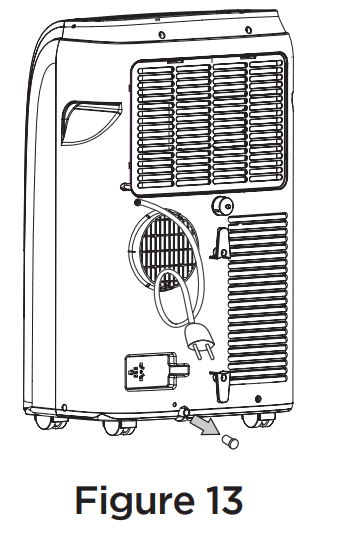

To empty the internal circuit completely of water, remove the cap (Fig. 13). Run off all water left into the basin. When all the water has been drained, put the cap back in place. Clean the filter and dry it thoroughly before putting it back.

TROUBLESHOOTING & WARRANTY

BEFORE YOU CALL FOR SERVICE
IF THE AIR CONDITIONER FAILS TO OPERATE:

• Check to make sure that the air conditioner is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE AIR CONDITIONER YOURSELF.

Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, contact W Appliance Co.’s customer service center or the nearest authorized service center. Customers must never troubleshoot internal components.

LIMITED WARRANTY

Any repair, replacement, or warranty service, and all questions about this product should be directed to W Appliance Co. at 844-299-0879 from the USA or Puerto Rico.

Exclusions:

This warranty does not apply to the below:

1. If the appearance or exterior of the product has been damaged or defaced, altered or modified in design or construction.
2. If the product’s original serial number has been altered or removed or cannot be readily determined.
3. If there is damage due to a power line surge, user damage to the AC power cord or connection to an improper voltage source.
4. If damage is due to general misuse, accidents or acts of God.
5. If repair attempts are done by unauthorized service agents, use of parts other than genuine parts or parts obtained from persons other than authorized service companies.
6. On units that have been transferred from the original owner.
7. On products that have been purchased as refurbished, like new, or second-hand, in a “As-Is” or “Final Sale” terms.
8. To products used in a commercial or rental setting.
9. To products used in settings other than ordinary household use or used other than in accordance with the provided instructions.
10. Damages to service calls for improper installations.
11. Glass parts and other accessory items are included with the unit.
12. Transportation and shipping costs associated with the replacement of the unit.
13. Food loss for loss due to product failure or delay in service, repair, or replacement.
14. Service calls to instruct you how to use your product.
15. Service calls to repair or replace the house fuse, reset the circuit break, or correct the wiring in the house.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER; W Appliance Co. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE DURATION OF THE WARRANTY.
