BLACK DECKER CM0700BZ 4-in-1 5-Cup Coffee Maker Manual

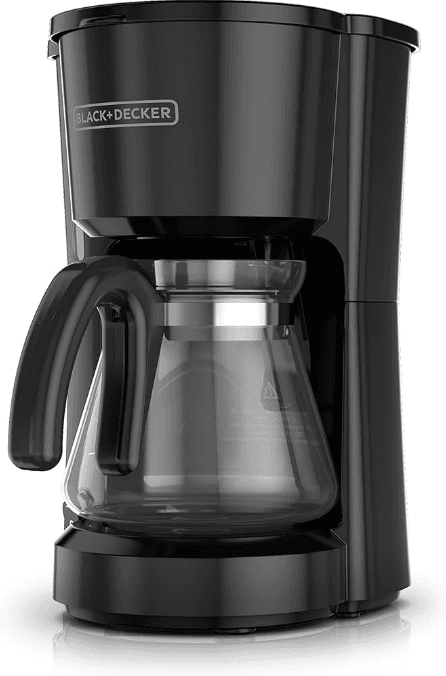

BLACK DECKER CM0700BZ 4-in-1 5-Cup Coffee Maker

IMPORTANT SAFEGUARDS.

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact Consumer Support at the toll-free number listed in the warranty section.
The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
Do not use outdoors.
Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
To disconnect, turn any control off, then remove the plug from the wall outlet.
Do not use this appliance for anything other than its intended use.
Keep the lid on the carafe when in use.
Scalding may occur if the lid is removed during the brewing cycles.
The carafe is designed for use with this appliance. It must never be used on a range top.
Do not set a hot carafe on a wet or cold surface.
Do not use a cracked carafe or a carafe having a loose or weakened handle.
Do not clean the carafe with cleansers, steel wool pads, or other abrasive material.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
Extension cords are available and may be used if care is exercised in their use.
If an extension cord is used:
1. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
2. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3. The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed in these instructions.

HOW TO USE

This product is for household use only.

GETTING STARTED

Remove all packing materials, any stickers, and the plastic band around the power plug.g
To register your warranty, go to www.prodprotect.com/applica
Wash removable parts as instructed in CARE AND CLEANING.
Open the lid.
Pour fresh cold water into the water reservoir up to the 5-cup mark.
Place an empty permanent filter or a basket-style paper filter into the brew basket.
Place the brew basket into the top of the coffeemaker.
Uncoil the power cord and plug it into a standard electrical outlet.
Brew water through the appliance without adding coffee grounds. This removes any dust or residue that may remain in the system during the manufacturing process.
Discard the water from the carafe and paper filter (if using) from the filter basket.
Turn off the appliance; unplug and allow the appliance to cool down.

BREWING COFFEE

Open the lid.
Pour fresh cold water up to the desired level mark into the water reservoir.
Place an empty permanent filter or a basket-style paper filter into the brew basket.
Place the brew basket into the top of the coffeemaker.
Add the desired amount of ground coffee.
Note: Not sure how much coffee to use? Begin by using 1 level tablespoon of medium grind coffee for each cup of coffee to be brewed.
Close the lid securely.
Place the empty carafe on the Keep Hot carafe plate.
Plug the cord into a standard electrical outlet.
Press upward the on/off (I/O) switch button; the blue light comes on and brewing begins.
Replace the carafe on the Keep Hot carafe plate when not serving to keep coffee hot.
Turn off the coffeemaker when done brewing.
Unplug the appliance when not in use.

SNEAK-A-CUP® FEATURE

Remove the carafe, and brewing will pause. The carafe must be placed back on the carafe plate within 30 seconds to prevent overflow. Brewing will then begin again.

CARE AND CLEANING

This product contains no user-serviceable parts. Refer the service to qualified service personnel.

CLEANING

Be sure the unit is unplugged and cooled.
Open the lid, remove the brew basket (lift straight up).
Discard the paper filter (if using) from the filter basket.
Wash the brew basket, permanent filter (if using), carafe and carafe lid in the dishwasher, top-rack only, or hand-wash with warm water and dish soap.
To clean inside one-piece cover, open the cover. Wipe surfaces with a damp cloth and close the cover.

CLEANING WITH VINEGAR (DESCALING)

Mineral deposits left by hard water can clog your coffeemaker. Cleaning with vinegar is recommended once a month.

Your coffeemaker will not work properly if it is not descaled regularly.

Pour white vinegar into the water reservoir up to the 2-cup level on the water window.
Add cold water uthe p to the 5-cup line.
Place a paper filter or permanent filter in the brew basket and close the cover.
Set empty carafe on the Keep Hot carafe plate.
Turn on coffeemaker and let half the cleaning solution brew into carafe (until water level goes down to around 3). Turn off coffeemaker and let it soak for at least 15 minutes to soften the deposits.
Turn on the coffeemaker and pour the remaining cleaning solution into the carafe.
Turn off the coffeemaker, empty the coffee filter, and discard the oiled filter (if using).
Fill reservoir with cold water to 5-cup line, replace empty carafe, then turn on coffeemaker for a complete brew cycle to flush out remaining cleaning solution. You may wish to repeat this step to eliminate any remaining vinegar smell/taste.
Wash the brew basket, permanent filter, and carafe as instructed in CLEANING.

NEED HELP?

For service, repair, or any questions regarding your appliance, call the appropriate 800 number on the cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail the product back to manufacturer, nor bring it to a service center. You may also want to consult the website linked to this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

Any defect in material or workmanship provided; however, Spectrum Brands, Inc.’s liability will not exceed the purchase price of the product.

For how long?

Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

Save your receipt as proof of the date of sale.
Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

Damage from commercial use
Damage from misuse, a abuse, or neglect
Products that have been modified in any way
Products used or serviced outside the country of purchase
Glass parts and other accessory items that are packed with the unit
Shipping and handling costs associated with the replacement of the unit
Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

WARNING

RISK OF FIRE OR ELECTRIC SHOCK. DO NOT OPEN.

The lightning symbol refers to “dangerous voltage”; the exclamation symbol refers to maintenance instructions. See below.

Warning: To reduce the risk of fire or electric shock, do not remove the cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

Specifications

Model: CM0700
Customer Care Line: 1-800-231-9786
For online customer service: www.prodprotect.com/applica

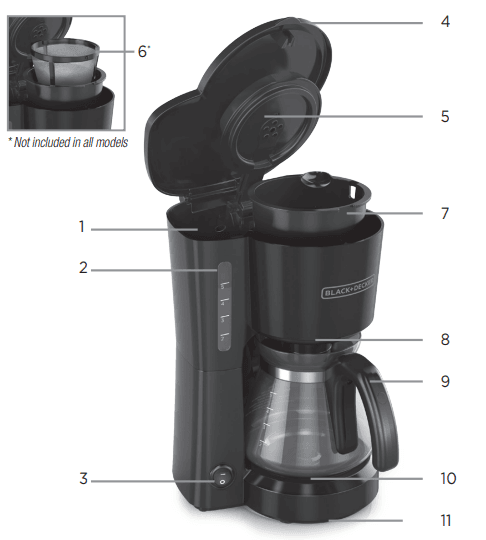

5-CUP COFFEEMAKER

The product may vary slightly from what is illustrated.

Water reservoir
Water level window
Lighted On/Off (I/O) switch
Lid
Shower head
Permanent filter (pat CM0700- 010-01)
Brew basket (pat CM0700- 020-02)
Sneak-a-Cup™ feature
Duralife™ 5 cup Carafe with lid (pa no. CM0700-03)
KKeephot carafe plate
Base
Cord Storage (not shown)
