Bose S1 Pro+ Portable Bluetooth PA Speaker System User Manual

Bose S1 Pro+ Portable Bluetooth PA Speaker System

IMPORTANT SAFETY INSTRUCTIONS

Please read and keep all safety and use instructions.

• Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance Bose Corporation hereby declares that this product is in compliance with the essential requirements per Radio Equipment Regulations 2017 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

Important Safety Instructions

• Do not use this apparatus near water. Clean only with a dry cloth. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet. Only use attachments/accessories specified by the manufacturer. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

• This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock. This symbol on the product means there are important operating and maintenance instructions in this guide. This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.
  • To reduce the risk of fire or electrical shock, do NOT expose this product to rain, dripping, splashing, or moisture, and do not place liquid-filled objects such as vases, on or near the product.
  • Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
  • Do NOT make unauthorized alterations to this product.
  • Do NOT use a power inverter with this product.
  • Do NOT use in vehicles or boats.

Provide an earth connection or ensure the socket outlet incorporates a protective earthing connection before connecting the plug to the main socket outlet.

• Denmark: “Apparatus Stik prop skill tillites a Srikanta med lord, some giver forbidders’ till stikproppens jord.”
• Finland: “Laite on levitative suojamaadoituskoskettimilla varustettuun pistorasiaan”
• Norway: “Apparatet må tilkoples jordet stikkontakt”
• Sweden: “Apparaten skall anslutas till jordat uttag”
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• The battery provided with this product may present a risk of fire, explosion or chemical burn if mishandled, incorrectly replaced or replaced with an incorrect type.
• Do not expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire or the like).
• Only use genuine Bose batteries with this product. Contact Bose customer service for replacement batteries.
• Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.
• Do not place or install near any heat sources, such as fireplaces, radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
• Do not use the Bose S1 Pro+ Wireless PA System with an unstable tripod/stand. The speaker is only designed for use on a 35 mm post, and the tripod/stand must be capable of supporting a speaker with a minimum weight of 15 lbs (6.8 kg) and an overall size of 13.1 x 9.4 x 11 inches (332.6 x 240 x 279.8 mm). Using a tripod/stand that is not designed to support the size and mass of the Bose S1 Pro+ Wireless PA System may lead to an unstable and hazardous condition that could result in injury.
• The product label is located on the bottom of the product.

REGULATORY AND LEGAL INFORMATION

NOTE:

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used under the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
  • Reorient or relocate the receiving product or antenna.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.
  • Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate this equipment.
    This device complies with part 15 of the FCC Rules and with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
  • For Europe: Bluetooth Module: Frequency band of operation 2400 to 2483.5 MHz
  • Maximum transmit power less than 20 dBm EIRP. 2.4 GHz Module: Frequency band of operation 2402 to 2482 MHz. Maximum transmit power less than 10 dBm (10mW) EIRP. Maximum transmit power is below regulatory limits such that SAR testing is not necessary and exempt per applicable regulations. This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling help protect natural resources, human health, and the environment. For more information on the disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Low-power Radio-frequency Devices Technical Regulations

• Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low-power radio-frequency devices. The low-power radio-frequency devices shall not influence aircraft security and interfere with legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Management Act. The low-power radio-frequency devices must be susceptible to interference from legal communications or ISM radio wave-radiated devices.

Product Power State Table

• The product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC and the Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2020, is in compliance with the following norm(s) or document(s): Regulation (EC) No. 1275/2008, as amended by Regulation (EU) No. 801/2013.

Date of Manufacture

• The eighth digit in the serial number indicates the year of manufacture; “3” is 2013 or 2023

Importers

• Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100.
• Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bose Corporation is under license. Google and Google Play are trademarks of Google LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. Bose, the B logo, L1, and Tone Match are trademarks of Bose Corporation. Bose Corporation Headquarters: 1-877-230-5639 ©2024 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.

LICENSE DISCLOSURES

MIT License

• Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of
  the Software.
• THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Packages: STM32CubeF4 HAL Driver MCU Component and STM32 LL – STM32 Low Layer API Copyright 2017 STMicroelectronics. All rights reserved. The above is/are subject to the license terms reprinted below.

Clause BSD License

• Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of the nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
• THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS  OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

CONTENTS

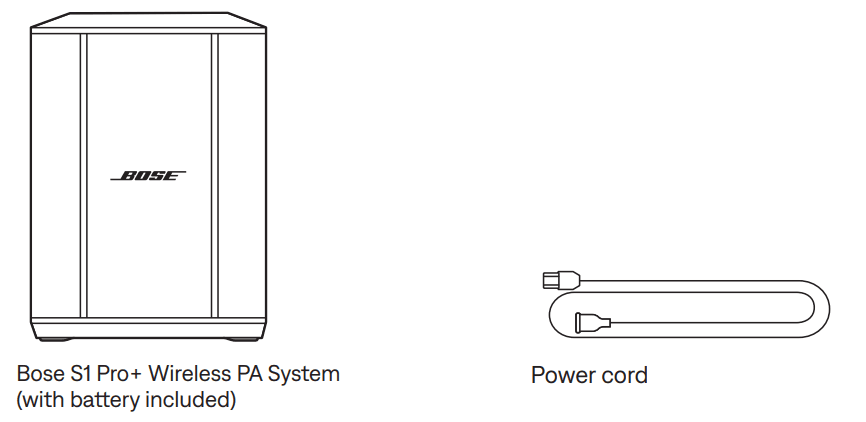

Confirm that the following parts are included

NOTE:

• If any part of the product is damaged, don’t use it. Contact your authorized Bose dealer or Bose customer service. Visit: support.Bose.com/S1ProPlus
• The Bose app lets you set up and control the system from any mobile device, such as a smartphone or tablet. Using the app, you can control the system remotely, manage system settings, and access exclusive features like Tone Match preset customization, channel and reverb mute, saved Scenes, and Dual Wireless Streaming. If you have already created a Bose account for another Bose product, see “Add the system to an existing account.”

DOWNLOAD THE BOSE APP

1. On your mobile device, download the Bose app.
2. Follow the app instructions.

ADD THE SYSTEM TO AN EXISTING ACCOUNT

To add your Bose S1 Pro+ Wireless PA System, open the Bose app and add your system.

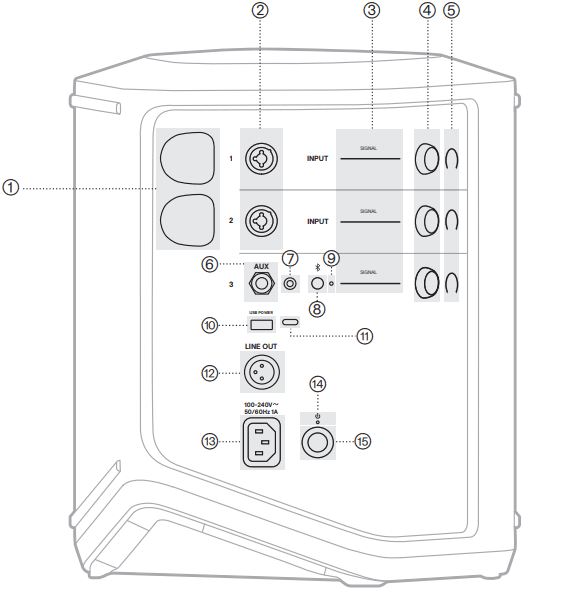

PANEL OVERVIEW

Channel and System Settings

• Using the Bose app, you can customize the default Microphone or Instrument presets on Channels 1 and 2 to better optimize system EQ for your setup scenario. Select from a library of ToneMatch presets to match your specific microphone or instrument model, apply generic EQ filters, or get the best sound from a guitar amp modeler pedal. You can access this option from the Settings menu. When you customize a ToneMatch preset on a channel, an H symbol appears next to the icon on the channel display.

CHANNEL INSERT SETTINGS

• Channel insert settings let you enable or disable the effects loop functionality for a channel. When enabled, you can connect your effects units or pedals to the channel input while using a wireless transmitter for your source. For more information, see “Connect effects to a channel insert when using a wireless transmitter”

CHANNEL WIRELESS SETTINGS

• Channel wireless settings let you enable or disable wireless transmitter functionality for a channel. For more information, see “Enable/Disable wireless transmitter functionality” on

CHANNEL EXPANDERS SETTINGS

• The Expanders setting determines whether the system reduces the volume of low-level background noise for a channel. For more information, see “Enable/Disable the Expanders setting”

LIVE STREAM MODE SETTINGS

• Live Stream mode allows the system to be recognized as an audio interface when you connect it to your computer using a USB-C® cable. This lets you perform live for an online audience or record audio directly to your computer’s digital audio workstation (DAW).

About Live Stream mode

• When Live Stream mode is enabled, the system passes a dual mono mix of Channels 1, 2, and 3 to a connected computer. In this mode, the channel volume controls behave like faders on a mixer. Adjusting channel volume using either the channel controls or the Bose app adjusts the level of that channel within the mix being sent to your computer. A monitor volume control also appears on Channel 3, allowing you to adjust the master volume of the system speakers without affecting the computer mix.

Enable/Disable Live Stream mode

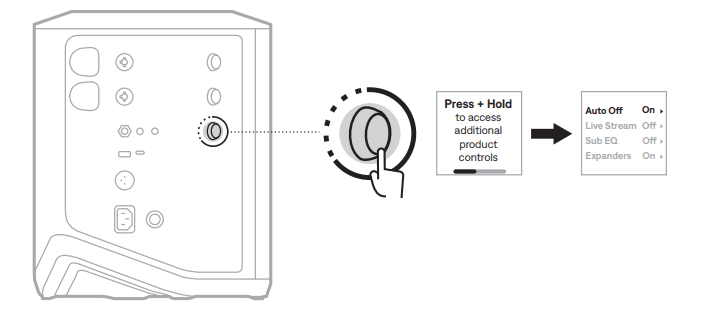

• Press and hold the channel control for Channel 3 until the additional controls menu appears on the channel display.

Adjust monitor volume in Live Stream mode

• When Live Stream mode is enabled, you can use the channel control for Channel 3 to adjust the master volume of the system speakers without affecting the mix being sent to your computer.

SUB EQ SETTINGS

• The Sub EQ setting is a crossover that optimizes system EQ for setup scenarios in which a powered subwoofer is connected to the system LINE OUT port. You can use Sub EQ with any powered subwoofer, but for optimal performance, Bose recommends the Bose Sub1 or Sub2 Powered Bass Module. Once you enable Sub EQ, it stays enabled until you disable it or the system powers off.

NOTES:

• For information on how to connect the system to a Bose Sub1 or Sub2 Powered Bass Module, refer to the Bose Sub1/Sub2 Powered Bass Module owner’s guide. Visit: support.Bose.com/Sub1 or support.Bose.com/Sub2
• You can also enable/disable Sub EQ using the Bose app. You can access this option from the Settings menu.

BOSE APP-EXCLUSIVE FEATURES

• You can mute channels and mute reverb effects for a channel in the Bose app. You can access channel mute and reverb mute settings from the main screen.

ENABLE/DISABLE DUAL WIRELESS STREAMING

The Dual Wireless Streaming feature in the Bose app lets you play Bluetooth audio from both the system and another compatible Bose system at the same time in either dual mono or stereo. You can access this option from the Settings menu. For sample setup scenario images.

Compatible systems include:

• Bose S1 Pro+ Wireless PA System
• Bose L1 Pro8 & L1 Pro16 Portable Line Array System
• Bose L1 Pro32 Portable Line Array
• More systems may be added periodically by using manual
