Introduction

Thank you for purchasing the Brandstand CubieTrio®. Please be sure to read this User Manual carefully to ensure proper installation. The information in this document is subject to change and does not represent a commitment on the part of Brandstand. No part of this document may be reproduced, transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated into any language for any purpose other than the purchaser’s personal use, without the written permission of Brandstand.

Product Features

User-friendly alarm clock with single-day alarm (optional)
Convenient cable-free Qi wireless charging
Connections for AC and USB-powered devices
Efficient and stylish design
Complete surge protection through all AC outlets and/or USB Ports

Product Description

2 Tamper-Resistant 110V AC outlets
2 Powered USB ports
Qi wireless charger
Surge Protector
6ft 14AWG Power Cord with Pass Through Plug
Rubber Feet
2 Wood Screws
Security C-Clamp

Technical Specifications

Continuous Duty Electrical Rating 125VAC 12A 60Hz 1500W
Maximum Energy Dissipation 615J L-N 205J L-G 205J N-G 205J
Maximum Spike Current 36000A L-N 12000A L-G 12000A N-G 12000A
UL Clamping Voltage (3-line) UL1449 800V VPR L-N 1200V, L-G 1200V, N-G 1200V
AC Outlets Output 125V 12A
Powered USB Output
- Single USB-C Output(20W MAX ): 5V 3A or 9V 2.22A or 12V 1.67A
- Single USB-A Output(18W MAX): 5V 3A or 9V 2A or 12V 1.5A
- Double Port USB-C +USB-A Output(15W MAX): 5V 3A
Wireless Charging Output Up to 10W
Wireless Charging
- Charging distance：≤ 8mm
- Charging efficiency：≥ 76%
EMI/RFI Filtration 150kHz-1000MHz up to 40db
Surge Response Time (ns) <20 ns
Working Temperature 0-35º C
Power Cord 6ft 15W 3-line
Housing Material UL94V-0
Working Surroundings Indoor Fixed Mount

Important Safeguards

Ensure the unit is plugged into an AC 120V-60Hz outlet. The use of incorrect outlets could cause the unit to malfunction or catch fire.
To reduce the risk of fire or electrical shock, do not use this device with a receptacle in which the slot openings do not align with the blades.
Do not allow children to operate the unit without adult supervision.
Always ensure the product is unplugged from the electrical outlet before relocating or cleaning it.
Keep the power cord and product away from heated surfaces.
The unit should not be exposed to dripping or splashing and no objects filled with liquids, such as vases should be placed on or around the product. It should not be used with aquariums or other water-related products.
Do not place or drop product into water or other liquids. If product falls into water, immediately unplug it from the electrical outlet.
Do not put any stress on the power cord where it connects to the product, as the power cord could fray and break.
Do not plug/unplug the product into/from the electrical outlet with a wet hand.
Do not operate the product if it has a damaged or cut power cord or adapter, if wires ar
exposed, if it malfunctions, if it is dropped or damaged, or if it is dropped in or exposed to water.
Place the unit where there is good air circulation.
The product has no user-serviceable parts. Do not attempt to examine or repair this product yourself. Only qualified service personnel should perform the servicing.
No open flame sources, such as candles, should be placed on the product.
The product should only be used indoors and in dry locations.
Working Temperature 0-35ºC

Limited 1 Year Warranty

Products are warranted by Brandstand against manufacturing defect in material and workmanship under normal use for one year from the date of purchase. Defective products will be exchanged for the same or a comparable item.

Return Policy

For a refund or exchange, products must be returned within 30 days of the original purchase date. Customers must contact Brandstand to obtain a Return Merchandise Authorization (RMA) number and specific shipping instructions prior to returning the product. Any product returned without an RMA will be refused. Product must be in original box with original accessories and packaging, undamaged, clean and in brand-new condition. Products that are incomplete, damaged or have been used will require a deduction in refund. There is a 30% restocking fee on all returned products. Refunds will be issued by check. Refund checks are mailed the 10th day from the date the product is returned. Delivery charges and customized products are non-returnable.

Disclaimer of Damages

In no event shall Brandstand Products, or its suppliers, be liable for indirect, incidental, or consequential damages, loss of profit, loss of use or data, or interruption of business, whether the alleged damages are labeled in tort, contract, or indemnity, even if Brandstand Products or its suppliers has been advised of the possibility of such damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply.

Battery Handling and Usage:

WARNING: Only adults should handle batteries. Do not allow a child to use this product unless Battery Compartment Cover is securely attached to the Battery Compartment in accordance with all product usage instructions.

Follow the battery manufacturer’s safety and usage instructions.
Keep batteries away from children and pets.
Do not mix a new and a used battery or mix batteries of different chemistries or sizes.
Insert the batteries observing the proper polarity (+/-) as indicated inside the battery compartment. failure to properly align the battery polarity can cause personal injury and/or
property damage.
Remove spent or discharged batteries when not using the product for an extended period.
Never throw batteries into a fire. Do not expose batteries to fire or other heat sources.
Dispose or recycle spent/discharged batteries in compliance with all applicable laws. For detailed information, contact your local solid waste authority.

The Brandstand Difference

Surge Protection
All Brandstand Cubie products pass:

UL1449 Surge Protection Devices Standard
UL 962A for Furniture Power Distribution Units
UL2738 for Wireless Charging Safety

Liquid Spill Testing
For enhanced safety, the Cubie Product Line was designed for and successfully passed a UL spill test conducted by our ETL testing lab.

Pass-Through Power
The pass-through power plug allows another device (i.e. lamp or alarm clock) to be plugged into the same wall outlet used by the Cubie Product. CubieTrio complies with the WPC (Wireless Power Consortium) Qi Standard

Unpacking and Set up:

Carefully remove from packaging. Verify that you have all necessary components before you dispose of box and packaging.
Component List:
1. CubieTrio Main Unit
2. Security C-Clamp
3. 2 Wood Screws
Place in the desired location.
Note: This product is designed to be used on a level, stable, flat surface such as a table, desk, shelf, or stand, convenient to an AC outlet, out of direct sunlight and away from sources of excess heat, dust, moisture or vibration.
Plug directly into the wall AC outlet. Do not plug into another surge protector or extension cord.
Secure cord with Security C-Clamp to the back of the nightstand or desk. Wood screws are included.

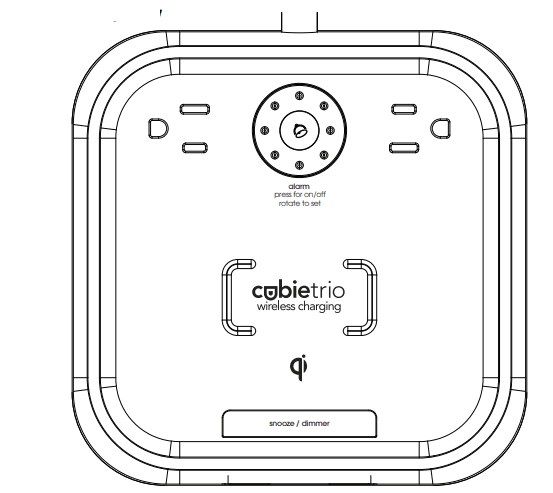

CubieTrio – Top View

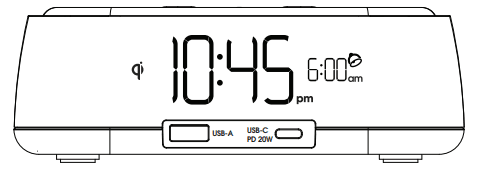

CubieTrio – Front View

Setting the Time:

Press and hold the SNOOZE/DIMMER button for 6 seconds.

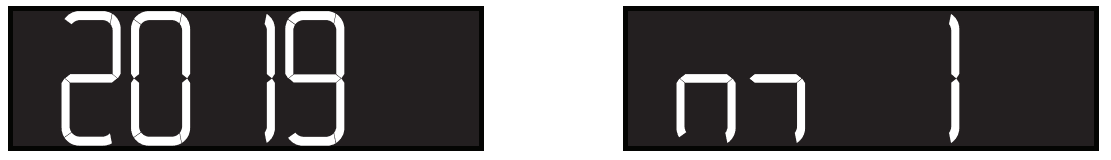

The year will begin to flash, adjust by rotating the wheel, and press the center button to select.
The month will begin to flash, adjust by rotating the wheel, and press the center button to select.

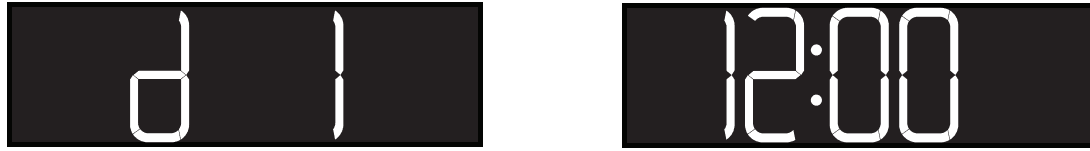

The day will begin to flash, adjust by rotating the wheel, and press the center button to select.
Time will begin to flash, adjust by rotating the wheel, and press the center button to select.

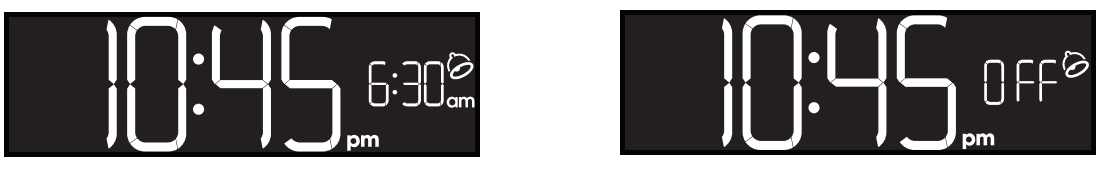

Setting the Alarm:

Press the center button to turn ON the alarm.
Alarm time will begin to flash, adjust by rotating the wheel, and press the center button to select. (Alarm will automatically set to the last selected alarm time after 6 seconds.)
Press the center button to turn OFF the alarm.

Qi Wireless Charging:

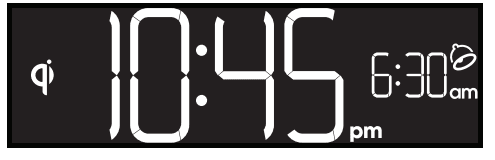

Place Qi enabled device on CubieTrio elastomer brackets. When the power connection has been made, the Qi symbol in the display will be illuminated. This indicates your device is wirelessly charging.
FOD – Foreign Object Detection is the ability of the transmitter to detect a stray metal object in the wireless charging field. If a metallic object is placed on the charging pad, the Qi symbol in the display will blink and there will be an audible beep. Remove the metal object immediately.

Secure Battery Door/Hidden Switches:

Single Day Alarm (Preset to ON)

ON: Alarm time will reset to 6:00am with every activation of the alarm
OFF: The alarm time will default back to the last set alarm time with every activation.

Daylight Saving Time (Preset to ON)

ON: Time will automatically update +1 or -1 hour based on the pre-set Daylight Saving Time Calendar. Year, Month and Day must be set correctly for this feature to work
properly.
OFF: Time will not automatically update for Daylight Saving Time. Any changes to the time must be manually updated.

Back Up Battery Function
One CR2032 Coin Cell Battery is supplied with the clock. If the AC power supply is interrupted, the internal clock will not be interrupted due to battery backup. Please note – The back up battery will not support the Alarm Settings.

Other Features:

Snooze/Dimmer Button
When in standby mode, press the SNOOZE/DIMMER button to change brightness (off, dimmest, medium, brightest). When the display is turned off, user can also press and rotate the wheel to turn the display ON. When an alarm is sounding, press the SNOOZE/DIMMER button to go to snooze status. The alarm symbol will flash, and the alarm will sound after 9 minutes. Gradual Wake The alarm will sound in a low volume and gradually increase to a higher volume.
