British Gas PT Plus Programmable Thermostat

Your PT Plus

The PT Plus thermostat is a programmable thermostat which can be set to operate either as a 24-Hour product (the same program for every day of the week) or a 5-2 Day/7-Day. 5-2 days allows you to set a program for weekdays and a program for the weekend. Full 7-day functionality allows you to set a different program for every day of the week. Each program type allows you to set 6 time and temperature events.

The default setting is 24-Hour with six time and temperature events.

Clock Setting

Your PT Plus is fitted with a real-time clock, which is pre-set at the factory. You will not have to alter the time settings. A special feature of this real-time clock is to automatically update the time during the summer/winter time change, removing the need to manually alter the clock.

General Operation

With the unit in Auto mode (the small arrow at the bottom of the screen will point to Auto) the temperature can be changed for a short time by using the + or – buttons. Changing the temperature in this way will keep the PT Plus set to your new temperature until the next pre-programmed event (at which time it will revert to programmed temperature). The temperature you are setting will flash on the screen. Once the temperature is set, the unit will revert to showing the current temperature. The 􀂛 indicator will show on the screen if the heating is turned on.

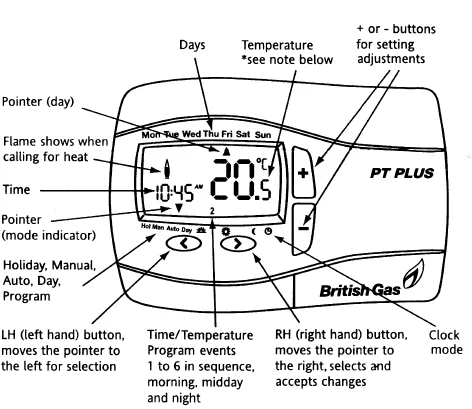

Controls and Display Layout

Displayed temperature is the actual room temperature unless adjusting the + or – button when it displays the set temperature. Once the adjustment is complete and after 5 seconds, this will return to the actual room temperature.

How do I know when to change the batteries?

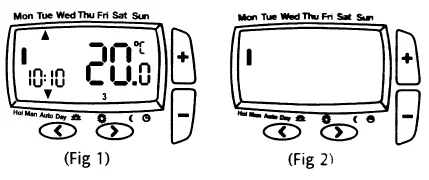

When the batteries start to run low, a battery icon will display for 15 seconds, every 30 seconds, to indicate “low battery.” During this time, the PT PLUS will function normally (see Fig. 1 ).

Please replace batteries with (2 x AA 1.5V Alkaline batteries).

After 6 months, the PT PLUS will cease to function and will permanently display the battery icon and nothing else. shown in (Fig. 2).

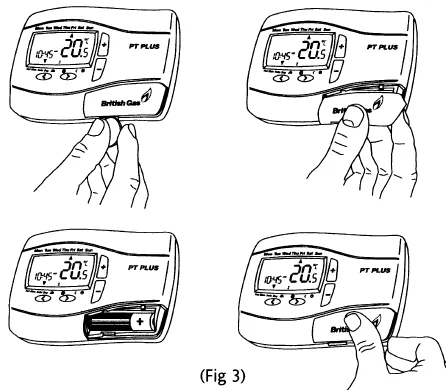

How to replace the batteries: see Fig.3.

Remove the battery cover using a coin. Replace the spent batteries with 2 x AA 1.5V alkaline batteries, ensuring correct orientation. Replace the battery cover by pressing fully home.

Basic Settings

The PT Plus thermostat is a programmable thermostat that can be set to operate either as a 24-Hour product (the same program for every day of the week) or a 5/2 Day/7 Day. 5-2 days allows you to set a program for weekdays and a program for the weekend. Full 7-day functionality allows you to set a different program for every day of the week. Each program type allows you to set 6 time and temperature events.

The default setting is 24-Hour with six time and temperature events.

PT Plus 24-Hour

Pre-set Program 24-Hour

Your PT Plus comes with the following default settings pre-programmed for your convenience:

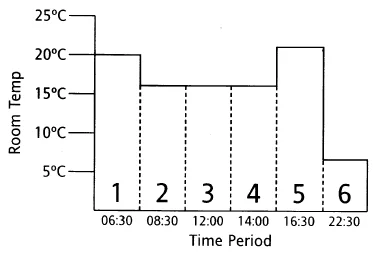

The above settings can be understood using the chart below

As you can see, at 06:30, the heating will come on to raise the temperature to 20°C. At 08:30, the temperature set point is dropped from 20°C ( down to 16°C, it stays at 16°C ( throughout the day, until 16:30 when the temperature increases to 21°C. The temperature then drops down to a night-setback temperature of 7°( until 06:30 when the cycle repeats for the next day.

To adjust these times and temperatures

1. With the product operating as normal in the Auto mode, press > twice until the display is flashing as shown. The time will be flashing, use the + or – buttons to adjust the 1st time as required.
2. Once the time has been set, press > to confirm and use the + or – button to adjust the required temperature.
3. Once the temperature has been set, press > to confirm and repeat steps 2 – 3 until all 6 periods have been set or you have modified the last temperature or time you wish to adjust.
4. Once the final temperature has been set, press > to confirm the setting. To exit, press < until you return to auto mode with the bottom arrow pointing at auto.

To change the temperature for a short period (Override):

1. Press + or – buttons to adjust the set temperature. The set temperature is shown flashing.
2. After 5 seconds will start controlling at the selected set point, but display the actual room temperature.
3. To exit override, press > once or wait until the next change in the preset program.

To set a constant room temperature (Manual mode):

1. Press > once. The display shows temperature flashing (example 20°)
2. Press + or – buttons to adjust the temperature as required. The temperature will stop flashing after 5 seconds and start controlling at this temperature.
3. To exit manual mode, press > once. to return to auto.

User Instructions

What is a programmable room thermostat?

… an explanation for householders

A programmable room thermostat is both o programmer and a room thermostat. A programmer allows you to set ‘On’ and ‘Off time periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

So, a programmable room thermostat lets you choose what times you want the heating to be on, and what temperature it should reach while it is on. It will allow you to select different temperatures in your home at different times of the day (and days of the week) to meet your particular needs.

Turning a programmable room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the design of the heating system, for example, the size of the boiler and radiator.

Neither does the setting affect how quickly the room cools down. Turning a programmable room thermostat to a lower setting will result in the room being controlled at a lower temperature and save energy.

The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have chosen, and then leave it alone to do its job. The best way to do this is to set low temperatures first, say 18°C, and then turn them up by one degree each day until you are comfortable with the temperatures. You won’t have to adjust the thermostat further. Any adjustments above these settings will waste energy and cost you more money.

If your heating system is a boiler with a radiator, there will usually be only one programmable room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don’t have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.

The time on the programmer must be correct. Some types have to be adjusted in spring and autumn at the changes between Greenwich Mean Time and British Summer Time.

You may be able to temporarily adjust the heating programme. for example, ‘Override’. ‘Advance· or ‘Boost’. These are explained in the manufacturer’s instructions.

Programmable room thermostats need a free flow of air to sense the temperature. So they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may prevent the thermostat from working properly.
