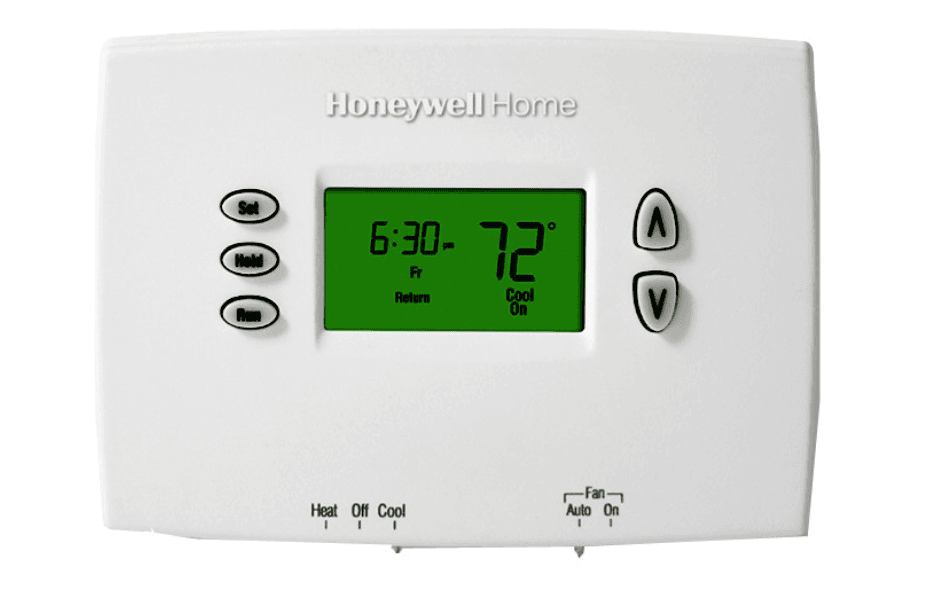

Honeywell Pro 2000 Series Programmable Thermostat
About your new thermostat
Your new Resideo thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.
Features
- The backlit display is easy to read
- Displays ambient (measured) temperature at all times
- One-touch access to setpoint temperature
- Preset program settings
- Temporary and permanent override of schedule
- An early start ensures the right temperature at the right time
- Built-in compressor protection

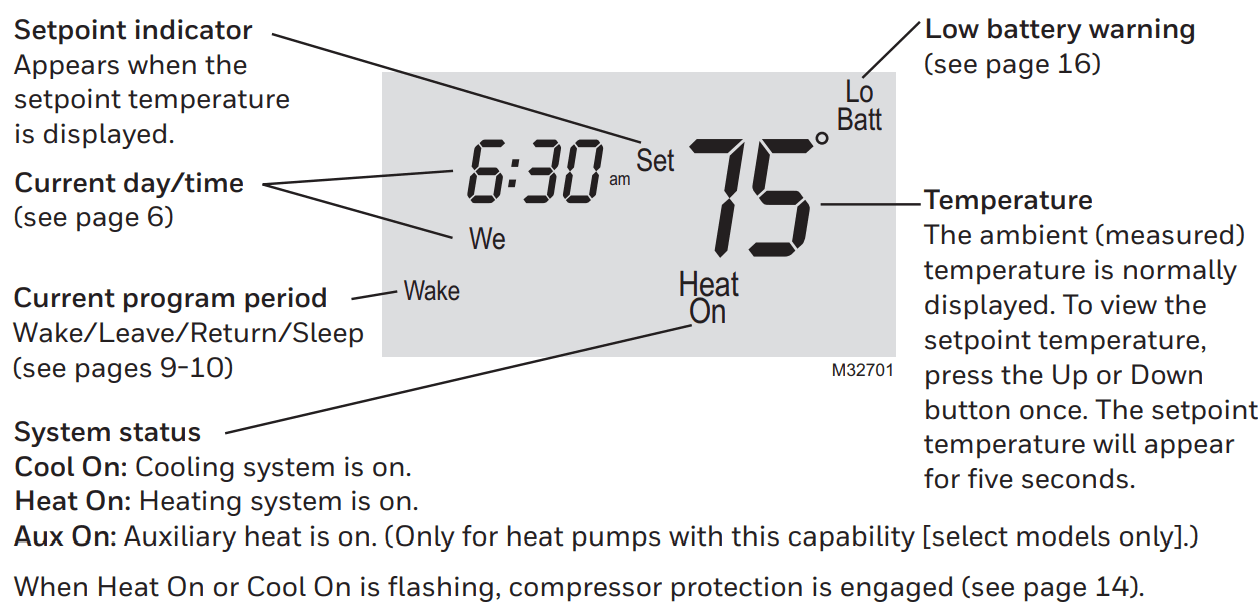

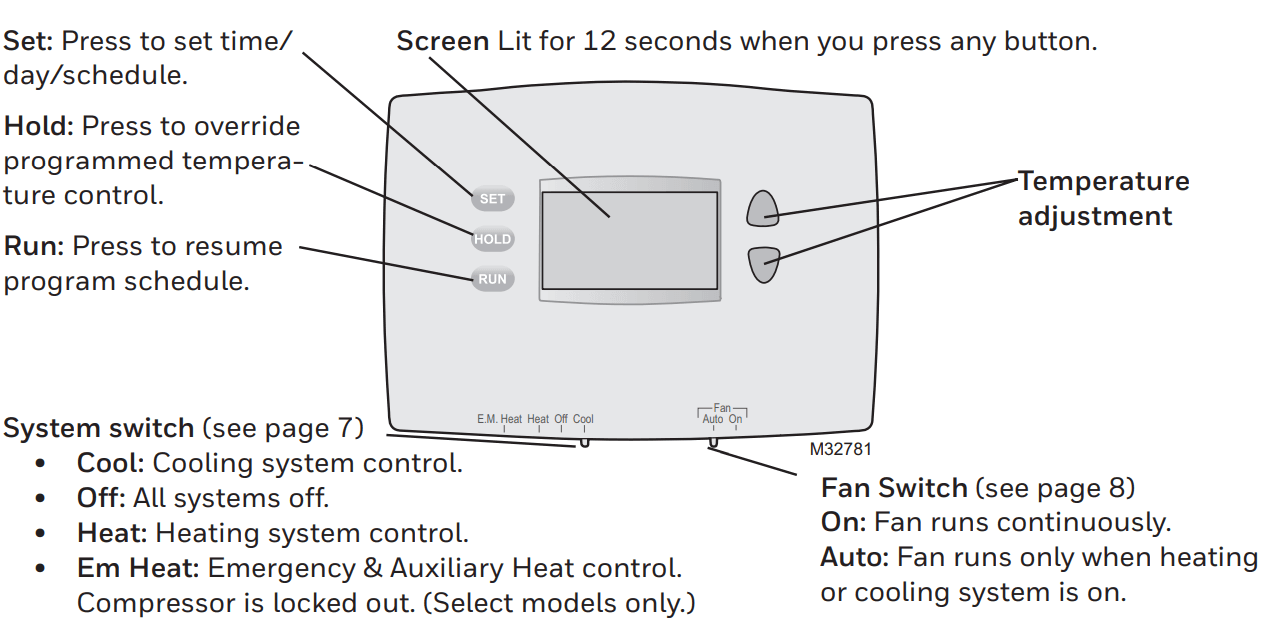

A quick reference to controls

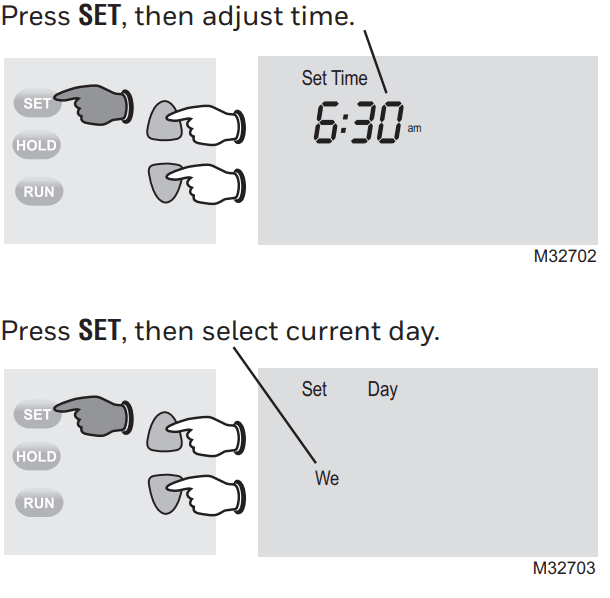

Set the time and day
- Press the SET button, then press
to set the clock time. - Press the SET button, then pressto select the day of the week.
- Press RUN to save & exit.
Note: If the clock flashes, the thermostat will follow your settings for the Monday “Wake” time
period until you reset the time and day.

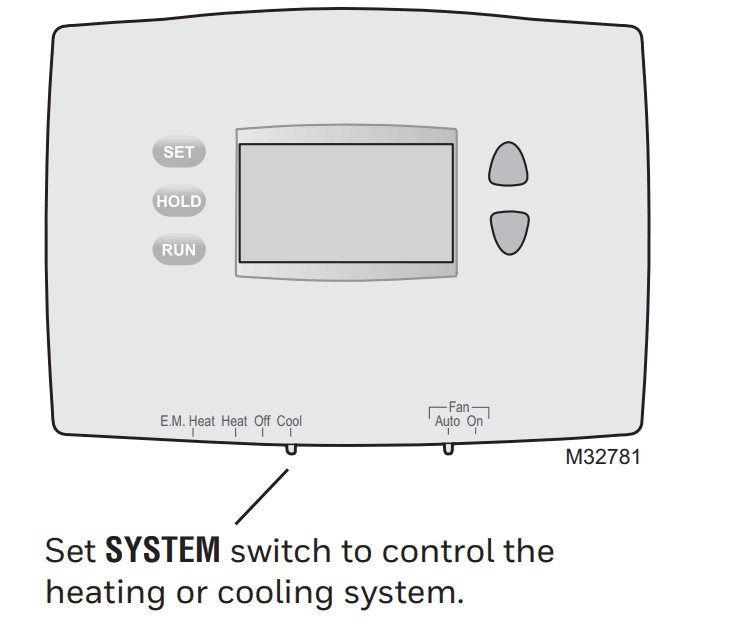

Select the system setting
your heating or cooling system, depending on the season.
- Cool: Cooling system control.
- Off: All systems are off.
- Heat: Heating system control.
- Em Heat: Emergency & Auxiliary Heat control. The compressor is locked out. (Select models only.)

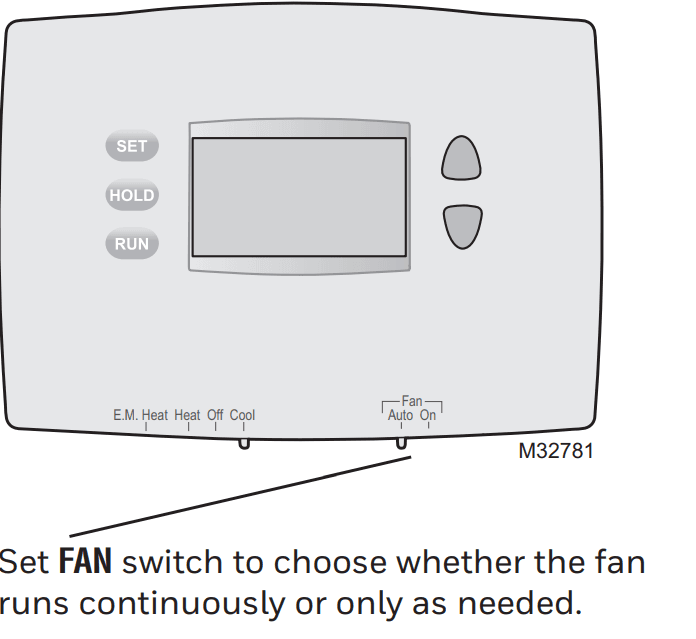

Select the fan setting
Set the FAN switch to Auto or On. In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on. If set to “On,” the fan runs continuously.
Save money by setting program schedules
It’s easy to program your system for maximum energy savings. You can program four time periods each day, with different settings for weekdays and weekends.

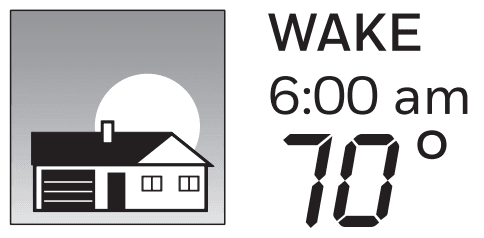

Set to the time you awaken and the temperature you want during the morning, until you leave for the day.

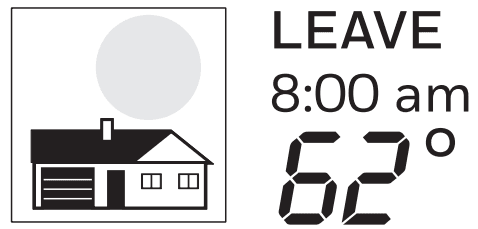

Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).

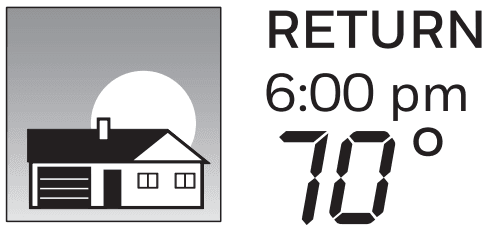

Set to the time you return home and the temperature you want during the evening, until bedtime.
Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level).

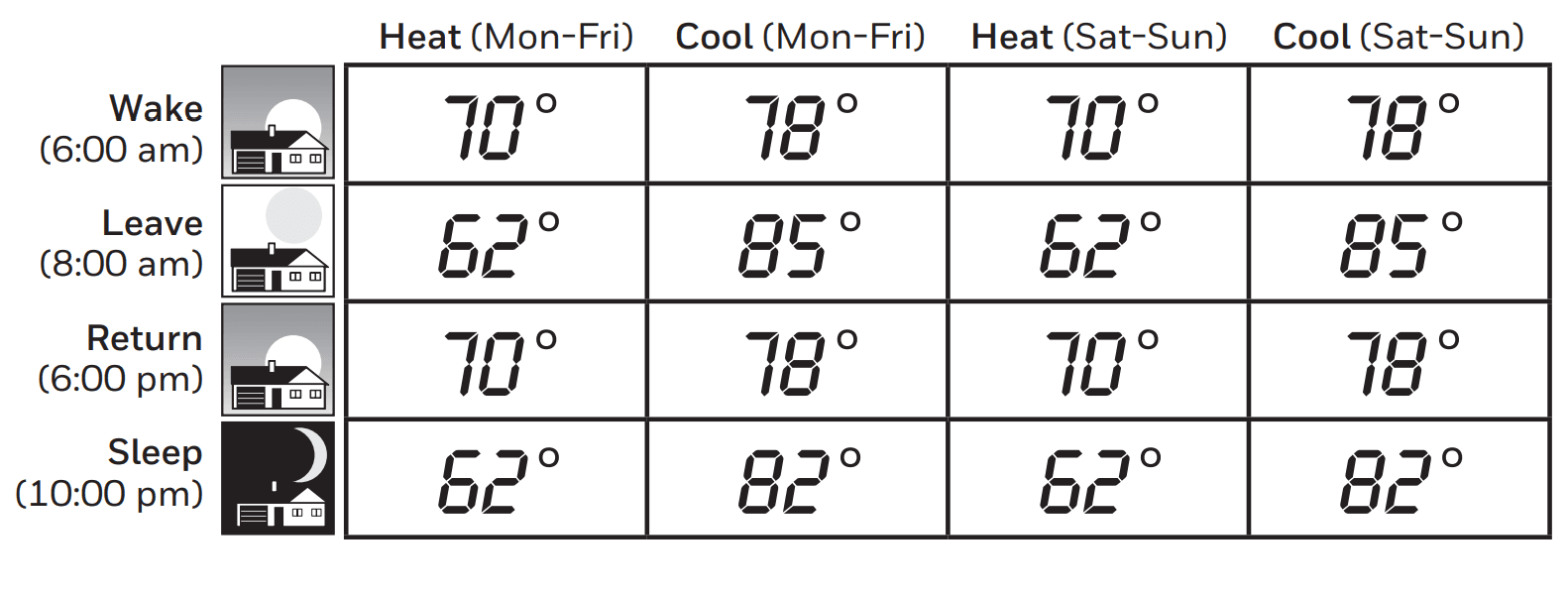

Energy saving settings for maximum cost savings
This thermostat is pre-set to use energy-saving program settings. We recommend these settings since they can reduce your heating/cooling expenses. (See next page to adjust times and temperatures of each time period.)

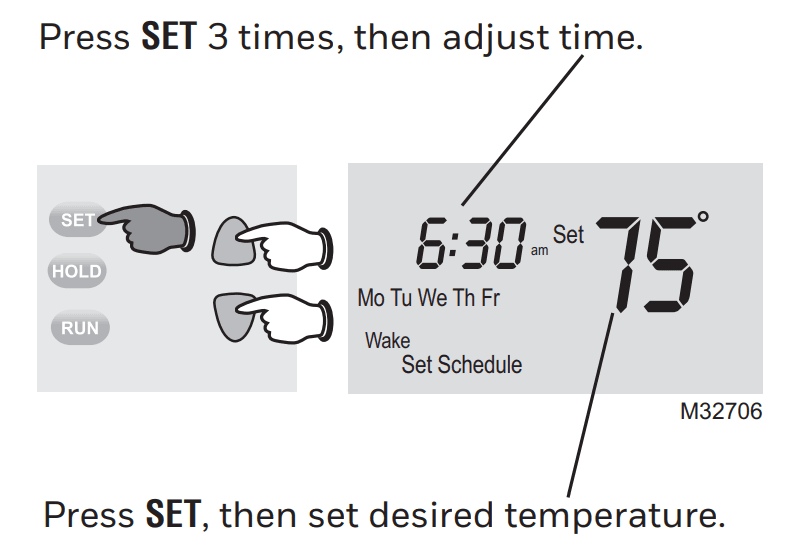

To adjust the program schedule
- Press SET until the Set Schedule is displayed.
- Pressto set your weekday Wake time (Mo-Fr), then press SET.
- Pressto set the temperature for this time period, then press SET.
- Set time and temperature for the next time period (Leave). Repeat steps 2 and 3 for each weekday time period.
- Press SET to set weekend time periods (Sa & Su), then press RUN to save & exit.
Note: Make sure the thermostat is set to the system you want to program (Heat or Cool).

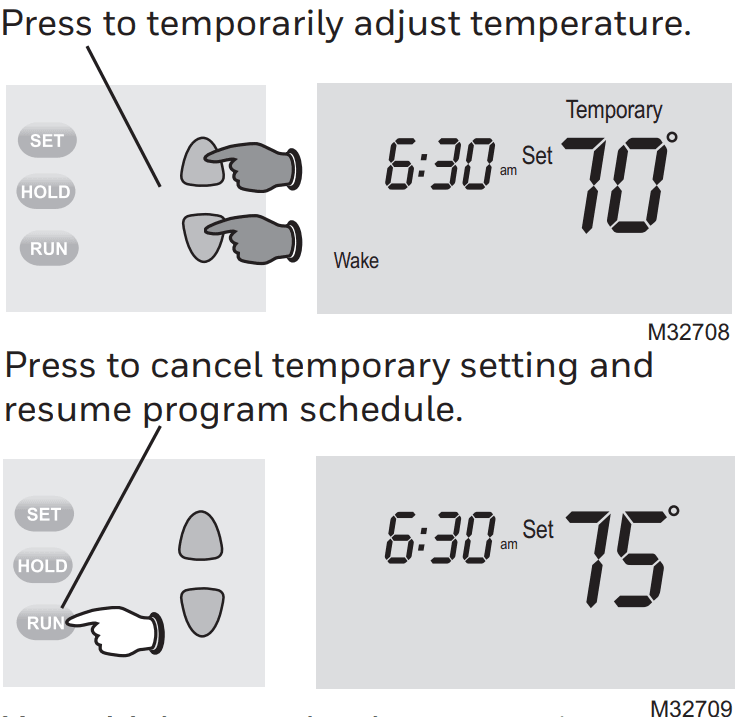

Program schedule override (temporary)
Press
to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period. “Temporary” will appear on the display and the current program period will flash. The new temperature will be maintained only until the next programmed time period begins (see page 9). To cancel the temporary setting at any time, press RUN.

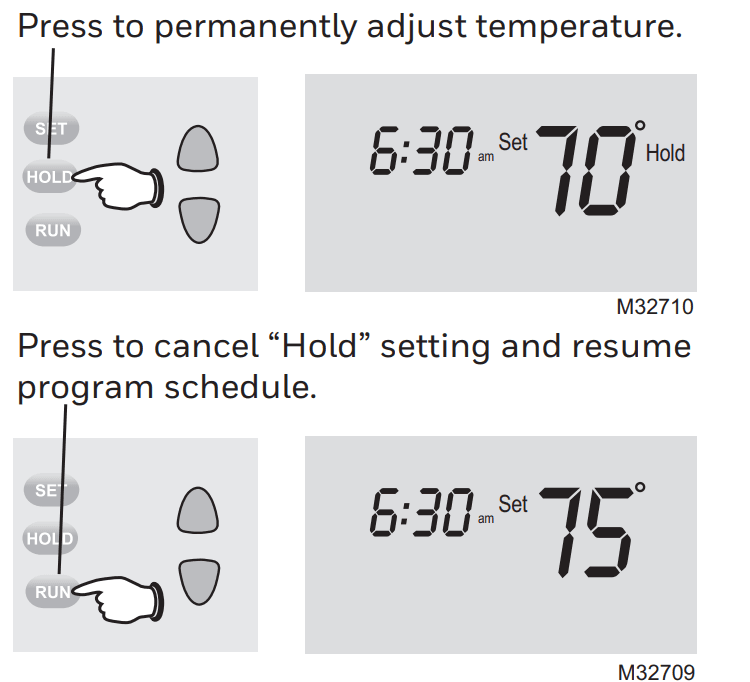

Program schedule override (permanent)
Press HOLD to permanently adjust the temperature. This will override the temperature settings for all time periods. The “Hold” feature turns off the program schedule and allows you to adjust the thermostat manually, as needed. Whatever temperature you set will be maintained 24 hours a day, until you manually change it, or press RUN to cancel “Hold” and resume the program schedule.

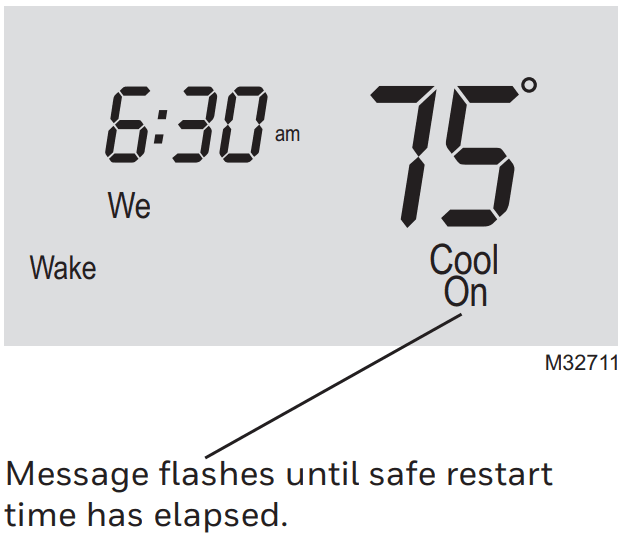

Built-in compressor protection
This feature helps prevent damage to the compressor in your air conditioning or heat pump system.

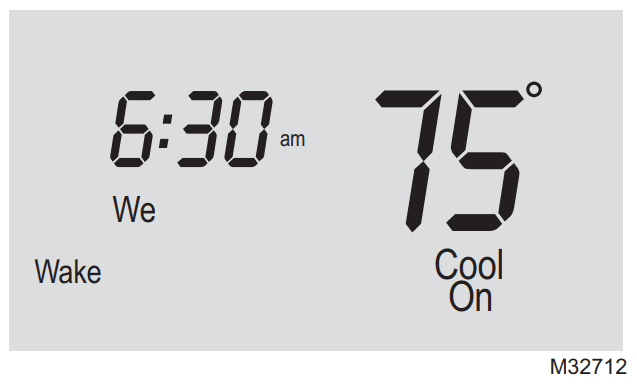

Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait 5 minutes before restarting. During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump). When the safe wait time has elapsed, the message stops flashing and the compressor turns on.
Early Start
Early Start: This feature allows the heating or cooling to turn on before the program start time, so the temperature is reached at the time you set. For example: Set the Wake time to 6 am, and the temperature to 70°. The heat will come on before 6 am, so the temperature is 70° by the time you wake at 6. The next time period is displayed when the system is activated before a scheduled time period.
Battery replacements

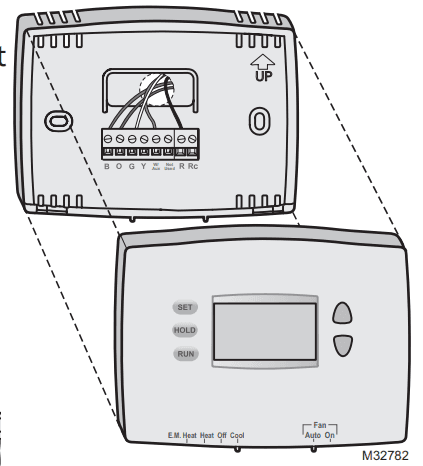

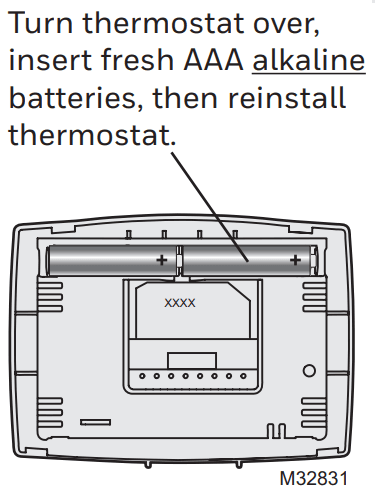

Pull at the bottom to remove the thermostat from the wallplate.
Install two fresh AAA batteries when Lo Batt flashes on the screen. Lo Batt appears for 60 days before the batteries are depleted. Replace batteries once a year, or when you will be away for more than
a month. Most settings are stored in non-volatile (permanent) memory. Only the clock and the day must be set after you replace the batteries.
Customer Assistance

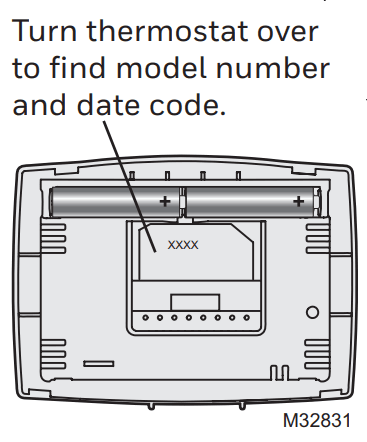

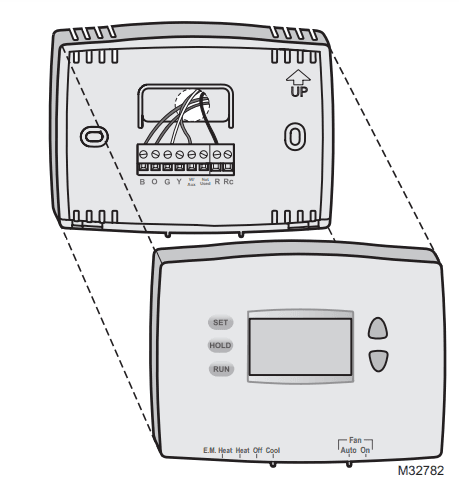

Pull at the bottom to remove the thermostat from the wallplate.
For assistance with this product, please visit http://customer.resideo.com. To save time, please note your model number and date code before calling.
In case of difficulty
If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.
Display is blank
- Check the circuit breaker and reset it if necessary.
- Make sure the power switch at the heating & cooling system is on.
- Make sure the furnace door is closed securely.
- Make sure fresh AAA alkaline batteries are correctly installed (see page 16).
The heating or cooling system does not respond
- Set the system switch to Heat (see page 7). Make sure the temperature is set higher than the Inside temperature.
- Set the system switch to Cool (see page 7). Make sure the temperature is set lower than the Inside temperature.
- Wait 5 minutes for the system to respond.
In case of difficulty
Temperature settings do not change
Make sure heating and cooling temperatures are set to acceptable ranges:
- Heat: 40° to 90°F (4.5° to 32°C).
- Cool: 50° to 99°F (10° to 37°C).
“Cool On” or “Heat On” is flashing
- The compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor (see page 14).
“Heat On” is not displayed
- Set the System switch to Heat, and set the temperature level above the current room temperature (see page 7).
“Cool On” is not displayed
- Set the System switch to Cool, and set the temperature level below the current room temperature (see page 7).
2-year limited warranty
Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for a period of two (2) years from the date of first purchase by the original purchaser. If at any time during the warranty period the product is determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo’s option). If the product is defective, (i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or (ii) call Resideo Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Resideo Return Goods, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Resideo that the defect was caused by damage which occurred while the product was in the possession of a consumer.
Resideo’s sole responsibility shall be to repair or replace the product within the terms stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE TWO-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502.
For more manuals by Honeywell, visit ManualsLibraryy
Honeywell Pro 2000 Series Programmable Thermostat-FAQs
What does the Honeywell thermostat control?
The thermostat regulates both heating and hot water, ensuring energy efficiency and independent control over your home’s climate.
Why is “Heat On” flashing on my Honeywell thermostat?
A flashing “Heat On,” “Cool On,” “Snowflake,” or “Flame” icon means the thermostat has activated a built-in 5-minute delay to protect your HVAC system. Wait a few minutes for it to resume normal operation.
What are thermostat controls?
Thermostat controls regulate temperature in a heating system. You set a preferred temperature, and the thermostat maintains it by turning heating or cooling on or off as needed.
How does the Honeywell thermostat detect temperature?
It measures ambient air temperature and also accounts for the radiant temperature of objects in the room, like walls and furniture, for a more accurate reading.
What does “Run” mean on a thermostat?
The “Run” button restores your system to its programmed schedule. For example, if you manually adjust the temperature temporarily, pressing “Run” will return it to its pre-set settings.
What is the main function of a thermostat?
A thermostat’s primary function is to control your heating and cooling system, keeping your indoor environment at the temperature you set.
How does a thermostat work?
Thermostats use sensors like a bimetallic strip or thermistor to detect temperature changes. These sensors expand or contract, triggering the thermostat to turn heating or cooling on or off accordingly.
What is the ideal thermostat setting?
For energy efficiency:
1. Summer cooling: Set to 78°F
2. Winter heating: Set to 68°F
What is “EM Heat” on a thermostat?
“EM Heat” (Emergency Heat) is a backup heating system used when the primary heat source fails. It should only be activated if necessary, as it consumes more energy.
