Bush WMDF612W 6KG 1200 Spin Washing Machine

Tub Bellow Seal

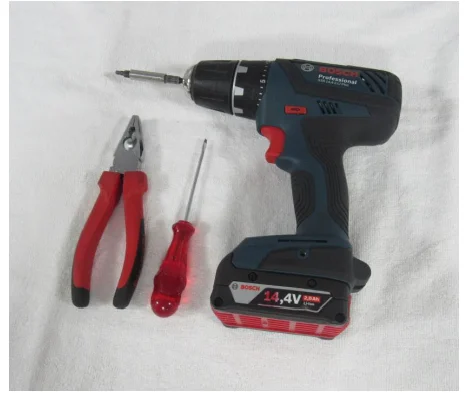

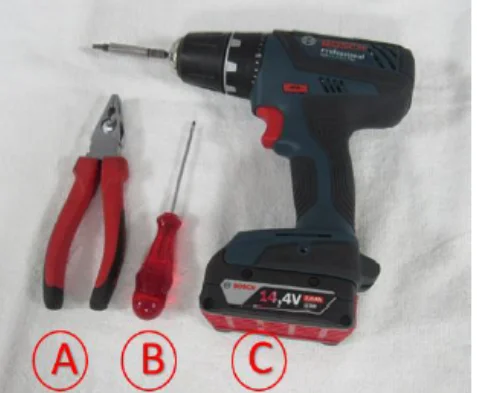

1. Necessary Tools

• Pliers
• Flat head thin screwdriver
• Cordless screwdriver or classic screwdriver with Torx bits (T20)

2. Disconnection

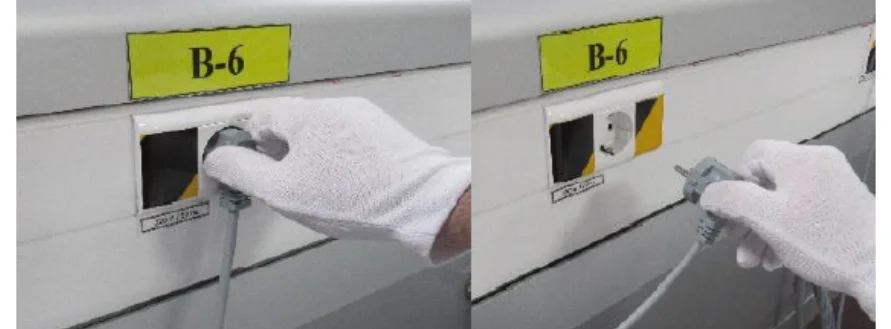

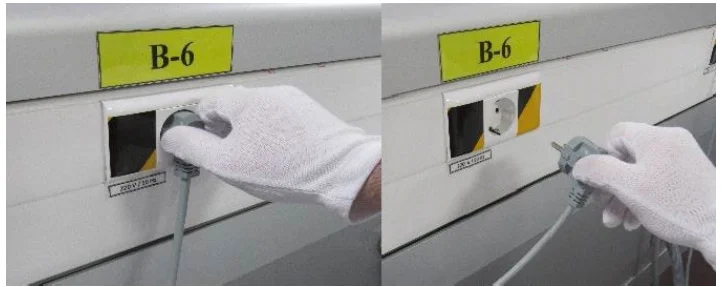

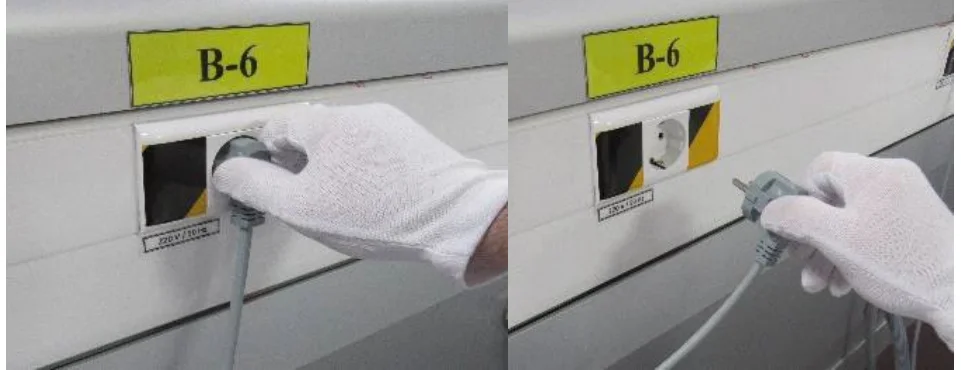

1. Remove the plug.

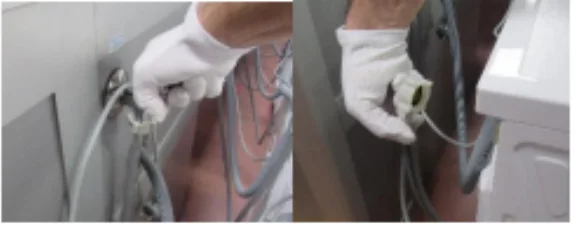

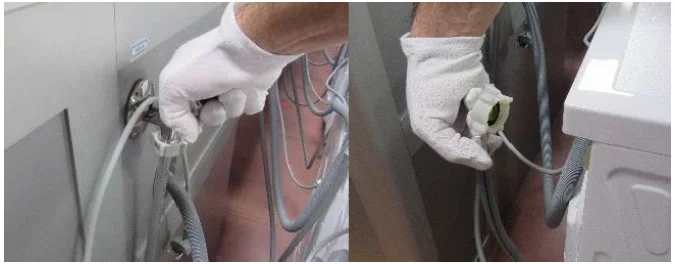

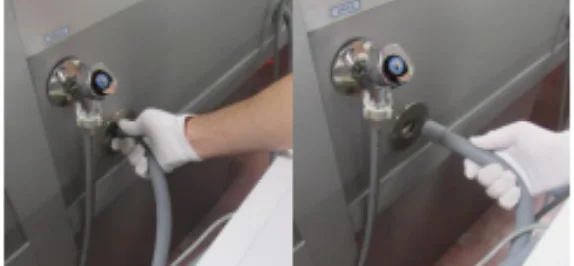

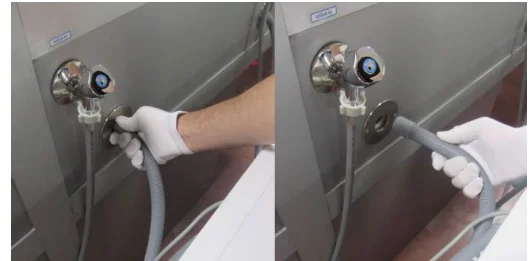

2. Turn off the tap and disconnect the hose from the valve.
3. Turn off the tap and disconnect the hose from the valve.

3. Disassembly Instructions

1. Turn off the tap and disconnect the hose from the valve.

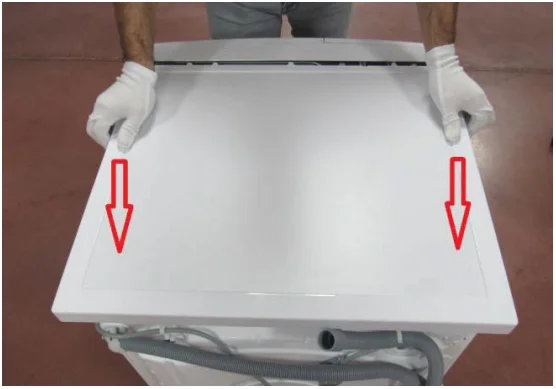

2. Push the top plate back and pull it up.

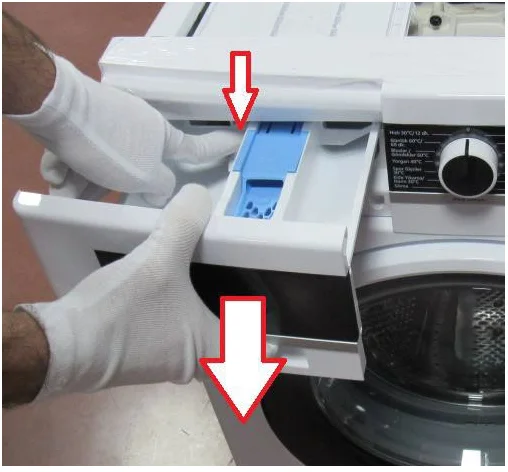

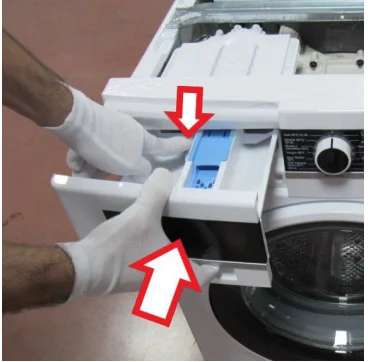

3. While pressing the siphon cover, keep pulling the drawer to remove it.

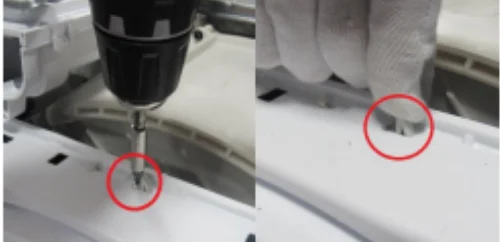

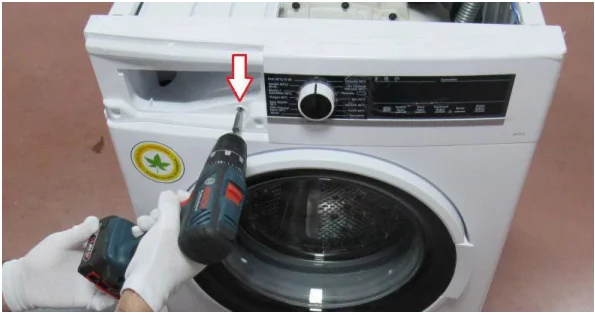

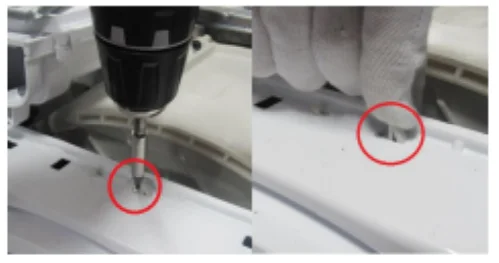

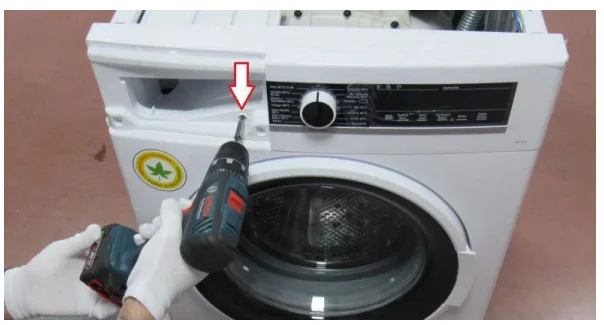

4. Remove the screw that fixes the control panel to the front panel.

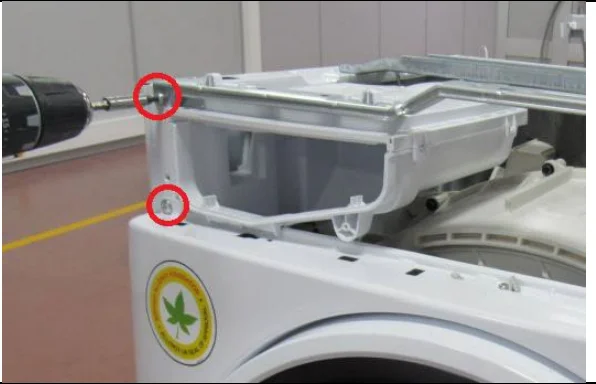

5. Remove two screws fixing the control panel.

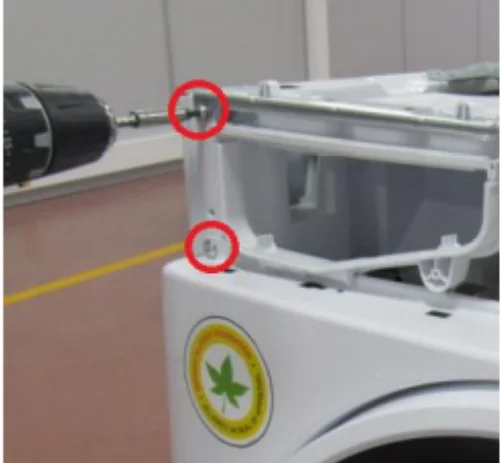

6. Remove the screw on the support bracket and the two screws fixing the front panel to the body.

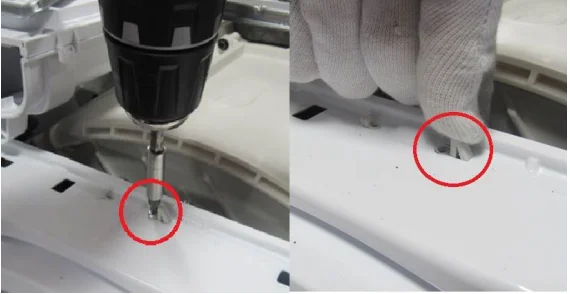

7. Remove the screw fixing the twinjet elbow.
8. Remove the screws fixing the door lock.

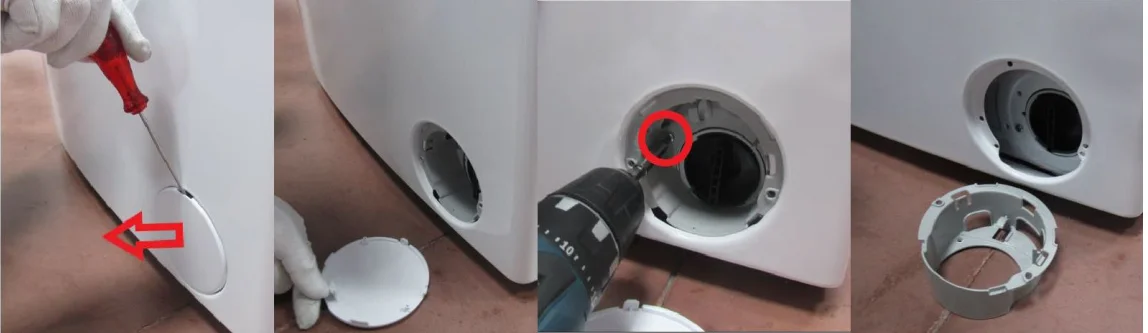

9. Remove the screw and plastic part located under the pump cover.

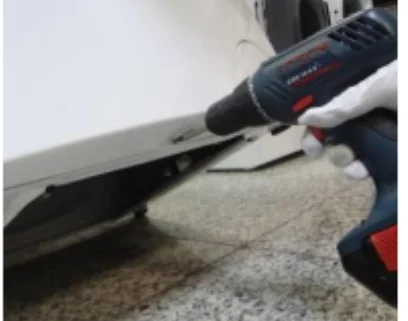

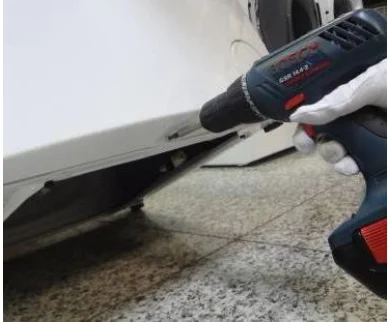

10. Remove the screw fixing the front panel at the bottom.

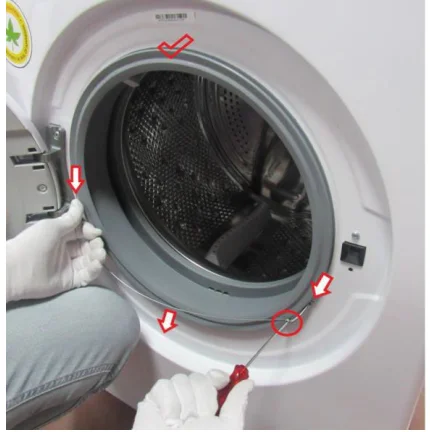

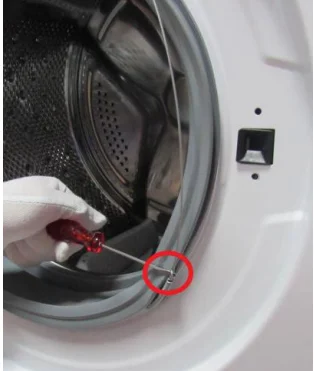

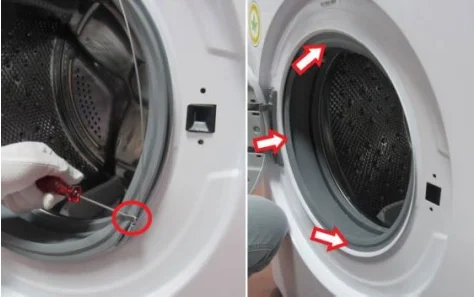

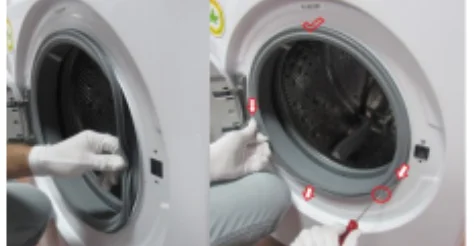

11. Remove the wire by using a small screwdriver and push the seal to the inside.

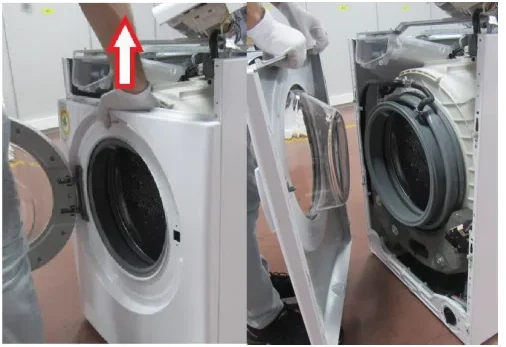

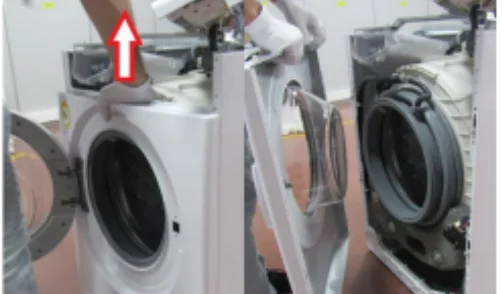

12. Pull up and remove the front panel.
13. Remove the twinjet hoses from the tub below the seal by pulling them up.

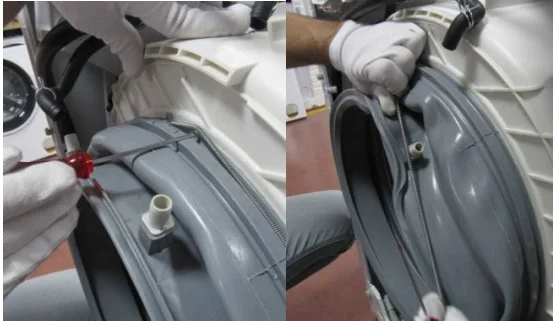

14. Remove the tub gasket clip by using a small screwdriver.
15. Hold the gasket bellows and the gasket body, pull out and in at the same time.

4. Assembly Instructions

1. Guides must be matched.
2. Fit the tub below seal to the front tub.
3. Pull the tub gasket clip up by hand and fit it.

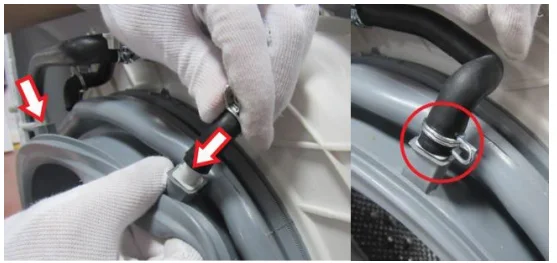

4. Assemble the twinjet nozzles and tighten the clips.

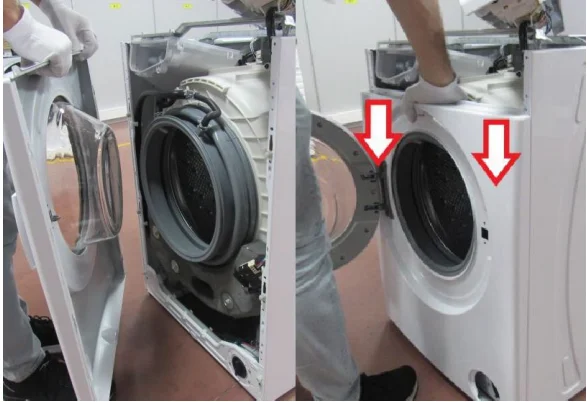

5. Put the front panel of the cabinet and push it down to set it.
6. Tighten the door lock screw.

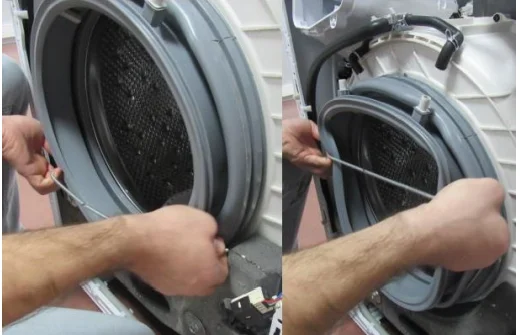

7. Pull the tub bellow seal to the outside and assemble the wire by using a small screwdriver.
8. Tighten the screw fixing the front panel at the bottom.

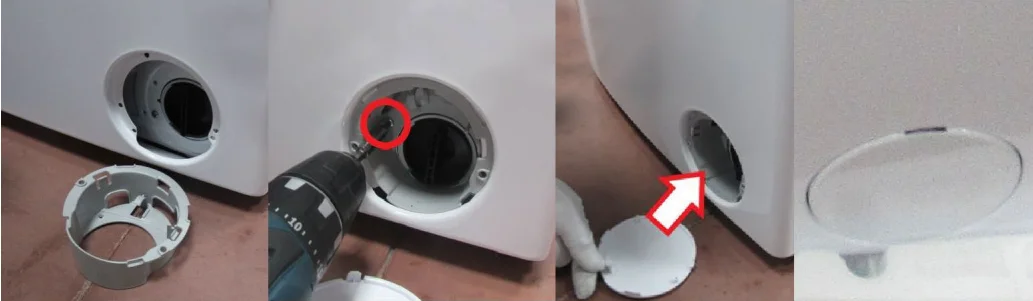

9. Fit the screw and plastic part located under the pump cover.
10. Assemble the twinjet elbow to the front panel.
11. Tighten the screw on the support bracket and the two screws fixing the front panel to the body.
12. Tighten two screws fixing the control panel.

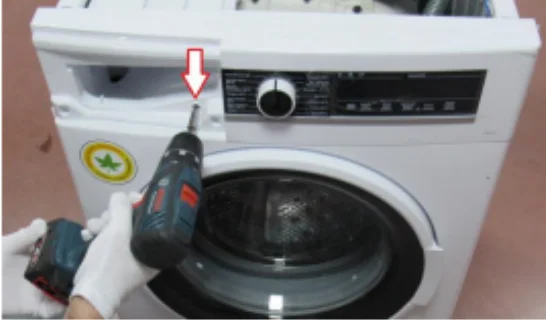

13. Tighten the screw that fixes the control panel to the front panel.

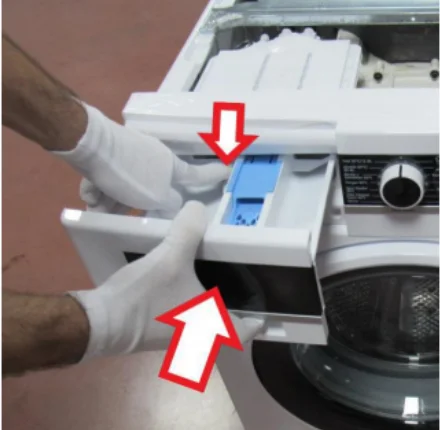

14. While pressing the siphon cover, keep pushing the drawer to fit.
15. Fit the upper tray according to the movement above.

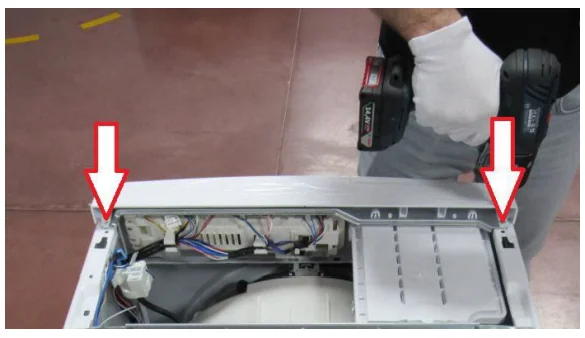

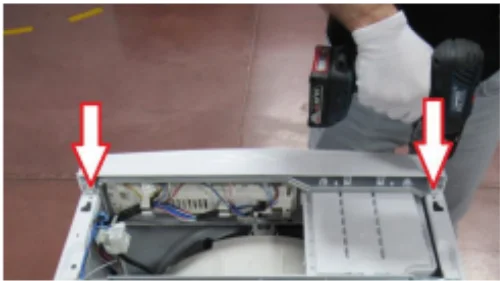

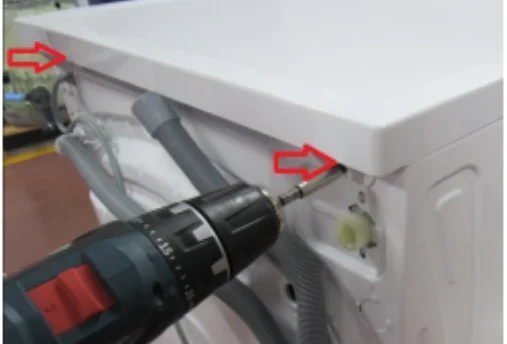

16. Tighten the two screws that fix the top plate at the back.

Detergent Drawer

1. Disassembly Instructions

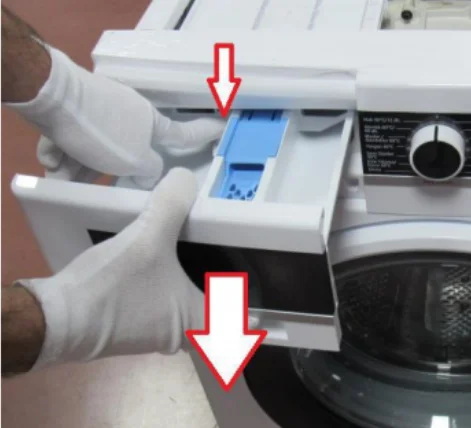

1. While pressing the siphon cover, keep pulling the drawer to remove it.

2. Assembly Instructions

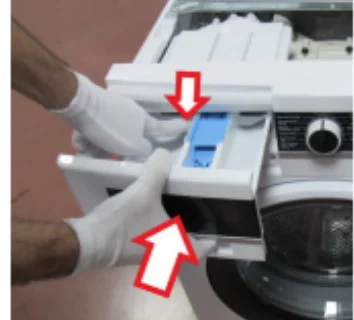

1. While pressing the siphon cover, keep pushing the drawer to fit.

Door Lock

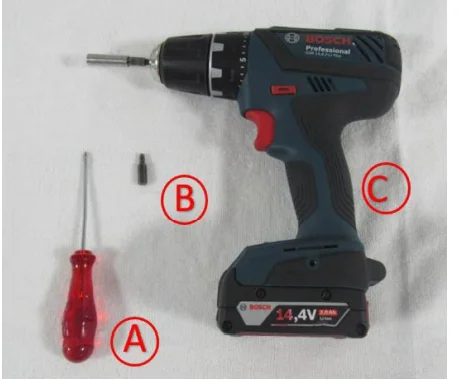

1. Necessary Tools

• Flat head thin screwdriver
• Torx T20
• Cordless screwdriver or classic screwdriver to use Torx head (T20)

2. Disconnection

• Remove the plug.

3. Disassembly Instructions

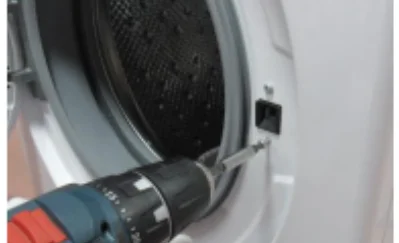

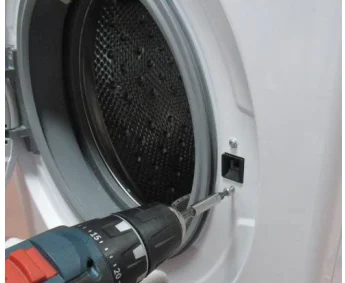

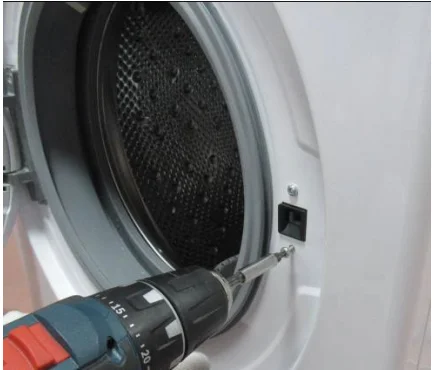

1. Remove the screws fixing the door lock.
2. Remove the wire by using a small screwdriver.
3. Remove the right side of the tub bellows seal and reach the door lock.

4. Assembly Instructions

1. Unplug the connector and remove the door lock. Connect the new door lock to the connector.

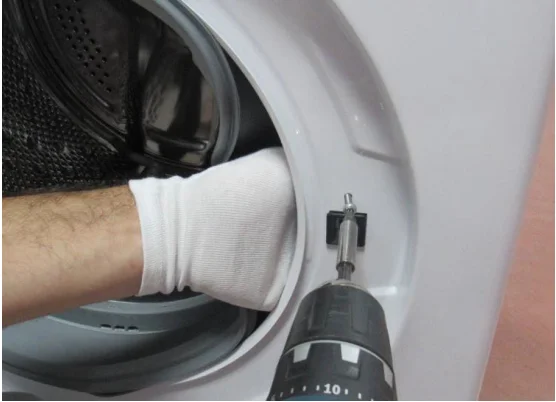

2. While supporting the door lock by hand, tighten the screws fixing the door lock.
3. Fix the tub below the seal and fix the wire by using the small screwdriver.

Pump

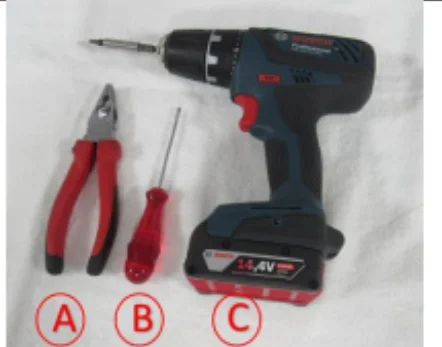

Necessary Tools

• Plier
• Flat head thin screwdriver
• Cordless screwdriver or classic screwdriver with Torx head (T20)

1. Disconnection

1. Remove the plug.
2. Turn off the tap and disconnect the hose from the valve.
3. Disconnect the drain hose.

2. Disassembly Instructions

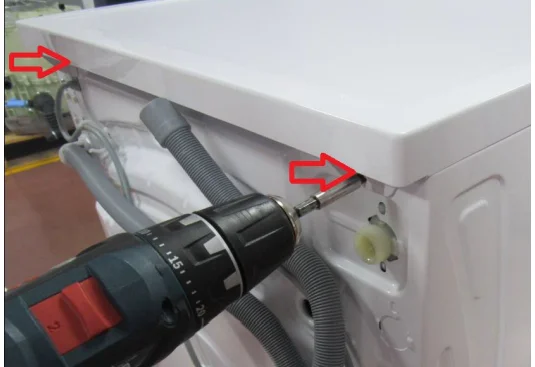

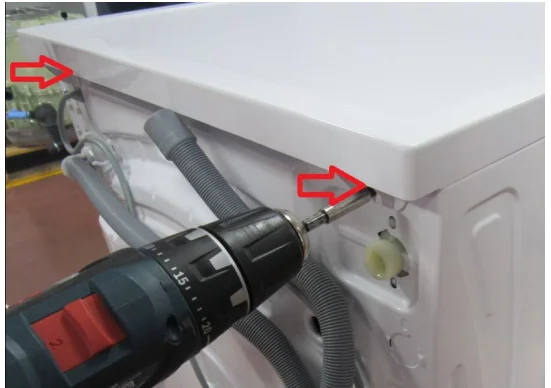

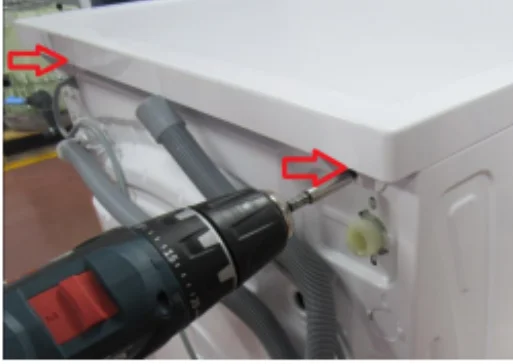

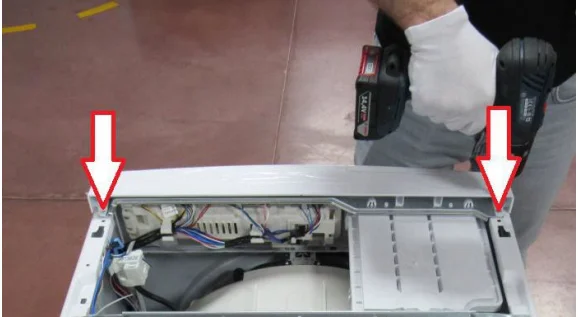

1. Remove two screws that fix the top plate at the back.
2. Push the top plate back and pull it up.
3. While pressing the siphon cover, keep pulling the drawer to remove it.
4. Remove the screw on the support bracket and the two screws fixing the front panel to the body.
5. Remove the screw fixing the twinjet elbow.
6. Remove the screws fixing the door lock.
7. Remove the screw and plastic part located under the pump cover.
8. Remove the screw fixing the front panel at the bottom.
9. Remove the wire by using a small screwdriver and push the seal to the inside.
10. Pull up and remove the front panel.

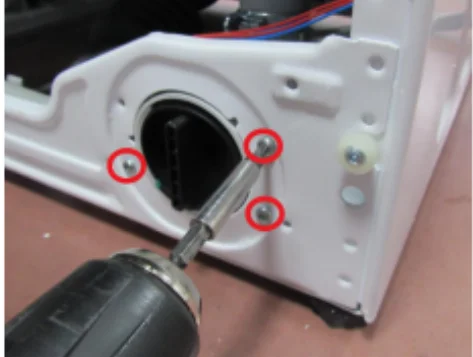

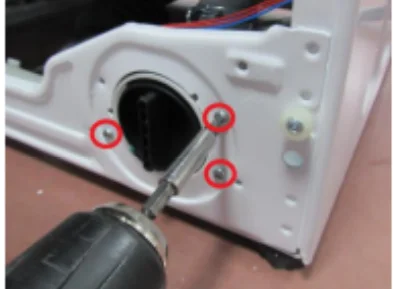

11. Remove the screws holding the drain pump.

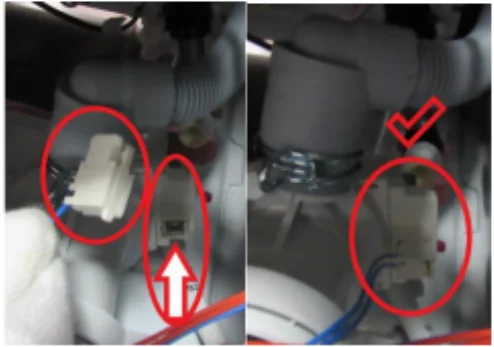

12. Remove the drain pump connector.

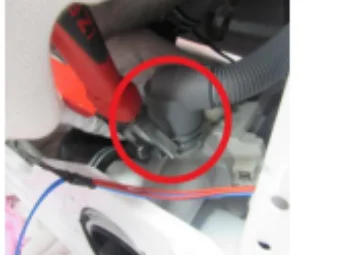

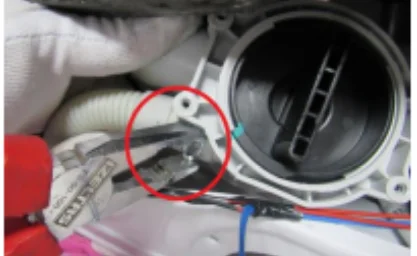

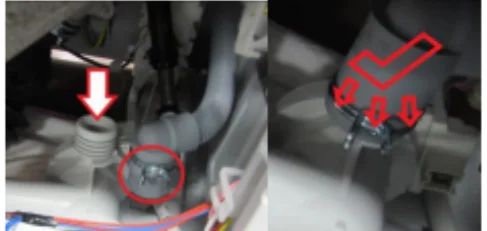

13. Remove the clamp fixing the tub outlet hose by using a pair of pliers.

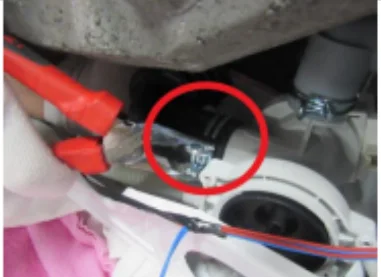

14. Remove the clamp holding the drain hose by using a pair of pliers.
15. Remove the clamp holding the twinjet hose by using a pair of pliers.

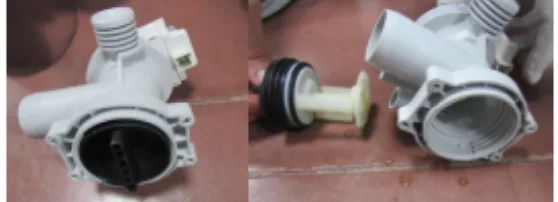

16. Remove the drain pump and replace it with the new one.

3. Assembly Instructions

1. Connect the twinjet hose by using a pair of pliers to fix the clamp.
2. Connect the drain hose by using a pair of pliers to fix the clamp.
3. Connect the drain pump connector.
4. Tighten the screws holding the drain pump.
5. Pull the tub bellow seal to the outside and assemble the wire by using a small screwdriver.
6. Tighten the screw fixing the front panel at the bottom.
7. Tighten the screw and plastic part located under the pump cover.
8. Assemble the twinjet elbow to the front panel.
9. Tighten the screw on the support bracket and the two screws fixing the front panel to the body.
10. Tighten two screws fixing the control panel.
11. Tighten the screw that fixes the control panel to the front panel.
12. While pressing the siphon cover, keep pushing the drawer to fit.
13. Fit the upper tray according to the movement above.
14. Tighten the two screws that fix the top plate at the back.

Door, Hinge, and Handle

Necessary Tools

• Plier
• Flat head thin screwdriver
• Cordless screwdriver or classic screwdriver with Torx head (T25)

1. Disconnection

• Remove the plug.

2. Disassembly Instructions

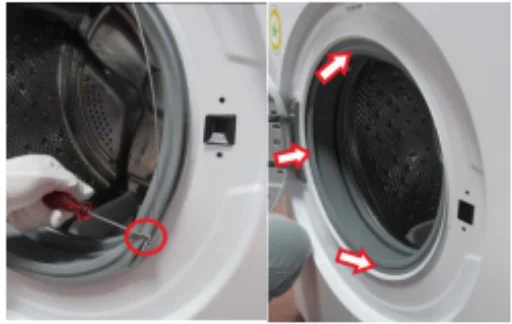

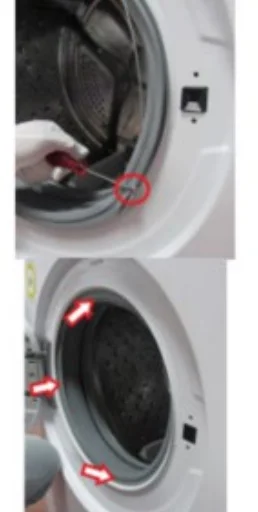

1. Remove the wire by using a small screwdriver and push the seal to the inside.

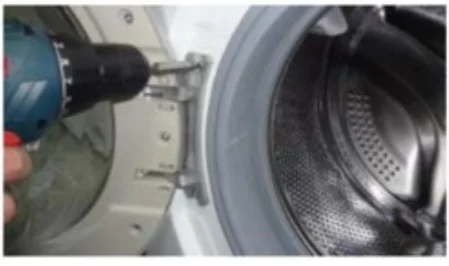

2. Remove the door hinge screws by using a T25 head screwdriver.

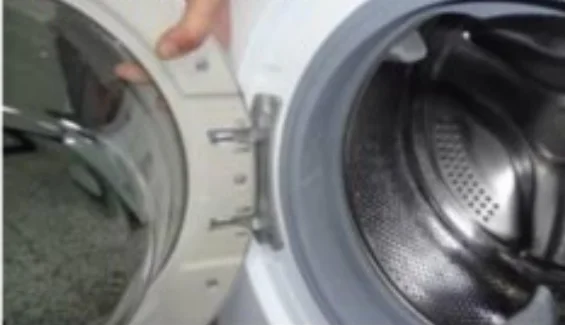

3. Remove the door.

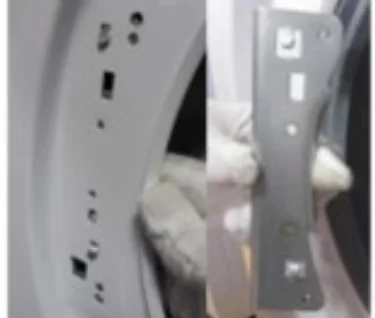

4. There is a hinge support sheet behind the front panel. Please keep it stable during operation and do not forget to assemble it to the front panel. Follow the hinge and handle changing instructions if needed after this step. If not required to replace the hinge and handle, you can skip to the door assembly section.

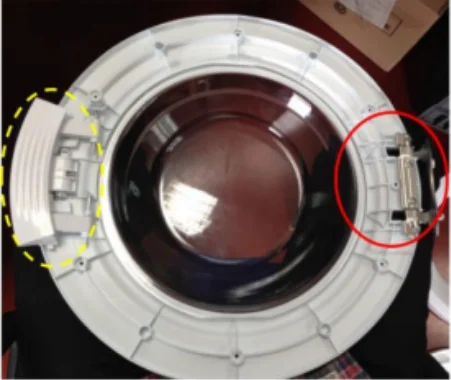

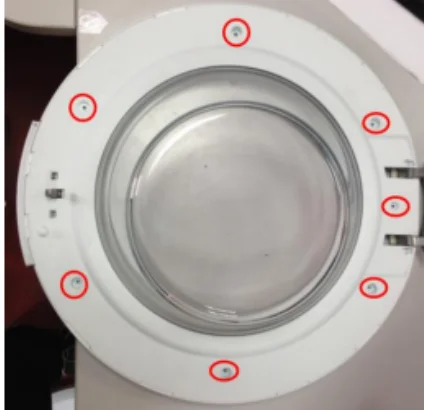

5. Remove the screws on the door; the number of screws may change based on the door type.

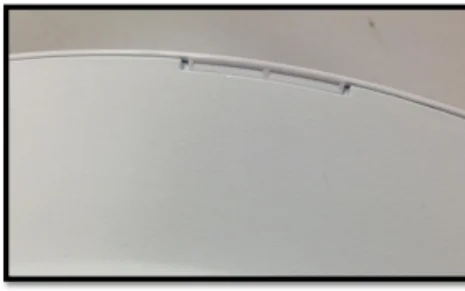

6. You can use a screwdriver to separate the front and back plastics from the area in the photo.

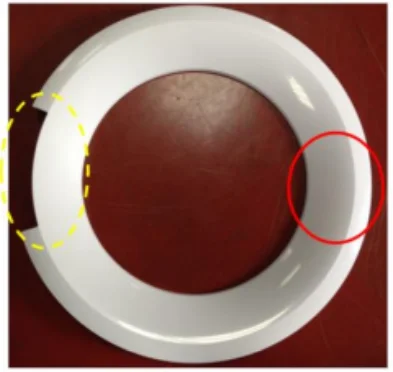

7. Remove the plastic parts as shown in the photo above.

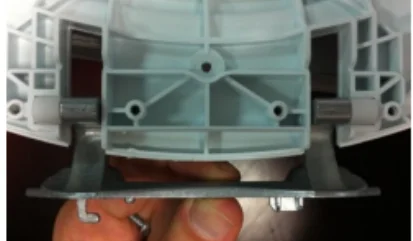

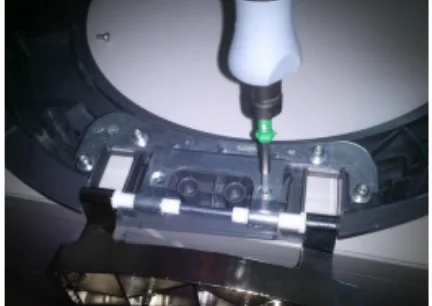

8. Remove the hinge sheet with a screwdriver.

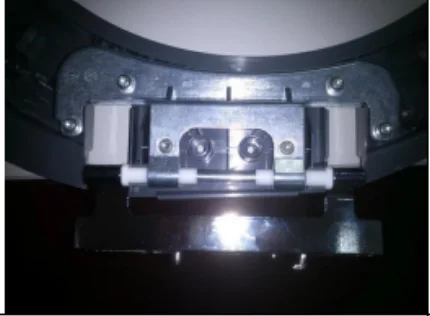

9. Remove the hinge.
10. The hinge needs to be changed as a group for the door that has no handle.
11. Remove the screws and assemble the new part as a group.

DISASSEMBLY FOR THE OUTSIDE HANDLE / DISASSEMBLY FOR THE INSIDE HANDLE

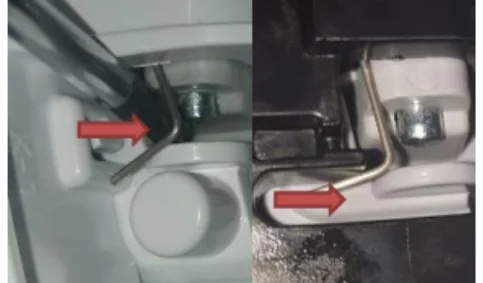

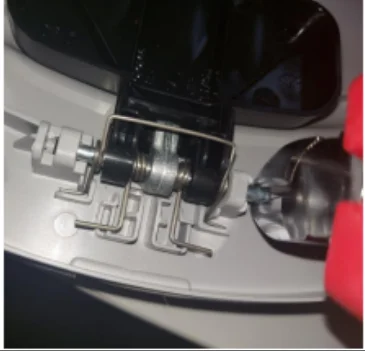

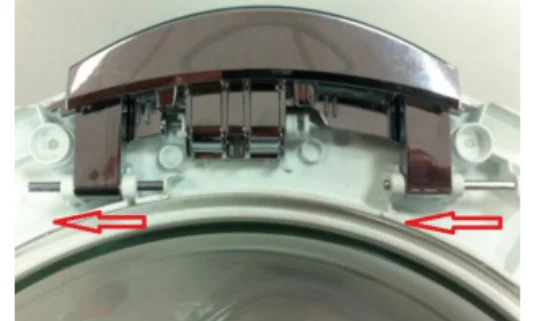

1. Remove the pins in the direction of the arrows.
2. Remove the spring from the house (depends on the model).

INSIDE HANDLE DISASSEMBLY

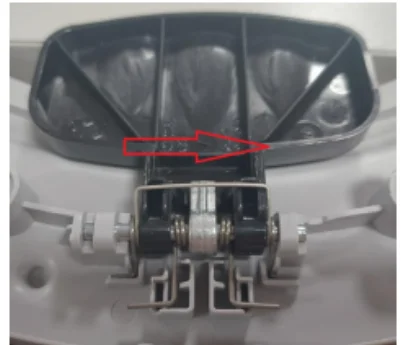

1. Remove the pin in the direction of the arrow.
2. Use the knife or a thin flat-head screwdriver to remove the pin.
3. Take the pin with a pair of pliers. Then take off the door handle and assemble the new one.

ADDITIONAL SUPPORT

The following parts are available for the customer to undertake repairs at their own risk. Please carefully follow the guidance given in this manual, including all safety measures.

• Door
• Door hinge and seals
• Other seals
• Door locking assembly
• Plastic peripherals such as detergent dispensers

Parts can be obtained by calling the support service listed in this section. All repairs in this manual can be achieved using commonly available tools. If you are in any doubt of your ability to repair, please use a professional repairer, also available through the support service. Damage sustained to the appliance or future faults arising from poorly carried out repairs will not be covered under warranty.

Help and assistance

If you require any technical guidance or find that your washing machine is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.bush-support.com. If you still require further assistance, call one of our experts on 0345 257 7271*. To help give us give you a fast and efficient service, please have the following information ready:
