Bushnell Pro XE Golf Laser Rangefinder User Manual

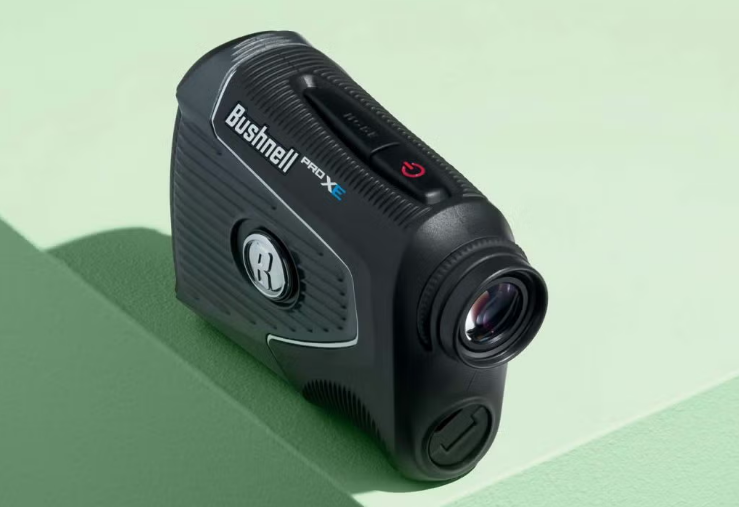

Bushnell Pro XE Golf Laser Rangefinder

INTRODUCTION

Your Bushnell® Pro XE is an advanced premium laser rangefinder comprised of digital technology and turbo processors, allowing range readings from 5–1300 yards / 5–1189 meters. Measuring 1.5 x 4 x 3 inches, the 8-ounce Pro XE delivers extremely fast acquisition and +/- 1 yard accuracy. Tour-trusted compensated distances have been taken to the next level with “Elements.” Temperature and pressure have been added to Bushnell’s patented Slope technology to give golfers the most precise compensated distances ever. The Pro XE features PinSeeker™ technology with JOLT, allowing the golfer to easily and quickly “zero” in on the flag without acquiring background targets, and superb optical quality. JOLT has been advanced with the all-new “Visual JOLT.” A red ring now flashes as JOLT vibrates to give the golfer even greater feedback and confidence to know you have locked onto the flag. Also new to the Pro XE is Bushnell’s exclusive BITE magnetic mount that allows you to easily mount the Pro XE right on the
cart bar.

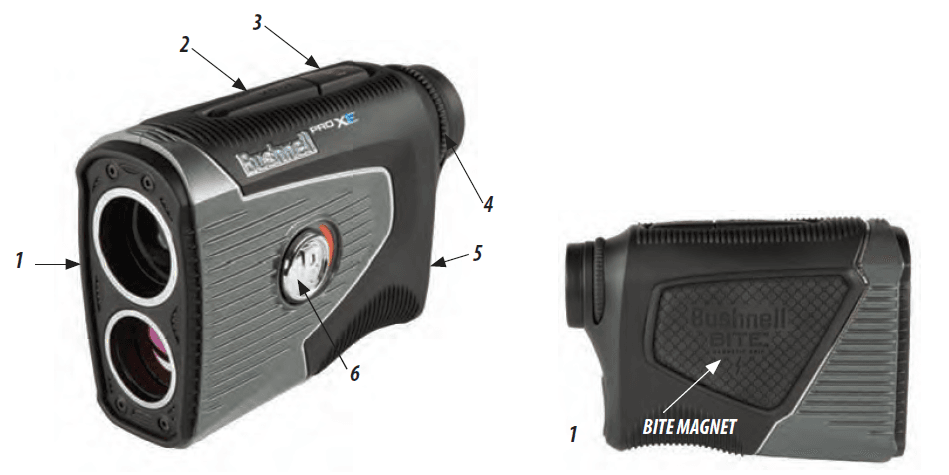

Parts Guide

1. BITE Magnet (see inset photo)
2. Mode Button
3. Power/Fire Button
4. Eyepiece Diopter Dial
5. Battery Compartment
6. Slope Switch

HOW OUR DIGITAL TECHNOLOGY WORKS

The Pro XE emits invisible, eye-safe, infrared energy pulses. The Pro XE Advanced Digital microprocessor and ASIC chip (Application-Specific Integrated Circuit) result in instantaneous and accurate readings every time. Sophisticated digital technology instantaneously calculates distances by measuring the time it takes for each pulse to travel from the rangefinder to the target, and back.

RANGING ACCURACY

The ranging accuracy of the Pro XE is plus or minus one yard/meter under most circumstances. The maximum range of the instrument depends on the reflectivity of the target. The maximum distance for most objects is 1000 yards / 914 meters, while for highly reflective objects, the maximum is 1300 yards / 1189 meters.

Note: You will get both longer and shorter maximum distances depending on the reflective properties of the particular target and the environmental conditions at the time the distance of an object is being measured. The color, surface finish, size and shape of the target all affect reflectivity and range. The greater the reflectivity of the target, the longer the range. A white or silver object is highly reflective, for example, and allows longer ranges than the color black, which is the least reflective color. A shiny or glossy finish provides more range than a dull one. A small target is more difficult to range than a larger target. The angle to the target also has an effect. Shooting at a target at a 90-degree angle (where the target surface is perpendicular to the flight path of the emitted energy pulses) provides good range, while a steep angle on the other hand, provides limited ranging. In addition, lighting conditions (e.g., the amount of sunlight) will affect the ranging capabilities of the unit. The less light (e.g., overcast skies), the farther the unit’s maximum range will be. Conversely, very sunny days will decrease the unit’s maximum
range.

ACTIVATING/REPLACING THE BATTERY

Remove the Posi-Thread™ battery cover by lifting the battery cover tab and then rotating the cover counterclockwise until it is loose. Lift off the cover and set it aside.

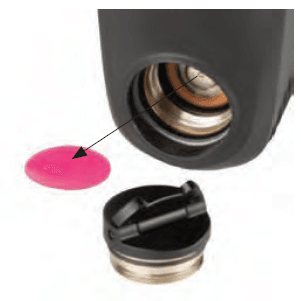

ACTIVATING THE INSTALLED BATTERY: A CR2 battery is pre-installed in your new Pro XE. Before using the rangefinder, remove the battery cover as described above. Remove the red plastic protective disc (see photo, right) from the top of the battery, then replace the battery cover.

REPLACING A LOW BATTERY: Insert a new CR2 3-volt lithium battery into the compartment, negative (flat) end first (positive end facing out towards the battery cover), then replace the Posi-Thread™ battery cover.

Note: It is recommended that the battery be replaced at least once every 6 months.

BASIC OPERATION

While looking through the Pro XE, depress the Power/Fire button once to activate the display. If the display icons and numbers are blurry, rotate the eyepiece in either direction until they are in focus (see “Adjusting the Eyepiece” below). Place the aiming circle (located in the center of the display) over a target at least 5 yards away, depress and hold the Power/Fire button down until the range reading is displayed near the bottom of the in-view display. Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the Power/Fire button. The crosshairs surrounding the aiming circle will disappear once the Power/Fire button has been released (i.e. the laser is no longer being transmitted).

Note: Once activated, the display will remain active and display the last distance measurement for 10 seconds. You can depress the Power/Fire button again at any time to distance to a new target. The maximum time the laser is transmitted (fired) is 5 seconds. To re-fire, press the button down again.

ADJUSTING THE EYEPIECE

The Pro XE is equipped with an adjustable eyepiece (+/- 3.5 Diopter Adjustment) that allows you to focus the display indications/icons relative to the viewed image. Simply rotate the eyepiece until the display is in focus.

SLOPE-SWITCH TECHNOLOGY

Slope-Switch Technology lets the golfer easily turn Bushnell’s patented Slope function on and off. This allows the golfer to conveniently utilize Slope to get compensated distances around the course when they want it and have a USGA conforming device that is legal for tournament play when they need it.

DISPLAY INDICATORS

Your Pro XE display incorporates the following illuminated indicators (refer to display image at right):

1. Aiming Circle (surrounding crosshairs indicate laser transmission)
2. Elements Mode
3. Battery Level
4. “Play As” Distance (based on Slope/Elements)
5. Slope (% grade)
6. Line of Sight Distance
7. Visual JOLT Indicator Ring

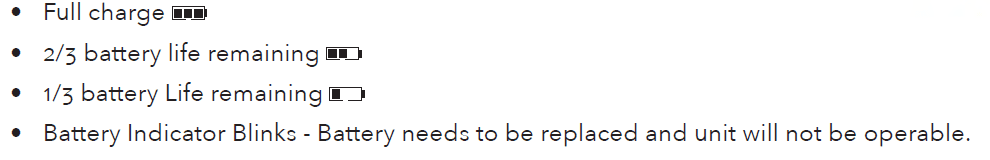

BATTERY LIFE INDICATOR

Battery Indicator shows remaining power level:

ACTIVE LASER

Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the Power/Fire button. The crosshairs surrounding the circle will disappear once the Power/Fire button has been released (i.e., the laser is no longer being transmitted).

PINSEEKER™ WITH VISUAL JOLT®

Ever have trouble getting distance to the flag? This advanced mode allows easy acquisition of the flag without inadvertently getting distances to background targets (i.e., trees) that have stronger signal strength. For ease of use, the device will always be in PinSeeker™ Mode. To use, align the aiming circle reticle onto the flag that you want the distance to. Next, press and hold the Power/Fire button and move the laser slowly across an area until the aiming circle at the center of the display is located over the flag or desired object. If the laser beam recognizes more than one object (for example, the flag and a group of trees behind it), only the distance to the closest object (the flag) will be displayed. The JOLT Technology provides two short bursts of vibration to confirm that the distance displayed is to the flag, and the red ring (Visual JOLT Indicator) around the outer edge of the display is activated, confirming the laser has ranged the correct target via Pinseeker. There may be times when the laser beam only sees one object in its path. In this case, the distance will be displayed, but because more than one object was not acquired, no JOLT indication will be provided.

Tip: While pressing the Power/Fire button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that you are only displaying the closest of the objects recognized by the laser. Once the device has shut off, the unit will always default back to the last mode used.

SLOPE SWITCH

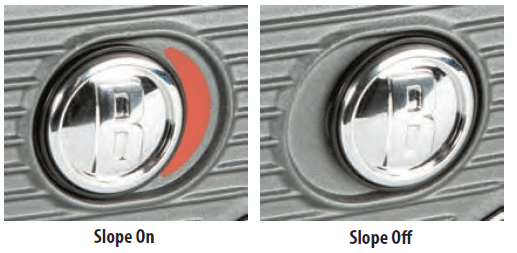

When slope is enabled by sliding the Slope Switch on the side of the unit to the left so the red Slope indicator is visible (see photo, right), Bushnell’s patented Slope Technology is displayed. The Slope +/- mode will automatically compute an angle-compensated range based upon distance and slope determined by the laser rangefinder and built-in inclinometer. This data is then combined with internal algorithmic formulas dealing with average club use and ball trajectories. The angle compensated range provides direction on how to play the shot (i.e. add distance if an incline, subtract distance if a decline). Slide the Slope Switch right, and your Pro XE now conforms to USGA Rule 14-3, with the slope compensated ranging feature removed.

ELEMENTS

With Slope mode selected (Slope Switch to left with red indicator exposed), the display will show the percent grade of tilt/incline to the hole or obstacle (with the flag or other target in the aiming circle) and “Play As” compensated distance belowthe normal “Line of Sight” distance when the laser is fired. You also have the option of activating the Elements feature by pressing the Mode button (toggles between Elements on/off). “ON” is indicated by the Elements Mode icon () in the display. When Elements Mode is on, the Slope compensated distance also factors in the air pressure and temperature at your location on the golf course. For example, the ball will travel farther through thinner air at higher altitudes (assuming it is hit with the same force).

Note: Once the device has shut off, the unit will always default back to the last mode used.

HOW TO USE SLOPE +/-™

Once in this mode, you will see a “ – – – ” in the field of view informing you that you are in the Slope +/- Mode. Press the Power/Fire button to obtain the distance to the flag or other objects. Once the range is displayed, release the Power/Fire button. Once you have released the Power/Fire button, a grade percentage and compensated range will be displayed beneath the standard distance.

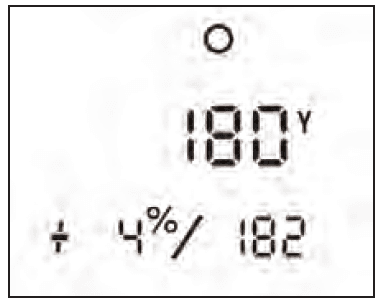

For example, if the true distance is 180 yards, but with a slope of +4 percent, the slope-compensated (“play-as”) range is 182 yards. The display would show this (right):

THE ADVANTAGE OF SLOPE +/-™

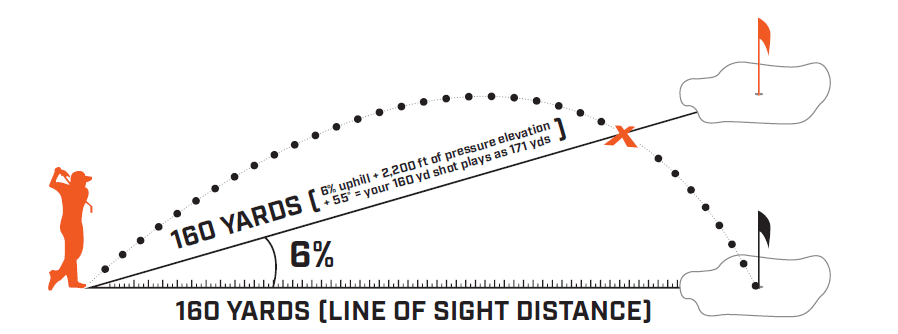

The distance to the black flag in the drawing (see next page) is 160 yards. It is also 160 yards to the red flag, although it is on a slope with a 6% grade (uphill incline). However, if you were to play this hole as 160 yards, the ball (X) would fall short of the hole/flag because you did not take slope into account. Due to the slope (plus pressure and temperature with Elements Mode on), it should be played as a 171 yard shot. This will be displayed as your “play as” distance below the line of sight distance.

TIP: While pressing the Power/Fire button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that you are only displaying the nearest of the objects recognized by the laser.

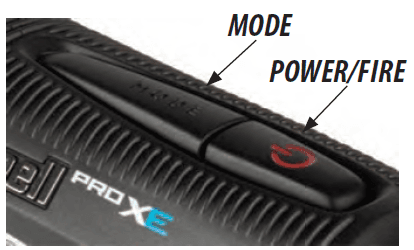

MODE BUTTON – SETTINGS MENU

Press and hold the Mode button to enter the Settings menu, which allows you to set your preferred display brightness level and distance units (yards/meters). Press/release the Mode button to cycle through four display brightness settings (“Bright 1” to “Bright 4”). When your preferred setting is displayed, press the Power/Fire button. Next, toggle between distance units Yards or Meters) by pressing the Mode button. This also activates the JOLT indicators (vibration and visual ring in display), allowing you to preview/demo the effect of JOLT Technology without requiring you to fire the laser at a target. Press the Power/Fire button to confirm your unit’s preference and exit the Settings menu.

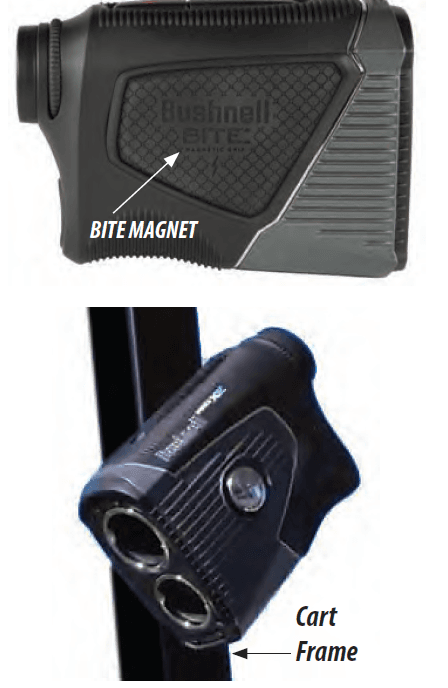

BITE MAGNETIC MOUNT

The Pro XE features a powerful BITE magnet incorporated into the right side of its housing, which allows the device to be securely attached to a golf cart bar or frame.

WARNING: The Bite feature included with the device contains a Neodymium magnet. Magnets could affect the functioning of pacemakers and implanted heart defibrillators. If you use these devices, keep a sufficient distance from the magnet.

Warn others who wear these devices from getting too close to magnets.

• Magnet may lose part of its adhesive force permanently if exposed to temperatures above 175o F (80°C).
• Magnets produce a far-reaching, strong magnetic field. They could damage TVs and laptops, computer hard drives, credit and ATM cards, data storage media, mechanical watches, hearing aids, and speakers. Keep the unit away from devices and objects that could be damaged by strong magnetic fields.

CLEANING AND GENERAL CARE

The lenses of your Bushnell Pro XE laser rangefinder are fully multi-coated for the highest light transmission. As with any multicoated optics, special care must be taken in cleaning the lenses. Follow these tips for proper lens cleaning:

• Blow away any dust or debris on the lens (or use a soft lens brush).
• To remove dirt or fingerprints, clean with the supplied micro-fiber cloth, rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included washable microfiber cleaning cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the microfiber cloth.
• For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth – never directly on the lens. The rangefinder is manufactured and tested to withstand water exposure up to IPX7 standards. It is waterproof, submersible to a depth of 1 meter for up to 30 minutes.

TROUBLESHOOTING

Never disassemble your laser rangefinder. Irreparable damage can result from unauthorized service attempts, which also void the warranty. If the unit does not turn on, the display does not illuminate:

• Depress the Power/Fire button.
• Check and if necessary, replace the battery. If the unit does not respond to button presses, replace the battery with a good quality CR2 3-volt Lithium battery.

If the unit powers down (display goes blank when attempting to power the laser):

• The battery is either weak or low quality. Replace the battery with a new 3 -volt lithium battery (CR2).

If target range cannot be obtained:

• Make sure the display is illuminated.
• Make sure that the Power/Fire button is being depressed.
• Make sure that nothing, such as your hand or finger, is blocking the objective lenses (lenses closest to the target) that emit and receive the laser pulses.
• Make sure unit is held steady while depressing the Power/Fire button.

NOTE: The last range reading does not need to be cleared before ranging another target. Simply aim at the new target using the display reticle, depress the Power/Fire button and hold until new range reading is displayed.

Technical Specications

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
