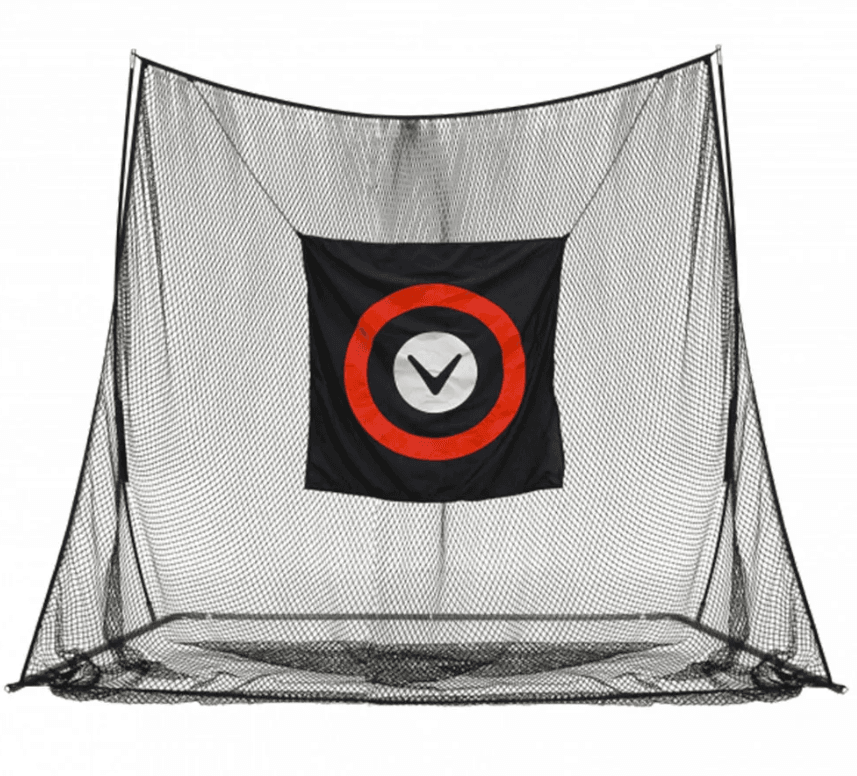

Callaway 8-ft Base Hitting Net
BASE HITTING NET INSTRUCTIONS

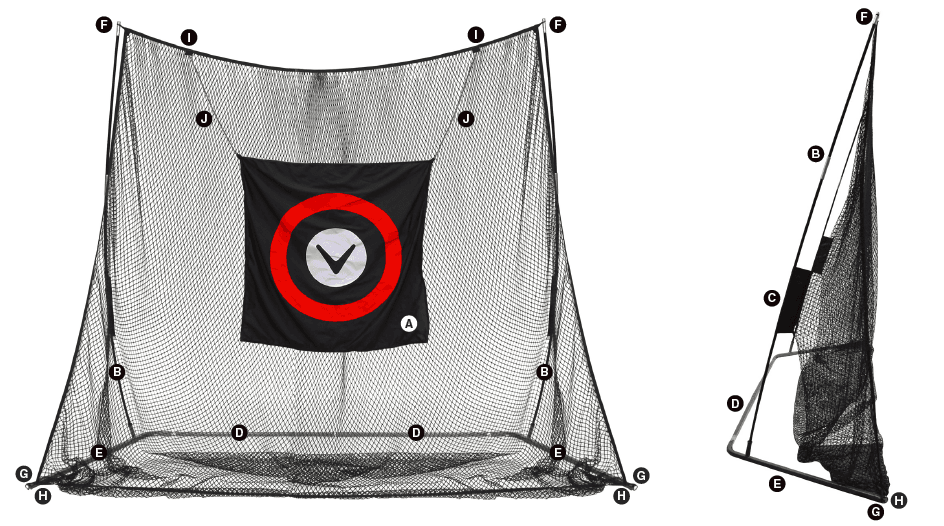

KEY:
- A. Hitting Target
- B. Vertical Frame Poles (2)
- C. Side Securing Sleeves (2)
- D. Straight Base Poles (2)
- E. Angled Base Poles
- F. Top Securing Loops
- G. Base Hooks
- H. Bottom Securing Loops
- I. Sewn-In Tabs
- J. Black Threaded Cord
- K. Spring Loaded Holder

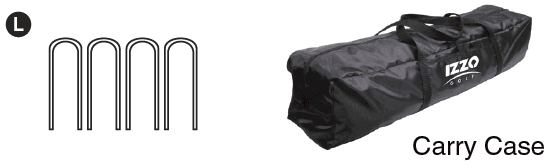

- L. Ground Stakes
INCLUDES:
Setup instructions
step 1

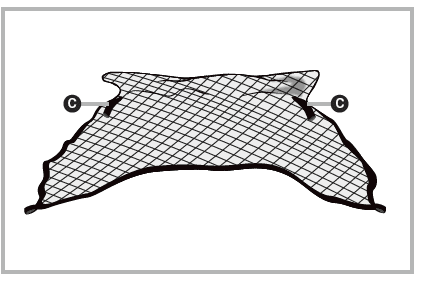

- Lay net with Side Securing Sleeves (C) facing the ceiling. The 2 corners with gray straps will become the bottom of the hitting net.
step 2

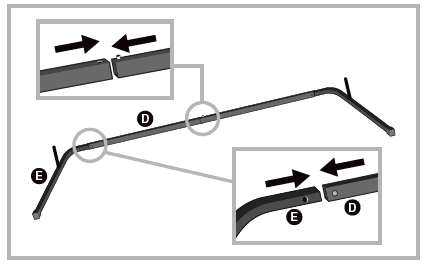

- Connect the 2 Straight Base Poles (D) by pushing the spring lock button in. Line button up with hole & push until you hear a click. Locate the 2 Angled Base Poles (E) & connect to each end of connected straight base poles. The base hooks at the end of each angled base pole indicate the front of the net.
step 3

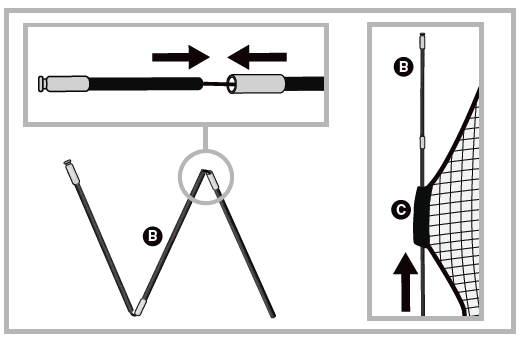

- Connect the Vertical Frame Poles (B) & slide through the Side Securing Sleeve (C), making sure the silver notched adapter is pointing toward the top of the net. Repeat on the other side
step 4

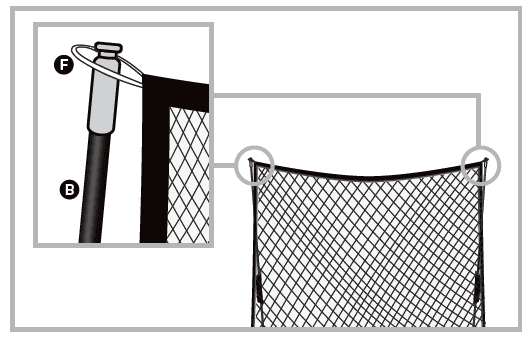

- Connect Top Securing Loops (F) at the top of net to the silver adapter on the Vertical Frame Poles (B). Repeat on the other side
step 5

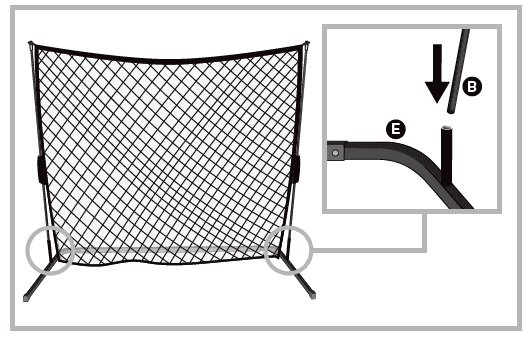

- Secure Vertical Frame Poles (B) to base by sliding end into opening on the Angled Base Poles (E). Make sure the Side Securing Sleeve (C) is facing away from the Base Hooks (G) located at the end of the Angled Base Poles (E)
step 6

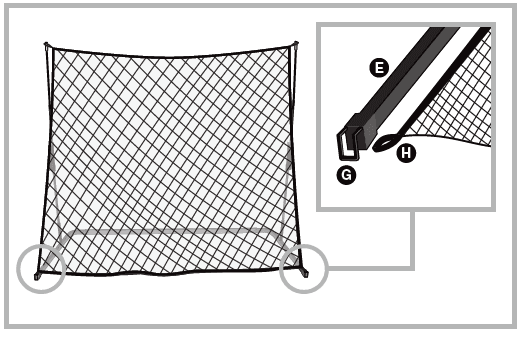

- Locate Bottom Securing Loops (H) at the bottom corner of net & connect to the Base Hooks (G) located at the end of the Angled Base Poles (E). Repeat on the other side
step 7 (FIG. 1)

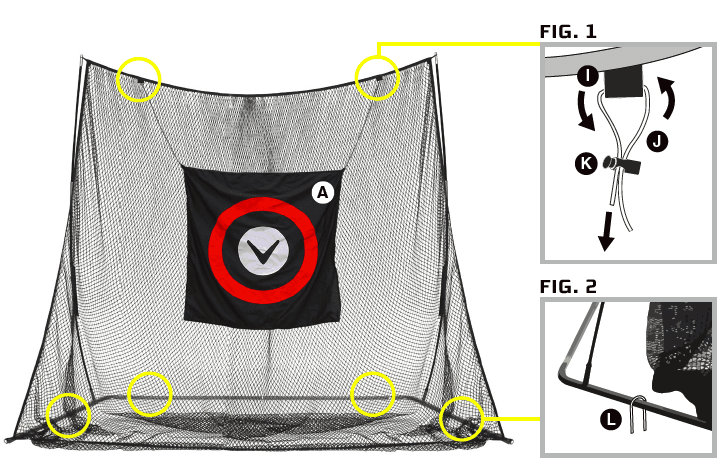

- Attach Hitting Target (A) to the net by locating the Sewn-In Tabs (I) at the top of the net. Run the Black Threaded Cord (J) through the Sewn-In Tab (I) on each side of the net. Then, loop the Black Threaded Cord (J) through the hole in the Spring holder (K) to create a loop.
Step 8 (FIG. 2)
- For outdoor use, place “U” shaped Ground Stakes (L) around each base pole. Press firmly into the ground to secure.
