CANDY CCHH-100EK Artico Chest Freezer User Manual

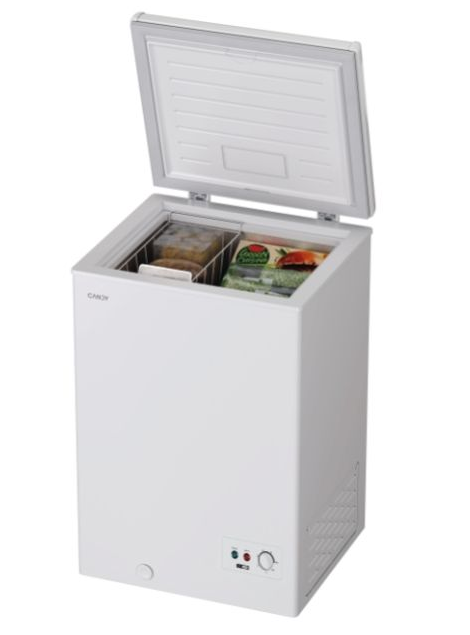

CANDY CCHH-100EK Artico Chest Freezer

DIAGRAMS

SAFETY INFORMATION

Please read the operating and installation instructions carefully! They contain important information on how to install, use, and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.
  Danger of suffocation from folding cartons and plastic film!
• Leave to stand for at least 4 hours before switching on the product, to allow the compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.
• Do not damage the refrigerant circuit.
• Maintain the ventilation openings in the appliance enclosure or in the built-in
  structure, free of obstruction.
• Never use water to wash the compressor position. Wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two people because it is heavy.
• Install and level the appliance in an area suitable for its size and use.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, damage the temperature control or compressor, or there may be an abnormal noise when
  operating. In such a case, an automatic regulator shall be mounted.
• Only for the UK: The appliance’s power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
• Make sure that the mains cable is not caught under the appliance during and after
  carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
• Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight or to water.
• Do not install the appliance near heaters or flammable materials.
• FOR appliances with a freezer compartment: if there is a power failure, do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
• If you find that the lid of the appliance is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference, which will equalize and allow the lid to be opened normally after a few minutes.
• Do not store medicines, bacteria, or chemical agents in the appliance. This appliance is a household appliance; it is not recommended to store materials that require strict temperatures.
• Do not excessively pull or fold the power cord or touch the plug with wet hands.

PRECAUTIONS

• This appliance can be used by children aged 8 years and above, and persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge of whether they have been given supervision or instruction concerning the use of the appliance in a safe way, and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Please contact the service agent to dispose of the appliance because flammable blowing gas was used.
• If the illuminating lamps are damaged, they must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Chest freezer suitable for use in unheated rooms and outbuildings, no less than -12°c.
• Since the flammable refrigerants are used, please install, handle, and service the appliance strictly according to the instructions and contact the professional agent or our after-sales service to dispose of the appliance.
• A switch is built into appliances equipped with lighting. When the appliance is opened, the light goes on automatically and switches off automatically when closed. (not provided in all models)

DIAGRAMS

FIGl.

• A Lid
• B Gasket
• C Cabinet
• D Storage compartment
• E Defrost water drain plug
• F Control panel
• G Ventilation grille
• H Basket
• I Compressor chamber
• J Compressor

FIG2.

1. Temperature control (Thermostat)
2. Control light
3. Alarm light

Light Indicators

• Green = CONTROL (The appliance is running)
• Red = ALARM (Interior temperature too high)

BEFORE USE

• This appliance is intended strictly for household use, for storing food only.
• If the unpacked appliance is damaged, please contact your dealer.
• The mains electricity supply must conform to the rating plate of the appliance.

INSTALLATION

• Fully unpack the appliance. Please ensure that all packaging materials are removed and properly disposed of before installation and kept out of children’s reach.
• The appliance should be installed in a dry, well-ventilated room, and not exposed to direct sunlight, and not placed near a heat source.
• Leave at least 10cm between the appliance and the surrounding for ventilation and heat dissipation.
• The electricity supply must conform to as specifications on the rating plate and follow local regulations.
• It is recommended to wait at least two hours before plugging the appliance in after installation. This helps the refrigerant circuit to stabilise.
• Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:
  • Extended temperature: ‘This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’;
  • Temperate: ‘This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’;
  • Subtropical: ‘This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’;
  • Tropical: ‘This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43°C’;

START-UP

1. Insert the plug in the socket. All indicators light up and switch off. And then the temperature is displayed.
2. Allow one hour for the temperature inside the appliance to go down, and then place food inside the appliance.

TEMPERATURE SETTING

Turn the thermostat (1) to adjust the temperature between Min (warmer) and Max (colder ). The storage temperature will decrease from the minimum.

FREEZING FOOD

• Wrap or seal food in aluminium foil, air-tight containers, or food storage bags before freezing.
• Allow hot food to cool before placing it in the appliance.
• A smaller portion of food will be faster frozen. The recommended max portion weight is 2.5kg.
• Avoid placing warm food directly in contact with already frozen food. Frozen food could defrost and may not last the foreseen storage time.
• The capacity of the appliance, as shown on the rating plate, should not be exceeded.
• When filling the appliance with higher quantities of fresh food, it is recommended to turn on the Super Freeze function (if available) 24 hours in advance.
• The storage me for purchased deep-frozen products varies and depends on the type of product and its packaging. Therefore, strictly observe the producer/manufacturer’s instructions on the packaging.

CLEANING AND MAINTENANCE

• Always ensure that the power supply is switched off before conducting any maintenance or cleanof the appliance.
• If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells from building up inside.
• To ensure the safe preservation of foodstuffs, please comply with this instruction to use and clean the freezer regularly. The detail is as below part.
• Clean the inside of your freezer at least once a year. A tablespoon of baking soda to a litre/quart of water.
• Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners.
• Do not wash removable parts in a dishwasher.
• Never use metallic scouring pads, brushes, or sponges, or abrasive rasps
• Clean the door gasket every three months according to applicable instructions to ensure a proper seal.For positions, such as seams, slots, holes, and so on, the simple tools, detachable shelves, trays, drawers, and similar accessories can be cleaned by removing them from the appliance and washing them in the basin.
• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents, or metal scouring pads. Some of these chemicals may dissolve, and/or discolour your freezer.

DEFROSTING

The appliance should be defrosted once the thickness of ice on the walls reaches 5-6 mm.
Do not use any electrical, sharp, or mechanical objects to assist in defrosting the ice removal process, unless supplied or approved by the manufacturer or an approved service centre. To remove ice from the inner walls, use a plastic or wood scraper without sharp edges. Never use a metal scraper. Proceed as follows:

1. Make sure to unplug the appliance.
2. Dry your hands thoroughly to prevent skin damage by contact with ice (it is advised to use gloves).
3. Remove all frozen food from the appliance, and put it into a container, a cool box, and put the frozen cool blocks on top of the frozen food to help keep it very cold, and place the container or cool box in a cool, dry room.
4. Pull out the water drain plug (if available) located at the bottom of the appliance. Otherwise, you must wipe up the melted water at the bottom of the appliance compartment with a sponge or towel.
5. Scrape the ice carefully from the inside of the appliance and put it into your kitchen sink for defrosting.
6. Thoroughly clean the inside of the appliance compartment, rinse it with warm water, and remove any spilled food or liquids.
7. Wipe the appliance with an absorbent cloth or sponge, thoroughly dry, and allow it to air for about 3 to 4 minutes.
8. Replace the drain plug (if available).
9. Close the appliance door, replace the plug in the socket, and turn the appliance on.
10. Now, re the frozen food. To prevent frozen food from defrosting, carry out the defrosting procedure within a maximum of two hours to reduce a rise in temperature of the frozen food that would shorten the storage life.

TROUBLESHOOTING

Door difficult to open?

After closing the door, it may be difficult to open it again for a few minutes. This is normal and means that the door seal is working correctly. Just wait a few minutes and you will be able to open the door easily.

No opera on (appliance not running/getting cold)

• Is there a power failure?
• Is the plug in good condition and properly plugged into the socket?

Appliance not working sufficiently/ ‘Red light’ is on

• Is the lid of the appliance closed properly?
• Is there heavy ice formed on the inner walls?
• Is the appliance exposed to direct sunlight or a heat source?
• Have too many warm foods been put in the appliance?
• The climate class can be found on the range label in the back of the appliance. It specifies the ambient temperatures at which the appliance will operate correctly.

The appliance makes noise.

This noise is produced when the motor in the compressor operates, and also by the refrigerant owing to the cooling system circuit. These noises are normal.

Condensation builds up on external walls

Under certain atmospheric conditions, condensation can form on the can from on external walls of the appliance. This is normal and won’t affect the function of one of the appliances.
