CEN-TECH 61593 Digital Multimeter User Manual

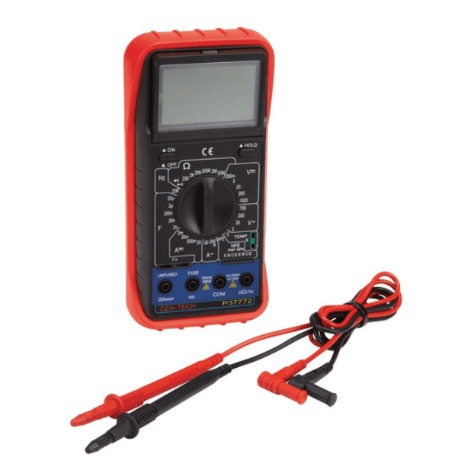

CEN-TECH 61593 Digital Multimeter

IMPORTANT SAFETY INFORMATION

1. Electrical shock can cause death or injury! NEVER TOUCH exposed conductors of electricity.
2. Inspect the Multimeter before use. In addition to a general inspection, look specifically for:
   a. Pay special attention to the insulation protecting the connectors.
   b. Check the leads for exposed metal, damaged insulation, and continuity.
   c. Replace damaged test lead immediately, before use.
3. Do not use the multimeter if:
   a. The test lead is damaged in any way.
   b. The battery is low.
   c. Near any explosive gasses or fumes.
   d. Any abnormal operation is detected. (If in doubt about the condition of the meter, have it serviced.)
   e. The battery cover is open.
4. This meter should be powered only by a single, correctly installed 9V battery.
5. Use caution when working near voltages above 30 VAC rams, 42 VAC peak, or 60 VDC. Voltages this high present a risk of electric shock.
6. Disconnect the circuit’s power before connecting the meter in series, when measuring current.
7. Connect the common (COM) test lead first and disconnect it last.
8. Hold the probes with fingers behind guards.
9. Avoid electrical shock. Use extreme caution when working near uninsulated conductors or bus bars. Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and cabinet enclosures when testing voltages.
10. Observe work area conditions. Do not test voltages in damp or wet locations. Don’t expose to rain. Keep work area clean and well lit.
11. Keep children away. Children must never be allowed in the work area.
12. Stay alert. Watch what you are doing, use common sense. Do not operate any meter when you are tired.
13. Do not operate meter if under the influence of alcohol or drugs. Read warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not operate the meter.
14. WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. (California Health & Safety Code § 25249.5, et seq.)
15. WARNING: The cord of this product contains lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. (California Health & Safety Code § 25249.5, et seq.)
16. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
17. Do not test voltage on circuits higher than 750 volts AC or 1000 volts DC. This type of testing should only be done by a qualified electrician.
18. Do not test current on circuits higher than 20 mA.
19. Store idle equipment. When not in use, meters must be stored in a dry location to decrease exposure to moisture. Lock up meters and keep out of reach of children.
20. Dress properly. Protective, electrically nonconductive clothes and nonskid footwear are recommended when working.
21. Wear ANSI-approved safety goggles during use.
22. Only use accessories intended for use with this meter.
23. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
24. Avoid damaging meter. Use only as specified in this manual.
25. Prior to testing, resistance, diodes, or continuity; disconnect all power to the circuit and discharge all high voltage capacitors.
26. Performance of this meter may vary depending on battery condition.
27. Use the proper settings, terminals, techniques, and range for the tests performed. Start with the range stated in the instructions.
28. Do not apply voltage to the Test Leads when the Multimeter is in the Ohms testing setting. Damage can occur to the multimeter.
29. Do not switch between testing modes with the multimeter connected to a circuit.
30. Do not use the meter at a setting marked as blank on the scale.
31. Prior to testing capacitors, resistance, diodes, or continuity; disconnect all power to the circuit and discharge all high-voltage capacitors.
32. Have the Multimeter calibrated by a qualified technician every year. A multimeter that is not calibrated yearly may not yield accurate results.

Functions

Specifications

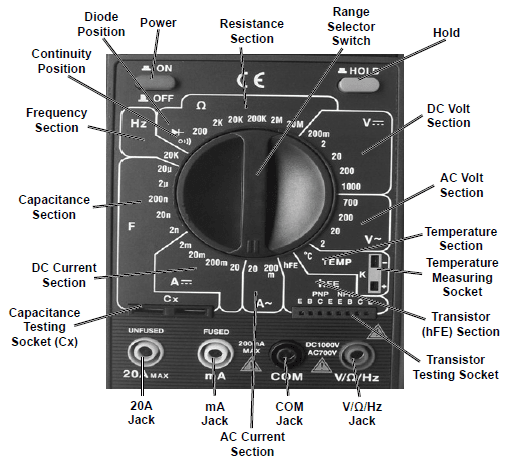

Tool Set Up

1. There are different functions and 30 ranges provided. A rotary switch is used to select functions as well as ranges.
2. A Power Button is used to turn the meter on or off.
3. A push – push switch (push ON, push OFF) is used to hold data. This switch can be used with all available settings, including DCV, ACV, DCA, ACA, Hz, and C.
4. As a general rule, the LCD display box is locked. To adjust the angle of the display, pull on the top of the meter and rotate it.
5. This meter has four input jacks that  are protected against overload to the limits shown. Depending on the intended function, connect either the black or red test lead to the COM jack.
6. WARNING! Before attempting to insert a transistor’s capacitor thermocouple for testing, disconnect the Test Leads from all measurement circuits.
7. WARNING! Before taking voltage measurements with Test Leads, remove the thermocouple. Do not connect Test Leads to the HFE or capacitor socket.

Additional Multimeter Precautions

1. Do not test voltage on AC circuits higher than 700 volts.
2. Do not test voltage on DC circuits higher than 1000 volts.
3. Do not test current on circuits higher than 20 amps.
4. Be careful not to apply voltage to the Test Leads when they are connected to the COM and VΩmA Jacks or when the Multimeter is in an Ohms testing setting. Damage can occur to the multimeter and the fuse may blow.
5. Do not switch between testing modes with the multimeter connected to a circuit.

General Operating Instructions

AC Voltage Measurements

Measure AC conductors carrying up to 700 VAC, 45-450 Hz.

1. Turn the Range Selector Switch to 700 ACV setting. Start with the highest range if the voltage is unknown.
2. Plug the red lead into the V/Ω/Hz Jack. Plug the black lead into the COM Jack. Switch the Multimeter ON.
3. Carefully touch the exposed conductors with the tips of the probes to measure the voltage (not amperes).
4. Read measurement. If the voltage is less than 200 volts, set the Range Selector Switch to the lower range.
5. When testing is complete, remove Test Leads and store with multimeter

DC Voltage Measurements

Measure DC conductors carrying up to 1000 VDC.

1. Turn the Range Selector Switch to 1000 DCV setting.
2. Follow the directions above under “AC Voltage Measurements”, only use the DC settings instead

AC Current Measurements

Measure AC conductors carrying up to 20 amperes.

1. Turn the Range Selector Switch to the 20A~ position. Start with the highest range if the amperage is unknown.
2. Plug the red lead into the 20A Jack. (For current under 20A, plug the red lead into the mA Jack.) Plug the black lead into the COM Jack. Switch the Multimeter ON.
3. Carefully touch the exposed conductors with the tips of the probes to measure the amperage.
4. Read measurement. If the reading is less than 0.2 amps, switch the red lead to the VΩmA Jack and set the Range Selector Switch to the 200 mA setting.
5. When testing is complete, remove Test Leads and store with multimeter

DC Current Measurements

Measure DC conductors carrying up to 20 amperes.

1. Turn the Range Selector Switch to the 20A position. Start with the highest range if the amperage is unknown.
2. Follow the directions above under “AC Current Measurements”, only use the DC settings instead

Resistance Measurements

Measure circuit resistance up to 20M Ohms.

1. Turn the Range Selector Switch to the 200Ω position.
2. Plug the red Test Lead into the V/Ω/ Hz Jack. Plug the black Test Lead into the COM Jack. Switch the Multimeter ON. Short the Test Leads together. The meter should read “0” Ohms.
3. Touch the exposed conductors with the tips of the Test Leads.
4. Read measurement. If the reading is “1”, set the Range Selector Switch to the next higher Ohm (Ω) position.
5. When measuring resistance above 1 MΩ, the meter may take a few seconds to give a stable reading. This is normal for high resistance measurements.
6. At the 20MΩ range, the display reading will be around 0.1 counts over the actual measurement. These counts should be subtracted from the resulting reading. For example, when measuring 10 MΩ resistance, the display will read 10.1, but the correct measurement should be 10.1-0.1=10.0MΩ
7. Remove and store Test Leads.

Capacitance Measurements

Measure capacitance up to 20μF.

1. Turn the Range Selector Switch to the 20μF position. Start with the highest range if the capacitance is unknown.
2. Plug capacitor into the capacitance testing socket (Cx). Switch the Multimeter ON.
3. Read measurement. If the reading is less than 20μF, set the Range Selector Switch to a lower range.

Frequency Measurements

Measure frequency up to 20kHz.

1. Turn the Range Selector Switch to the 20kHz position.
2. Plug the red Test Lead into the V/Ω/Hz Jack. Plug the black Test Lead into the COM Jack. Switch the Multimeter ON.
3. Remove and store Test Leads

Transistor (HFE) Measurements

Test transistors to ensure proper function.

1. Turn the Range Selector Switch to the HFE position. Switch the Multimeter ON.
2. Insert transistor pins into the appropriate holes of the HFE testing socket (NPN or PNP) according to the EBC (Emitter, Base, Collector) sequence.
3. The meter will show the approximate HFE value at the test condition of base current 10μA and VCE 3.2V.
4. Remove and store Transistor.

Diode Measurement

Test the voltage drop in diodes.

1. Turn the Range Selector Switch to the Diode ( ) position.
2. Plug the red Test Lead into the V/Ω/Hz Jack. Plug the black Test Lead into the COM Jack. Switch the Multimeter ON.
3. Connect red probe to the anode of the diode and the black to the cathode.
4. The approximate forward voltage drop of the diode will be displayed in mV. If the connection is reversed, only “1” will be shown.
5. Remove and store Test Leads.

Continuity Measurement

Test continuity between two points of a circuit.

1. Turn the Range Selector Switch to the position. Switch the Multimeter ON
2. Connect Test Leads to two points of the circuit. If continuity exists (i.e., resistance is less than 50Ω), a buzzer will sound.
3. Remove and store Test Leads

Temperature Measurement

1. Turn the Range Selector Switch to the TEMP position. Switch the Multimeter ON. Display will show the current ambient temperature.
2. Plug a “K”-type thermocouple into the temperature measuring socket.
3. Contact object to be measured with the thermocouple probe. Read measurement.

Maintenance and Servicing

Cleaning, Maintenance, and Lubrication

1. Wipe unit with a dry, lint-free cloth. Do not use solvents or abrasives.
2. Remove battery if not in use for long periods.
3. Store unit in a dry location.
4. Other than the battery and fuse, there are no replaceable parts on this unit. Repairs should be done by a qualified technician

Battery/Fuse Replacement

If the sign appears on the LCD display, the battery should be replaced.

1. Remove the Test Leads from the multimeter.
2. Turn the unit over.
3. Remove screws.
4. Remove back cover carefully. There may be wires attached.
5. Pull battery/fuse out of unit and replace with the same. (9V battery or F 2A/250V (quick acting) fuse)
6. Replace cover and retighten screws.

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.

This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.

We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement.

We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
