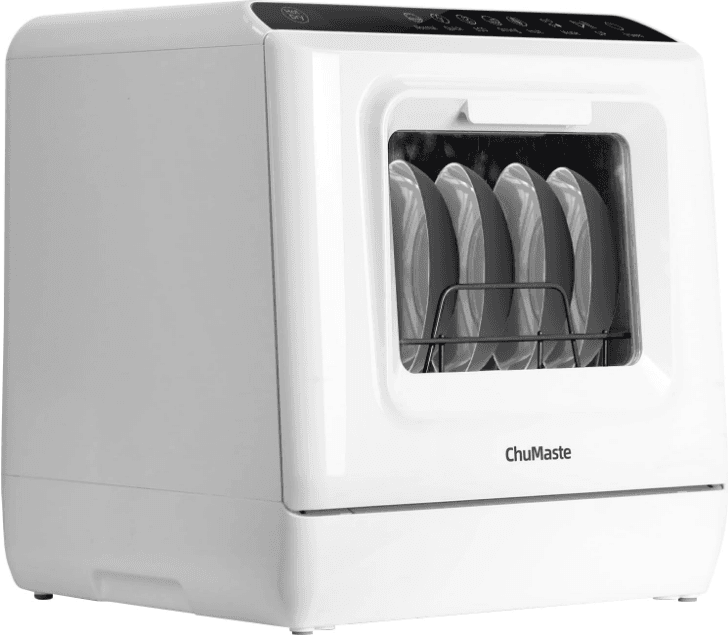

ChuMaste CM-XWJ01 Countertop Dishwasher
Product Introduction
Machine

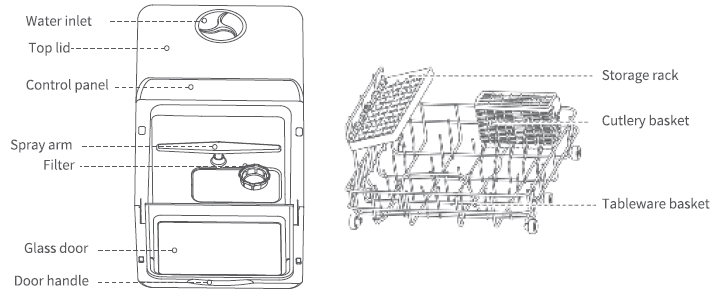

Parts list
Control Panel
- Hot Dry
- Tank model
- Tap model
- Display screen
- Time display
- Dry indicator
- Temperature
- Door open
- Normal
- Quick
- ECO
- Strong
- Fruit
- Program option
- Start/Pause
- Power on/off
Installation
Inlet hose installation
- Connect machine: Insert inlet hose elbow into the water inlet behind machine and tighten the screw.
- Connect tap: A, B, C, three options for tap connection, but the B and C options need to make a hole on or behind the cabinet so the hose can go through the cabinet.
Note: the size of the inlet hose elbow is 1/2′ with internal thread, the tap size must be 1/2′ with outer thread.
Drain hose installation
- Connect machine: Insert the drain hose elbow to the water outlet behind the machine and tighten the collar.
- Connect sewer: A, B, C, three options for sewer connection. Band C options need to make a hole in or under the cabinet so the hose can go through the cabinet.
Tableware Loading
- Please get rid of large food residue on tableware, avoiding blocking the water hose.
- Please make reference to the right pictures for tableware loading.
Note: In order to fully clean tableware, please tilt tableware internally or put the stained side down.
Operation
Power on
Plug in, touch the “power button”, and turn on the machine.
Note: During the washing program running, touch the “power button” for 3 seconds to force the machine to turn off.
Add detergent
Open the door, add moderate detergent powder or 1 pc detergent block into the machine, and close the door.
Note: No detergent when washing fruit; The dosage: 8-10 g each washing cycle.
Program selection
Touch the “Program selection”, each of the program indicators will light up one by one in mode, select the program you want.
Run program
Touch “S/P”, run the selected program, and the machine will check the water supply automatically.
Wash
The machine has two water supply models, the tap model and the tank model.
Function
| Program | Program execution | Time | Detergent | Temperature | Drying time | Storage (if selected) |
| Normal | Hot water washing, Cold water rinsing, Cold water rinsing, Hot water rinsing | 69Min | 8g | Washing 131°F Rinsing 154°F | 60Min | Circulating fresh air for 73 hours |
| Quick | Hot water washing, Cold water rinsing, Hot water rinsing | 29Min | 8g | Washing 122°F Rinsing 144°F | 60Min | Circulating fresh air for 73 hours |
| Strong | Hot water washing, Hot water rinsing, Cold water rinsing, Hot water rinsing | 89Min | 12g | Washing 131°F Rinsing 131°F Rinssing 167°F | 60Min | Circulating fresh air for 73 hours |
| ECO | Hot water washing, Cold water rinsing, Hot water rinsing | 59Min | 8g | Washing 131°F Rinsing 154°F | 60Min | Circulating fresh air for 73 hours |
| Fruit | Cold water rinsing Cold water rinsing | 19Min | / | / | / | / |
| Hot Dry | / | / | / | / | 60Min | Circulating fresh air for 73 hours |
The “Normal wash” and “Strong wash” in the water tank mode have one less rinse than the faucet mode, and the total washing time is the same.
Maintain & Clean
Clean Filter
- Disassemble: Rotate anticlockwise to disassemble the filter set, which has 3 parts: filter mesh, main filter, and fine filter.
- Clean: Use water to flush and brush each part of the filter.
- Assemble: After cleaning, rotate clockwise to close the filter set.
Clean spray arms
- Disassamble: Open the door, take out the basket, then pull out the up and down spray arm.
- Clean: Use water to flush and brush each spray arm, and use tools with a sharp point, like a needle, to clean holes if needed.
- Assemble: After cleaning, please press each arm into position and make sure the arms can move smoothly.
Fault & problem
Fault codes
| Code | Fault | How to deal with |
| “E2” | Draining | 1. Check the drain pipe, be sure the pipe is straight, no bending; 2. Power off, check if anything blocks the filter or the drain pipe; 3. Be sure that all pipes are not blocked by something. |
| “E3” | Overflowing | Tilt the machine to 30~45 degrees, let water flow out from the base of the machine, then restart the machine. If still fault persists, contact our service representative. |
| “E4” | Temperature | Restart the machine, if still fault persists, please contact our service man. |
| “E5” | Massage | same as E4 |
| “E6” | Heating | same as E4 |
| “E7” | Pressure | same as E4 |
Problem (1)
| Problem | Reason | How to deal with |
| Tableware is not clean | Incorrect tableware loading | Be sure to leave enough space between tableware. |
| Spray arm trapped | Be sure nothing traps the spray arm. | |
| Blocked spray arm | Clean the spray arm. | |
| Blocked filter | Clean filter set. | |
| Incorrect filter installation | Correctly assemble the filter set. | |
| Incorrect program selection | Select the appropriate washing program. | |
| No detergent | Add detergent (block/powder/liquid). | |
| Don’t start the machine | Water shortage | Add water till the indicator light goes off. |
| The door does not close fully | Check the door if anything stops closing fully. | |
| Can not select the program | Be washing | Re-select the program after stopping the in-progress program or wait in-progress program to finish. |
Problem (2)
| Problem | Reason | How to deal with |
| Tableware can not dry | Inappropriate program | Select an appropriate program |
| Poor dry effect for plastic tableware | Wipe these plastic tableware by hand to dry | |
| Incorrect tableware loading | Correct tableware setting in accordance with | |
| The drying program has no finishing | Wait for the dry program to finish | |
| Wooden tableware | Wipe the wooden tableware by hand to dry | |
| Discoloration of plastic tableware | Over high washing temperature | Select a program with a lower temperature |
| Detergent left | Spray arms are trapped | Be sure the spray arm moves smoothly |
| Detergent of poor quality | Use a qualified detergent |
Problem (3)
| Problem | Reason | How deal with |
| A mount of foam in the machine | Use incorrect detergent | 1.Use special detergent for dishwasher; 2.0pen machine, wipe out foam by hand; 3. Fill 2-3L water into the machine, select any program. After 1-2 min, the foam will be drained, and the process if needed. |
| Abnormal sound in the machine | Spray arm knock tableware | Correctly loading the tableware |
| Tableware moves slightly | Fix tableware before washing | |
| Egg custard left on the tableware | Portein solidification | wash the tableware with egg custard by hand |
| Water drops left inside of machine | The drying time is not enough | Selet “Hot Dry” prorgram |
Safety and warning
Warning
- Power socket must be grounded, avoiding possible electric leakage or shock.
- Don’t share one 6A/10A socket with other appliances to fire.
- Any new parts or power cords will be replaced by the service man after damage.
- Dispose of the machine in an environmentally friendly manner under local regulations.
- Do not place the machine in an environment below 0°F.
- Please use the salt and detergent that are special for an automatic dishwasher.
- Don’t use the machine on a platform that is not stable, wet, smooth, or inflammable.
- Don’t place the machine within 150mm far from a gas stove or other heating source.
- Don’t place heavy objects on the open door to the machine that turns over.
- Don’t splash water into the machine, to an electric shock or fire.
- Don’t drink the water left in the machine to avoid getting hurt.
- Don’t let children operate the machine independently of any danger.
Precautions
- Don’t open the door when washing avoiding to avoid hot water flying out and causing any harm.
- Don’t touch or block the side air outlet to avoid burning.
- Don’t try to tilt or move the machine when washing to avoid faults.
- Please be careful of the knife or other objects with sharp points when opening the door.
- Please stop washing, turn off, plug out, and close the tap when any faults.
- Please check and clean the machine from time to time in order to achieve the best performance.
- Please fix the drain hose to the stained water outflow.
- Don’t forcibly pull the power cord, drain hose, or press the culinary tray, avoiding any damage.
- Don’t use a wet hand to operate the machine to avoid an electric shock.
- Children should be far from chemical materials such as salt, detergent avoiding to avoid hurting.
