COMFEE CDC17P0ABB Portable Mini Countertop Dishwasher Instruction Manual

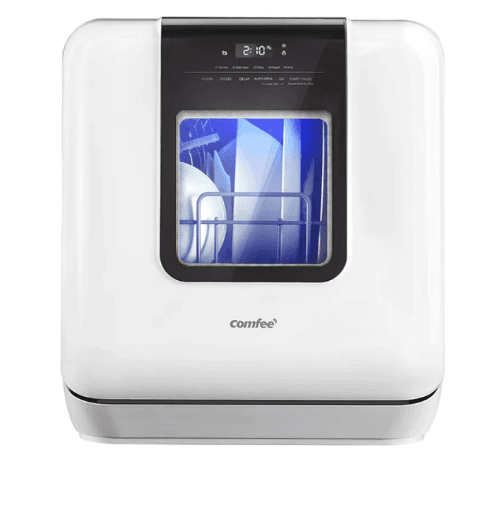

COMFEE CDC17P0ABB Portable Mini Countertop Dishwasher

IMPORTANT SAFETY INSTRUCTIONS

• This appliance is intended to be used in household and similar applications such as:
  • -Staff kitchen areas in shops, offices, and other working environments;
  • -Households;
  • -by clients in hotels, motels, and other residential-type environments;
  • -bed and breakfast type environments.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• This appliance is not intended for use by persons(including children )with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• This appliance is for indoor use only, for household use only.
• To protect against the risk of electrical shock, do not immerse the unit, cord, or plug in water or other liquid.
• Please unplug before cleaning and maintaining the appliance.
• Use a soft cloth to moisten it with mild soap, and then use a dry cloth to wipe it again.

Grounding instructions

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

GETTING TO KNOW YOUR APPLIANCE

IMPORTANT:
Before using this dishwasher for the first time and to get the best performance, read these instructions.

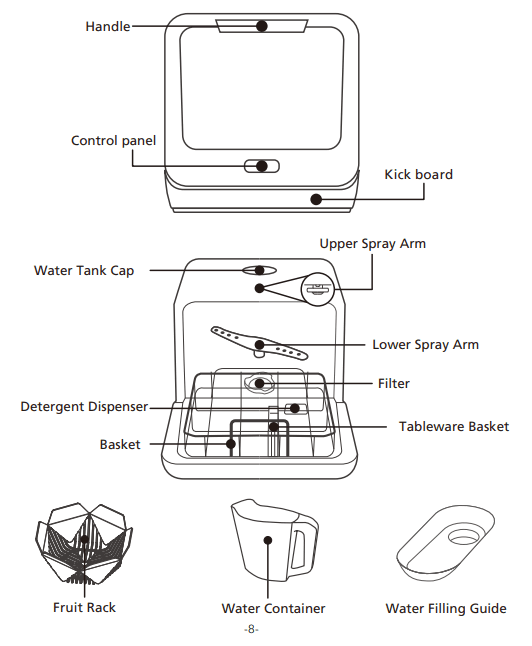

Dishwasher features

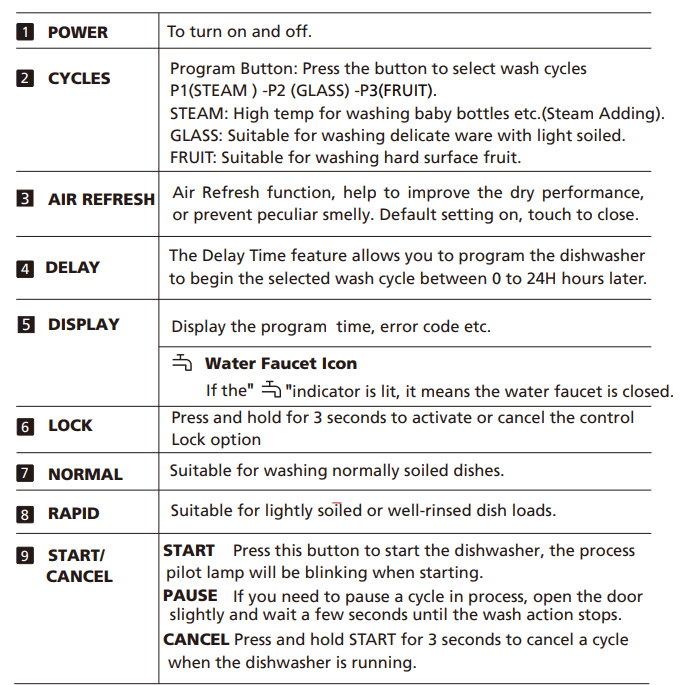

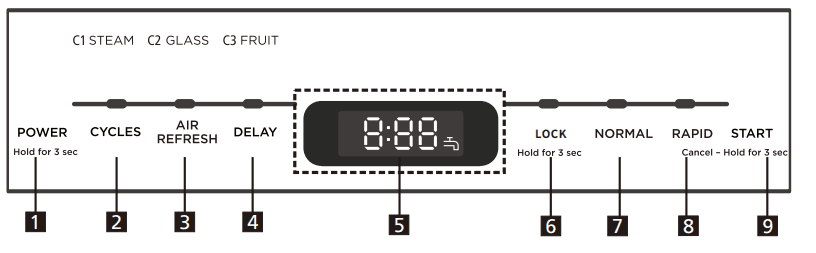

Control panel

USING YOUR DISHWASHER

Loading The Dishwasher

Recommendation

• Consider buying utensils that are identified as dishwasher-proof.
• Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from detergent manufacturers.
• For particular items, select a program with lower temperatures.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Items Not Recommended for Dishwasher Use

Not suitable for use:

• Cutlery with wooden, horn, china or mother-of-pearl handles
• Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Wooden items
• Items made from synthetic fibers

Limited suitability:

• Some glasses can become dull after a large number of washes.
• Silver and aluminum have a tendency to discolor during washing.
• Glazed patterns may fade if washed frequently.

Attention before or after loading the dishwasher baskets

(For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large food particles. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/pans, etc. load face downwards.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in a way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans, etc. with the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not be touched.
• Long-bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable energy consumption.

Loading The Baskets

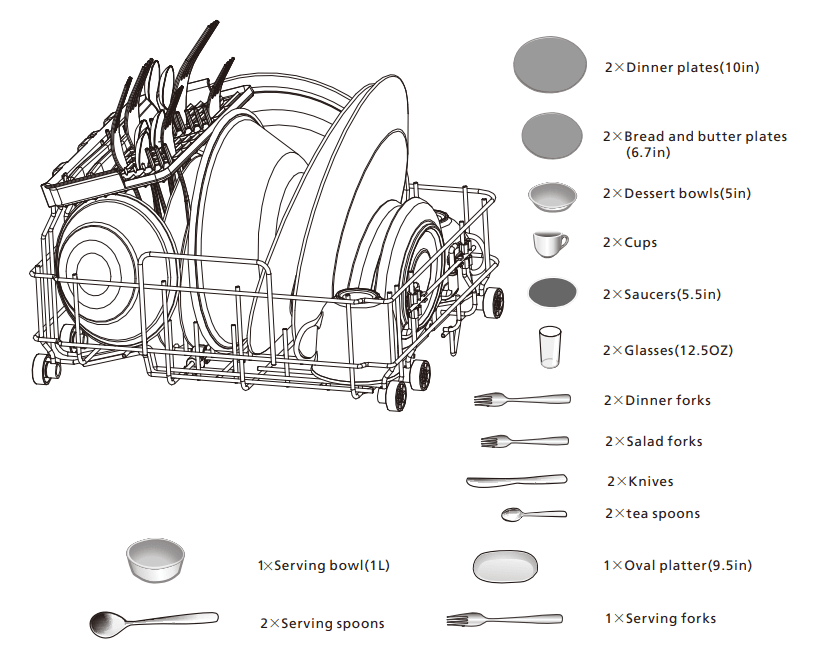

Position the dishes and cookware so that they will not get moved by the spray of water. Recommended loading layouts below

• 2×Serving Bowl (1L)
• 1×Oval Platter (9.5in)
• 2×Serving Spoons
• 1×Serving Forks
• 1×Dinner Plates (10in)
• 1×Bread And Butter Plate (6.7in)
• 1×Dessert Bowl (5in)
• 1×Cups
• 1×Saucer (5.5in)
• 1×Glass (12.5OZ)
• 1×Dinner Fork
• 1×Salad Fork
• 1×Knives
• 1×Teaspoons

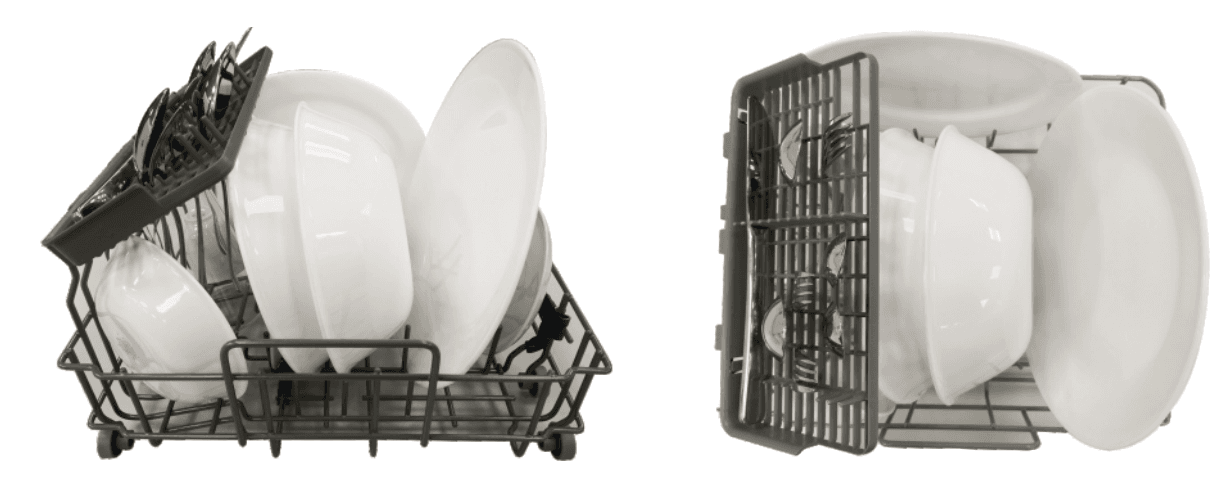

Recommended loading layout with 1 serving bowl and 2 settings of personal tableware.

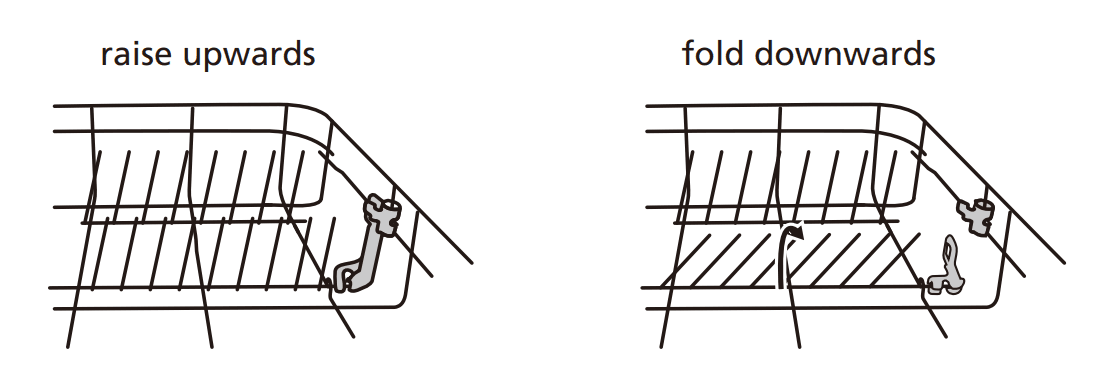

Folding Down The Rack Shelves

The spikes are used for holding plates and platters. They can be lowered to make more room for large items. Folding down to load large-size tableware fruit baskets or baby bottle racks.

Loading The Detergent

This product doesn’t support adding rinse aid. It only needs to add detergent.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

• Conventional, alkaline detergents with caustic components.
• Low alkaline concentrated detergents with natural enzymes.

The use of a Normal washing program in combination with concentrated detergent reduces pollution and is good for your dishes.

Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason, some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent
The detergent must be refilled before the start of each wash cycle following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent then a conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

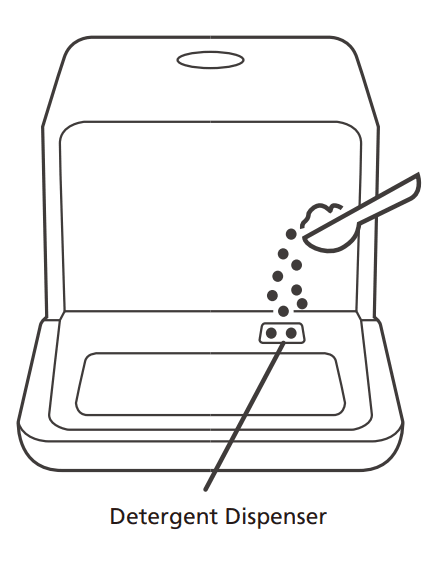

Adding detergent

PROGRAMMING THE DISHWASHER

Wash Cycle Programs

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs.

Turning On The Appliance

Starting a wash cycle…
Draw out the basket(see the section entitled “Loading the Dishwasher”). Pour in the detergent (see the section “Fill the detergent”). Insert the plug into the socket. The power supply is 120VAC 60H, Press the power button to turn on the appliance, Connect the inlet hose to the tap, make sure that the water supply is turned on to full pressure, or add water to the tank manually.

Select a suitable program according to the “Wash cycle table”;
If a program is selected, the response light will illuminate. Then press the Start/Cancel button, the dishwasher begins to start.

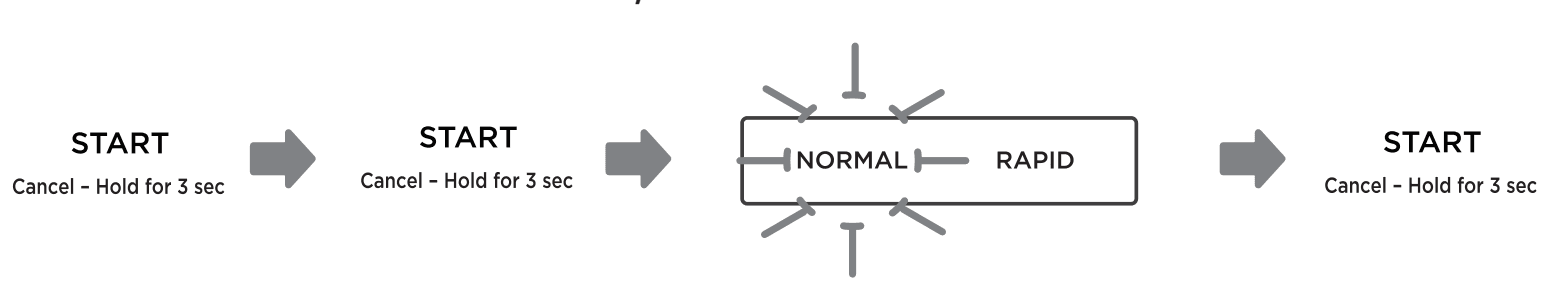

Change The Program

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Cancel button to pause the washing.
2. Press and hold Start/Cancel for more than 3 seconds, the machine will be in the standby state.
3. Press a new program button to select the desired program.
4. Press the Start/Cancel button, the dishwasher will start.

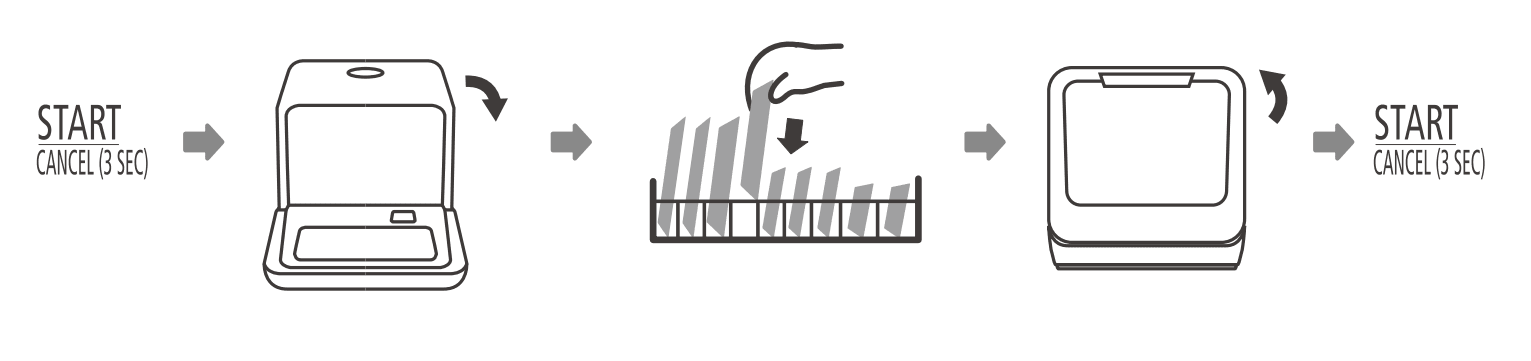

Forget to add a dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Cancel button OR open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door.
5. Press the Start/Cancel button after 10 seconds, and the dishwasher will run.

End Of Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply, and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid scald, the dishes and utensils are still hot and more susceptible to breakage. They will also dry better.

• Switch Off the Dishwasher
  1. Switch off the dishwasher by pressing the ON/OFF button.
  2. Turn off the water tap!
• Open the door carefully
  The dishes should be allowed to cool down for around 15 minutes before removing from the appliance. Open the dishwasher’s door, leave it ajar, and wait a few minutes before removing the dishes. In this way, they will be cooler and the drying will be improved.
• Unloading the dishwasher
  It is normal that the dishwasher is wet inside.

MAINTENANCE AND CLEANING

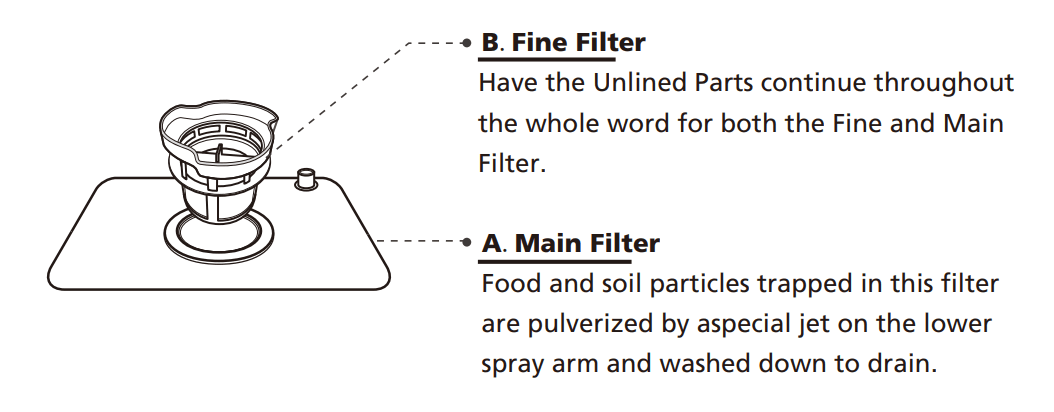

Filter System

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter assembly must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapping in the filter after each wash cycle by rinsing the filter and cup under running water. To remove the filter assembly, pull the cup handle in the upward direction.

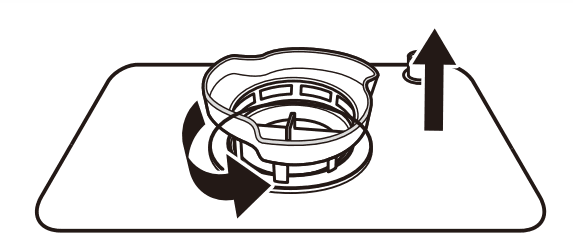

• Step 1: Turn the filter assembly clockwise, then lift it up.
• Step 2: Lift the fine filter up and separate it from the main filter.
• Inspect the filters for blockages after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Dishwasher Maintenance

After Every Wash
After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.
Remove The Plug
Before cleaning or performing maintenance, always remove the plug from the socket.
Cleaning Best Practices
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of th e interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.
When Left Unused
It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply, and leave the door of the appliance lightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

INSTALLATION

Water Connection

Connect the hot water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance. Please Note: If the supplied hose does not fit your tap, please contact your local plumbing supply center where adapters are available for purchase.

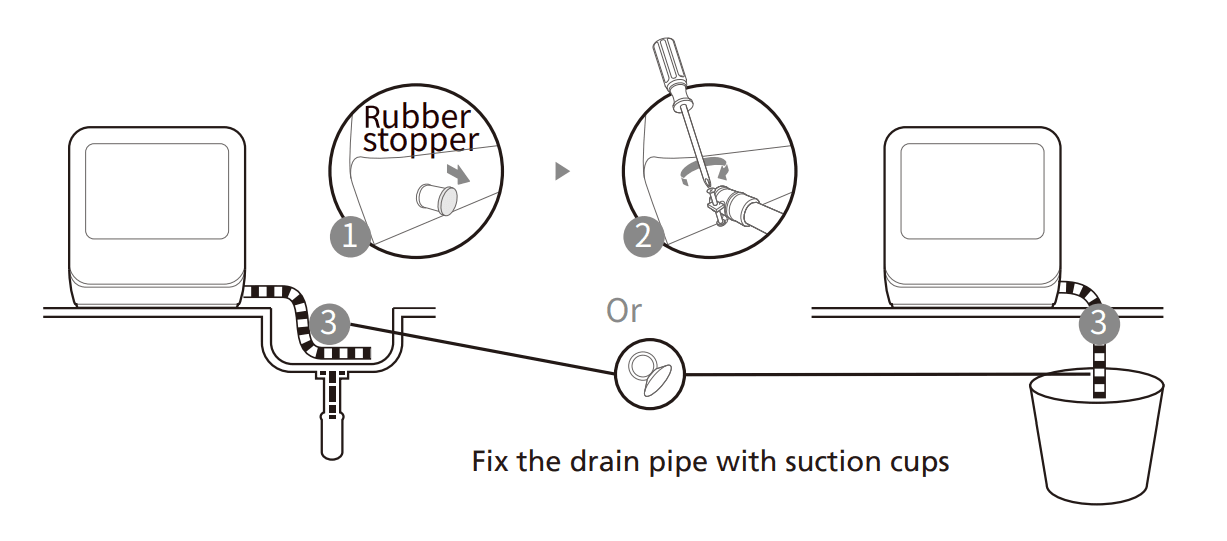

Connection of drain hoses

The connection of the drain pipe: Put the end of the drain into a sink or bucket.

How to Drain Excess Water From Hoses

If the sink is more than 39 1/4″ (1000mm) higher than the floor, the excess water in the hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 13″, otherwise the cleaning effect of the dishwasher could be reduced.

TROUBLESHOOTING TIPS

Before calling for service

Reviewing the charts on the following pages may save you from calling for service.

Error code

When some malfunctions come on, the appliance will display error codes to warn you:

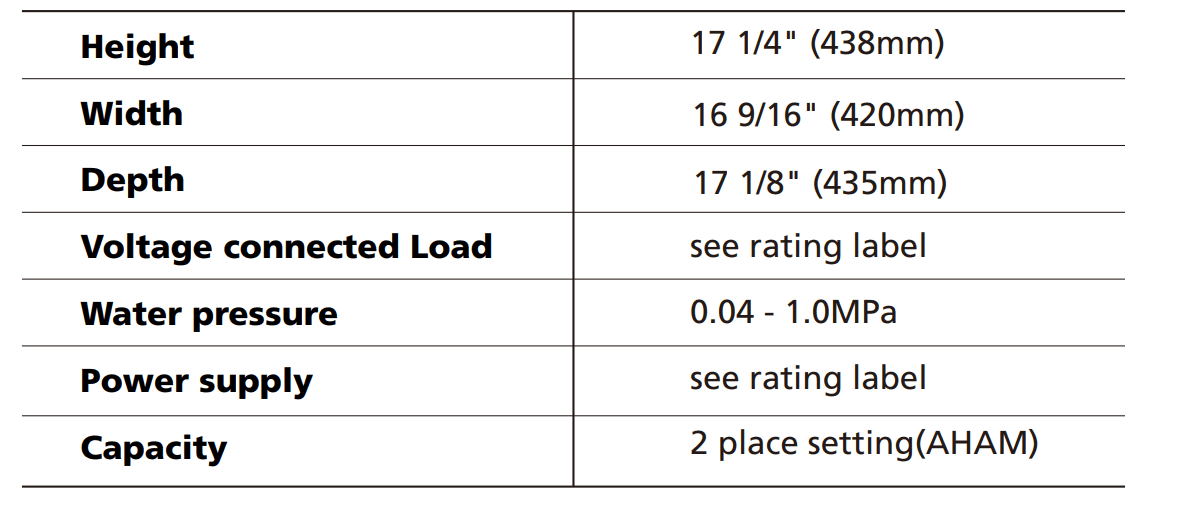

Technical Information

1 Year Limited Warranty

This is the only express warranty for the product and in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one year from the date of original purchase. During this period, your exclusive remedy is repair of replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning the product or component under this warranty to you. If the product or component is no longer available, we will replace it with a similar one equal or greater value.

This warranty does not cover wear from normal use, and operation doesn’t conformity with the instruction manual, or damages to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser, or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for anything other than single-family household use or is subjected to any voltage and waveform other than as specified on the label. We exclude all claims for special, incidental, and consequential damages by breach of express of implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental consequential damages, so the foregoing limitations may not apply to you.

Customer Service Phone: 1-866-646-4332
