CRUX x Marshmello 3 QT Digital Air Fryer User Manual

CRUX x Marshmello 3 QT Digital Air Fryer

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING

READ ALL INSTRUCTIONS.
Do not touch hot surfaces. Use handles or knobs. Use oven mitts or potholders.
To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Bring it to a qualified technician for examination, repair, or electrical or mechanical adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
Do not let the cord hang over the edge of the table or counter or touch hot surfaces.
Do not place on or near a hot gas or electric burner or in a heated oven.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
Do not use the appliance for anything other than its intended use.
Make sure the crisping tray is in place before adding food to be air-fried.

WARNING: The Air Fryer will not operate unless the frying basket is fully closed.

CAUTION: After hot air frying, extreme caution must be used when handling the hot frying basket, crisping tray, and cooked foods.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

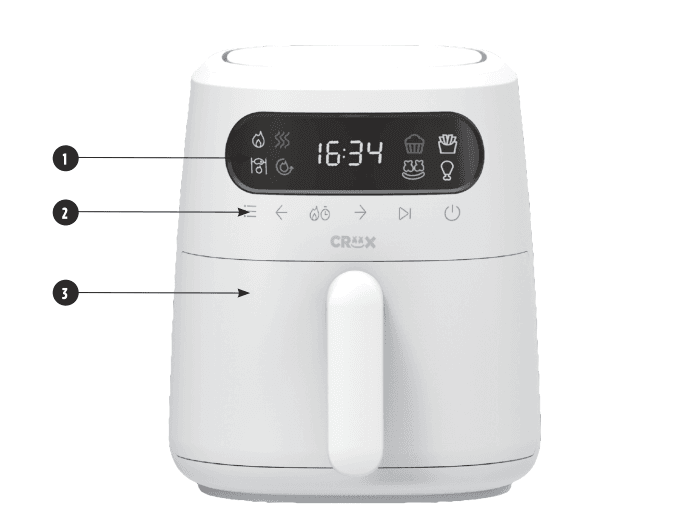

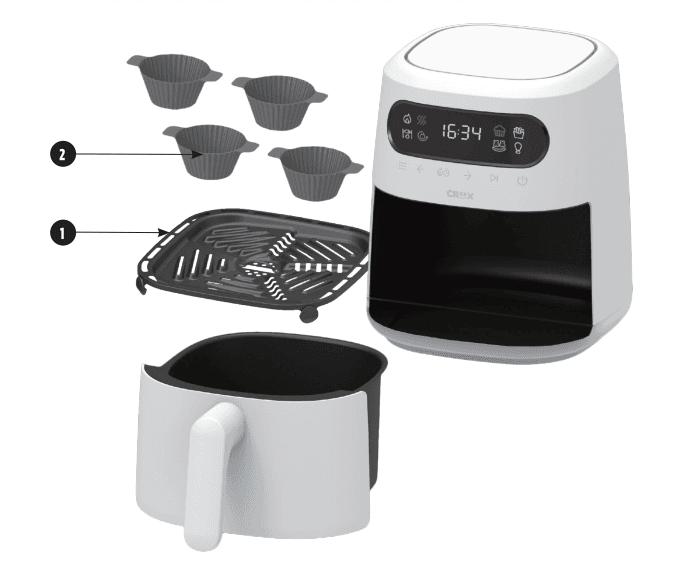

GETTING TO KNOW YOUR CRUX MARSHMELLO 30T AIR FRYER

The product may vary slightly from the illustration

Digital Color Screen
Digital Touch Control (not shown)
3QT Removable Air Fryer Basket
Power Cord with Polarized Plug
Non-Skid Feet (not shown)

Non-Stick TurboCrisp™ Tray
Silicone Cupcake Molds

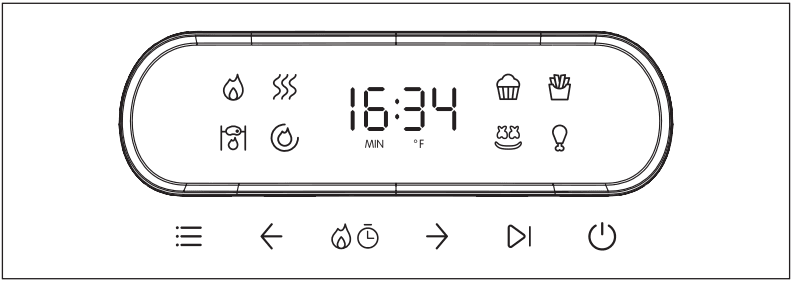

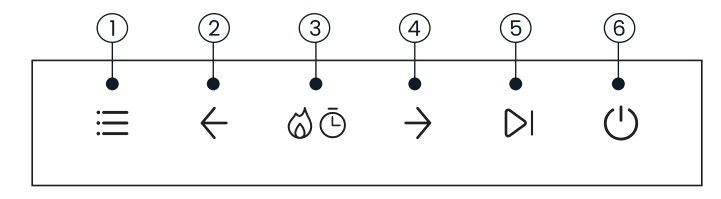

TOUCH CONTROL

PRESET MENU SELECTOR
TIME OR TEMPERATURE (DECREASE)
TIME/ TEMPERATURE SELECTOR
TIME OR TEMPERATURE (INCREASE)
START/ PAUSE
POWER ON/ OFF

ON / OFF

When the Air Fryer is plugged in, a tone will sound, and the control panel will illuminate, then darken.
When ” ” is pressed, a tone will sound, and the control panel will illuminate and remain active for 5 minutes.
When in operation, press ” ” to turn the whole unit off.

TEMP / TIME

Press TEMP → and < to increase or reduce cooking temperature in 5-degree increments.
Press TIME → and ‹ to increase or decrease time in 1-minute increments.

BEFORE USING FOR THE FIRST TIME

Remove all packing material and labels from the inside and outside of the Air Fryer. Check that there is no packaging underneath and around each of the fryer baskets and the TurboCrisp™ tray.

Your Air Fryer is shipped with 1 TurboCrisp™ tray.
Firmly grasp the fryer basket handle to pull the fryer basket out of the main body.
Grasp the tray handle and lift to remove from the basket.
Wash the fryer basket and TurboCrisp™ tray in hot, soapy water.
DO NOT IMMERSE THE AIR FRYER BODY IN WATER. Wipe the Air Fryer body with a damp cloth. Dry all parts thoroughly.
Replace the TurboCrisp™ tray into the fryer basket. With the handle facing up, insert the tray so that the rubber corners fit and lock comfortably.
Due to the base unit’s gracious front curve, the air fryer basket must be properly inserted.

NOTE: During first use, the Air Fryer may emit a slight odor. This is normal and will not affect flavor.

OPERATING INSTRUCTIONS

IMPORTANT! The maximum food capacity recommended for the Air Fryer basket 3 quarts or 2.5 lbs. of food. Using the full basket will enable you to feed up to 4 people.

WARNING! THIS AIR FRYER SHOULD NOT BE USED TO BOIL WATER.

WARNING! THIS AIR FRYER SHOULD NEVER BE USED TO DEEP-FRY FOODS.

Place the Air Fryer on a flat, stable, heat-resistant work area, close to an electrical outlet.
If needed, add TurboCrisp™ tray. See “Before Using for the First Time” for a detailed description.
Place food into the fryer basket. Do not overfill. To ensure proper cooking nd air circulation, NEVER fill any fryer basket more than 2/3 full.
Insert the assembled fryer basket into the front of the Air Fryer. Always make sure the fryer basket is fully inserted and fully closed before operating.

MENU SELECTIONS: CUPCAKE, FRENCH FRIES, AIR FRY, REHEAT, ROAST, CHICKEN WINGS, BAKE, MEMORY

HINT: Once you program the Memory function, it will save and store this time and temperature in the air fryer’s memory for future use. It can be re-programmed at any time and will remember your last setting.

OPERATING INSTRUCTIONS

Plug cord in the wall outlet. An audible tone will sound, and the control panel will light up and then turn off.
Press ” “, and the screen will light up all icons while the LCD displays “—“.
Select the menu button to choose one of the preset cooking features on the air fryer. Pressing the menu button will scroll through all 8 presets. NOTE: At whatever preset selected, you may still adjust the time and temperature at any point before and during operation.
Place your food in the air fryer basket. Press ” ” the unit will begin working. The LCD screen will alternate between remaining time and cooking temperature. NOTE: At any time during operation, you can adjust the time or temperature by pressing the time/temperature button and then the arrows to increase or decrease the time or temperature.
Pressing ” ” will pause the cooking. Pressing it again will restart the cooking.
Press the” ” button, and the unit will stop and return to standby mode.

AIR FRY TECHNIQUE

Please consult the Air Fry / Roast Cooking Chart and/or follow package directions for suggested TIME and TEMP.

Always pat food dry before cooking to encourage browning and avoid excess smoke.
To ensure even cooking/browning, ALWAYS open the active basket halfway through the cook time and check, turn, or shake foods in the fryer basket. Some recipes may call to brush or spray oil halfway through cooking. Adjust TEMP or TIME if needed.
- WARNING: Extreme caution must be used when handling any hot fryer basket or TurboCrisp™ tray. Avoid escaping steam from the fryer basket and the food.
- CAUTION: Always use oven mitts when handling the hot air fryer basket.
- CAUTION: Hot oil can collect at the base of the basket. Use caution when removing cooking foods.
To avoid excess smoke when cooking naturally high-fat foods, such as bacon, chicken wings, or sausages, it may be necessary to empty fat from the fryer basket between batches.
To ensure crispiness, make sure the skin or exterior surface of your food is dry! Air fry small batches of freshly breaded foods. Create more surface area by cutting food into smaller pieces. Press breading onto food to help it adhere. Refrigerate breaded foods for at least 30.
To improve crispiness, dust poultry skin or exterior surface lightly with corn starch. Spray with oil.
Arrange breaded food in fryer basket so that food is not touching to allow air flow on all surfaces.
Spray oils work best. Oil is distributed evenly, and less oil is needed. Canola, olive, avocado, coconut, grapeseed, peanut, or vegetable oil work well.
Shake air-fried foods out onto the serving area. Promptly insert any fryer basket into the Air Fryer body and lock into place. Continue air frying subsequent batches, if any.
Press REHEAT to air fry food for 6 minutes at 250 °F. Simply pull out the active basket to interrupt air frying at any time to check on the food’s serving temperature. Repeat to extend cook time until food is heated to your liking.
Unplug the Air Fryer when not in use.

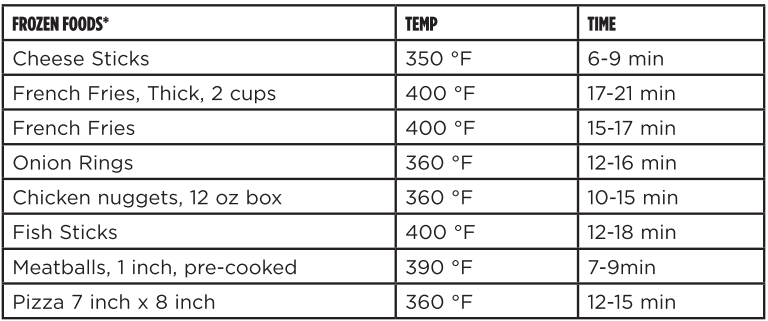

AIR FRYING PRE-PACKAGED FROZEN FOODS

As a rule, depending on the food and amount to be cooked, the suggested cook posted cook TIMES may have to be reduced slightly. Always check food halfway through cooking time to determine final cook TIME and TEMP.
Always check cooking progress after the TIME has expired.

HINTS FOR ROAST

IMPORTANT! Consult the USDA Cooking Guidelines section of this instruction manual before cooking begins. Always test meat using an accurate cooking thermometer.

A meat thermometer inserted into the center of the meat should always be used to ensure the desired doneness.
Cook meats to 5 to 10 degrees below desired doneness (internal temperature). Allow the meat to stand 15 to 20 minutes before serving. The temperature will continue to rise while standing.
ROAST large, tender cuts of meat and poultry. Seasoning prior to cooking adds to the flavor and the aroma during cooking.
A layer of fat on the top of the roast promotes better browning and provides natural basting.
To speed up browning, brush lean cuts of meat, chicken, and fish with oil, margarine, or melted butter.
Place meat (fat side up) and turn over halfway through ROAST time.

IMPORTANT: Turn and check food halfway through ROAST time.

HINTS FOR BAKE

When using BAKE, you may need to lower the bake recipe temperature by 50 °F to a minimum of 300 °F.
Check the package directions to determine if the container is suitable for use in an Air Fryer.

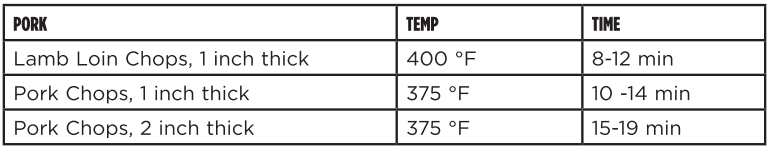

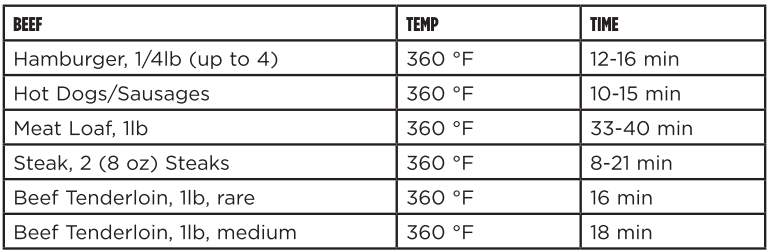

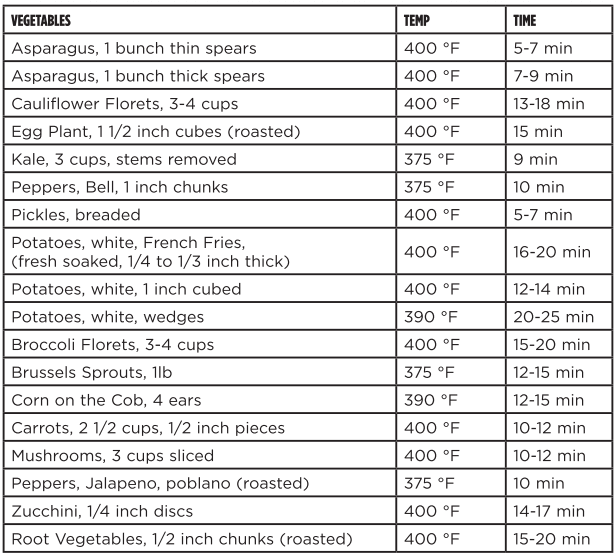

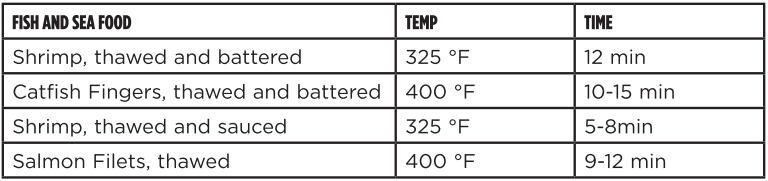

AIR FRY / ROAST COOKING CHART

Times are estimated and based on average sizes and weights.

ALWAYS USE A MEAT THERMOMETER TO ENSURE THAT MEAT, POULTRY, AND FISH ARE COOKED THOROUGHLY BEFORE SERVING.

NOTE: Frying smaller batches will result in shorter cooking times and higher food quality. Adjust the air frying temperature and TIME as necessary to suit your taste.

NOTE: Unless food is pre-packaged and pre-oiled, for browned and crispy results, all foods should be lightly oiled before air frying.

All items are to be air-fried from frozen (do not thaw).

USDA COOKING GUIDELINES

The USDA recommends that meats such as beef and lamb etc. should be cooked to an internal temperature of 145 °F/63 °C. Pork should be cooked to an internal temperature of 160 °F/71 °C, and poultry products should be cooked to an internal temperature of 170 °F/77 °C to 180 °F/82 °C to be sure any harmful bacteria has been killed. When reheating meat/poultry products, they should also be cooked to an internal temperature of 165 °F/74 °C.

USER MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance. It contains no user-serviceable parts. Any servicing requiring disassembly other than cleaning must be performed by a qualified appliance repair technician.

CARE & CLEANING INSTRUCTIONS

WARNING! ALLOW THE AIR FRYER TO COOL FULLY BEFORE CLEANING.

Unplug the air fryer. Remove the fryer basket from the Air Fryer body. Make sure both the fryer basket and the TurboCrisp™ tray have cooled completely before cleaning.
Wash the air fryer basket and TurboCrisp™ tray in hot, soapy water. Do not use metal kitchen utensils or abrasive cleansers or cleaning products, as this may damage the non-stick coating.
The air fryer basket and TurboCrisp™ tray are dishwasher-safe. For best results, place in the top rack of your dishwasher to clean.
Wipe the Air Fryer body with a soft, non-abrasive damp cloth to clean it.

STORING INSTRUCTIONS

Make sure the Air Fryer is unplugged and all parts are clean and dry before storing.
Never store the Air Fryer while it is hot or wet.
Insert the clean TurboCrisp™ tray into the fryer basket and store it inside the air fryer body.
Store the Air Fryer in its box or in a clean, dry place.

LIMITED TWO-YEAR WARRANTY

SENSIO Inc. hereby warrants that for a period of TWO YEARS from the date of purchase, this product will be free from mechanical defects in material and workmanship and for 90 days in respect to non-mechanical parts. At its sole discretion, SENSIO Inc. will either repair or replace the product found to be defective or issue a refund on the product during the warranty period.

The warranty is only valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt, as proof of purchase is required to obtain warranty validation. Retail stores selling this product do not have the right to alter, modify, or in any way revise the terms and conditions of the warranty.

EXCLUSIONS

The warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use of the product, use of improper voltage or current, improper routine maintenance, use contrary to the operating instructions, disassembly, repair, or alteration by anyone other than qualified SENSIO Inc. personnel. Also, the warranty does not cover Acts of God such as fire, floods, hurricanes, or tornadoes.

SENSIO Inc. shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Apart from the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in time to the duration of the warranty.

Some states, provinces, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, and therefore, the above exclusions or limitations may not apply to you. The warranty covers specific legal rights, which may vary by state, province, and/or jurisdiction.

HOW TO OBTAIN WARRANTY SERVICE

You must contact Customer Service at our toll-free number: 1-866-832-4843. A Customer Service Representative will attempt to resolve warranty issues over the phone. If the Customer Service Representative is unable to resolve the problem, you will be provided with a case number and asked to return the product to SENSIO Inc.

Attach a tag to the product that includes your name, address, daytime contact telephone number, case number, and description of the problem. Also, include a copy of the original sales receipt. Carefully package the tagged product with the sales receipt, and send it (with shipping and insurance prepaid) to SENSIO Inc.’s address. SENSIO Inc. shall bear no responsibility or liability for the returned product while in transit to SENSIO Inc.’s Customer Service Center.

For customer service, call 1-866-832-4843 or email help@cruxkitchen.com.

For recipes, visit www.cruxkitchen.com. SENSIO Inc. New York, NY

10016/USA 17498/17499/17539/17540 V9
